Summary of Contents for Elation FUZE WASH 575

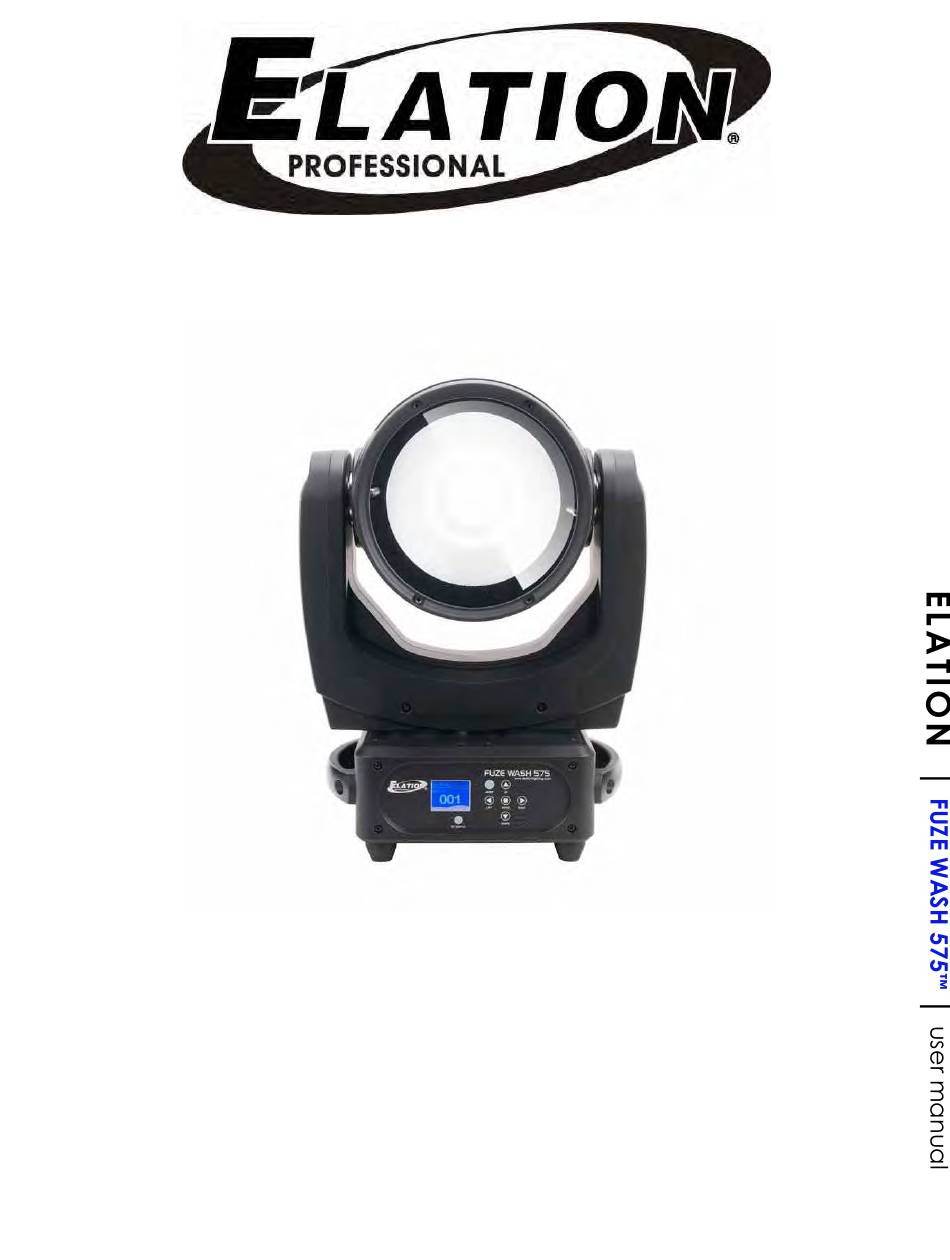

- Page 1 FUZE WASH 575™ user manual...
- Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com Elation Professional B.V.
-
Page 3: Table Of Contents
C O N T E N T S General Information Warranty Safety Instructions and Guidelines Overview Installation Optional Snoot Installation Fixture Menu DMX Channel Functions And Values Error Codes Cleaning and Maintenance Technical Specifications Optional Accessories FUZE WASH 575™ User Manual... -
Page 4: General Information
Please do not discard the shipping carton in the trash. Please recycle whenever possible. BOX CONTENTS (1) Omega Bracket (1) power Cable FUZE WASH 575™ User Manual... - Page 5 You may also visit us on the web at www.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST...
-
Page 6: Warranty
No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof. -
Page 7: Safety Instructions And Guidelines
INDOOR / DRY LOCATIONS USE ONLY! DO NOT EXPOSE FIXTURE TO RAIN AND MOISTURE! NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE! RETINA INJURY RISK - MAY INDUCE BLINDNESS! SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK! FUZE WASH 575™ User Manual... - Page 8 Consistent operational breaks will ensure the fixture will function properly for many years to come. Use the original packaging and materials to transport the fixture in for service. FUZE WASH 575™ User Manual...
-
Page 9: Overview
. e l a t i o n l i g h t i n g . c o m O V E R V I E W 1. LCD Menu Display 2. MODE, UP, DOWN, LEFT, RIGHT, ENTER, DC Switch Buttons 3. power IN/OUT, Fuse 4. 5pin DMX IN/OUT FUZE WASH 575™ User Manual... -
Page 10: Installation
Max number of FUZE WASH 575™ units power linked together: 4 units @120V | 8 units @240V NOTE: USE CAUTION WHEN POWER LINKING OTHER FIXTURES TO FUZE WASH 575™! POWER CONSUMPTION OF OTHER LIGHTING FIXTURES WILL VARY! DO NOT EXCEED THE MAX AMP OUT RATING PRINTED ON THE CONNECTION PANEL! - Page 11 S A F E T Y C A B L E ALWAYS ATTACH A SAFETY CABLE TO THE FIXTURE WHENEVER INSTALLING IN A SUSPENDED ENVIRONMENT TO ENSURE THE FIXTURE WILL NOT DROP IF CLAMP FAILS. FUZE WASH 575™ User Manual...
- Page 12 S A F E T Y C A B L E ALWAYS ATTACH A SAFETY CABLE TO THE FIXTURE WHENEVER INSTALLING IN A SUSPENDED ENVIRONMENT TO ENSURE THE FIXTURE WILL NOT DROP IF CLAMP FAILS. FUZE WASH 575™ User Manual...
-
Page 13: Optional Snoot Installation
1. Place fixture on a flat surface and make sure it’s powered OFF. 2. Insert Snoot into fixture head and secure using screws provided. (See image below) Make sure not to over tighten screws to prevent any issues. FUZE WASH 575™ User Manual... -
Page 14: Fixture Menu
(4) button Control Panel will be LOCKED. To unlock the (4) button LCD control panel, press and hold the MODE button. INFORMATION DISPLAYED DURING INITIAL POWER ON When the fixture is initially powered ON, the display shows the following information: Software Motor Update Reset FUZE WASH 575™ User Manual... - Page 15 Error Record 1 ~ Error Record 10 Display 10 Recent Error Messages Model. Info Fuze Wash 575 Display Model Name 1U01: V1.02 Software Versions Software Version (≥) 2U01: V1.02 (Greater than or Equal to) 3U01: V1.02 FUZE WASH 575™ User Manual...
- Page 16 (8), and then set Channel 3 to a value of (164). (256+164=420) 5. After setting Channel 3 to the desired DMX address value, wait for approximately 20 seconds for the fixture to complete the address reset function. FUZE WASH 575™ User Manual...
- Page 17 Because calibration is an extremely delicate procedure, instructions on performing this action are left out of this manual. For a first time calibrator, please contact our customer support team for step-by-step instructions. FUZE WASH 575™ User Manual...
-
Page 18: Dmx Channel Functions And Values
DIMMING CURVE MODES 0-20 STANDARD [20] 21-40 STAGE 41-60 61-80 ARCHITECTURAL 81-100 THEATRE 101-255 Default to Unit Setting PAN / TILT MOVEMENT SPEED 0-225 MAX to MIN SPEED [0] 226-235 Blackout By Movement 236-255 NO FUNCTION FUZE WASH 575™ User Manual... - Page 19 5. Depending on User Mode selected, set channel 9 or 11 to a DMX value of 100-119, to confirm the desired look/scene is correct. If not, repeat steps 1-4 again. NOTE: Each time you save a new Auto Scene, it will over write the previously saved Auto Scene. FUZE WASH 575™ User Manual...
-
Page 20: Error Codes
(sensor failed or magnet is missing) or there is a motor ZOOM Er failure (defective motor or a defective motor IC drive on the main PCB). This error may also be displayed if the head/yoke was blocked during a reset function. FUZE WASH 575™ User Manual... -
Page 21: Cleaning And Maintenance
Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer. -
Page 22: Technical Specifications
5°F to 113°F (-15°C to 45°C) APPROVALS / RATINGS CE | IP30 Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. FUZE WASH 575™ User Manual... - Page 23 . e l a t i o n l i g h t i n g . c o m DIMENSIONAL DRAWINGS Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. FUZE WASH 575™ User Manual...
- Page 24 . e l a t i o n l i g h t i n g . c o m DIMENSIONAL DRAWINGS - Optional Snoot Installed Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. FUZE WASH 575™ User Manual...
-
Page 25: Optional Accessories
ORDER CODE ITEM FW120SNOOT FUZE WASH 575 Snoot TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable NEU088 3 ft. (1m) Power Cable Additional Cable Lengths Available FUZE WASH 575™ User Manual...
