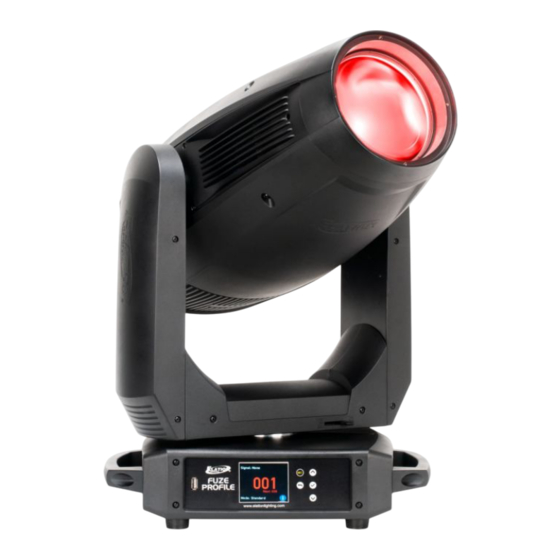

Elation FUZE PROFILE FUZ495 Manual

Hide thumbs Also See for FUZE PROFILE FUZ495:

Advertisement

Quick Links

Download this manual
FUZE PROFILE™
Photometric Test Report

Advertisement

loading
Need help?

Need help?

Do you have a question about the FUZE PROFILE FUZ495 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elation FUZE PROFILE FUZ495

Summary of Contents for Elation FUZE PROFILE FUZ495

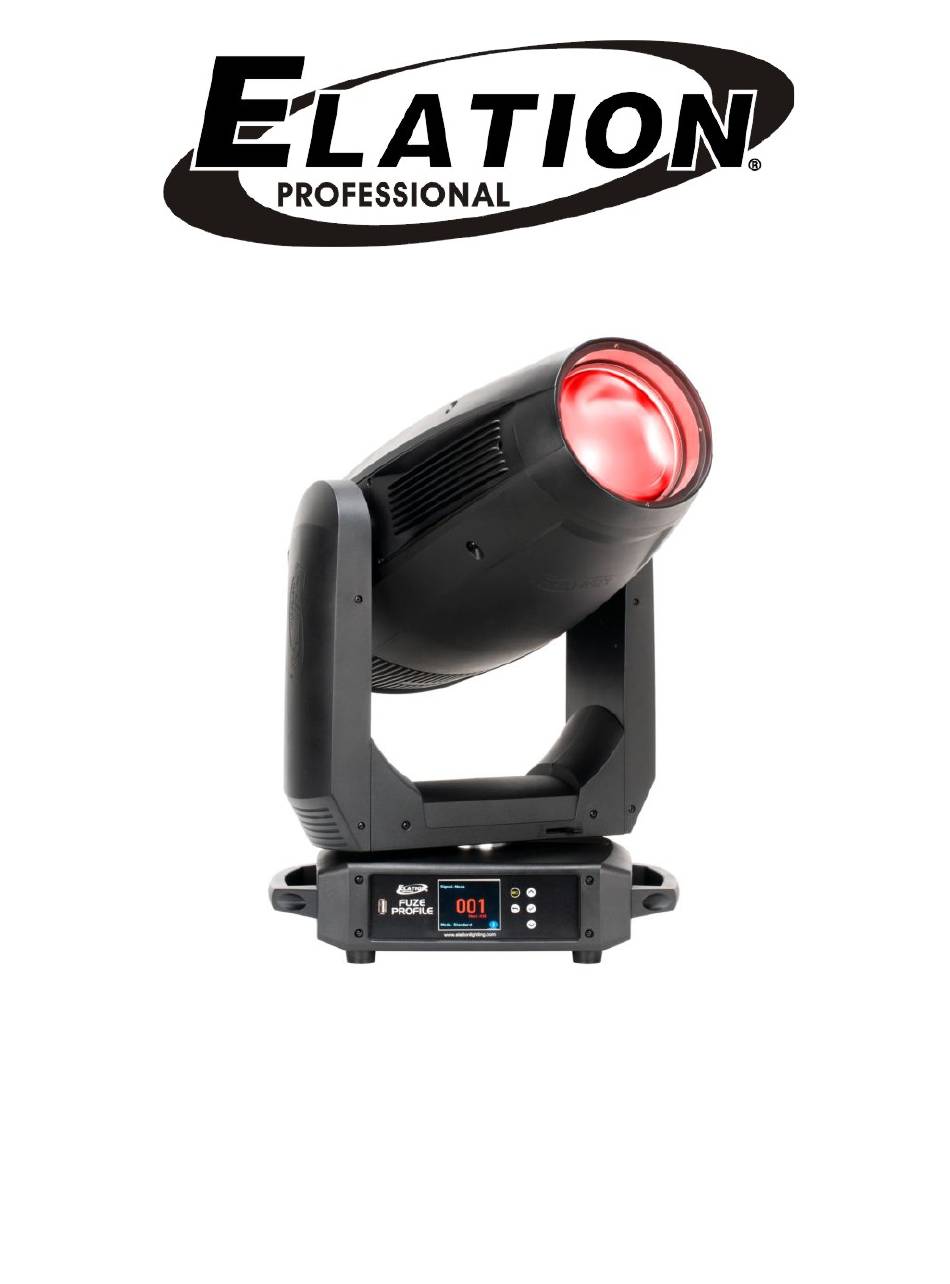

  • Page 1 FUZE PROFILE™ Photometric Test Report...
  • Page 2 Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070...
  • Page 3 C O N T E N T S Testing Process Zoom IN Zoom 50% Zoom OUT 3,200K  ...

  • Page 4: T E S T I N G P R O C E S S

    TM30 or CQS as well as accurate color temperature. This wealth of data is then processed by an Elation specific template which is included in the photometric test report for various fixture conditions such as zoom angles and color correction filters.
  • Page 5 Fuze Spot-Profile Zoom In Photometric Report Beam Angle Field Angle Cutoff Angle Total Lumen Output 2.5% Integrating Sphere 6947 lm 7.5° 8.6° 9.1° VISO Lab Spion 5813 lm Color Temperature: 6605 K CRI: 91.1 TLCI: 93 TM30: 88.2 CQS: 91.7 Voltage: 116 V, Current: 3.39 A Power: 393 W Efficacy: 15 Lumen/Watt...
  • Page 6 Fuze Spot-Profile Zoom In Beam Details Beam Angle 50% Field Angle 10% Cutoff Angle 2,5% 7.5° 8.6° 9.1° Distance (m) 16.4 32.8 49.2 65.6 Distance (ft) 1132 lx 2012 lx 4527 lx 18110 lx 452739 lx 7.5° Foot Candles 42061 fcd 1682 fcd 421 fcd 187 fcd...
  • Page 7 Fuze Spot-Profile Zoom In Color Details 6605 K Δuv: 0.0050 x: 0.310 y: 0.336 CIE 1931 ZOOM CIE 1931 TM30: 88.2 CRI: 91.1 (R1-R8) CQS: 91.7 CRI R values, only R1-R8 are used to calculate final CRI value 93.5 89.8 85.6 91.3 92.0...
  • Page 8 Fuze Spot-Profile Zoom In TM30 Details Approx. limits for sources Graphic shifts (%) on the Planckian locus. Hue Bin Chroma Approx. limits for Rf 88.2 practical light sources. Fidelity Index Rf Rg 100.9 Gamut Index Rg -10% Color vector graphics Hue Bin Color distortion graphics 3% 2%...
  • Page 9 Fuze Spot-Profile Zoom In ISO Diagrams ISO Candela Diagram 90° 45274 cd 75° 90548 cd 135822 cd 60° 181096 cd 45° 226370 cd 271643 cd 30° 316917 cd 15° 362191 cd 407465 cd 0° -15° Conditions: Number of c-planes: 2 -30°...
  • Page 10 Fuze Spot-Profile Zoom 50% Photometric Report Beam Angle Field Angle Cutoff Angle Total Lumen Output 2.5% Integrating Sphere 10119 lm 17.6° 20.5° 21.6° VISO Lab Spion 8740 lm Color Temperature: 6630 K CRI: 90.6 TLCI: 93 TM30: 87.8 CQS: 91.3 Voltage: 116 V, Current: 3.39 A Power: 393 W Efficacy: 22 Lumen/Watt...
  • Page 11 Fuze Spot-Profile Zoom 50% Beam Details Beam Angle 50% Field Angle 10% Cutoff Angle 2,5% 17.6° 20.5° 21.6° Distance (m) 16.4 32.8 49.2 65.6 Distance (ft) 301 lx 535 lx 1205 lx 4819 lx 120463 lx 17.6° Foot Candles 11191 fcd 448 fcd 112 fcd 50 fcd...
  • Page 12 Fuze Spot-Profile Zoom 50% Color Details 6630 K Δuv: 0.0058 x: 0.309 y: 0.337 CIE 1931 ZOOM CIE 1931 TM30: 87.8 CRI: 90.6 (R1-R8) CQS: 91.3 CRI R values, only R1-R8 are used to calculate final CRI value 92.0 89.2 86.0 91.1 90.6...
  • Page 13 Fuze Spot-Profile Zoom 50% TM30 Details Approx. limits for sources Graphic shifts (%) on the Planckian locus. Hue Bin Chroma Approx. limits for Rf 87.8 practical light sources. Fidelity Index Rf Rg 100.8 Gamut Index Rg Color vector graphics Hue Bin Color distortion graphics 2% 1% -2% -2% -2% -1% -2%...
  • Page 14 Fuze Spot-Profile Zoom 50% ISO Diagrams ISO Candela Diagram 90° 12046 cd 75° 24093 cd 36139 cd 60° 48185 cd 45° 60231 cd 72278 cd 30° 84324 cd 15° 96370 cd 108417 cd 0° -15° Conditions: Number of c-planes: 2 -30°...
  • Page 15 Fuze Spot-Profile Zoom Out Photometric Report Beam Angle Field Angle Cutoff Angle Total Lumen Output 2.5% Integrating Sphere 9709 lm 39.9° 44.2° 46° VISO Lab Spion 8754 lm Color Temperature: 6627 K CRI: 90.4 TLCI: 93 TM30: 87.8 CQS: 91.2 Voltage: 116 V, Current: 3.39 A Power: 393 W Efficacy: 22 Lumen/Watt...
  • Page 16 Fuze Spot-Profile Zoom Out Beam Details Beam Angle 50% Field Angle 10% Cutoff Angle 2,5% 39.9° 44.2° 46° Distance (m) 16.4 32.8 49.2 65.6 Distance (ft) 61 lx 108 lx 242 lx 969 lx 24228 lx 39.9° Foot Candles 2251 fcd 90 fcd 23 fcd 10 fcd...
  • Page 17 Fuze Spot-Profile Zoom Out Color Details 6627 K Δuv: 0.0058 x: 0.309 y: 0.337 CIE 1931 ZOOM CIE 1931 TM30: 87.8 CRI: 90.4 (R1-R8) CQS: 91.2 CRI R values, only R1-R8 are used to calculate final CRI value 91.9 89.1 85.9 91.0 90.5...
  • Page 18 Fuze Spot-Profile Zoom Out TM30 Details Approx. limits for sources Graphic shifts (%) on the Planckian locus. Hue Bin Chroma Approx. limits for Rf 87.8 practical light sources. Fidelity Index Rf Rg 100.8 Gamut Index Rg Color vector graphics Hue Bin Color distortion graphics 2% 2% -2% -2% -2% -1% -2%...
  • Page 19 Fuze Spot-Profile Zoom Out ISO Diagrams ISO Candela Diagram 90° 2423 cd 75° 4846 cd 7268 cd 60° 9691 cd 45° 12114 cd 14537 cd 30° 16959 cd 15° 19382 cd 21805 cd 0° -15° Conditions: Number of c-planes: 2 -30°...
  • Page 20 Fuze Spot-Profile 3200K Photometric Report Beam Angle Field Angle Cutoff Angle Total Lumen Output 2.5% Integrating Sphere 5286 lm 17.6° 21° 21.9° VISO Lab Spion 4656 lm Color Temperature: 3217 K CRI: 94.9 TLCI: 88 TM30: 91.2 CQS: 92.6 Voltage: 116 V, Current: 3.39 A Power: 393 W Efficacy: 12 Lumen/Watt Measurement Date: 7/23/2019...
  • Page 21 Fuze Spot-Profile 3200K Beam Details Beam Angle 50% Field Angle 10% Cutoff Angle 2,5% 17.6° 21° 21.9° Distance (m) 16.4 32.8 49.2 65.6 Distance (ft) 161 lx 286 lx 643 lx 2572 lx 64302 lx 17.6° Foot Candles 5974 fcd 239 fcd 60 fcd 27 fcd...
  • Page 22 Fuze Spot-Profile 3200K Color Details 3217 K Δuv: 0.0001 x: 0.422 y: 0.399 CIE 1931 ZOOM CIE 1931 TM30: 91.2 CRI: 94.9 (R1-R8) CQS: 92.6 CRI R values, only R1-R8 are used to calculate final CRI value 98.0 95.2 89.1 94.9 96.8 93.2...
  • Page 23 Fuze Spot-Profile 3200K TM30 Details Approx. limits for sources Graphic shifts (%) on the Planckian locus. Hue Bin Chroma Approx. limits for Rf 91.2 practical light sources. Fidelity Index Rf Rg 103.9 Gamut Index Rg -10% Color vector graphics Hue Bin Color distortion graphics 3% 4% 1% 2%...
  • Page 24 Fuze Spot-Profile 3200K ISO Diagrams ISO Candela Diagram 90° 6430 cd 75° 12860 cd 19291 cd 60° 25721 cd 45° 32151 cd 38581 cd 30° 45011 cd 15° 51442 cd 57872 cd 0° -15° Conditions: Number of c-planes: 2 -30° Candela at center: 64302 cd -45°...
