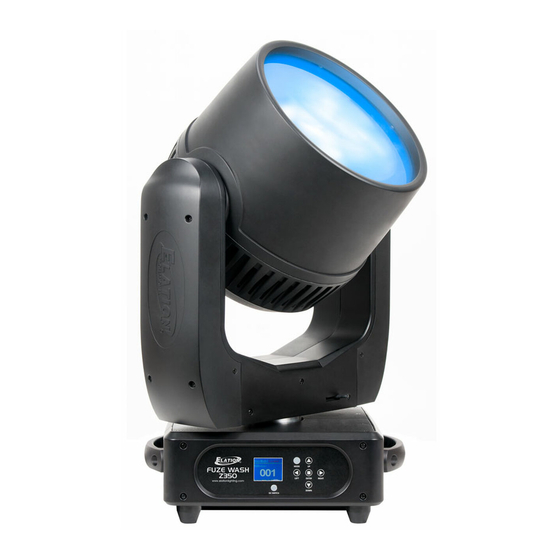

FUZE WASH Z350™
user manual



Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FUZE WASH Z350 and is the answer not in the manual?

Questions and answers

Related Manuals for Elation FUZE WASH Z350

Summary of Contents for Elation FUZE WASH Z350

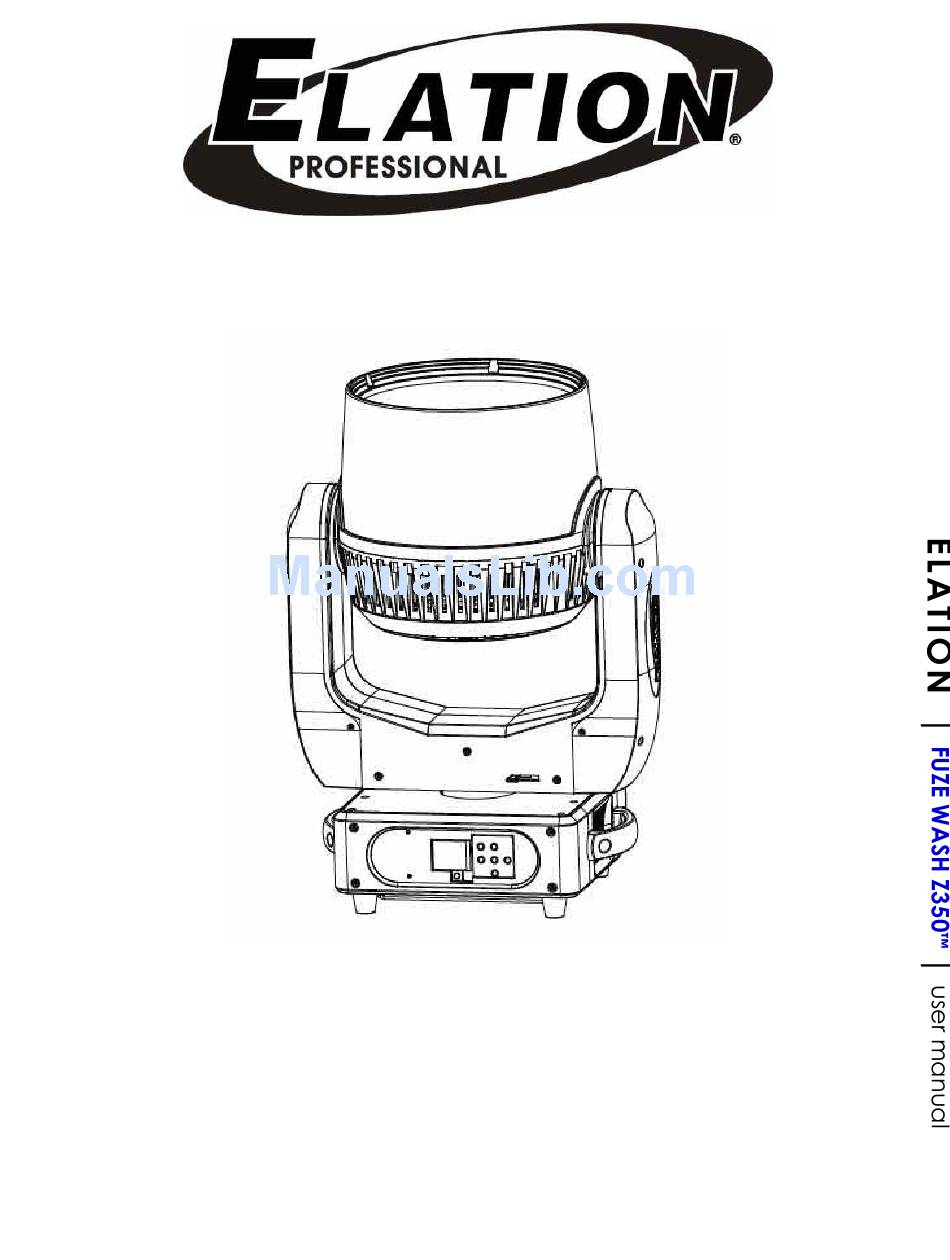

  • Page 1 FUZE WASH Z350™ user manual    ...
  • Page 2 Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040 323-582-3322 | 323-832-9142 fax | www.elationlighting.com | info@elationlighting.com Elation Professional B.V.

  • Page 3: Table Of Contents

    C O N T E N T S General Information Warranty Safety Instructions and Guidelines Overview Installation Optional Snoot Installation System Menu DMX Channel Functions And Values Error Codes Cleaning and Maintenance Technical Specifications Optional Accessories FUZE WASH Z350™ User Manual...

  • Page 4: General Information

    Please do not discard the shipping carton in the trash. Please recycle whenever possible. BOX CONTENTS (2) Omega Brackets (1) powerCON Cable FUZE WASH Z350™ User Manual...
  • Page 5 You may also visit us on the web at www.elationlighting.com any comments or suggestions. For service related issue please contact Elation Professional®. ELATION SERVICE USA - Monday - Friday 8:00am to 5:00pm PST...

  • Page 6: Warranty

    No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional® shall have no liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof.

  • Page 7: Safety Instructions And Guidelines

    INDOOR / DRY LOCATIONS USE ONLY! DO NOT EXPOSE FIXTURE TO RAIN AND MOISTURE! NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE! RETINA INJURY RISK - MAY INDUCE BLINDNESS! SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK! FUZE WASH Z350™ User Manual...
  • Page 8 Consistent operational breaks will ensure the fixture will function properly for many years to come. Use the original packaging and materials to transport the fixture in for service. FUZE WASH Z350™ User Manual...

  • Page 9: Overview

    . e l a t i o n l i g h t i n g . c o m O V E R V I E W FUZE WASH Z350™ User Manual...

  • Page 10: Installation

    10 times the weight of the fixture. Fixture installation must always be secured with a secondary safety attachment, such as an appropriate safety cable. Never stand directly below the device when mounting, removing or servicing. FUZE WASH Z350™ User Manual...
  • Page 11 Insert the Omega Bracket into the matching holes on the bottom of the fixture. Secure the Omega Bracket to the fixture by turning each quick-lock fastener ¼ turn clockwise; making sure the fastener is completely locked. SAFETY CABLE RIGGING POINT FUZE WASH Z350™ User Manual...
  • Page 12 S A F E T Y C A B L E ALWAYS ATTACH A SAFETY CABLE TO THE FIXTURE WHENEVER INSTALLING IN A SUSPENDED ENVIRONMENT TO ENSURE THE FIXTURE WILL NOT DROP IF THE CLAMP FAILS. FUZE WASH Z350™ User Manual...

  • Page 13: Optional Snoot Installation

    Max number of FUZE WASH Z350 IP™ units power linked together: 3 units @120V | 6 units @240V NOTE: USE CAUTION WHEN POWER LINKING OTHER FIXTURES TO FUZE WASH Z350™! POWER CONSUMPTION OF OTHER LIGHTING FIXTURES WILL VARY! ALWAYS CHECK MAX AMP OUT RATING PRINTED ON THE REAR CONNECTION PANEL! O P T I O N A L S N O O T I N S T A L L A T I O N 1.

  • Page 14: System Menu

    OFF automatically about 1 minute from the last button press. INFORMATION DISPLAYED DURING INITIAL POWER ON When the fixture is initially powered ON, the display shows the following information: Software Update Motor Reset Please Wait... Please Wait... FUZE WASH Z350™ User Manual...
  • Page 15 XXX C° / F ° Error Info Error Record 1 ~ Error Record 10 Display 10 Recent Error Messages Model. Info Fuze Wash Z350 Display Model Name 1U01: ≥V1.05 Software Version 2U01: ≥V1.05 Software Versions 3U01: ≥V1.05 FUZE WASH Z350™ User Manual...
  • Page 16 (8), and then set Channel 3 to a value of (164). (256+164=420) 5. After setting Channel 3 to the desired DMX address value, wait for approximately 20 seconds for the fixture to complete the address reset function. FUZE WASH Z350™ User Manual...
  • Page 17 Because calibration is an extremely delicate procedure, instructions on performing this action are left out of this manual. For a first time calibrator, please contact our customer support team for step-by-step instructions. FUZE WASH Z350™ User Manual...

  • Page 18: Dmx Channel Functions And Values

    Pulse Effect in Sequences 160-223 Random Strobe Effect SLOW to FAST 224-255 LED ON 0-255 0 to 100% GREEN 0-255 0 to 100% BLUE 0-255 0 to 100% 0-255 0-100% SATURATION 0-255 0-100% INTENSITY 0-255 0-100% FUZE WASH Z350™ User Manual...
  • Page 19 COLOR PRESET 24 97-100 COLOR PRESET 25 101-104 COLOR PRESET 26 105-108 COLOR PRESET 27 109-112 COLOR PRESET 28 113-116 COLOR PRESET 29 117-120 COLOR PRESET 30 121-124 COLOR PRESET 31 125-128 COLOR PRESET 32 FUZE WASH Z350™ User Manual...
  • Page 20 COLOR PRESET 56 225-228 COLOR PRESET 57 229-232 COLOR PRESET 58 233-236 COLOR PRESET 59 237-240 COLOR PRESET 60 241-244 COLOR PRESET 61 245-248 COLOR PRESET 62 249-252 COLOR PRESET 63 253-255 COLOR PRESET 64 FUZE WASH Z350™ User Manual...
  • Page 21 Counter-Clockwise Movement FAST to SLOW 126-130 STOP 131-255 Clockwise Movement SLOW to FAST PROGRAM MACRO FADE 0-255 0-100% DIMMING CURVE MODES 0-20 STANDARD 21-40 STAGE 41-60 61-80 ARCHITECTURAL 81-100 THEATRE 101-255 Default to Unit Setting FUZE WASH Z350™ User Manual...
  • Page 22 Internal Program 1 (scene1~8) 120-139 Internal Program 2 (scene9~16) 140-159 Internal Program 3 (scene17~24) 160-179 Internal Program 4 (scene25~32) 180-199 Internal Program 5 (scene33~40) 200-219 Internal Program 6 (scene41~48) 220-239 Internal Program 7 (scene49~56) 240-255 NO FUNCTION FUZE WASH Z350™ User Manual...

  • Page 23: Error Codes

    (sensor failed or magnet is missing) or there is a motor PAN Er failure (defective motor or a defective motor IC drive on the main PCB). This error may also be displayed if the head/yoke was blocked during a reset function. FUZE WASH Z350™ User Manual...

  • Page 24: Cleaning And Maintenance

    Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer.

  • Page 25: Technical Specifications

    5F to 113°F (-15°C to 45°C) APPROVALS / RATINGS CE | IP30 Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. FUZE WASH Z350™ User Manual...

  • Page 26: Dimensional Drawings

    . e l a t i o n l i g h t i n g . c o m DIMENSIONAL DRAWINGS Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. FUZE WASH Z350™ User Manual...
  • Page 27 . e l a t i o n l i g h t i n g . c o m DIMENSIONAL DRAWINGS - Optional Snoot Installed Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. FUZE WASH Z350™ User Manual...

  • Page 28: Optional Accessories

    ITEM FW350SNOOT FUZE WASH Z350 Snoot TRIGGER CLAMP Heavy Duty Wrap Around Hook Style Clamp DRC350FUZE FUZE WASH Z350 Quad Road Case AC3PDMX5PRO 5 ft. (1.5m) 3pin PRO DMX Cable AC5PDMX5PRO 5 ft. (1.5m) 5pin PRO DMX Cable PLC3 3 ft. (1m) PowerCON PRO Link Cable Additional Cable Lengths Available FUZE WASH Z350™...
  • Page 29 . e l a t i o n l i g h t i n g . c o m ( b l a n k p a g e ) FUZE WASH Z350™ User Manual...
