Summary of Contents for Bartscher 101923

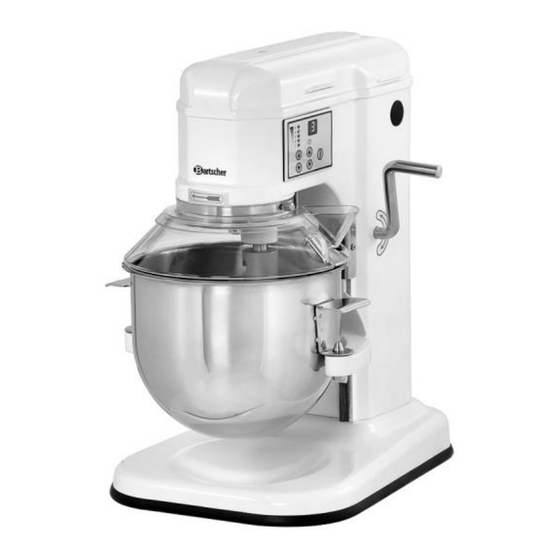

- Page 1 1,2kg/7L AS 101923...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 2.0 Date of preparation: 2023-04-24...
-
Page 3: Table Of Contents
Functions of the Appliance ..............11 Installation and operation ................11 Installation ....................11 Operation ....................12 Cleaning and Maintenance ................19 Safety Instructions for Cleaning ............. 19 Cleaning ....................19 Maintenance ..................20 Disposal ....................... 20 101923 1 / 20... -
Page 4: Safety
You must strictly follow the instructions, to prevent accidents, personal injuries and property damages. DANGER! The signal word DANGER warns against hazards that lead to severe injuries or death if the hazards are not avoided. 2 / 20 101923... -
Page 5: Safety Instructions
Do not transport the appliance, holding it by the power cord. • Do not allow the power cord to come into contact with heat sources or sharp edges. • Do not bend, pinch nor knot the power cord. 101923 3 / 20... - Page 6 Children should be supervised to ensure that they are not playing with or switching on the appliance. Supervised Usage only • Only supervised appliance may be used. • Always remain in an immediate vicinity of the appliance. 4 / 20 101923...
-
Page 7: Intended Use
An unintended use may lead to personal injuries or property damages caused by hazardous voltage, fire or high temperature. The appliance may only be used to perform tasks described in this instruction manual. The following is an unintended use: – Processing of inappropriate food products and other materials 101923 5 / 20... -
Page 8: General Information
Declaration of Conformity The appliance meets the currently applicable standards and guidelines of the European Union. We confirm the above in the EC Declaration of Conformity. We may provide relevant Declaration of Conformity upon request. 6 / 20 101923... -
Page 9: Transport, Packaging And Storage
– in a location protected against mechanical shocks. In the case of extended storage (over three months), make sure you check the condition of the packaging and the parts regularly. If needed, replace the packaging with a new one. 101923 7 / 20... -
Page 10: Technical Data
Technical Data Technical Data Technical Specifications Name: Planetary mixer 1,2kg/7L AS 101923 Art. No.: Material: steel, enameled Mixing bowl material: stainless steel Amount of dough production in kg/l: 1,2 / 7 Speed control: Time setting, from–to, in min.: 1 - 30 Time setting intervals, in min.:... -
Page 11: List Of Components Of The Appliance
3. Lever for lifting the mixing bowl 4. Holder chuck for mixing elements 5. Mixing bowl bracket 6. Base 7. Protective cover attachment 8. Mixing bowl 9. Mixing bowl protective cover 10. Flat stirrer 11. Dough hook 12. Whisk 101923 9 / 20... - Page 12 • In case of overload the overheating protection is activated which automatically stops the appliance. It is then required to switch the appliance off with ON/OFF switch and after complete drive stop reduce the dough amount. 10 / 20 101923...
-
Page 13: Functions Of The Appliance
Place the appliance in a way making the connections easily accessible, so that they may be quickly disconnected if such a need arises. • The appliance should be placed on surfaces that are: – even, with sufficient bearing capacity, resistant to water, dry and resistant to high temperatures; 101923 11 / 20... -
Page 14: Operation
Inserting or removing mixing elements while the motor is running can lead to injury to fingers or hands. Mixing elements should be replaced only after complete stop of the drive which rotates for a short time after the power supply is switched off. 12 / 20 101923... - Page 15 – two pins on right and left side of the mixing bowl bracket which must snap in Fig. 3 the holes on the mixing bowl holders. 101923 13 / 20...
- Page 16 Make sure that the mixing element is firmly seated in the holder chuck. 2. To remove the mixing element, press it slightly towards the holder chuck of the mixing element, rotate clockwise, and then pull it down. 14 / 20 101923...
- Page 17 Flat stirrer 2,000 g Sponge cake Whisk 1,000 g Sweet yeast dough Flat stirrer 2,500 g Bread dough or roll dough Dough hook, speed level Water 500 Flour (light / 60% moisture) 800 g Tab. 2 101923 15 / 20...
- Page 18 Switching the Appliance ON 1. Connect the appliance to a single grounded socket. 2. To switch the appliance on, press the ON/OFF switch on the control panel. 16 / 20 101923...
- Page 19 Fig. 5 The selected speed level is indicated by the corresponding LED indicator light. The digital display, in the left-hand field, additionally shows the selected speed level (e.g., 3). 101923 17 / 20...
- Page 20 Pour ingredients from bags carefully into the mixing bowl. Push the opening of a bag as far as possible into the chute or into the opening in the mixing bowl cover, so that dusting of the flour, for example, is reduced. 18 / 20 101923...
-
Page 21: Cleaning And Maintenance
7. Clean the removed accessories (mixing bowl, mixing elements, mixing bowl protective cover) thoroughly with hot water and washing-up lye. . 8. Rinse cleaned parts with fresh water and allow to air dry or wipe with a soft, lint- free cloth. 101923 19 / 20... -
Page 22: Maintenance
You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance. Electrical appliances should be returned to designated collection points. 20 / 20 101923...
