1. Overview
1.1.
Introduction
FSCUT6000 is CNC system for laser cutting and is very cost-effective. It is based on EtherCAT
bus technology and capable of motion control, laser control, and cutting gas control. It is common
used in sheet metal, kitchen ware, lamps and such industries. This user manual is only for installation
guidance.
1.2.
System Diagram
FSCUT6000 includes the EtherCAT BMC2282 Control Card, the bus IO board, and the bus
height controller, among which the BMC2282 control card integrates the EtherCAT master
protocol stack.
The network cable is led out from the network port of
cutting head. The wiring diagram is shown in Figure 1.
FSCUT6000 User Manual

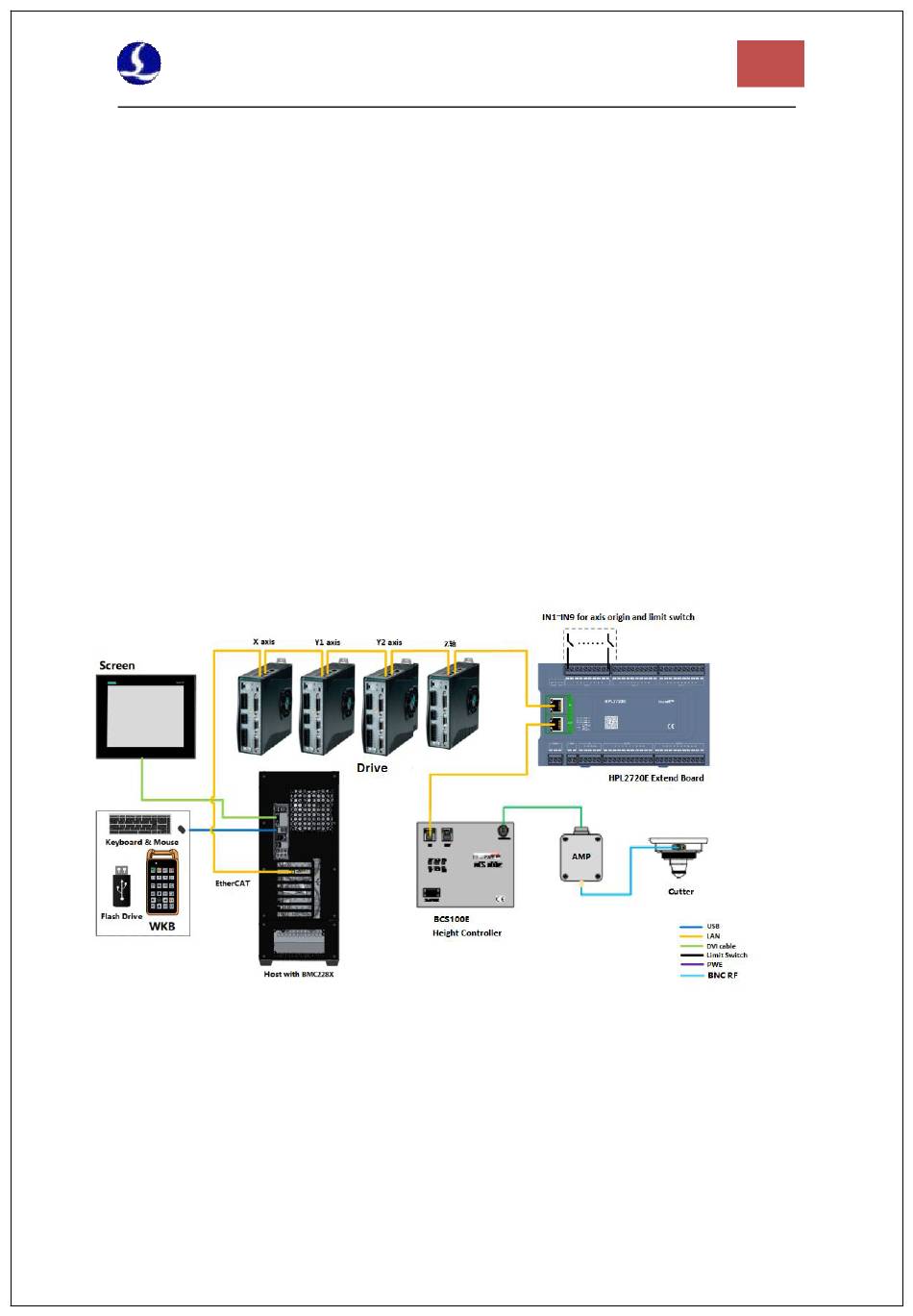

Figure 1 Wiring diagram of FSCUT6000 - BLT cutter
BMC2282 and connected to the BLT
4
