Interface Layout; J01 Ethercat Input Terminal; J02 Ethercat Output Terminal; J03 Power Input Terminal - Friendess FSCUT6000 User Manual

15
2.2.1.

Interface Layout

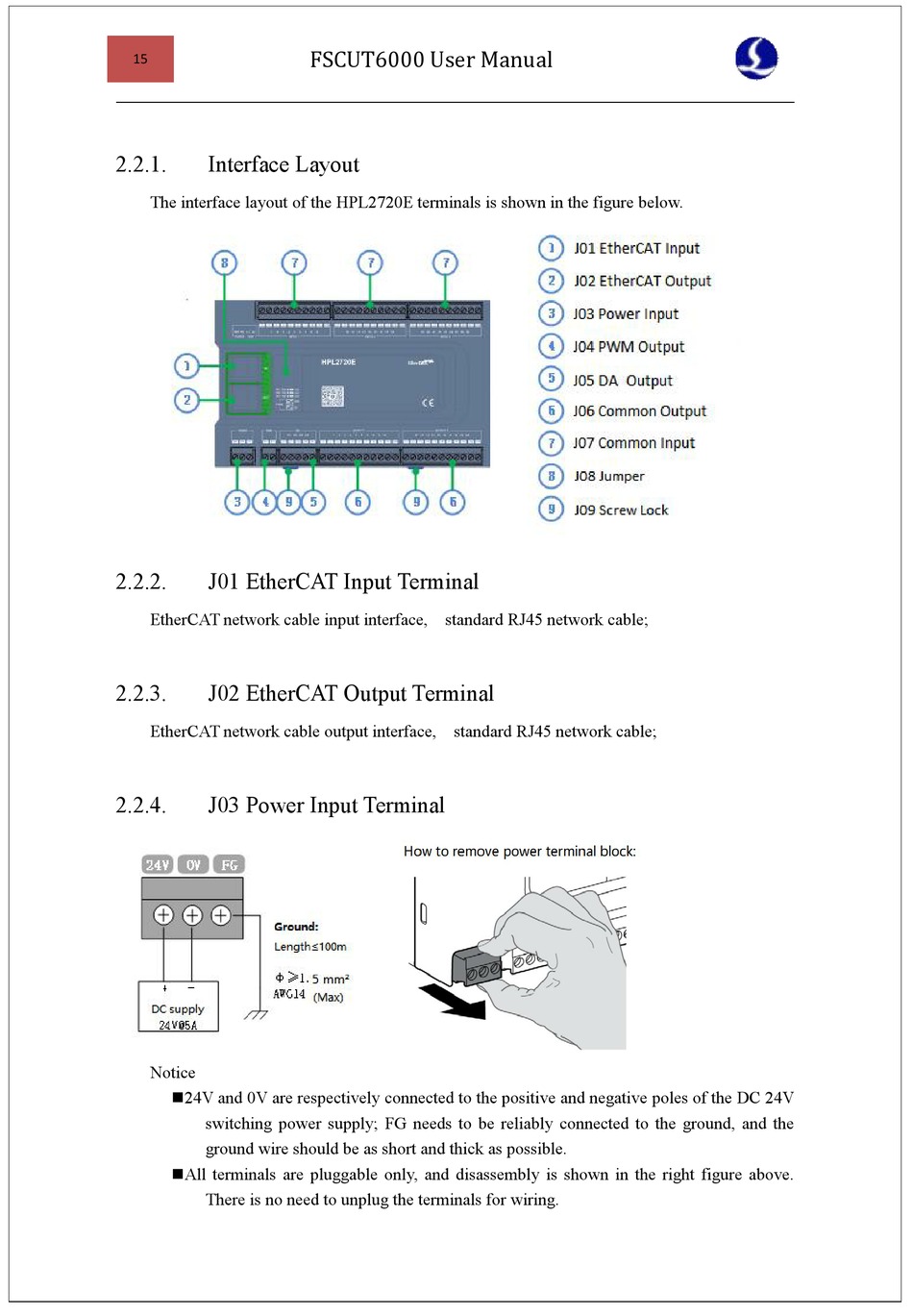

The interface layout of the HPL2720E terminals is shown in the figure below.
2.2.2.

J01 EtherCAT Input Terminal

EtherCAT network cable input interface, standard RJ45 network cable;
2.2.3.

J02 EtherCAT Output Terminal

EtherCAT network cable output interface, standard RJ45 network cable;
2.2.4.

J03 Power Input Terminal

Notice
24V and 0V are respectively connected to the positive and negative poles of the DC 24V
switching power supply; FG needs to be reliably connected to the ground, and the
ground wire should be as short and thick as possible.
All terminals are pluggable only, and disassembly is shown in the right figure above.
There is no need to unplug the terminals for wiring.
