Interface Layout - Friendess FSCUT6000 User Manual

19
BCS100E
Height Controller
Module Qty
Power Supply
LAN port
Sensor interface
Working Environment
Dimension
Weight
2.3.1.

Interface Layout

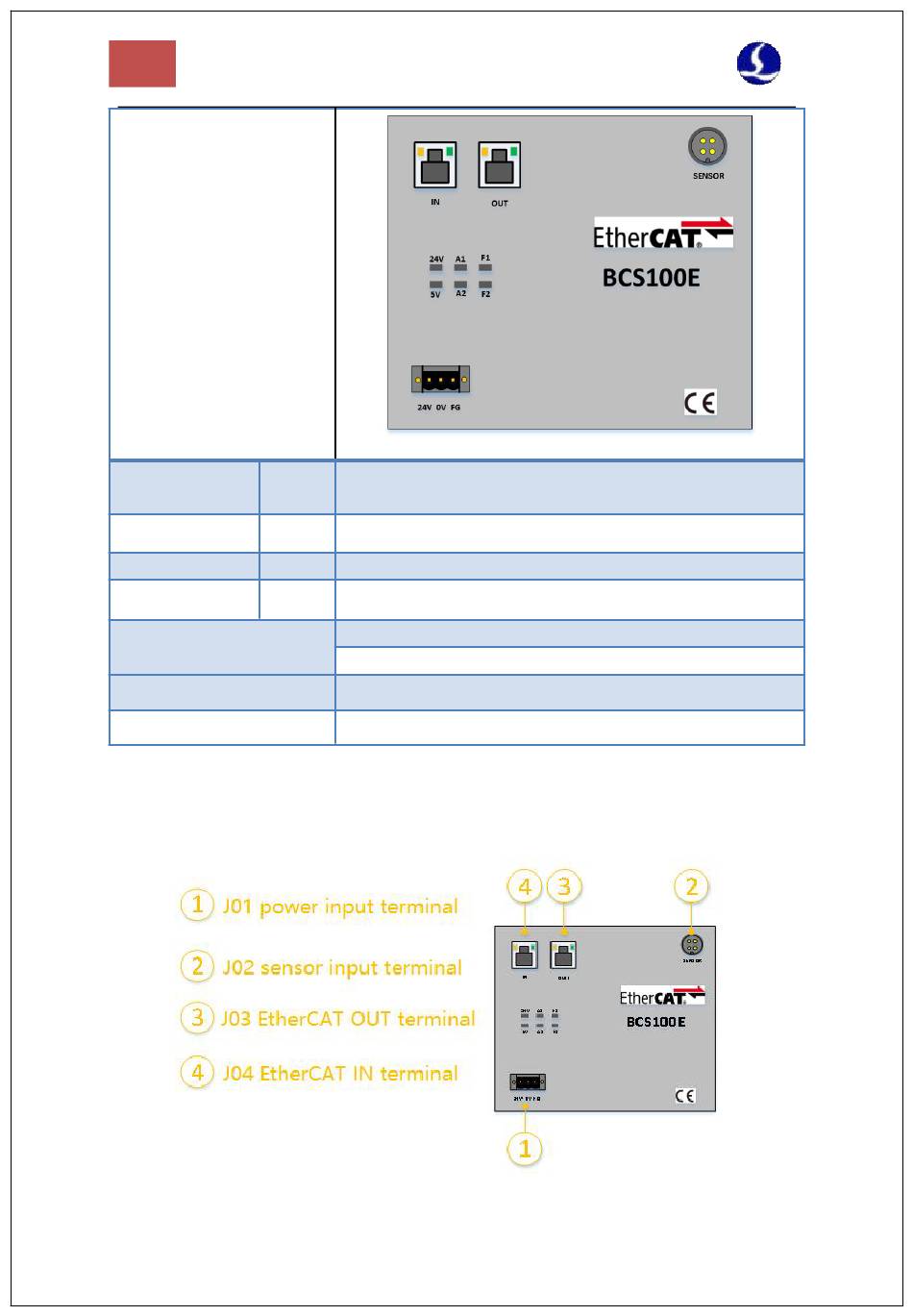

The interface layout of BCS100E is shown in the figure below.
FSCUT6000 User Manual
/
2 EtherCAT slave network port, 100Mbps, left in and right out
1 Capacitance detection control, height control range 0~25mm
Humidity: 10%~90% (no condensation)
Table 2-6 BCS100E Technical Data
Description
24V DC/1A
Temperature: 0~60℃
136mm×123×34mm
/
