2.1.1.
Dimension Diagram

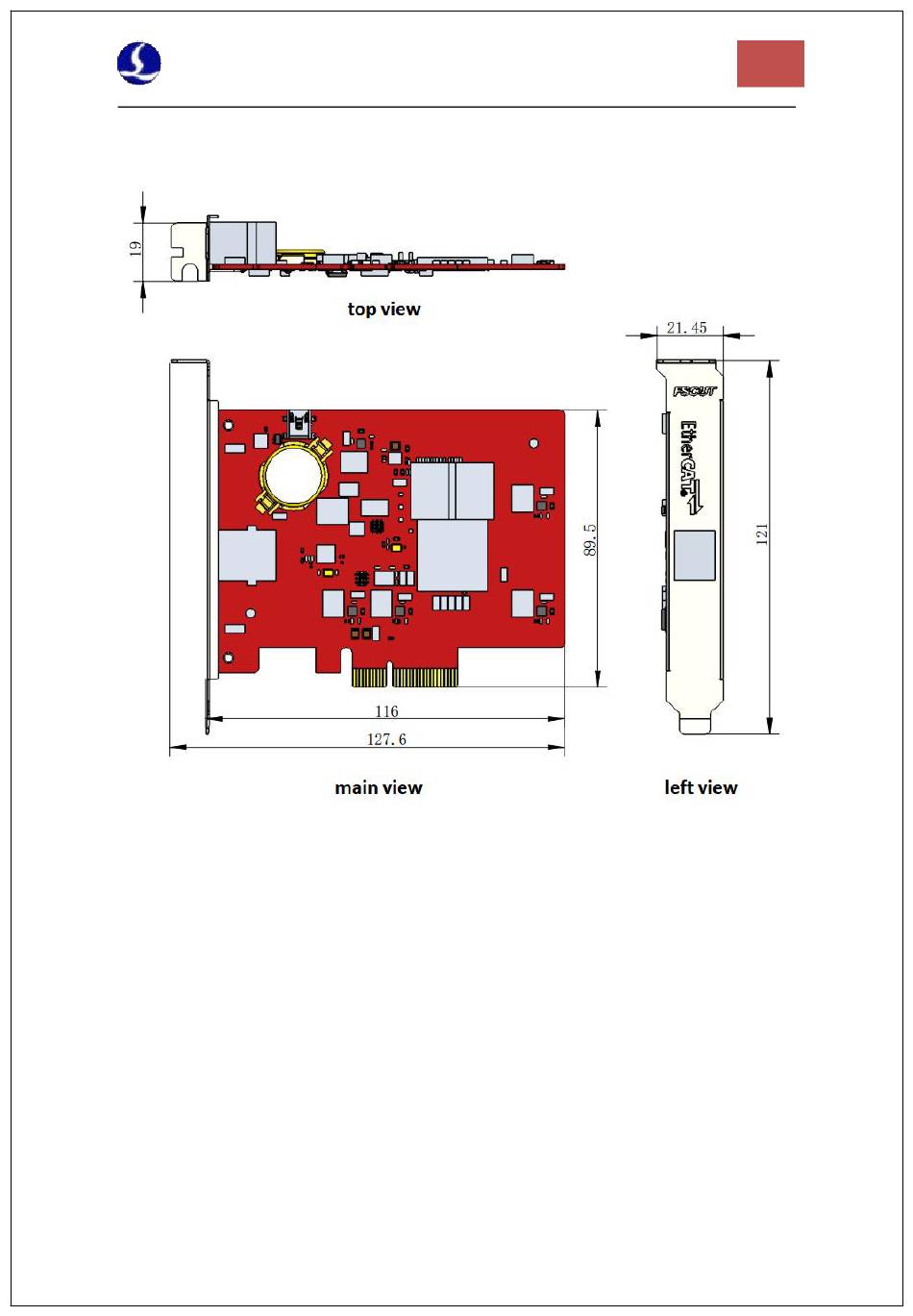

BMC2282 Control Card dimension ( mm) is shown in Figure 3.
2.1.2.
Installation Diagram
Install BMC2282 in the socket of PCIE X4 and up with even force (refer to ②),
secure its blank screw (refer to ①). Be aware of the heat dissipation for BMC228X and keep it
away from other cards as far away as possible. Refer to the diagram below.
FSCUT6000 User Manual
Figure 3 BMC2282 Dimension
10
