2.2.5.

J04 PWM Output Terminal

HPL2720E has a PWM pulse width modulation signal, which can be used to control the laser
power. The PWM signal level is 24V. The duty cycle is continuously adjustable from 0% to 100%,
and the max carrier frequency is 50KHz.

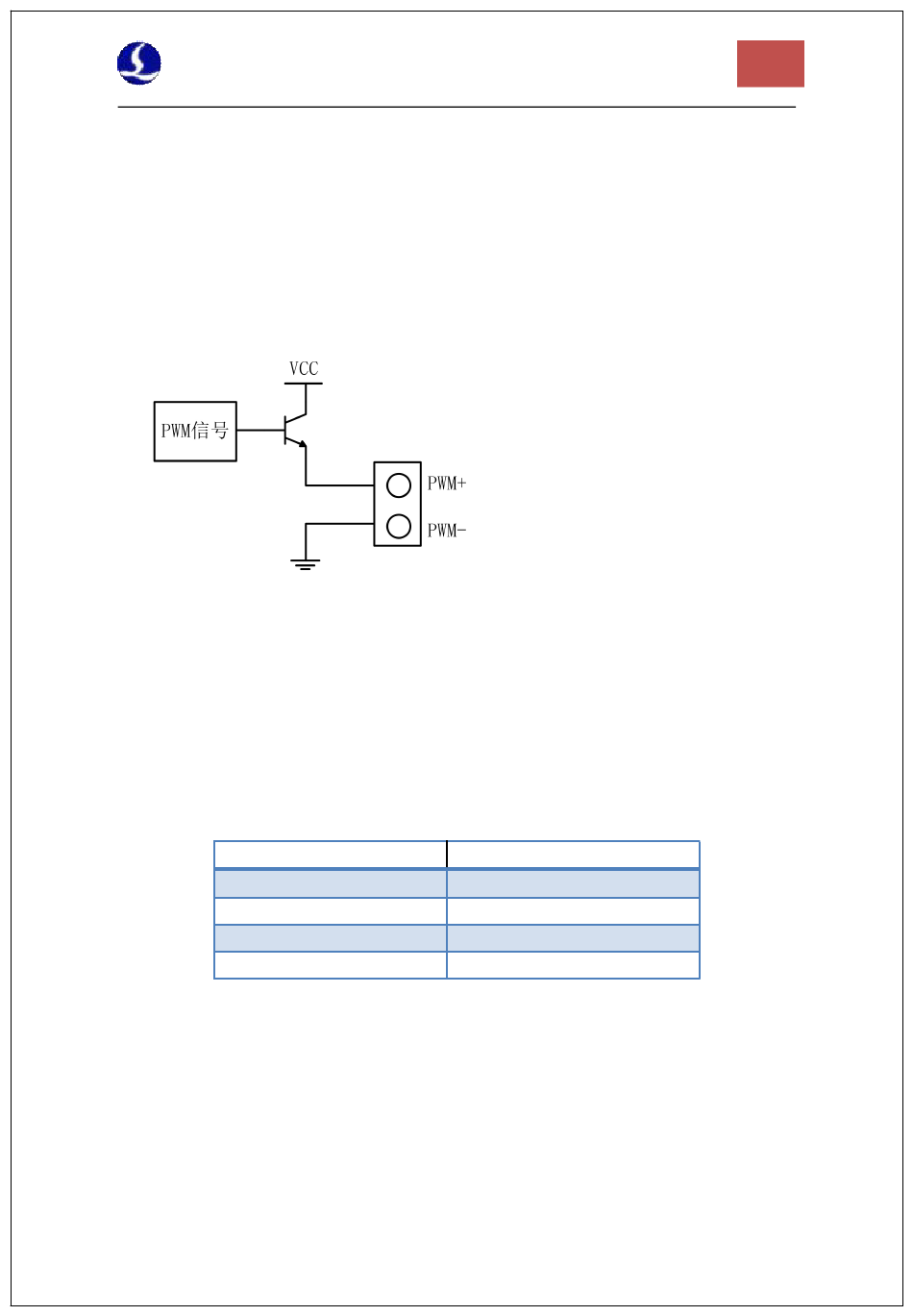

The signal output mode is shown in the figure below.
Note: The P+ and P- signals have enabled solid-state relays inside, and no external
relays are needed for isolation!
2.2.6.

J05 DAOutput Terminal

HPL2720E has 4 analog outputs of 0~10V. The four-way DA can be configured as the
control signal of laser peak power and gas proportional valve in the "CypConfig" that comes
with CypCutPro software.
Output Signal
Max Output
2.2.7.

J06 Common Output Interface

OUT1~OUT20, total 20 high-level 24V outputs. In the "CypConfig" that comes with
CypCutPro, the output port can be configured as "height controller", "laser", "cutting head",
"auxiliary gas", "alarm", "pallet changer" and other related controls interface.
FSCUT6000 User Manual
Max Error
Resolution
Conversion
Table 2-5 DA Output Parameter
0~10V
50mA
+/-20mV
2.7mV
400us
