2.1.3.

Ethernet Terminal

The standard socket of BMC2282 is RJ45 that can be used to connect EtherCAT slave
devices(servo drives, BCS100E, HPL2720E, etc.)

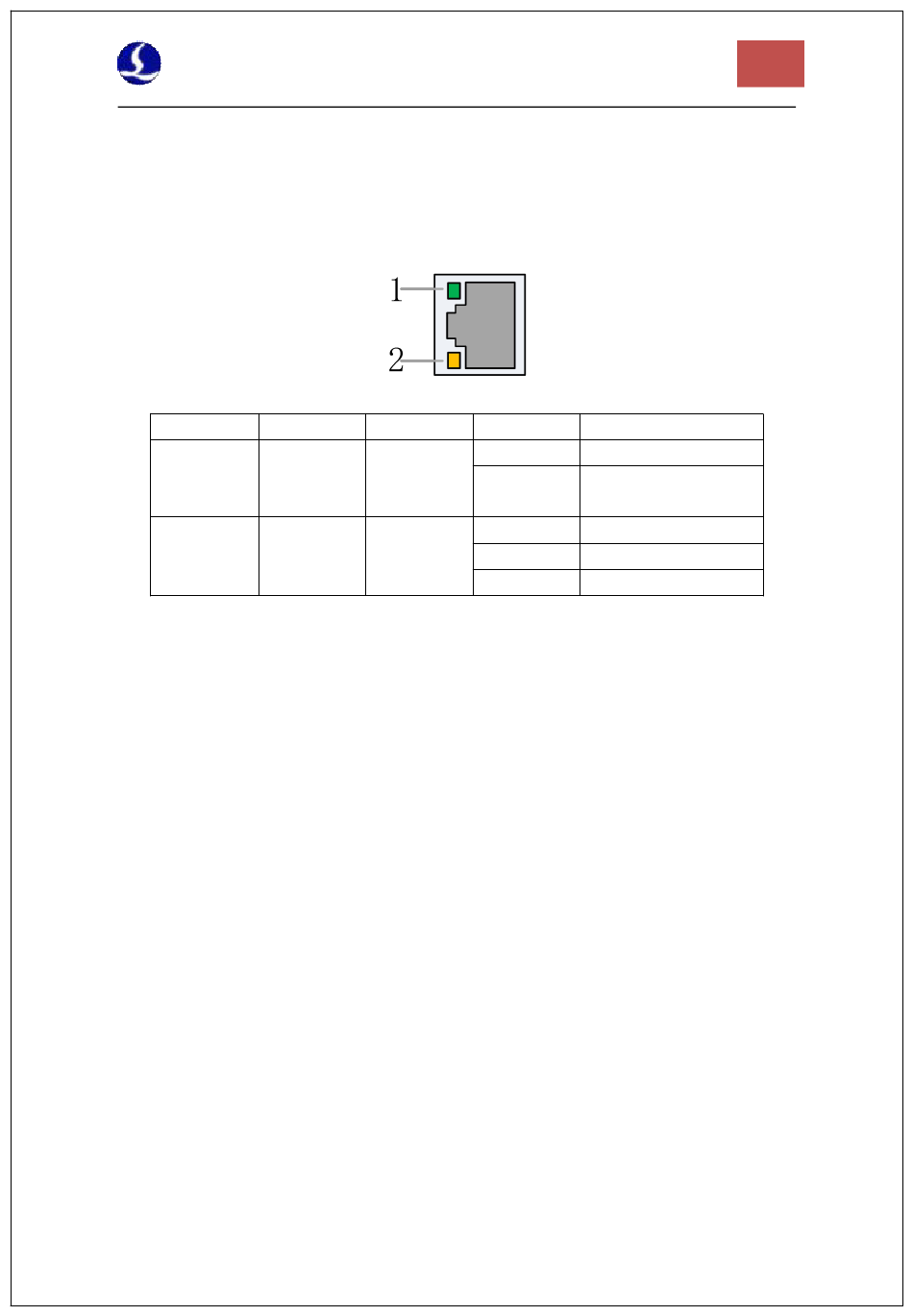

Label Description
Ethernet
1: Speed connection
Ethernet link
2: Link
2.1.4.

PCIE Socket

BMC2282 PCIE socket is X4 (Figure 6①)and can be used for X4, X8, X16. Its PCI Express
Protocol standard is V2.0 (Gen2) and the motherboard requirements are as shown in Table 2-3.
FSCUT6000 User Manual
LED color
Green
speed
Yellow
status
Table 2-2 Description of
State Description
Off
Solid 100 Mbps
Off No connection
Flashes Communicating
Solid Connected
RJ45 connection status
12
10 Mbps
