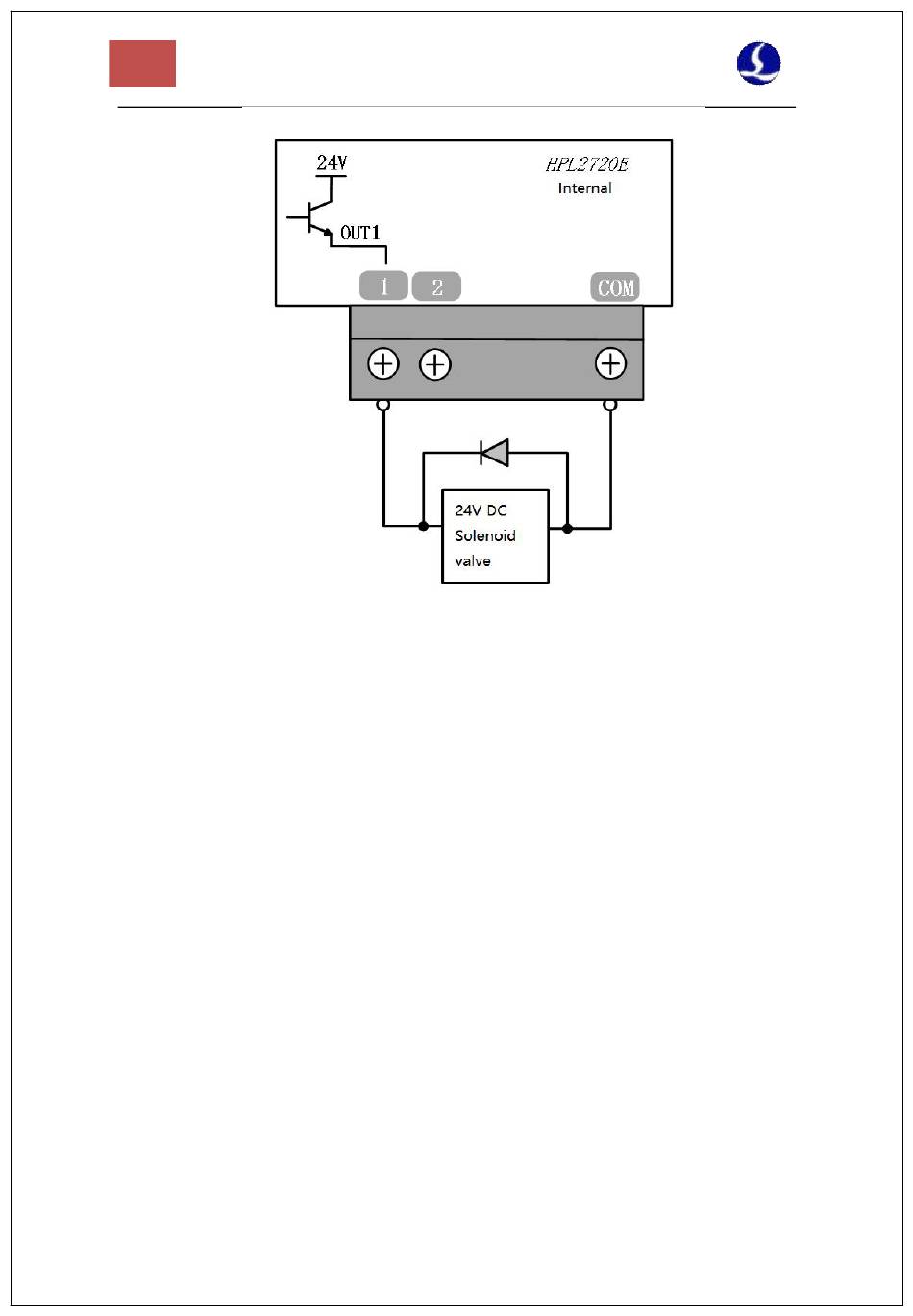

Note: Only DC loads can be connected, the output current of each channel must be ≤
0.7A, and the total current of the output port must be ≤ 2.5A, otherwise the short
circuit protection will be triggered.
If you need to connect to an AC load, please connect an external relay;
2.2.8.

J07 Common Input Interface

HPL2720E does not set a dedicated input, and each input port can be set as limit/origin
signals.
The Normally Open and Normally Closed modes of the limit and origin signals can be set in
the "CypConfig" that comes with CypCutPro. When it is set to NO, the input is valid when
the input port is connected to 0V; when it is set to NC, the input is valid when it is
disconnected from 0V.
The typical connection of the photoelectric switch is shown in the figure below, and an NPN
type 24V photoelectric switch must be used;
The typical connection of mechanical contact switch is shown in the figure below;
The typical connection of the magnetic input switch is shown in the figure below. An NPN
24V magnetic induction switch must be used.
