Installing InView Marquee 2706-P4xC2-SC Message Displays
1.
2.
3.
Phillips
screws for
rear power
access
panel cover
4.
5.
PN: 1778600501
If necessary, disconnect power to the InView P42xC2 display.

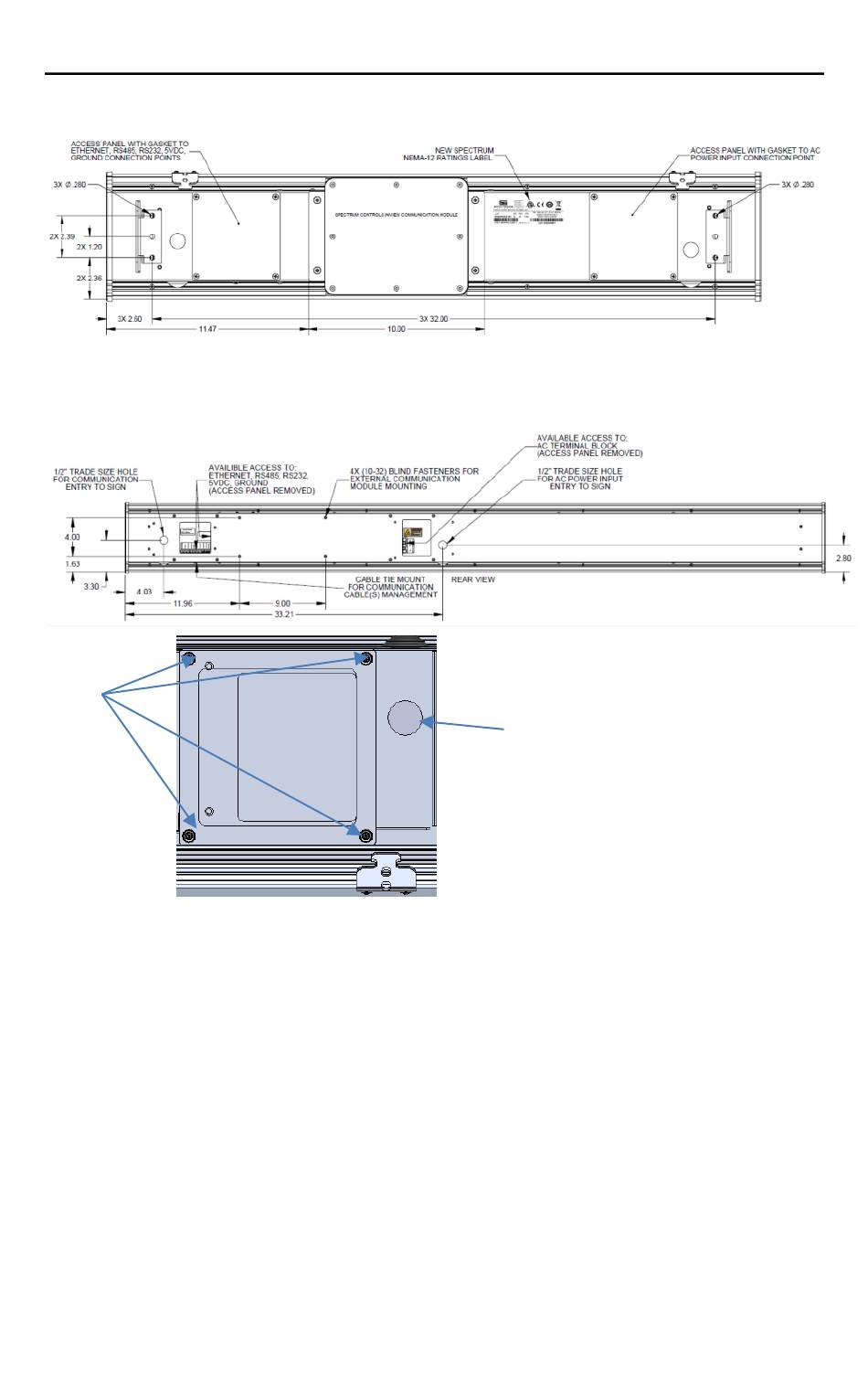

To access the display's rear power access panel, remove the 4, 8-32 Phillips screws
holding the panel in place, and remove the cover.
Retain the screws in a safe place.
The InView Display power terminal block is rated for wire ranges of 20 to 6 AWG
for the power wiring. Two trade holes are provided for wiring (on rear and
underneath of display). Choose the appropriate entry point for your installation
location. If you choose to use the trade hole underneath the display, make sure you
transfer the watertight hole plug and re-install it in the rear trade hole. Pull the
electrical wires through the trade hole. Ensure you follow all applicable, local,
electrical codes for completion of the wiring.
Wire the external power to the rear access power panel as shown. Strip the electrical
wires back 6.35 mm (0.25 in), or as needed. Insert the wires into the appropriate
terminal connection using the image and table provided.
Rear trade
hole
