WARNING
WARNING
Power Connections in Comms Module:

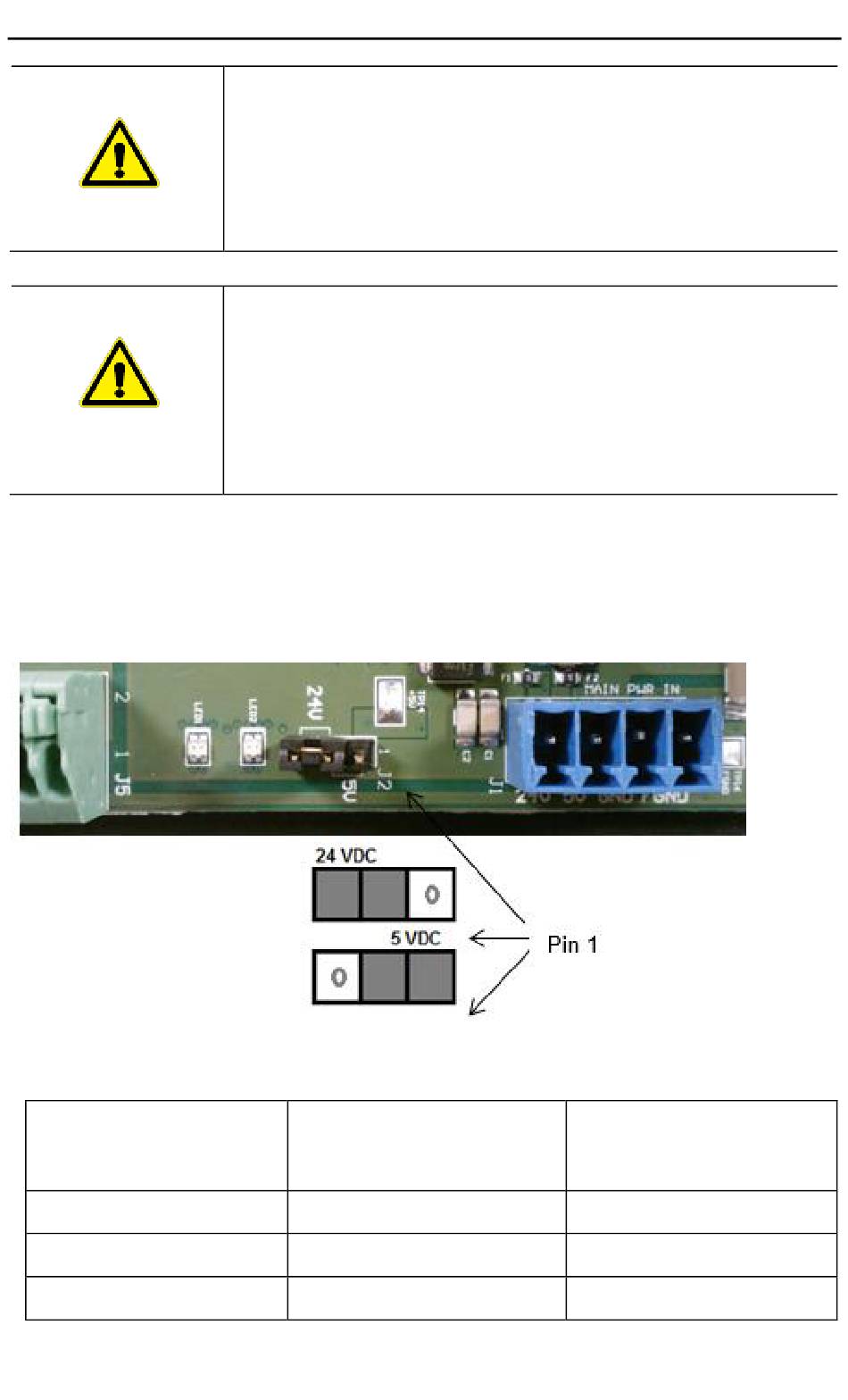

1. Jumper J2 settings are shown as labeled on the Comms Module board and in 24
VDC or 5 VDC positions.
Check jumper J2 is correctly positioned for your application:
2. Connect the incoming power (Black and Red), serial (White and Brown), and GND
(Green) wires from the Comms module to the terminal block as shown:
Communications
Connector (on Display)
Pin
6: 5VDC
7: GND(PWR)
2: Shield
Spectrum Controls, Inc. Publication 0100290-01A
Installing InView Marquee 2706-P4xC2-SC Message Displays
Hazard of damage to electronic equipment.
Failure to ensure that jumper J2 is in the correct position for the
voltage supplied to the InView Comms module can result in
damage to the module circuitry.
Before applying power to the InView Comms Module, check that the
jumper is in the correct position for your application.
Danger de dommage pour l'équipement
S'assurez que le cavalier J2 est dans la position correcte pour la
tension fournie au module de communication InView sinon cela
pourrait entrainer des dommages a l'ensemble des circuits du
module.
InView en tension, vérifiez que le cavalier est dans la position de
voltage adequat pour votre application.
Stranded wire from Comms
Module Cable 6010nn-nn
RED + 5 V Power
BLACK: Supply GND (-5 V)
Blue Chassis Ground
électronique.
Connectors on InView
Comms Module J1
J1 Pin 2
J1 Pin 3
J1 Pin 4
PN: 1778600501
