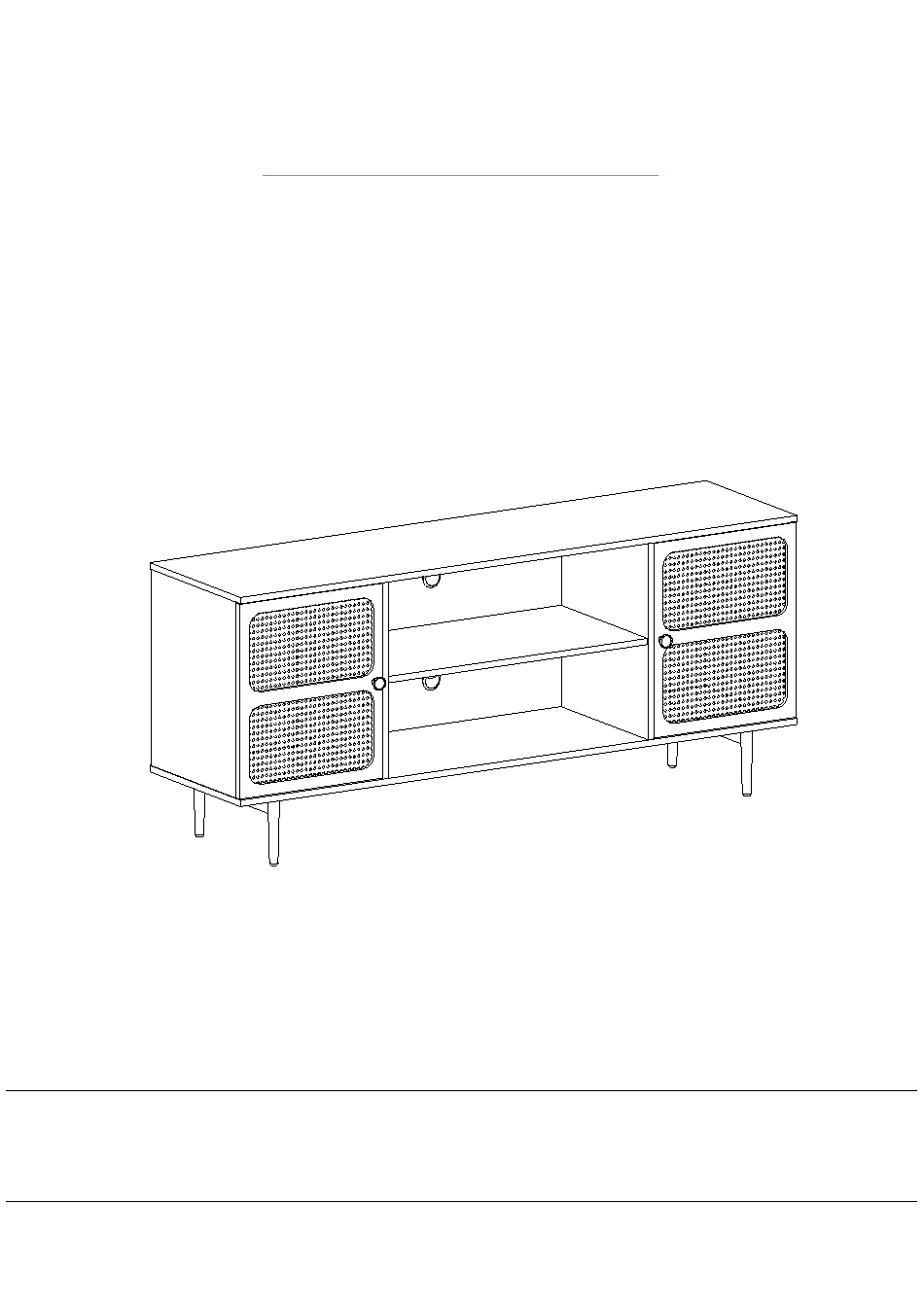

- Page 1 HULALA ITEM NO.TVSBSD0589 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 01/26...
- Page 2 MAINTAINANCE AND WARNING 1.Keep furniture away from heat sources. 2.Do not clean furniture with harsh cleaner or polishes.Do not use detergents,solvents,abrasives,spray packs or leather cleaner. Use non-color mild soa with warm water to clean spills(Mix 1:10 soap to water). 3.Do not place furniture under direct sunlight,material will possibly fade over time.
-
Page 3: Explosive View
EXPLOSIVE VIEW 2PERSONEN 03/26... -
Page 4: Parts List
PARTS LIST 04/26... -
Page 5: Hardware List
HARDWARE LIST 1 6*35mm 6*40mm 6*50mm 4*22mm 7*50mm 3.5*14mm ∅ 4*35mm TOOL LIST HARDWARE SPARE LIST 6*35mm 6*40mm 6*50mm 4*22mm 7*50mm 3.5*14mm ∅ 4*35mm 05/26... - Page 6 HARDWARE LIST 2 8*30mm 15*11mm 20mm ∅ ∅ ∅ 8*30mm ∅ 06/26...
- Page 7 ASSEMBLY INSTRUCTIONS STEP-1: Screw bolt #1 into top panel (A) ,tighten bolt #1 with screwdriver #18.Insert wooden dowel #2 into side panel (E)&(F),and then screw bolt #1 into the corresponding hole of side panel (E)&(F),tighten bolt #1 with screwdriver #18. #2x4 #1x12 #18 x1...
- Page 8 ASSEMBLY INSTRUCTIONS STEP-2: Insert panel (G) into the corresponding hole of side panel (E),and then insert cam bolt #3 into the corresponding hole of panel (G)，tighten cam bolt #3 with screwdriver #18.Insert panel (F) into the corresponding hole of preassemble panel (G),and then insert cam bolt #3 into the corresponding hole of panel (G)，tighten cam bolt #3 with screwdriver #18.
- Page 9 ASSEMBLY INSTRUCTIONS STEP-3: Stick paster #4 to the corresponding hole of panel(G) . Insert rubber ring into the corresponding hole of panel (I) and then carefully align and slide panel (I) into the groove along rear edge of pre-assembled step 2. E&F E&F #4x4...
- Page 10 ASSEMBLY INSTRUCTIONS STEP-4: Insert wooden dowel #2 into the corresponding hole of panel (E)&(F),and then insert panel (B) into the preassemble unit at step 3,make sure all holes aligned and then use bolt #9 to attach them ，tighten bolt #9 with allen key #17. #2 #2 #9x4 #2x4...
- Page 11 ASSEMBLY INSTRUCTIONS STEP-5 Insert wooden dowel #2 into the corresponding hole of panel (B),and then insert side panel (C)&(D) into the preassemble panel (B),use bolt ,tighten bolt #9 with allen key #17. #9 to attach them C&D #2x4 #9x4 7*50mm 8*30mm ∅...
- Page 12 ASSEMBLY INSTRUCTIONS STEP-6: Insert rubber ring #22 into the corresponding hole of panel (I) and then carefully align and slide panel (I)&(H) into the groove along rear edge of pre-assemble unit at step 5. Insert wooden dowel #2 into the corresponding hole of panel (C)&(E)&(F)&(D).
- Page 13 ASSEMBLY INSTRUCTIONS STEP-7 Insert top panel (A) into the preassemble unit at step 6，make sure all holes aligned ，and then insert cam bolt #3 into the corresponding hole of panel (C)&(E)&(F)&(D),tighten cam bolt #3 with screwdriver #18.Stick paster #4 to the corresponding hole of panel (C)&(D)&(E)&(F).
- Page 14 ASSEMBLY INSTRUCTIONS STEP-8: allen key Use bolt #5 to attach leg(M) to rail (L), tighten bolt #5 with #17. #5x2 6*40mm 14/26...
- Page 15 ASSEMBLY INSTRUCTIONS STEP-9: (L)&(M) to bottom panel (B) Use bolt #6 to attach preassemble leg allen key #17. tighten bolt #6 with #6x7 6*50mm 15/26...
- Page 16 ASSEMBLY INSTRUCTIONS STEP-10: Attention: Before the next step, adjust the feet of the locker to keep it level. Attention: Before the next step, adjust the feet of the locker to keep it level. 16/26...
- Page 17 ASSEMBLY INSTRUCTIONS STEP-11: Use screw #11 to attach plastic shelf #19 to panel(D)&(C)&(A)&(E)&(F) &(G)&(B),tighten screw #11 with screwdriver #18 3.5*14mm 17/26...
- Page 18 ASSEMBLY INSTRUCTIONS STEP-12: Insert shelf holder #8 into the corresponding hole of panel(C)&(D)&(E)&(F),and then attach adjustable shelf (J) to it. #8x8 Shelf holder can be adjusted up or down C&E&F&D 18/26...
- Page 19 ASSEMBLY INSTRUCTIONS STEP-13: Use screw #11 to attach part #13 to door (K), tighten screw #11 with screwdriver #18 and then insert part #20 into the corresponding hole of door (K). #11x8 #13x4 #20x4 3.5*14mm 19/26...
- Page 20 ASSEMBLY INSTRUCTIONS STEP-14 ， Use bolt #7 to attach handle #10 to door (K) tighten screw #7 with screwdriver #18. 4*22mm 20/26...
- Page 21 ASSEMBLY INSTRUCTIONS STEP-15: Please the corner of door (K) to bottom panel (B),and then press the ， button on door (K) with hand move door (K) to the corresponding position as picture show. C&D C&D C&D 21/26...
- Page 22 ASSEMBLY INSTRUCTIONS STEP-16: Use screw #11 to attach mangetic catch #12 to panel (A)&(B),tighten screw #11 with screwdriver #18. #11x8 #12x4 3.5*14mm 22/26...
- Page 23 ASSEMBLY INSTRUCTIONS 3.5*14mm STEP-17: Use screw #11 to plastic bracket #14 to panel (C)&(D),tighten screw #11 with screwdriver #18. #14x2 #11x4 23/26...
- Page 24 ASSEMBLY INSTRUCTIONS 8*30mm 4*35mm ∅ STEP-18: 1. Mark the position on the wall, that corresponds to the location of bracket on the side panel (C)&(D); Drill and insert the expandable screw by hammer. 2. Assemble the bracket to the wall. Align the hole in the bracket with the expandable screw , use screw to attach...
- Page 25 ASSEMBLY INSTRUCTIONS STEP-19 3. Let the plastic belt pass through bracket and pull tightly. #16x2 #16x2 25/26...
-
Page 26: Warranty
WARRANTY 1.We strive to offer high-quality products,and we also try our best to satisfy each and every customer that orders from us with product or service as needed. 2.We provide 30 days warranty starting from the time you receive the item.Each customer must provide a record of their order such as the order number,or item receipt for any items that are out of the warranty period you may also still receive.
