HULALA
H
O
M
E

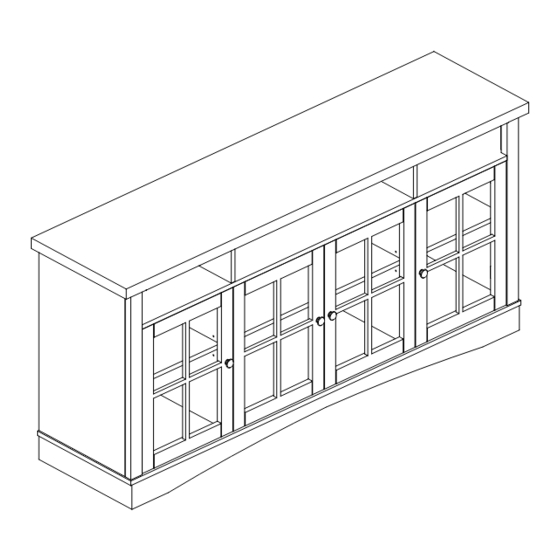

ITEM NO.TVHM0779
NOTE:
This brochure contains IMPORTANT safty info. Please read and keep for future
reference.
01/24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TVHM0779 and is the answer not in the manual?

Questions and answers

Summary of Contents for HULALA HOME TVHM0779

  • Page 1 HULALA ITEM NO.TVHM0779 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 01/24...
  • Page 2 MAINTAINANCE AND WARNING 1.Keep furniture away from heat sources. 2.Do not clean furniture with harsh cleaner or polishes.Do not use detergents,solvents,abrasives,spray packs or leather cleaner. Use non-color mild soa with warm water to clean spills(Mix 1:10 soap to water). 3.Do not place furniture under direct sunlight,material will possibly fade over time.
  • Page 3: Explosive View

    EXPLOSIVE VIEW 2PERSONENS 03/24...
  • Page 4: Parts List

    PARTS LIST 04/24...
  • Page 5: Hardware List

    HARDWARE LIST ∅ 3.5*14mm*6# 3*14mm*6# ∅ HARDWARE SPARE LIST ∅ 3*14mm*6# ∅ 3.5*14mm*6# 05/24...
  • Page 6: Tool List

    HARDWARE LIST 1/4"*1" ∅ ∅ 5/32"*1" ∅ 3.5*35mm*7# TOOL LIST 06/24...
  • Page 7 ASSEMBLY INSTRUCTIONS STEP-1 1.Use screw #2 to attach magnetic catch #3 to the corresponding hole of fixed shelf panel (B) , tighten screw with screwdriver #16 . ∅ 3*14mm*6# 07/24...
  • Page 8 ASSEMBLY INSTRUCTIONS STEP-2 1.Use bolt #4 to attach part (D&E) to patr (B),make sure all holes aligned and tighten bolt #4 with allen key #15. & ∅ 1/4"*1" 08/24...
  • Page 9 ASSEMBLY INSTRUCTIONS STEP-3 1.Insert side panel (F&G) into panel (B),make sure all holes aligned and use allen key #15 to tighten it as picture show. 09/24...
  • Page 10 ASSEMBLY INSTRUCTIONS STEP-4 1.Insert the intermediate bulkheads (H&I) into the panel (B), making sure all holes line up and tighten with an Allen key #15 as shown. 10/24...
  • Page 11 ASSEMBLY INSTRUCTIONS STEP-5 1.Insert the bottom panel C into the (F&G&H&I), making sure all holes line up and tighten with an Allen key #15 as shown. G&H F&I 11/24...
  • Page 12 ASSEMBLY INSTRUCTIONS STEP-6 1.Insert the panel A into the (F&D&E&G), making sure all holes line up and tighten with an Allen key #15 as shown. & & 12/24...
  • Page 13 ASSEMBLY INSTRUCTIONS STEP-7 Open the back panel (J),Mount part #14 to back plane J, insert back panel (J) into the groove of preassembled step 6,make sure all holes aligned and use screw #2 to attach them ,tighten screw #2 with screwdriver ∅...
  • Page 14 ASSEMBLY INSTRUCTIONS STEP-8 1.Insert shelf pin #5 into pre-assembled unit at step 7 . 2.attach adjustable shelf (K&L) to pin #5 . Shelf holder can be adjusted up or down 14/24...
  • Page 15 ASSEMBLY INSTRUCTIONS STEP-9 Use screw #1 to attach the hinges #8 to door panel (M)&(P),tighten screws with screwdriver #16. When installing hinge , please pay attention to distinguish the category of hinge!!!!! & 3.5*14mm*6# ∅ 15/24...
  • Page 16 ASSEMBLY INSTRUCTIONS STEP-10 Use screw #1 to attach the hinges #9 to door panel (N)&(O),tighten screws with screwdriver #16. When installing hinge , please pay attention to distinguish the category of hinge!!!!! & 3.5*14mm*6# ∅ 16/24...
  • Page 17 ASSEMBLY INSTRUCTIONS STEP-11 Use bolt #7 to attach handle #6 to door panel (M)&(N)&(O)&(P) , tighten bolts with screwdriver #16 & & & & 5/32"*1" ∅ 17/24...
  • Page 18 ASSEMBLY INSTRUCTIONS STEP-12 1.Use screw #1 to attach door (M&P) to pre-assemble unit at step 8,tighten screw #1 with screwdriver #16 . M&P & F&G & 3.5*14mm*6# ∅ 18/24...
  • Page 19 ASSEMBLY INSTRUCTIONS STEP-13 1.Use screw #1 to attach door (N&O) to pre-assemble unit at step 12 ,tighten screw #1 with screwdriver #16 . H&I N&O H&I N&O 3.5*14mm*6# ∅ 19/24...
  • Page 20 ASSEMBLY INSTRUCTIONS STEP-14 Concealed hinges are three-way adjustable: Horizontal by screw adjustment! Concealed hinges are three-way adjustable: In-and-out by loosening the hinge arm mounting screw or via cam adjustment! Concealed hinges are three-way adjustable: Vertical via slots in the mounting plate or via cam adjustment! Hinge adjustment method 20/24...
  • Page 21 ASSEMBLY INSTRUCTIONS STEP-15 1.Attach part #10 to parts (J) with screw #1 and tighten the screw with screwdriver #16. 3.5*14mm*6# ∅ 21/24...
  • Page 22 ASSEMBLY INSTRUCTIONS 3.5*35mm*7# ∅ STEP-16 1. Mark the position on the wall, that corresponds to the location of bracket #10 on the back panel J; Drill and insert the expandable screw #12 by hammer. 2. Assemble the bracket #10 to the wall. Align the hole in the bracket #10 with the expandable screw #12 ,use screw #11 to attach it , tighten screw #11 with screwdriver #16.
  • Page 23 ASSEMBLY INSTRUCTIONS STEP-17 1.Let the plastic belt #13 pass through the both part #10and pull tightly. 23/24...
  • Page 24: Warranty

    WARRANTY 1.We strive to offer high-quality products,and we also try our best to satisfy each and every customer that orders from us with product or service as needed. 2.We provide 30 days warranty starting from the time you receive the item.Each customer must provide a record of their order such as the order number,or item receipt for any items that are out of the warranty period you may also still receive.
