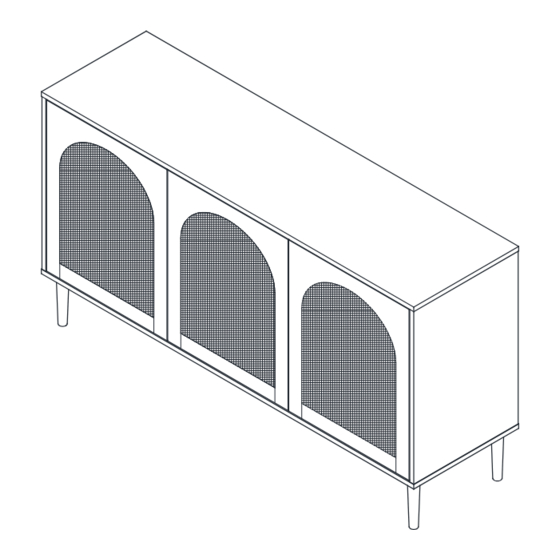

- Page 1 ITEM NO. TVSBSD0505 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 1/16...
- Page 2 MAINTAINANCE AND WARNING Keep furniture away from heat. Do not clean furniture with harsh cleansers or polish. Do not use detergents, Solvents, abrasives, spray packs or leather cleaner. Use non-color mild soap with warm water clean spills(Mix 1:10 soap to water) Do not place furniture under direct sunlight, material will possibly fade over time.
- Page 3 PARTS LIST...
-
Page 4: Explosive View
Explosive View... - Page 5 HARDWARE LIST SPARE Be sure to check all packing material carefully for small parts, which may have come loose inside the carton during shipment.
- Page 6 ASSEMBLY INSTRUCTIONS 1.Take the rebounder (J) apart. 2.Screw the bolt(A) into the corresponding hole of panel ①， tighten bolt(A) with screwdriver(T). 3.Use screw(E) to attach the rebounder base(J) to panel ①， tighten screw(E) with screwdriver(T). 4.Insert wooden dowel (D) into the corresponding hole of panel ①，finally slide the rebounder(J) into the rebounder base(J).
- Page 7 Insert panel 9 & 10 into the grooves of panel 4,6,5,3,insert wood dowel D into panel 3,5,6,4,make sure Use allen key M and bolt C to connect panel 2 with assembled unit1,3,5,6,4,make sure all aligned and fasten all bolts to secure.
- Page 8 Use bolt(S) to attach leg 13 &rail 15 to the preassemble unit at step 4，make sure all holes aligned and lock bolt(S) to 70% with allen key(M). Use bolt (R) to attach leg 13 to rail 15. make sure all holes aligned and tightenbolt(R)&(S) with allen key(M).Screw one end of bolt U into foot 14, then screw foot 14 into metal rod 15 with hand...
- Page 9 Turn the assembled unit upright. Use screwdriver to connect screw E and plastic connector H with back panel 9 & 10, fasten to secure. Use screwdriver to connect screw E with tipping kits O on rear edge of top panel 1,then fasten to secure. 9 16...
- Page 10 Insert part I into the holes of panel 3,5,6,4,make sure all holes aligned Insert shelf pin I into desired level on part 3,5,6,4 Slide shelf 7 & 8 into place on part I.
- Page 11 Use screw E to attach hinge (F) to door 11 & 12 ， and then use screw(E) toattach plat washer (K) to door 11 & 12 ，tighten screw(E) with screwdriver(T). Use screw(E) to attach preassemble door 11 & 12 to preassemble unit at step 10，tighten screw(E)with screwdriver(T).
- Page 12 Use screw(E) to attach hinge (G) to door 12，andthen use screw(E) to attach plat washer(K) todoor 12,tighten screw(E) with screwdriver(T). Use screw(E) to attach preassemble door12 to thepreassemble unit at step12， make sure all holesaligned and tighten screw(E) with screwdriver(T). 12 16...
- Page 13 Concealed hinges are three-way adjustable: Horizontal by screw adjustment! Concealed hinges are three-way adjustable: Concealed hinges are three-way adjustable: 13 16...
- Page 14 Please adjust the levelevs to keep the cabinet in balance. 14 16...
- Page 15 Install the 1. Mark the position on the wall, this should be same as the position of O where are on of panel 1; Drilled and insert the by hammer; 2.Assemble the part O on the wall. Align the hole in the part O to the expandable screw Q, screw N in and tighten by screwdriver S;...
- Page 16 We strive to offer high-quality products, and we also try our best to satisfy each and every customer that orders from us with product or service as needed. We provide 30 days warranty starting from the time you receive the item. Each customer must provide a record of their order such as the order number, or item receipt for any items that are out of the warranty period you may also still receive replacement...
