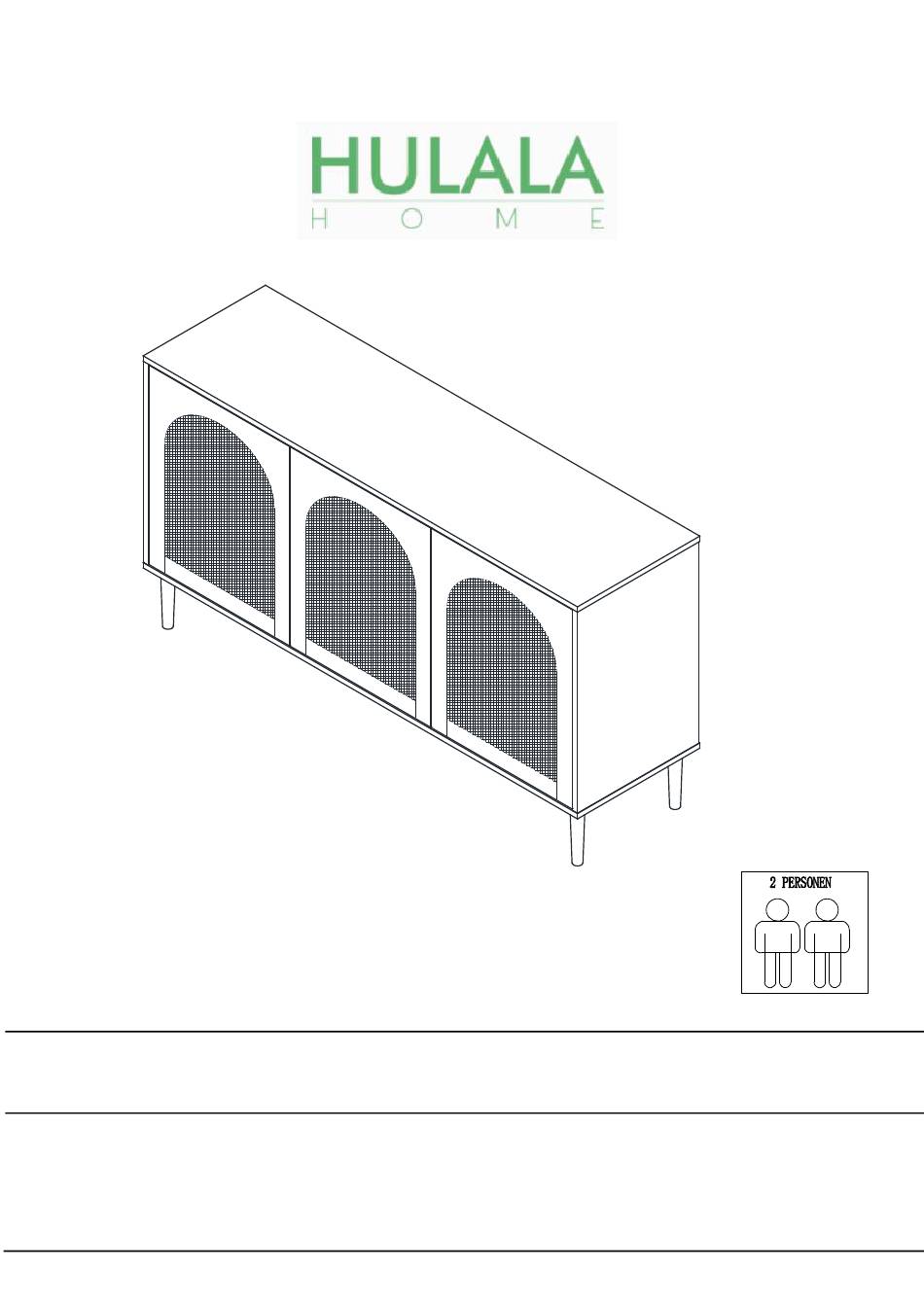

- Page 1 ITEM NO. TVSBSD0505 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 1/16...
- Page 2 MAINTAINANCE AND WARNING Keep furniture away from heat. Do not clean furniture with harsh cleansers or polish. Do not use detergents, Solvents, abrasives, spray packs or leather cleaner. Use non-color mild soap with warm water clean spills(Mix 1:10 soap to water) Do not place furniture under direct sunlight, material will possibly fade over time.
- Page 3 PARTS LIST...
-
Page 4: Explosive View
Explosive View... - Page 5 HARDWARE LIST SPARE Be sure to check all packing material carefully for small parts, which may have come loose inside the carton during shipment.
- Page 6 ASSEMBLY INSTRUCTIONS Place panel 1 on clean padded surface. Use screwdriver and screw E to connect push catch J with panel 1,insert wood dowel D into panel 1,use screwdriver to connect cam bolt A with panel 1,make sure all holes aligned and fasten all screws to secure.
- Page 7 Insert panel 9 & 10 into the grooves of panel 4,6,5,3,insert wood dowel D into panel 3,5,6,4,make sure Use allen key M and bolt C to connect panel 2 with assembled unit1,3,5,6,4,make sure all aligned and fasten all bolts to secure.
- Page 8 Ex24 Use screwdirver and screw E to connect metal connector R with panel 2,then fasten screws to secure. Connect leg 13 & 14 with metal connector on panel 2, then fasten to secure.
- Page 9 Turn the assembled unit upright. Use screwdriver to connect screw E and plastic connector H with back panel 9 & 10, fasten to secure. Use screwdriver to connect screw E with tipping kits O on rear edge of top panel 1,then fasten to secure. 9 16...
- Page 10 Insert part I into the holes of panel 3,5,6,4,make sure all holes aligned Insert shelf pin I into desired level on part 3,5,6,4 Slide shelf 7 & 8 into place on part I.
- Page 11 Use screwdriver to connect screw E with round metal catch K and hinge F on left door panel 11 & right door panel 12,fasten to secure. Use screwdriver to connect screw E with hinge G on center door panel 12,then fasten to secure. 11 16...
- Page 12 Use screwdriver to connect screw E and hinge F on left door panel 11 & right door panel 12 with left panel 3 and right panel 4,make sure all holes and hinges aligned,fasten to secure Slightly loose bolt on hinge and carefully reposition the door to set the door properly aligned 12 16...
- Page 13 Use screwdriver to connect screw E with hinge G on center door panel 12 on panel 6,mae sure all holes and hinges aligned and fasten to secure. 13 16...
- Page 14 Please adjust the levelevs to keep the cabinet in balance. 14 16...
- Page 15 Install the 1. Mark the position on the wall, this should be same as the position of O where are on of panel 1; Drilled and insert the by hammer; 2.Assemble the part O on the wall. Align the hole in the part O to the expandable screw Q, screw N in and tighten by screwdriver S;...
- Page 16 We strive to offer high-quality products, and we also try our best to satisfy each and every customer that orders from us with product or service as needed. We provide 30 days warranty starting from the time you receive the item. Each customer must provide a record of their order such as the order number, or item receipt for any items that are out of the warranty period you may also still receive replacement...
