- Page 1 Model: R718J2 Wireless 2-Input Dry Contact Interface Wireless 2-Input Dry Contact Interface R718J2 User Manual...
-
Page 2: Table Of Contents
Table of Content 1. Introduction ....................2 2. Appearance ....................3 3. Main Feature ....................3 4. Set up Instruction ..................4 5. Data Report ....................5 5.1 Example of ReportDataCmd .............. 5 5.2 Example of ConfigureCmd ..............7 5.3 Example for MinTime/MaxTime logic ..........8 6. -
Page 3: Introduction
1. Introduction R718J2 is a ClassA external 2-way dry contact device based on LoRaWAN open protocol of Netvox. It can externally connect various switches, buttons, relays and reed switch output. It can detect the closing or disconnecting signal of dry contact and is compatible with LoRaWAN protocol. -
Page 4: Appearance

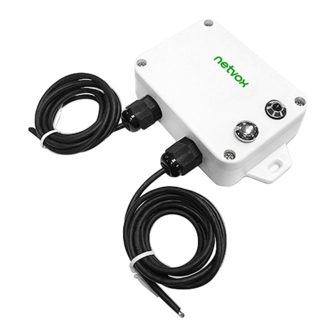

2. Appearance Dry Contact 1 Indicator Function Key Dry Contact 2 3. Main Feature ⚫ Apply SX1276 wireless communication module ⚫ 2 ER14505 lithium batteries (3.6V / section) parallel power supply ⚫ Dry contact detection ⚫ The base is attached with a magnet that can be attached to a ferromagnetic material object ⚫... -
Page 5: Set Up Instruction
4. Set up Instruction On/Off Power on Insert batteries. (Users may need a screwdriver to open) Turn on Press and hold the function key for 3 seconds till the green indicator flashes once. Turn off (Restore to factory setting) Press and hold the function key for 5 seconds till green indicator flashes for 20 times. Power off Remove Batteries. -
Page 6: Data Report
Version– 1 byte –0x01——the Version of NetvoxLoRaWAN Application Command Version DeviceType– 1 byte – Device Type of Device The devicetype is listed in Netvox LoRaWAN Application Devicetype doc ReportType – 1 byte –the presentation of the NetvoxPayLoadData，according the devicetype NetvoxPayLoadData– Fixed bytes (Fixed =8bytes) - Page 7 (1Byte,unit:0.1V) (1Byte 0:off 1:on) (1Byte 0:off 1:on) (5Bytes,fixed 0x00) Example 1 of Uplink: 0143012401000000000000 byte (01): Version byte (43): DeviceType 0x43 － R718J2 byte (01): ReportType byte (24): Battery－3.6v , 24(HEX)=36(DEC),36*0.1v=3.6v byte (01): Status－on byte (00): Status－off ~ 11 byte (0000000000): Reserved...
-
Page 8: Example Of Configurecmd
0x82 ReportRsp (2bytes Unit: s) (2bytes Unit: s) (1byte Unit:0.1v) (4Bytes, Fixed 0x00) (1) Configure R718J2 device parameter MinTime = 1min、MaxTime = 1min、BatteryChange = 0.1v Downlink: 0143003C003C0100000000 Device Return: 8143000000000000000000 (configuration success) 8143010000000000000000 (configuration failure) (2) Read R718J2 device parameter... -
Page 9: Example For Mintime/Maxtime Logic
SetLastMessage Resendtime(1Byte) Unit:1s , Range:3-254s Reserved 0x1F ResendtimeReq when 0 or 255 no resend, default is no resend (8Bytes,Fixed 0x00) SetLastMessage ALL(0xFF) Status Reserved 0x9F ResendtimeRsp (0x00_success) (8Bytes,Fixed 0x00) only used in 0xFF GetLastMessage contact switch Reserved 0x1E ResendtimeReq device type (9Bytes,Fixed 0x00) GetLastMessage Resendtime(1Byte) Unit:1s , Range:3-254s... - Page 10 Example#3 based on MinTime = 15 Minutes, MaxTime= 1 Hour, Reportable Change i.e. BatteryVoltageChange= 0.1V. MaxTime Users push the button, Wakes up and collects data REPORTS 3.5V. 3.5V |3.5-3.6|=0.1 Wakes up and Recalculate MaxTime. REPORTS 3.5V collects data 3.5V Does not report sleeping sleeping 1H 10...
-
Page 11: Installation
6. Installation 1. The R718J2 has a built-in magnet, which can be attached 2. After the dry contact sensor detects the change of the dry to the surface of an iron object during installation, which contact state, it will report the data immediately. -
Page 12: Information About Battery Passivation
7. Information about Battery Passivation Many of Netvox devices are powered by 3.6V ER14505 Li-SOCl2 (lithium-thionyl chloride) batteries that offer many advantages including low self-discharge rate and high energy density. However, primary lithium batteries like Li-SOCl2 batteries will form a passivation layer as a reaction between the lithium anode and thionyl chloride if they are in storage for a long time or if the storage temperature is too high. -
Page 13: Important Maintenance Instruction
8. Important Maintenance Instruction Kindly pay attention to the following in order to achieve the best maintenance of the product: • Keep the equipment dry. Rain, moisture and various liquids or water may contain minerals that can corrode electronic circuits. In case the device is wet, please dry it completely.
