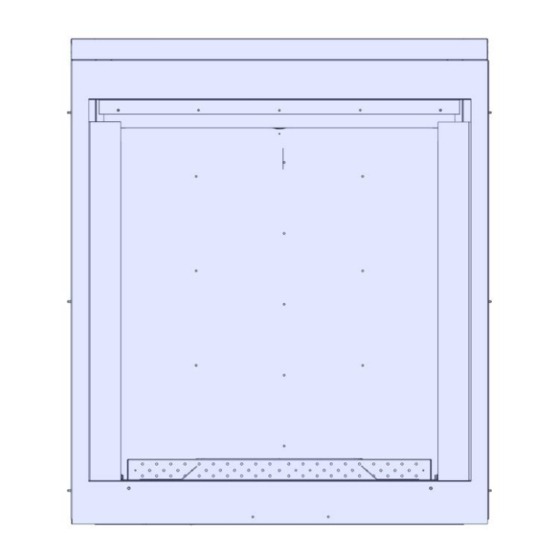

ROOM SEALED INSET LIVE FUEL EFFECT GAS FIRE
OWNER'S MANUAL
INCLUDES
USER INSTRUCTION
&
INSTALLATION & MAINTENANCE
INSTRUCTIONS
Please read these instructions carefully before you start
using the appliance
Keep this booklet handy for future reference
This appliance is
For use in GREAT BRITAIN or
IRELAND only
TELFORD
SHROPSHIRE
ENGLAND

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 880 BF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Infinity 880 BF

Summary of Contents for Infinity 880 BF

  • Page 1 880 BF ROOM SEALED INSET LIVE FUEL EFFECT GAS FIRE OWNER'S MANUAL INCLUDES USER INSTRUCTION & INSTALLATION & MAINTENANCE INSTRUCTIONS Please read these instructions carefully before you start using the appliance Keep this booklet handy for future reference This appliance is...

  • Page 2: Table Of Contents

    INFINITY 880 BF Instructions CONTENTS PAGE User’s Instructions SECTION ONE Important Information Consumer Protection Health and Safety Notice SECTION TWO Introduction SECTION THREE Operation Lighting the Fire Turning Off the Fire Replacing Appliance Batteries SECTION FOUR Cleaning and Fuel Bed Laying...

  • Page 3: Section One Important Information

     As the INFINITY 880 BF is a room sealed appliance (i.e. air for the combustion process is taken from outside the room) no purpose built ventilation is required. ...
  • Page 4 Regulations and the current ETCI rules for electrical installation, if appropriate.  Although the INFINITY 880 BF is fitted with a glass front which acts as a dress guard it is strongly recommended that a fireguard should be used for the protection of children, the elderly or infirm.

  • Page 5: Section Two Introduction

    SECTION TWO Introduction  The INFINITY 880 BF is an inset room sealed decorative fuel-effect gas appliance designed for use in locations that do not have a conventional chimney. The appliance must be installed against an outside wall because the air to support combustion is taken from the outside and the products of combustion are expelled to the outside.
  • Page 6 INFINITY 880 BF Users Instructions SECTION THREE Operation Cont. e. The appliance can be switched off with out using the hand set by removing the appliance batteries located below the air grill cover. When the batteries are removed there will be a delay (up 3minutes) after which, double bleeps may be heard and shortly after the appliance will extinguish.

  • Page 7: Replacing Appliance Batteries

    INFINITY 880 BF Users Instructions SECTION THREE Operation Cont. To Deactivate the sleep mode: When the fire is next operated, the sleep mode will automatically appear unless it is re-set to zero. This can be done by pressing the key and using the button to decrease the time set by 15 minute intervals until back to zero.

  • Page 8: Cleaning: Glass Panel

    INFINITY 880 BF Users Instructions SECTION FOUR Cleaning & Laying the fuel bed CLEANING: GLASS PANEL From time to time it may be necessary to clean the glass panel. We recommend you use a Ceramic Hob Cleaner (brands such as HOB BRITE and VITRO CLEN have been found to be acceptable) these are available from most leading Supermarkets.

  • Page 9: Cleaning And Replacing Fuel Bed

    The Fuel bed set consists of:  11 Log Shapes.  1 Bag of Bark Chips. INFINITY 880 BF Users Instructions SECTION FOUR Cleaning & Laying the fuel bed Continued Log Fuel Bed Layout.  Locate burner cover shown. ...
  • Page 10 INFINITY 880 BF Users Instructions SECTION FOUR Cleaning & Laying the fuel bed Continued Log Fuel Bed Layout  Place the Decorative Bark shapes as shown.  Place 3 off log shapes as shown. LT 6456 (Iss 2 046/14)
  • Page 11 INFINITY 880 BF Users Instructions SECTION FOUR Cleaning & Laying the fuel bed Continued Log Fuel Bed Layout  Place 2 off log shapes as shown.  Place the last Two large shapes LH and RH as shown. LT 6456 (Iss 2 046/14)

  • Page 12: Section Five Appliance Data

    INFINITY 880 BF Installation Instructions SECTION FIVE Appliance Data Fire Box dimensions: Height 1030mm Width 785mm Forward Projection: 42mm Weight: 35kg Flue Length………………………………………...100mm (minimum) to 600mm (maximum) No bends or joined flue pipes should be used in the flue system.

  • Page 13: Section Six Regulations And Warnings

    INFINITY 880 BF Installation Instructions SECTION SIX Regulations and Warnings  This appliance must only be installed in Great Britain or Ireland.  The appliance is available in natural gas only.  This appliance must be installed on a suitable outside wall.

  • Page 14: Section Seven Siting The Appliance

    INFINITY 880 BF Installation Instructions SECTION SEVEN Siting the Appliance (When installing in a timber framed dwelling reference must be made to the specific installation requirements stated in Section 9 Installing the Appliance in Timber Framed Dwelling). GENERAL REQUIREMENTS ...

  • Page 15: Section Eight Preparing The Appliance For Installation

    INFINITY 880 BF Installation Instructions SECTION SEVEN Siting the Appliance Continued Please note with early cavity wall design prior to 1970. The minimum depth requirement may well be difficult to obtain. This could result in the need for the fire box to be spaced further from the internal surface of the plaster and to achieve this larger rebated surround maybe necessary.

  • Page 16: Section Nine Install The Appliance

    INFINITY 880 BF Installation Instructions SECTION SEVEN Siting the Appliance Continued MARK POSITION OF LINTEL MARKING OUT WALL FOR CENTRE LINE OF CAVITY RECESSED INSTALLATION INSTALLATIONS 1040 605.00 490.00 Measurement taken from HEARTH SURFACE LINE floor Level to the flue pilot...

  • Page 17: Connecting The Gas Supply

    INFINITY 880 BF Installation Instructions SECTION TEN CONNECTING THE GAS SUPPLY TURN OFF ANY GAS APPLIANCES THAT ARE FED BY THE METER AND ISOLATE THE GAS SUPPLY BY TURNING OFF AT THE METER.  The Gas Connection can be made by removing the gas inlet cover located on the left hand side of the fire box sump assembly.

  • Page 18: Section Ten Assemble The Appliance

    INFINITY 880 BF Installation Instructions SECTION TEN Assemble the appliance continued  Taking special care remove the ceramic liner set from within the packaging. The rear liner is in two pieces. Place the bottom rear liner upon the top edge to the air tray. Angle the upper rear line into the fire box assembly and place on top of the rear bottom line.

  • Page 19: Section Eleven Instruct And Advise Customer

    INFINITY 880 BF Installation Instructions SECTION TEN Assemble the appliance continued  Holder within the bracket at the bottom of the fireplace assembly.  Fit the Inlet cover at the bottom of the appliance between the glass panel and fireplace frame assembly.

  • Page 20: Section Twelve Maintenance Instructions

    Infinity 880 BF Maintenance Instructions SECTION TWELVE Maintenance Instructions General  Servicing should be carried out annually by a competent person such as a GAS SAFE-registered person in accordance with the relevant regulations, to ensure the safe and correct operation of the appliance.

  • Page 21: Replacement Of The Thermocouple

    Turn on the gas supply, check for gas soundness, operation and re-commission appliance. When ordering parts quote 'INFINITY 880 BF' and the serial number of the fire, which can be found on the data badge on bottom left hand side of fire. (Refer to cleaning instructions for trim removal.)
  • Page 22 Infinity Fires INFINITY 880 BF THIS IS YOUR EXTENDED FIVE YEAR PARTS WARRANTY PLEASE READ IT CAREFULLY AND ENSURE YOUR INSTALLER HAS FILLED IN THE FIRST PORTION, KEEP IT IN A SAFE PLACE SO THAT IT IS AVAILABLE GAS SAFE WHEN YOUR ENGINEER CARRIES OUT THE ANNUAL SERVICE.
  • Page 23 For future reference we suggest you record the following details here, and keep the receipt as proof of purchase. This information may be asked for when you contact the helpdesk. Model: INFINITY 880 BF Serial No. This information can be found on the label attached to the packaging and on the data badge, which is located on the base of the appliance behind the control cover.
  • Page 24 The following information must be complete and supported by receipts as part of the conditions of the extended five year parts warranty and the appliance must be registered by completing and returning the registration document (last page of this booklet) to Infinity Fires. Date of First annual service: Engineer Name Gas Safe Registration No.
  • Page 25 Post Code TELEPHONE No. PRODUCT DETAILS Model: INFINITY 880 BF Serial No. Date of Purchase This information can be found on the label attached to the packaging and on the data badge, which is located on the base of the appliance behind the control cover.
  • Page 26 LT 6456 (Iss 2 046/14)
  • Page 27 LT 6456 (Iss 2 046/14)
  • Page 28 Burner Tray / Box Assembly Air Test Completed Warning Label (1409) Grommet (1406) Glass Sub-Assembly Silicone Sealing Strip (4818) x 2 880 BF Log Set (6334) Fireplace Frame (6257) Battery Holder (5775) Inlet Cover (6249) Top Fixing Cover (6344) “AAA” Batteries ( 3 )
