880FL & 880FL Basket
6.6kw – 7.6kw
OWNER MANUAL
INCLUDES
USER INSTRUCTION
&
INSTALLATION & MAINTENANCE
INSTRUCTIONS FOR STANDARD FIRE & CAST BASKET
Please read these instructions carefully before you start installing or using this appliance
Keep this booklet handy for future reference
This appliance is
for use in Great Britain or
IRELAND only
INFINITY
Charlton & Jenrick LTD
Telford
Shropshire
TF3 3AR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 880FL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Infinity 880FL

Summary of Contents for Infinity 880FL

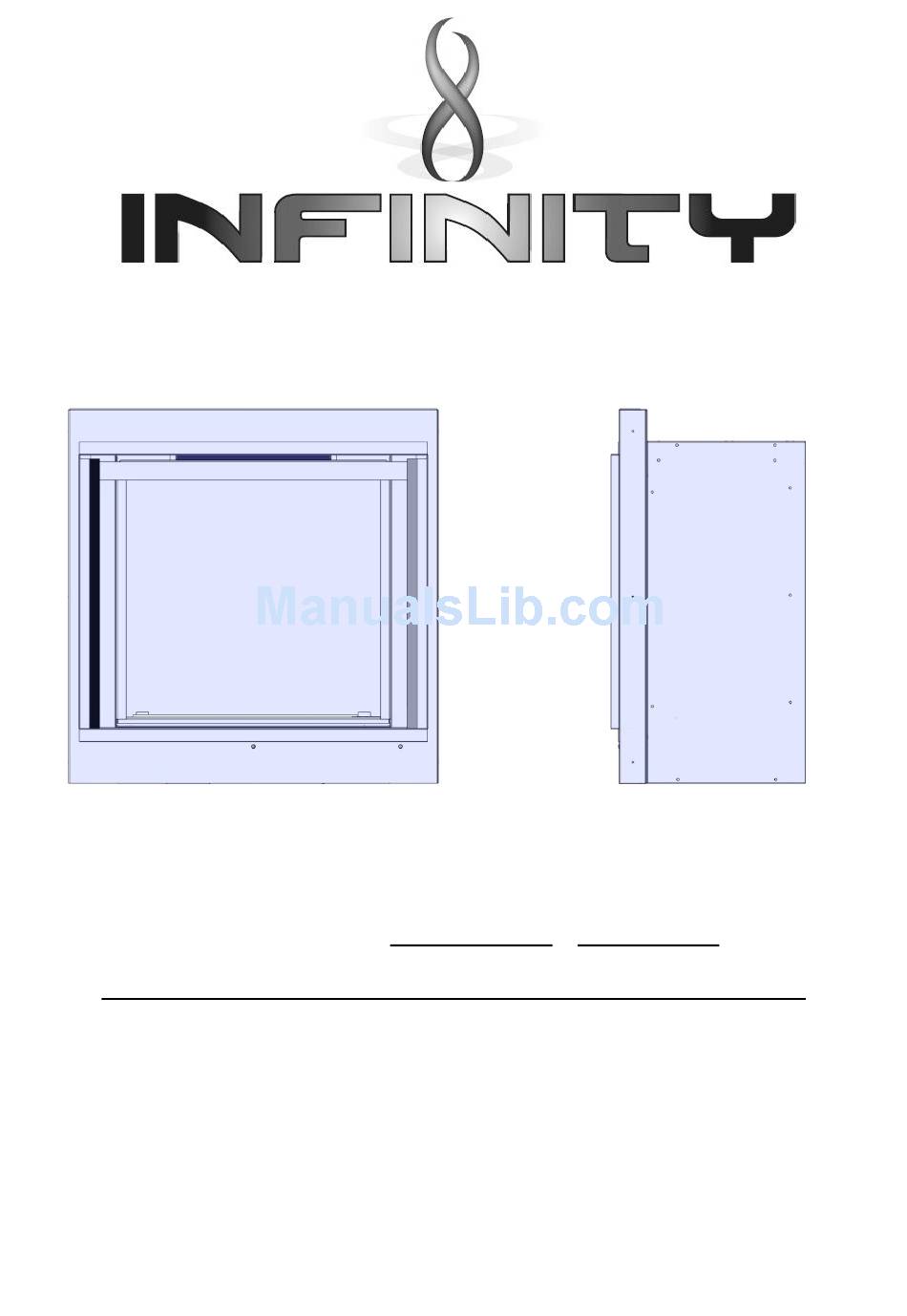

  • Page 1 880FL & 880FL Basket 6.6kw – 7.6kw OWNER MANUAL INCLUDES USER INSTRUCTION & INSTALLATION & MAINTENANCE INSTRUCTIONS FOR STANDARD FIRE & CAST BASKET Please read these instructions carefully before you start installing or using this appliance Keep this booklet handy for future reference...

  • Page 2: Table Of Contents

    880 FL Instructions CONTENTS PAGE USERS INSTRUCTIONS SECTION ONE Introduction Consumer Protection Information Heath & Safety Notice Introduction Important Information SECTION TWO Operating Appliance Lighting the Appliance Replacing Hand Set Battery Replacing Appliance Battery SECTION THREE Cleaning Cleaning Pilot Assembly Cleaning Glass panel Removing Glass Panel SECTION FOUR Fuel Bed Cleaning &...

  • Page 3: Section One Introduction

    880 FL Users Instructions SECTION ONE Introduction Consumer Protection Information As manufacturers and suppliers of heating products, we take every care, as far as is reasonably practicable, that these products are so designed and constructed as to meet the general safety requirement when properly used and installed.

  • Page 4: Important Information

    880 FL Users Instructions SECTION ONE Introduction Continued The 880 FL is battery operated; therefore no mains electrical supply is required. Power to the appliance is provided by 6 high power alkaline 1.5V batteries (C size) (a spare set of 6 C batteries is supplied with the appliance).

  • Page 5: Section Two Operating Appliance

    880 FL Users Instructions SECTION ONE Introduction Continued  Care must be taken to prevent any damage being caused to surrounding soft furnishing or decoration; e.g. many embossed vinyl wall coverings may become discoloured if placed too close to the appliance. Combustible material i.e. wall panelling or wallpaper must be removed from behind the fire and fire trim.
  • Page 6 880 FL Users Instructions SECTION TWO Operating the Appliance Continued below the SET room temperature, the system will move from standby to the high flame level. From this point it will proceed again the modulation process. Note: Due to the temperature checks at timed intervals, the display temperature on the handset may exceed the room setting temperature before the appliance defaults to the pilot setting...

  • Page 7: Section Three Cleaning

    880 FL Users Instructions SECTION TWO Operating the Appliance Continued LOW BATTERY INDICATION (APPLIANCE) If you hear a repeated ‘bleep’ sound come from the appliance this indicates the appliance battery pack is low and should be changed. If this is ignored the system will go into a lock out mode, which will not allow the appliance to be use until a new set of batteries are loaded.
  • Page 8 880 FL Users Instructions SECTION THREE Cleaning continued To gain access to the pilot, please do the following.  Remove the two side covers LH and RH.  Undo the two M4 nuts retaining the glass fixing bracket using the tool provided then pull clear and from the location studs.

  • Page 9: Section Four Fuel Bed Cleaning & Layout

    880 FL Users Instructions SECTIONTHREE Cleaning Continued REMOVING GLASS PANEL  Remove the two side covers LH and RH which are held on with magnets.  Undo the two M4 nuts retaining the glass fixing bracket using the tool provided then pull clear from location studs.
  • Page 10 880 FL Users Instructions SECTION FOUR Fuel Bed Cleaning and Layout Make sure that the cross Lighting port are keep clear of any obstruction.  Place the 2 log shapes along the front edge of the burner top plate. Place a single layer of small bark chippings along the rear of the burner plate.
  • Page 11 880 FL Users Instructions SECTION FOUR Fuel Bed Cleaning and Layout Continued  Place the 2 log shapes along the rear of the air tray assembly. Position a single layer of bark chippings along the front edge of the air tray. ...
  • Page 12 880 FL Users Instructions SECTION FOUR Fuel Bed Cleaning and Layout Continued  Place the 2 log shapes as shown.  Place the 2 log shapes as shown. LT6387 Iss 4 (05/14)
  • Page 13 880 FL Users Instructions SECTION FOUR Fuel Bed Cleaning and Layout Continued 880FL Users Instructions SECTION FOUR Basket Fuel Bed Cleaning and Layout.  Centralise the Basket into the fire over the Two rivets in Fire Box.  Position the Two Airtrays either side of the Basket as shown with arrows.
  • Page 14 880 FL Users Instructions SECTION FOUR Basket Fuel Bed Cleaning and Layout.  Position the Two rear shapes as shown.  Position the Two Front shapes as shown.  Place a single layer of the small black bark chippings on the burner , making sure to leave roughly a 5mm gap between them and to avoid blocking the cross lighting ports on the burner.
  • Page 15 880FL Users Instructions SECTION FOUR Basket Fuel Bed Cleaning and Layout.  Position 2 L/H shape as shown  Place the Thick Middle shape as shown, so it rests on the top of the front R/H shape as shown. LT6387 Iss 4 (05/14)
  • Page 16 880 FL Users Instructions SECTION FOUR Basket Fuel Bed Cleaning and Layout.  Place the Long Thin log as shown, making sure not to obstruct the Pilot Assembly.  Position the last shape as shown, making sure it does not obstruct the Pilot Assembly. ...

  • Page 17: Section Five General Points

    880 FL Users Instructions SECTION FIVE General Points Like all appliances incorporating an aerated burner a low frequency noise may be heard, particularly on the low setting, this is quite normal and does not affect the operation of the appliance. It is advised that a competent person service the 880 FL fire annually.
  • Page 18 not to damage the liners. 880 FL Users Instructions SECTION FIVE General Points Continued  Remove the six M4 nuts from the front face of the inner firebox.  Taking care not to damage the top liner remove the two fixing screw from the top of the inner firebox.

  • Page 19: Section Six Appliance Data

    Appliance 6 x 1.5V C high power alkaline. NOTE: The efficiency of the 880FL 6.6kw has been measured as specified in BS7977-1 2009+A1: 2013 and the result is 72.8%. The efficiency of the 880FL 7.6kw has been measured as specified in BS7977-1 2009+A1: 2013 and the result is 73.2%.

  • Page 20: Section Seven Regulations And Warnings

    880 FL Installation Instructions SECTION SEVEN Regulations and Warnings  This appliance must only be installed in Great Britain or Ireland.  The appliance is suitable for use on natural gas only.  GB (Great Britain) This fire does not normally require purpose build ventilation in accordance with 2010 document “J”...

  • Page 21: Section Eight Siting The Appliance

    880 FL Installation Instructions SECTION EIGHT Siting the Appliance  CLASS ONE That is a conventional brick or stone chimney as used for a solid fuel appliance with an effective cross- sectional dimension of 225 x 225 mm (9” x 9”) or a lined flue with a minimum diameter of 125mm (5”). The chimney must have a minimum effective height of at least 3 metres.

  • Page 22: Checking The Flue And Fire Opening

    880 FL Installation Instructions SECTION EIGHT Siting the Appliance Class one Installation with a flexible liner using optional gather hood (Part No A-0293)  Route the flexible liner within the brick built flue as of the requirements stipulated by the liner manufacture.

  • Page 23: Gas Supply Routing

    880 FL Installation Instructions SECTION NINE To Install the Appliance GAS SUPPLY ROUTING Use rigid or semi – rigid tube to connect the supply. Determine the gas supply pipe route to the appliance before installing the fire. Fixing Firebox Assembly ...
  • Page 24 880 FL Installation Instructions SECTION NINE To Install the Optional Cast Basket Removal of Tray:-  Remove RH and LH side covers undo glass fixing.  Remove glass panel.  Remove the loose fuel bed components.  Disconnect battery leads and remove appliance battery pack. ...

  • Page 25: Heath & Safety Notice

    880 FL Installation Instructions SECTION NINE To Install the Appliance Continued CHECKING GAS SOUNDNESS AND RUNNING PRESSURE.  Turn on the gas supply to the appliance and check for soundness in accordance with current codes of practice.  Turn off the gas supply at the external Isolation valve. ...
  • Page 26 880 FL Installation Instructions SECTION TEN Checking Operation of Fire REFIT GLASS PANEL AND FIREPLACE FRAME COVERS  Locate the glass panel within the bottom glass retaining slot and push back against the firebox seals.  Locate the glass fixing bracket over the top edge of the glass panel and slide over the two M4 studs.

  • Page 27: General

    880 FL Maintenance Instructions SECTION ELEVEN Maintenance GENERAL  Servicing should be carried out annually by a competent person such as a Gas safe-registered person in accordance with the relevant regulations, to ensure the safe and correct operation of the appliance.

  • Page 28: Replacement Of Injectors

    880 FL Maintenance Instructions SECTION ELEVEN Maintenance REPLACEMENT OF INJECTOR TIPS  Undo the two screws holding the burner bar in and lift out from the right hand side.  Undo the Injector tip with a spanner ( Only remove the injector `TIP`) ...

  • Page 29: Replacement Of Oxy-Pilot Assembly

    880 FL Maintenance Instructions SECTION TWELVE Maintenance Continued REPLACEMENT OF OXY-PILOT ASSEMBLY NOTE: If the pilot assembly is replaced it must be replaced by an identical unit from the same manufacturer and replaced as a complete unit.  Follow the burner tray or basket removal sequence. ...
  • Page 30 Charlton and Jenrick Ltd. 8. The registration form must be returned within 3 months of purchase. INFINITY HELPDESK NUMBER 0845 5195991 Important For future reference we suggest you record the following details here, and keep the receipt as proof of purchase.
  • Page 31 PLEASE REGISTER YOUR 12 MONTH WARRANTY WITH US TODAY Simply detach this sheet from this booklet, complete and return it in a stamped addressed envelope to: Infinity Charlton and Jenrick Ltd UNIT D STAFFORD PARK 2 TELFORD SHROPSHIRE TF3 3AR...
  • Page 32 LT6387 Iss 4 (05/14)

  • Page 33: Service Log

    Date of Fourth annual service: Engineer Name Gas Safe Registration No. We may introduce modifications to products from time to time, and consequently the details given in this booklet are subject to alteration without notice. Infinity Charlton & Jenrick LTD Telford Shropshire TF3 3AR...
  • Page 34 LT6387 Iss 4 (05/14)
  • Page 35 LT6387 Iss 4 (05/14)
  • Page 36 LT6387 Iss 4 (05/14)
  • Page 37 LT6387 Iss 4 (05/14)
  • Page 38 LT6387 Iss 4 (05/14)
  • Page 39 LT6387 Iss 4 (05/14)
  • Page 40 Infinity 880 FL A-0433 Product Serial No (Ng) ID Label Prefix Burner Tray / Box Assembly 1 X Bag Of Chippings Complete Log Fuel Bed (6242) 1xHigh Rate Inj tip 1xLow Rate Inj tip Restrictor Plate (6255) 1 X Bag of Black Chippings (6462)
