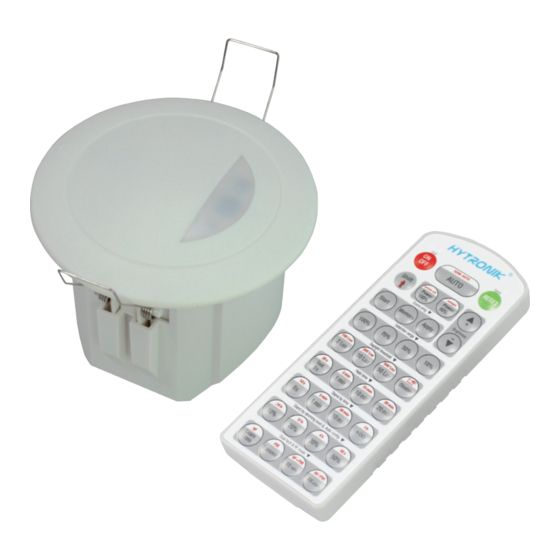

Stand-alone HF Motion Sensor
HMW23
Tri-level Control for System DALI
Mechanical Structure
70mm
4
3
1
Infrared receiver
DALI group selection
Lens
2
Note:We recommend the mounting distance between sensor to sensor should be more than 2m to prevent sensors
from false-triggering.
Technical Data
Input Characteristics
Model No.
Operating voltage
Stand-by power
Input current
Warming-up
Safety and EMC
EMC standard (EMC)
Safety standard (LVD)
Radio Equipment (RED)
Certi cation
Subject to change without notice.
HF
Photocell
LED indicator
(1) Sensor inset
(2) Lens pluggable
(3) Protection cover
(4) Ceiling (drill hole
HMW23
9.5 ~ 22.5VDC
<0.5W
Approx. 12mA
20s
EN55015, EN61000
EN60669, AS/NZS60669
EN300440, EN301489,
EN62479
Semko, CB, CE, EMC, RED, RCM
64.7
Ø
70mm).
Sensor Data
Model No.
Sensor principle
Operation frequency
Transmission power
Detection angle
Environment
Operation temperature
IP rating
Edition: 26 Feb. 2020
One-Key
Commissioning
TX
Rotary Switch
Rotary Switch
synchronization
Programing
Grouping
control
HMW23
High Frequency (microwave)
5.8GHz +/- 75MHz
<0.2mW
Max. ( O x H) 12m x 6m
360
O
Ta: -20
O
C ~ +50
IP20
RED
Ver. A0
Ambient daylight
threshold
0
6
6
O
C
IP20
Page 1/5
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hytronik HMW23
Summary of Contents for Hytronik HMW23
- Page 1 Stand-alone HF Motion Sensor HMW23 Tri-level Control for System DALI Mechanical Structure 70mm 64.7 Photocell LED indicator Infrared receiver (1) Sensor inset DALI group selection Rotary switch preset Ambient daylight One-Key (2) Lens pluggable threshold Commissioning (3) Protection cover Detection Pattern Ø...
- Page 2 Synchronisation Function By connecting the DALI terminals in parallel (see wiring diagram), no matter which sensor detects motion, all HMW23 in the group will turn on the lights when surrounding natural light is below the daylight threshold. The detection area could be widely enlarged in this way.
- Page 3 Rotary Switch Preset A rotary switch is built inside the sensor for scene Detection Daylight Stand-by Stand-by Channel Hold-time selection / fast programming. Total 16 channels range sensor dim level time are available: 100% Disable 100% 1min 2Lux 5min 100% 5min 10Lux 10min...
- Page 4 Brightness +/- Press the buttons to adjust the light brightness during hold-time. Scene program - 1-key commissioning 1. Press button “Start” to program. 2. Select the buttons in “Detection range”, “Daylight threshold”, “Hold-time”, “Stand-by time”, “Stand-by dimming level” to set all parameters.
- Page 5 Additional Information / Documents 1. Regarding precautions for microwave sensor installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->Microwave Sensors - Precautions for Product Installation and Operation 2. Regarding Hytronik standard guarantee policy, please refer to www.hytronik.com/download ->knowledge ->Hytronik Standard Guarantee Policy Subject to change without notice.
