Summary of Contents for Rohde & Schwarz NGL200 Series
- Page 1 R&S®NGL200 Power Supply Series High Precision Source and Sink COMPANY CONFIDENTIAL...
- Page 2 R&S Power Supply Classes HMP4040 NGE103B HMC8043 HMP2030 HMP4030 HM8143 NGE102B HMC8042 HMP2020 NGL202 HMC8041 NGL201 B A S I C P E R F O R M A N C E S P E C I A L I T Y COMPANY CONFIDENTIAL ®...
- Page 3 R&S Power Supply Classes HMP4040 Basic Power Supplies ❖ Afford able, quiet and stab le NGE103B HMC8043 HM8143 HMP2030 HMP4030 Manual and simple PC- controlled operation ❖ ❖ In education, on the bench and in system racks NGE102B HMC8042 HMP2020 NGL202 HMC8041 NGL201...
- Page 4 R&S Power Supply Classes more Performance Power channels Supplies HMP4040 ❖ Speed, accuracy and advanced programming features ❖ NGE103B HMC8043 HMP2030 HMP4030 HM8143 Features such as DUT protection, fast programming times and downloadable V and I sequences HMP2020 ❖ NGE102B HMC8042 NGL202 Used in labs and ATE...
- Page 5 R&S Power Supply Classes Specialty Power Supplies HMP4040 ❖ Tailored to specific applications ❖ Unique capabilities such as NGE103B HMC8043 HMP2030 HMP4030 HM8143 • Emulating the characteristics of a battery • Electronic load to sink current and dissipate power in an accurate and controlled manner more NGL202...
- Page 6 R&S Power Supply Classes HMP4040 R&S®NGL200 Power Supply HM8143 NGE103B HMC8043 HMP2030 HMP4030 Series NGL202 NGE102B HMC8042 HMP2020 HMC8041 NGL201 B A S I C P E R F O R M A N C E S P E C I A L I T Y COMPANY CONFIDENTIAL ®...
-
Page 7: Specifications
® The new R&S NGL200 Power Supply Series Specifications ® R&S NGL200 Specifications Number of channels 1 or 2 Voltage per channel 0 V to 20 V Max. Current per channel ≤ 6 V: 6 A, > 6 V: 3 A Max. -
Page 8: Key Features
® R&S NGL200 Power Supply Series Two-quadrant operation Key Features ı Linear two-quadrant output amplifier design ı Sink and source operation Minimal ripple and noise Perfect to support power amplifiers and MMIC development 6 ½ Digits Resolution In voltage, current and Optimized load recovery time power measurements ı... - Page 9 ® R&S NGL200 Power Supply Series Minimal ripple and noise Customer benefit Support power amplifiers and MMIC development Rohde & Schwarz NGL200 Keithley 2281S Ripple and Noise specification < 500 µV / < 2 mV < 1mA COMPANY CONFIDENTIAL R&S®NGL200 Power Supply Series...
- Page 10 ® R&S NGL200 Power Supply Series Optimized load recovery time Best load recovery time in its class During challenging load conditions most power supplies react with slow recovery time and overshoot. ® Optimized control loop design in the R&S NGL200 achieves a load recovery time of <...
- Page 11 ® R&S NGL200 Power Supply Series Two-quadrant operation Operation as sink and source The R&S®NGL200 power supplies automatically switch between sink and source operation. In this example channel 2 works as a load. Customer benefit Simulation of different battery models COMPANY CONFIDENTIAL R&S®NGL200 Power Supply Series...
- Page 12 ® R&S NGL200 Power Supply Series 6 ½ digits resolution Replaces an additional DMM in many applications Voltage and current measurement values are shown with up to 6½ digits resolution. Customer benefit ı Optimal for characterization of devices with low standby power consumption and high peak currents ı...

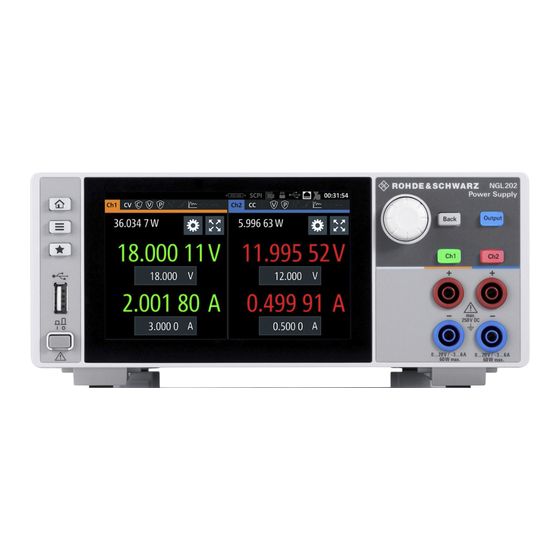

- Page 13 ® R&S NGL200 Power Supply Series Innovative operating concept 5” Capacitive Touch Screen Rotary Knob intuitive user interface Home Button fast adjustment of all values return to channel view at any time Menu Button all settings in one place Output On/Off User Button easily switching on/off the output set your preferred shortcut, e.g.
- Page 14 ® R&S NGL200 Power Supply Series Clear channel color coding and tool bar Channel identification and tool bar Channels are marked by colors on front panel and display Symbols in the tool bar show active functions COMPANY CONFIDENTIAL ® R&S NGL200 Power Supply Series...
- Page 15 ® R&S NGL200 Power Supply Series Channels galvanically isolated All channels galvanically isolated and earth-free Every channel can be seen as a separate power supply Application Combine channels to drive bipolar circuitries that might need + 12 V and – 12 V, for example, with common ground COMPANY CONFIDENTIAL ®...
- Page 16 ® R&S NGL200 Power Supply Series Parallel and serial operation Channel combination ı Serial mode for higher voltages ı Parallel mode for higher currents Parallel operation Serial operation up to 12 A up to 40 V COMPANY CONFIDENTIAL ® R&S NGL200 Power Supply Series...
- Page 17 ® R&S NGL200 Power Supply Series Protection functions and safety limits Protection functions ı Over Current protection (OCP) ı Over Voltage Protection (OVP) ı Over Power Protection (OPP) ı Over Temperature Protection (OTP) ı Link Function Safety limits ı Min. and Max. values for voltage and current ı...
-
Page 18: Interfaces And Connections
® R&S NGL200 Power Supply Series Interfaces and connections Channel connections ı Sense terminals ı Outputs Interfaces ı USB device (USB-TMC, USB-CDC) ı 2 x USB host ı Ethernet ı WLAN ı GPIB (IEEE-488) ı Digital I/O COMPANY CONFIDENTIAL ® R&S NGL200 Power Supply Series... - Page 19 ® R&S NGL200 Power Supply Series Even more features What else…? ı Controllable with mouse and keyboard ı Easy system integration Rack adapter ▪ Rear connections ▪ ı Data Logging ı Operation in all countries COMPANY CONFIDENTIAL ® R&S NGL200 Power Supply Series...
- Page 20 ® R&S NGL200 Power Supply Series Applications Battery Tests Power consumption tests ı Charge and discharge ı Accurate power measurement solutions ı Simulation of different battery models ı High dynamic range from a few (adjustable source impedance) microampere to several ampere Simulation of voltage drops Supplying sensitive designs ı...
- Page 21 ® R&S NGL200 Power Supply Series Competitor comparison R&S®NGL200 Keithley 2281S Keysight 66309D* GW Instek PPH-1503 Voltage 0 V to 20 V 0 V to 20 V 0 V to 15 V 0 V to 15 V 6 A (≤ 6 V) 5 A (≤...
-
Page 22: Order Information
® R&S NGL200 Power Supply Series Order information Designation Order No. NGL201 1-CHANNEL POWER SUPPLY 3638.3376.02 NGL202 2-CHANNEL POWER SUPPLY 3638.3376.03 NGL-B105 IEEE-488 INTERFACE 3652.6356.02 NGL-K102* WIRELESS LAN REMOTE CONTROL 3652.6362.02 NGL-K103 DIGITAL I/O 3652.6385.02 NGL-K0 incl. all Software options (18 month) 3642.6418.90 * only available in some regions COMPANY CONFIDENTIAL...
