R&S

NGA100

Power Supply

User Manual

(Æ1çC2)

5601891902

Version 08

Need help?

Do you have a question about the R&S NGA100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rohde & Schwarz R&S NGA100

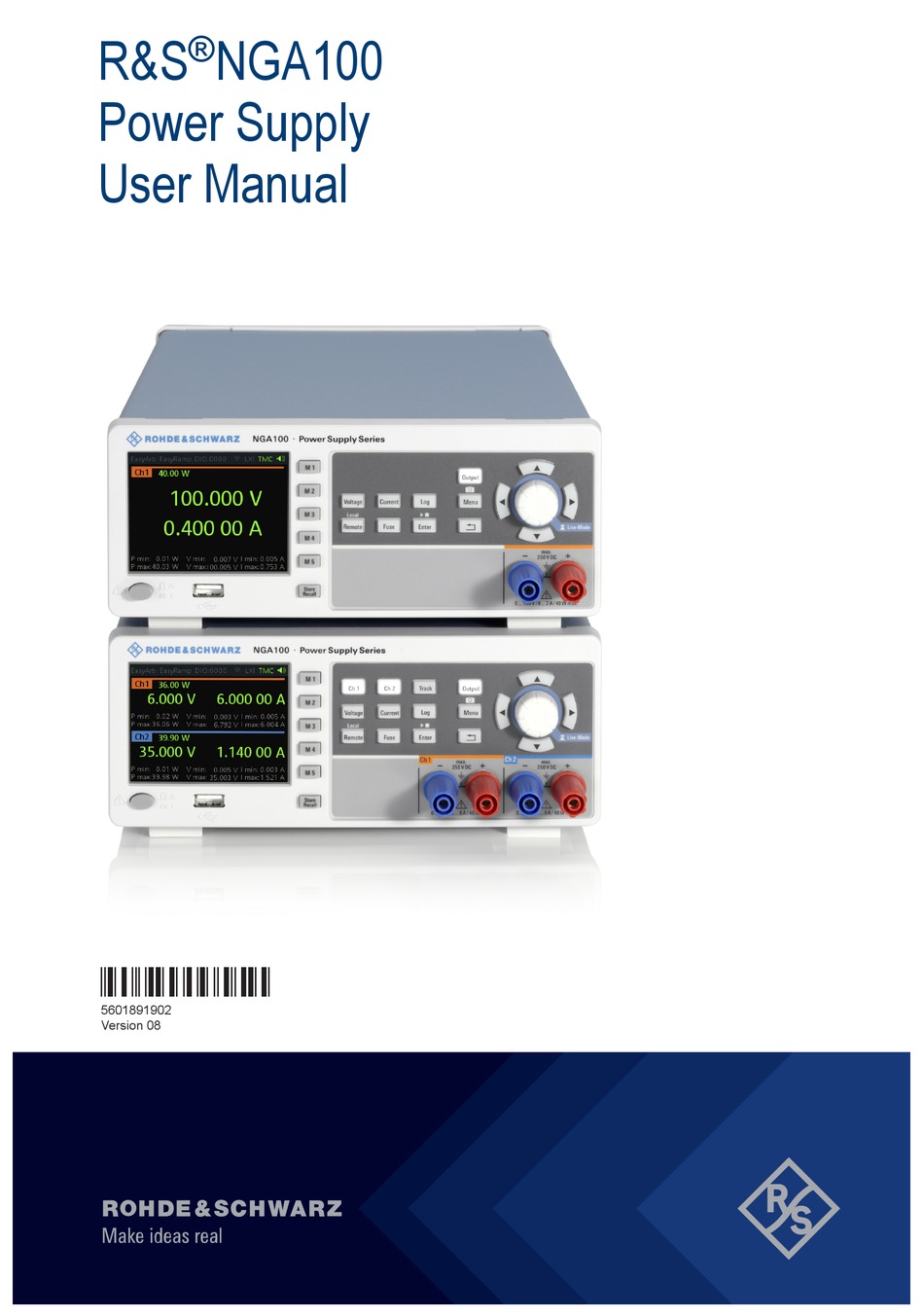

Page 1 ® R&S NGA100 Power Supply User Manual (Æ1çC2) 5601891902 Version 08...
Page 2 ® This manual describes the following R&S NGA100 models with firmware version 4.008 and higher: ● ® R&S NGA101 One-Channel 35V/6A Power Supply 40 W (5601.8002.02) ● ® R&S NGA102 Two-Channel 35V/6A Power Supply 80 W (5601.8002.04) ● ® R&S NGA141 One-Channel 100V/2A Power Supply 40 W (5601.8002.03) ●...
Page 3 ® Contents R&S NGA100 Contents 1 Safety and regulatory information............9 Safety instructions......................9 Labels on R&S NGA100....................12 Warning messages in the documentation..............13 Korea certification class A..................14 2 Documentation overview..............15 Manuals........................15 Data sheet........................15 Calibration certificate....................16 Release notes, open source acknowledgment (OSA)..........16 3 Conventions used in the documentation...........17 Typographical conventions..................17 Notes on screenshots....................17...
Page 4 ® Contents R&S NGA100 5.2.2 Rear panel........................29 5.2.3 Bottom panel......................... 31 Trying out the instrument...................32 5.3.1 Selecting the channels....................32 5.3.2 Setting the output voltage and current limit..............32 5.3.3 Activating the channel output..................33 5.3.4 Storing/Recalling of instrument settings................33 Instrument control...................... 33 5.4.1 Ways to operate the instrument..................
Page 5 ® Contents R&S NGA100 7.6.2 Fuse delay, fuse linking....................61 Tracking function......................62 Protection........................63 Digital trigger I/O......................65 7.10 Data logging........................ 69 7.11 Advanced functions....................71 7.11.1 EasyArb.........................72 7.11.2 EasyRamp........................74 7.12 Store and recall......................76 7.13 Interfaces and protocols.................... 78 7.13.1 Network connection.......................78 7.13.1.1...
Page 6 ® Contents R&S NGA100 8.3.3 Voltage setting......................111 8.3.4 Current setting......................113 8.3.5 Combined voltage and current settings............... 114 8.3.6 Output setting......................115 8.3.7 Fuse setting......................... 119 8.3.8 OVP setting......................... 123 8.3.9 OPP setting......................... 126 Measurement commands..................129 Advanced operating commands................130 8.5.1 Arbitrary commands....................
Page 7 ® Contents R&S NGA100 Annex....................151 A Additional basics on remote control..........151 Messages and SCPI command structure..............151 A.1.1 Messages........................151 A.1.2 SCPI command structure.................... 152 A.1.3 SCPI parameters......................154 A.1.4 Overview of syntax elements..................155 A.1.5 Responses to queries....................156 Command sequence and synchronization............. 157 A.2.1 Preventing overlapping execution................
Page 8 ® Contents R&S NGA100 User Manual 5601.8919.02 ─ 08...
Page 9 ® Safety and regulatory information R&S NGA100 Safety instructions 1 Safety and regulatory information The product documentation helps you use the product safely and efficiently. Follow the instructions provided here and in the following chapters. Intended use The product is intended for the development, production and verification of electronic components and devices in industrial, administrative, and laboratory environments by personnel familiar with the potential risks of measuring electrical quantities.
Page 10 ® Safety and regulatory information R&S NGA100 Safety instructions Only people skilled in electrical work should connect, set up and use the product. Such persons have the education and experience needed to recognize risks and avoid haz- ards of working with electricity. These users also need sound knowledge of at least one of the languages in which the user interfaces and the product documentation are avail- able.
Page 11 ® Safety and regulatory information R&S NGA100 Safety instructions Connecting to power The product is an overvoltage category II product. Connect the product to a fixed installation used to supply energy-consuming equipment such as household applian- ces and similar loads. Keep in mind that electrically powered products have risks, such as electric shock, fire, personal injury or even death.
Page 12 ® Safety and regulatory information R&S NGA100 Labels on R&S NGA100 ● When operating measuring accessories, only use the cables delivered with the accessory. If you have to use cables from other manufacturers, make sure that they are of the required overvoltage category. Do not operate the product in series or parallel unless that setup is supported.
Page 13 ® Safety and regulatory information R&S NGA100 Warning messages in the documentation ● Product and environment safety, see Table 1-1. ● Device information is provided on a sticker attached to the rear panel of R&S NGA100. The sticker contains a barcode and the device ID. The device ID is a combination of the order number and the serial number.
Page 14 ® Safety and regulatory information R&S NGA100 Korea certification class A 1.4 Korea certification class A 이 기기는 업무용(A급) 전자파 적합기기로서 판매자 또는 사용자는 이 점을 주의하시기 바라며, 가정외의 지역에서 사용하는 것을 목적으로 합니다. User Manual 5601.8919.02 ─ 08...
Page 15 ® Documentation overview R&S NGA100 Data sheet 2 Documentation overview This section provides an overview of the R&S NGA100 user documentation. 2.1 Manuals You find the documents on the R&S NGA100 product page at: www.rohde-schwarz.com/manual/nga100 Getting started Introduces the R&S NGA100 power supply series and describes how to set up and start working with the instrument.
Page 16 ® Documentation overview R&S NGA100 Release notes, open source acknowledgment (OSA) 2.3 Calibration certificate The document is available on https://gloris.rohde-schwarz.com/calcert. You need the device ID of your instrument, which you can find on a label on the rear panel. 2.4 Release notes, open source acknowledgment (OSA) The release notes list new features, improvements and known issues of the current firmware version, and describe the firmware installation.
Page 17 ® Conventions used in the documentation R&S NGA100 Notes on screenshots 3 Conventions used in the documentation 3.1 Typographical conventions The following text markers are used throughout this documentation: Convention Description "Graphical user interface ele- All names of graphical user interface elements on the screen, such as ments"...
Page 18 ® Welcome to R&S NGA100 R&S NGA100 4 Welcome to R&S NGA100 The one-channel or two-channel power supply series are based on a classical trans- former concept with high efficiency electronic pre-regulators and secondary linear reg- ulators. This concept allows the instrument to achieve the high output power within a minimum space, high efficiency and lowest residual ripple.
Page 19 ® Getting started R&S NGA100 Preparing for use 5 Getting started 5.1 Preparing for use Here, you can find basic information about setting up the product for the first time. 5.1.1 Lifting and carrying "Lifting and carrying the product" on page 10. 5.1.2 Unpacking and checking 1.
Page 20 ® Getting started R&S NGA100 Preparing for use See also "Choosing the operating site" on page 10. Electromagnetic compatibility classes The electromagnetic compatibility (EMC) class indicates where you can operate the product. The EMC class of the product is given in the data sheet. ●...
Page 21 ® Getting started R&S NGA100 Preparing for use Left = Stacked correctly Middle left = Stacked incorrectly, too many products Middle right = Stacked incorrectly, different dimensions Right = Stacked incorrectly, folded-out feet 4. NOTICE! Overheating can damage the product. Prevent overheating as follows: ●...
Page 22 ® Getting started R&S NGA100 Preparing for use 3. Push the R&S NGA100 onto the shelf until the rack brackets fit closely to the rack. 4. Tighten all screws at the rack brackets with a tightening torque of 1.2 Nm to secure the R&S NGA100 at the rack.
Page 23 ® Getting started R&S NGA100 Preparing for use Weight R&S NGA101, R&S NGA141 6.6 kg (14.55 lb), 6.9 kg (15.21 lb) R&S NGA102, R&S NGA142 7.0 kg (15.43 lb), 7.3 kg (16.09 lb) Operating limits The R&S NGA100 is equipped with a protective overload feature. The protective over- load feature prevents damage to the instrument and is intended to protect against a possible electrical shock.
Page 24 ® Getting started R&S NGA100 Preparing for use Signal input and output levels Information on voltage levels is provided in the data sheet. Keep the voltage levels within the specified ranges to avoid damage to the product and connected devices. See also "Output terminals"...
Page 25 ® Getting started R&S NGA100 Preparing for use 4. Check the fuse rating on the caps of both fuses that you want to replace. 5. Once verified, insert the fuse into the groove of the fuse holder. 6. Return the fuse holder to its position in the panel. The fuse holder is inserted against the spring pressure until it locks into place.
Page 26 ® Getting started R&S NGA100 Preparing for use 2. Disconnect the AC power cable from the socket outlet. 5.1.8 Connecting to LAN Establishing the LAN connection The R&S NGA100 provides Ethernet (LAN) connectivity. Provided the corresponding rights are assigned, you can use these interfaces for remote control and data transfer from a controller PC.
Page 27 ® Getting started R&S NGA100 Instrument tour Figure 5-2: Ethernet settings dialog 5.1.9 Connecting USB devices The USB Type-A connector is at the front panel. You can connect or disconnect all USB devices from the R&S NGA100 during operation. But do not remove an external USB memory stick while the instrument is performing firmware update, data logging and storing of screen captures, since it leads to unsuccessful updates and loss of data.
Page 28 ® Getting started R&S NGA100 Instrument tour 5.2.1 Front panel The front panel of the R&S NGA100 is as shown in Figure 5-3. The function keys and navigation controls are located at the right side of the display. The various connectors are located below the display and function keys.
Page 29 ® Getting started R&S NGA100 Instrument tour For detailed description on function keys, see Chapter 6.1.1, "Function keys", on page 43. Rotary knob and arrow keys (3) Rotary knob and arrow keys are means of navigation and adjustment. When pressed or rotated, they perform tasks like navigation around the screen, adjustment of param- eter values or confirmation of entries.
Page 30 ® Getting started R&S NGA100 Instrument tour 7 = Ground terminal 8 = AC inlet with fuse holder 9 = Ethernet (LAN) connector 10 = USB connector 11 = Digital I/O connector 12 = Rear panel connector 13 = Kensington lock Ground terminal (7) Protective ground terminal to secure the R&S NGA100, e.g.
Page 31 ® Getting started R&S NGA100 Instrument tour Measurement control for digital I/O can be achieved with an external input signal or as an output signal to trigger other instruments for measurements. The digital trigger I/O option (R&S NGA100-K103) must be installed for this function to be available in the instrument.
Page 32 ® Getting started R&S NGA100 Trying out the instrument Figure 5-5: Bottom panel of R&S NGA100 14 = Voltage selector 15 = Voltage selector label Voltage selector (14), Voltage selector label (15) The voltage selector selects the mains voltage between 100 V, 115 V and 230 V. See Table 5-1 for the fuse rating.
Page 33 ® Getting started R&S NGA100 Instrument control 4. To exit live-mode, press the rotary knob. Alternatively: 1. Press [Voltage] or [Current] key on the front panel. 2. For the two-channel R&S NGA100, press the desired channel key to activate the respective voltage or current limit setting of that channel.
Page 34 ® Getting started R&S NGA100 Instrument control ● Ways to operate the instrument................34 ● Means of manual interaction................... 34 ● Remote control......................42 5.4.1 Ways to operate the instrument You can operate an R&S NGA100 in two ways: ● Manual operation Use the front panel controls to configure the R&S NGA100 settings.
Page 35 ® Getting started R&S NGA100 Instrument control Figure 5-6: Example of screen display Device status bar Channel status bar Channel display area Historical channel information The following sections explain the information areas as labeled. Status bar information There are two types of status bar information located at the top of the screen layout: ●...
Page 36 ® Getting started R&S NGA100 Instrument control Function Description DIO:xxxx Digital trigger I/O (digital trigger I/O option R&S NGA100-K103 must be installed). The "xxxx" refers to I/O status for DIO1, DIO2, DIO3, DIO4. If in use, the icon is highlighted in green. If enabled, the icon is highlighted in white.
Page 37 ® Getting started R&S NGA100 Instrument control Indicator Description OVP / OPP / OTP Indicator to show that the overload voltage, power or temperature protection is triggered. When triggered, the indicator shows flashing and displays in red. The OVP and OPP indicators are located in the same position.
Page 38 ® Getting started R&S NGA100 Instrument control To change the voltage or current value, see "To correct value in the channel display area" on page 41. Operating mode Different font colors on the screen are used to differentiate the various output status and operating conditions of the instrument.
Page 39 ® Getting started R&S NGA100 Instrument control The instrument functions are grouped into the various menus based on the catego- ries of "Output", "Interface", "Device" and "Utilities". For more information, see Chapter 6.1.3, "Menu key", on page 47. Figure 5-11: Example of a menu selection The term dialog refers to the views that cover the parameters of a certain function.
Page 40 ® Getting started R&S NGA100 Instrument control 5.4.2.2 Accessing the functionality All functionalities of the R&S NGA100 are provided by the corresponding functions keys on the front panel. This section provides an overview of the accessing methods. For detailed information, see Chapter 6.1.1, "Function keys", on page 43.
Page 41 ® Getting started R&S NGA100 Instrument control – Long press on the [UP] / [DOWN] arrow key to increase or decrease the value to maximum or minimum value. Press rotary knob to stop. ● Using on-screen keyboard for alphanumeric input field in the dialog Entering numeric parameters If the input field requires numeric input, you can use either the rotary knob or arrow keys on the front panel to adjust to required values.
Page 42 ® Getting started R&S NGA100 Instrument control To complete the entry To confirm the entry: ► On the on-screen keyboard, select "OK" to confirm the input. The dialog closes with changes to the settings. Pressing the rotary knob also confirms the action and returns to the previous screen.
Page 43 ® Operating basics R&S NGA100 Front panel keys 6 Operating basics 6.1 Front panel keys For an overview of the front panel keys, see Chapter 5.2, "Instrument tour", on page 27. 6.1.1 Function keys The following keys can be categorized based on their functions. Figure 6-1: Function keys of R&S NGA100 Output and channel controls Navigation keys...
Page 44 ® Operating basics R&S NGA100 Front panel keys [Ch 1] / [Ch 2] Selects the respective channel for output. Applicable only for the two-channel models. Chapter 7.1, "Setting the voltage and current", on page 52. Remote command: on page 110 INSTrument:NSELect on page 110 INSTrument[:SELect]...
Page 45 ® Operating basics R&S NGA100 Front panel keys [Menu]........................... 45 [Remote]........................45 [Fuse]..........................45 [Voltage] Sets the output voltage for the channel. See Chapter 7.1, "Setting the voltage and cur- rent", on page 52. Remote command: on page 112 [SOURce:]VOLTage[:LEVel][:IMMediate][:AMPLitude] on page 114 APPLy [Current] Sets the output current limit for the channel.
Page 46 ® Operating basics R&S NGA100 Front panel keys 6.1.1.4 Memory functions These keys are dedicated for a specific preprogrammed function. [M1] / [M2] / [M3] / [M4] / [M5]..................46 [Store Recall].........................46 [M1] / [M2] / [M3] / [M4] / [M5] Five memory keys to save or recall instrument settings.
Page 47 ® Operating basics R&S NGA100 Front panel keys To go into live-mode of the instrument, see "To go into live-mode" on page 40. 6.1.3 Menu key The R&S NGA100 [Menu] key provides access to instrument's functions and general instrumental settings. You can also obtain the instrument and service information via the [Menu] key.
Page 48 ® Operating basics R&S NGA100 Front panel keys └ Reset.......................49 Utilities...........................49 └ System Test....................49 └ Update......................49 └ Service......................49 └ Date Time......................49 └ Help.........................49 Output Provides menu items related to the instrument's output functions. Protection ← Output Configures the OVP and OPP protection settings for the instrument. See Chapter 7.8, "Protection", on page 63.
Page 49 ® Operating basics R&S NGA100 Front panel keys Digital IO ← Interface Configures the digital trigger I/O settings. See Figure 7-16. The digital trigger I/O option R&S NGA100-K103 must be installed for this function to be available in the instrument. USB ←...
Page 50 ® Operating basics R&S NGA100 Power derating 6.2 Power derating The R&S NGA100 power supply series provides a maximum output power of 40 W for a single channel model. Depending on the power supply models, up to 80 W of output power is provided for models with two identical channels with a continuous voltage range of 0 V to 35 V or 0 V to 100 V.
Page 51 ® Operating basics R&S NGA100 Operation modes According to the basic electrical formula for power (P) = current (I) x voltage (V), the following results for the maximum power per channel: ● NGA101, NGA141: 40.0 W for single channel ● NGA102, NGA142: 40.0 W per channel (80 W max for the combination of two channels) For more information on the combination of channels, see...
Page 52 ® Instrument functions R&S NGA100 Setting the voltage and current 7 Instrument functions 7.1 Setting the voltage and current The R&S NGA100 comes with the following instrument models: Depending on models, toggle the respective channel key ([Ch 1] or [Ch 2] ) on the front panel to select these channels.
Page 53 ® Instrument functions R&S NGA100 Activating the channel output Figure 7-2: Voltage and current settings in the instrument "To go into live-mode" on page 40 for alternative way to configure the voltage and current values. See also "Keypad" on page 92 for setting the keypad fallback time. Set output voltage and current See details in "[Voltage]"...
Page 54 ® Instrument functions R&S NGA100 Current range Figure 7-3: Output of Ch2 in CC mode Activating the channel output See details in "[Output]" on page 44. Remote command: on page 117 OUTPut:GENeral on page 116 OUTPut[:STATe] on page 118 OUTPut:SELect 7.3 Current range The "CurrentRange"...
Page 55 ® Instrument functions R&S NGA100 Current range Note: To avoid oscillation in "Auto" mode, the "Low" range to "High" range switch- ing point is at 205 mA and the "High" range to "Low" range switching point is at 195 mA. 3.
Page 56 ® Instrument functions R&S NGA100 Current range "Auto" The measured output current is displayed in the following: ● "A" with 10 µA resolution for current above 200 mA ● "mA" with 1 µA resolution for current below 200 mA Example: The following shows the display of current range set to "High"...
Page 57 ® Instrument functions R&S NGA100 Remote sense function Remote command: on page 114. [SOURce:]CURRent:RANGe 7.4 Remote sense function The "Remote Sense" is a mechanism used to monitor and compensate the voltage drops on the cables connected to the load. Once the remote sense is activated, it becomes part of the output feedback path for R&S NGA100.
Page 58 ® Instrument functions R&S NGA100 Channel fusion "EXT" The internal voltage sense relay in the instrument is switched on and the connection of remote sense wires (S+, S-) to the input of the load become necessary. Failure to connect remote sense can cause over- voltage or unregulated voltage output from the R&S NGA100.
Page 59 ® Instrument functions R&S NGA100 Channel fusion Connection Mode ← ChannelFusion Sets channel fusion connection mode. "Off" Channel operates separately. "Series" In series mode, the two terminals in the middle are used for output. There is an internal series link activated to connect channel 1 and channel 2 output.
Page 60 ® Instrument functions R&S NGA100 Electronic fuse 7.6 Electronic fuse To protect a connected, sensitive output in general, the R&S NGA100 power supply includes an electronic fuse which can be switched on individually for each channel. A fuse delay can be applied to each channel and individual electronic fuses can be log- ically linked to switch off the interlinked channels if a fuse triggers.
Page 61 ® Instrument functions R&S NGA100 Electronic fuse 7.6.2 Fuse delay, fuse linking The fuse delay and fuse linking functions provide the flexibility to handle a fuse tripped event when it occurs. When the current for a channel exceeds the value I and the fuse tripped event triggered, the affected channels are turned off according to the set- tings configured in the fuse delay and fuse linking.
Page 62 ® Instrument functions R&S NGA100 Tracking function Remote command: "[Ch 1] / [Ch 2]" on page 44. Fuse Delay ← Fuse Time taken before fuse tripped event occurs. Remote command: on page 121 FUSE:DELay Fuse Linking ← Fuse Sets fuse linking for the previous selected channel. "Ch 1"...
Page 63 ® Instrument functions R&S NGA100 Protection Figure 7-13: Tracking dialog [Track] Activates tracking function. Remote command: n.a. 7.8 Protection The R&S NGA100 provides individual overvoltage protection (OVP) and overpower protection (OPP) settings for each channel. With both functions activated, the R&S NGA100 protects itself and the load in case of voltage or power overloads.
Page 64 ® Instrument functions R&S NGA100 Protection Figure 7-15: Protection dialog 3. Set the desired mode and voltage for OVP protection. The R&S NGA100 turns off the output channel when the measured voltage excee- ded the preset value. 4. Set the desired mode and power for OPP protection. The R&S NGA100 turns off the output channel when the measured power excee- ded the preset value.
Page 65 ® Instrument functions R&S NGA100 Digital trigger I/O <Level> ← Overvoltage Protection (OVP) ← Protection Sets OVP voltage level. The R&S NGA100 turns off the respective channel when the measured voltage excee- ded the preset value. Remote command: on page 126 [SOURce:]VOLTage:PROTection:LEVel Overpower Protection (OPP) ←...
Page 66 ® Instrument functions R&S NGA100 Digital trigger I/O ● Trigger input The data lines of the digital I/O interface receive external trigger signal. The exter- nal trigger signal triggers the selected channel (Ch 1, Ch 2) with the set response when the trigger condition ("Active High"...
Page 67 ® Instrument functions R&S NGA100 Digital trigger I/O Trigger out parameters Trigger conditions Description Output Off Output the selected logic level when the [Output] is turned off at the selected chan- nel. Fuse Tripped Output the selected logic level when a fuse tripped event occurs on the selected chan- nel.
Page 68 ® Instrument functions R&S NGA100 Digital trigger I/O Figure 7-16: Digital IO dialog 3. Select the desired DIO interface for configuration. For configuration details, see "Digital IO" on page 68. Digital IO........................68 └ Master Enable....................68 └ DIO 1 / DIO 2 / DIO 3 / DIO 4.................
Page 69 ® Instrument functions R&S NGA100 Data logging Channel ← DIO 1 / DIO 2 / DIO 3 / DIO 4 ← Digital IO Sets channel for DIO settings. Remote command: on page 136 TRIGger:IN:SOURce:DIO<IO> on page 138 TRIGger:OUT:SOURce:DIO<IO> Condition ← DIO 1 / DIO 2 / DIO 3 / DIO 4 ← Digital IO Sets trigger condition for the selected digital I/O line.
Page 70 ® Instrument functions R&S NGA100 Data logging The data is stored in the file named log-yyyyMMddTHHmmss.csv, e.g. log-19701231T235501.csv. See Figure 7-19. Figure 7-17: Logging started 3. Toggle the [Log] key to stop data logging. The R&S NGA100 finishes the data logging. An indicator "Finish writing to usb"...
Page 71 ® Instrument functions R&S NGA100 Advanced functions Figure 7-19: Log data sample [Log] Toggles on/off data logging. Remote command: on page 140 LOG[:STATe] on page 140 DATA:DATA? on page 141 DATA:LIST? 7.11 Advanced functions The following chapters provide information about the EasyArb EasyRamp menu...
Page 72 ® Instrument functions R&S NGA100 Advanced functions The R&S NGA100 displays the respective menu item dialog. 7.11.1 EasyArb EasyArb function The arbitrary function is available only in Ch 1. "Voltage, current settings" on page 52. LabVIEW driver The arbitrary functions in LabVIEW driver rshmc804x do not support the EasyArb fea- ture in the R&S NGA100.
Page 73 ® Instrument functions R&S NGA100 Advanced functions └ EasyArb Mode on Ch 1...................73 └ EasyArb Repetition..................73 └ Number of Data Points..................73 └ EasyArb List table................... 73 └ N......................73 └ Voltage....................73 └ Current....................74 └ Duration....................74 └ Apply EasyArb Data..................74 └...
Page 74 ® Instrument functions R&S NGA100 Advanced functions Current ← EasyArb List table ← EasyArb Sets the current level for the EasyArb point. Remote command: on page 132 ARBitrary:DATA Duration ← EasyArb List table ← EasyArb Sets the duration taken between two data points. Remote command: on page 132 ARBitrary:DATA...
Page 75 ® Instrument functions R&S NGA100 Advanced functions Access: 1. Select "EasyRamp" menu item. The R&S NGA100 displays the "EasyRamp" dialog. See Figure 7-22. Figure 7-22: EasyRamp dialog 2. Set the desired EasyRamp settings. For details, see "EasyRamp" on page 75. 3.
Page 76 ® Instrument functions R&S NGA100 Store and recall 7.12 Store and recall The [Store Recall] function is disabled when the instrument is in editing mode. "Operating mode" on page 38. Upon power-up, the instrument loads the last stored settings from internal memory location.
Page 77 ® Instrument functions R&S NGA100 Store and recall Store instrument settings Access: 1. Long press [Store Recall] key to store instrument settings. The R&S NGA100 displays a message "Store device settings: select any [Mx] key" in the status bar. Figure 7-23: Store instrument settings 2.
Page 78 ® Instrument functions R&S NGA100 Interfaces and protocols [Store Recall] Saves/loads instrument settings. In the EasyArb and DIO dialog environment, only the EasyArb or DIO settings are saved or loaded, the instrument settings are not saved or loaded. See "Instrument set- tings"...
Page 79 ® Instrument functions R&S NGA100 Interfaces and protocols ● If the network supports dynamic TCP/IP configuration using the dynamic host con- figuration protocol (DHCP), and a DHCP server is available, all address information can be assigned automatically. ● Otherwise, the address must be set manually. Automatic private IP addressing (APIPA) is not supported.
Page 80 ® Instrument functions R&S NGA100 Interfaces and protocols └ Subnet Mask....................80 └ Default Gateway..................... 80 └ Reset LAN.......................81 └ Apply....................... 81 Ethernet Sets the Ethernet settings for LAN connection. MAC Address ← Ethernet Displays the MAC address of this instrument. Remote command: n.a.
Page 81 ® Instrument functions R&S NGA100 Interfaces and protocols Reset LAN ← Ethernet Restores the LAN settings to factory default. It also removes the LXI web password. Remote command: n.a. Apply ← Ethernet Apply static IP settings. Remote command: n.a. 7.13.1.2 Wireless LAN connection Wi-Fi transmitter performance Frequency range: 2412 MHz to 2484 MHz...
Page 82 ® Instrument functions R&S NGA100 Interfaces and protocols Figure 7-26: WLAN dialog 3. Configure the required WLAN settings. See details in "WLAN" on page 82. 4. Select the "Connect" button. If connection is successful, the "Status" shows "Connected". See Figure 7-27.
Page 83 ® Instrument functions R&S NGA100 Interfaces and protocols Status ← WLAN Displays WLAN connection status. Remote command: on page 108 SYSTem:COMMunicate:WLAN[:STATe] SSID ← WLAN Sets SSID string of the access point if the wireless interface works as client. SSID - Service Set Identifier, a unique ID Remote command: on page 109 SYSTem:COMMunicate:WLAN:SSID...
Page 84 ® Instrument functions R&S NGA100 Interfaces and protocols Alternatively, connect a USB cable between the USB port and PC for a USB connec- tion. The R&S NGA100 supports "USB TMC" "USB VCP" connection. Access: 1. Select "USB" menu item. The R&S NGA100 displays the "USB" dialog. Figure 7-28: USB dialog 2.
Page 85 ® Instrument functions R&S NGA100 Interfaces and protocols For more information of the driver installation and HMExplorer window application, see the installation guide of the driver file and the internal HMExplorer help. USB TMC The USB Test & Measurement class (USB-TMC) is a protocol that allows GPIB-like communication via USB interfaces and is a separate instrument class of the USB spec- ification.
Page 86 ® Instrument functions R&S NGA100 Interfaces and protocols Figure 7-29: Device manager USB Mode Sets USB mode for USB connection. "VCP" USB virtual COM port, see "USB VCP" on page 84. "TMC" USB Test & Measurement class, see"USB TMC" on page 85. Remote command: "USB"...
Page 87 ® Instrument functions R&S NGA100 Interfaces and protocols Figure 7-30: LXI classes ● Class C devices are characterized by a uniform LAN implementation including an ICMP ping responder for diagnostic purposes. Devices can be configured with a WEB browser. A LAN Configuration Initialize (LCI) mechanism resets the LAN configuration. Class C LXI devices are also intended to support automatic detection in a LAN via VXI-11 discovery protocol and programming using IVI drivers.
Page 88 ® Instrument functions R&S NGA100 Interfaces and protocols Figure 7-31: Instrument web browser view 7.13.4 SCPI SCPI (Standard Commands for Programmable Instruments) commands - messages - are used for remote control. Commands that are not taken from the SCPI standard fol- low the SCPI syntax rules.
Page 89 ® Instrument functions R&S NGA100 Interfaces and protocols 7.13.6 Setting up remote control connection The following shows the resource string format used when setting up a remote connec- tion via the USB interface: ● USB TMC USB0::0x0AAD:: 0x0197::5601.8002<device_variant>-<device_serial_number>:: INSTR where k02 is used for NGA101 device, k03 is used for NGA141 device, k04 is used for NGA102 device, k05 is used for NGA142 device.
Page 90 ® Instrument functions R&S NGA100 General instrument settings [Remote] Toggles remote/local instrument control mode. Remote command: on page 106 SYSTem:LOCal on page 106 SYSTem:RWLock on page 106 SYSTem:REMote 7.14 General instrument settings The following chapters provide the general instrument information and utilities services in R&S NGA100.
Page 91 ® Instrument functions R&S NGA100 General instrument settings └ Calibration Date....................91 └ Address....................91 └ Export OSA to USB..................91 Information Displays instrument information. Device Model ← Information Model of the instrument, i.e. NGA101, NGA102, NGA141 or NGA142. Remote command: on page 103 *IDN? Serial Number ←...
Page 92 ® Instrument functions R&S NGA100 General instrument settings 7.14.2 General instrument settings General instrument settings such as keypad fallback time, screen display brightness and buzzer setting are provided. Access: ► Select "General" menu item. The R&S NGA100 displays the "General" dialog. See Figure 7-33.
Page 93 ® Instrument functions R&S NGA100 General instrument settings Remote command: on page 105 SYSTem:BEEPer[:IMMediate] 7.14.3 License management Options are enabled by entering a registered license key code. You may choose to install from an XML file on USB or by manually entering the key code.
Page 94 ® Instrument functions R&S NGA100 General instrument settings If an invalid key code is entered, an error message is displayed. Re-enter the cor- rect key code. License..........................94 └ Device ID......................94 └ License Key Installation.................. 94 └ Entry....................94 └ Install Key.....................
Page 95 ® Instrument functions R&S NGA100 General instrument settings Remote command: on page 106 SYSTem:OPTion? on page 103 *OPT? 7.14.4 Reset instrument This function resets the instrument to factory default settings. The following settings are reset to default: ► Select "Reset" menu item. The R&S NGA100 displays the "Reset"...
Page 96 ® Instrument functions R&S NGA100 General instrument settings Parameters Default settings R&S NGA101, R&S NGA102 R&S NGA141, R&S NGA142 EasyRamp Disabled, 0.01 s "Output Ramping", "Ramping Time" Digital IO "Master Enabled" Disabled "Direction", "Channel", "Condition" "Trigger Out", "Ch 1", "Output On" "Logic", "Status"...
Page 97 ® Instrument functions R&S NGA100 General instrument settings └ Display Test.....................97 └ Key Backlight Test...................97 └ Buzzer Test..................... 97 └ Test......................97 System Test Lists the system test for instrument. Display Test ← System Test System test to check if display is working. RGB and a list of supported colors should appear on the screen during the test.
Page 98 ® Instrument functions R&S NGA100 General instrument settings 3. Connect the USB flash drive to the USB port of the instrument and wait for ten sec- onds. 4. Press [Menu] key. 5. Select "Utilities" > "Update" menu item. If firmware file is found, the R&S NGA100 displays the "Update" dialog. See Fig- 7-37.
Page 99 ® Instrument functions R&S NGA100 General instrument settings Remote command: n.a. Start Update from USB ← Device ← Update Displays the firmware update status from USB. Remote command: on page 141 DIAGnostic:SERVice:FWUP 7.14.7 Help The "Help" dialog provides the internet link and QR code for the latest R&S NGA100 information.
Page 100 ® Instrument functions R&S NGA100 General instrument settings Figure 7-39: Date time dialog 2. Select "Set" to change the system date and time. The R&S NGA100 displays a dialog to set date and time in "dd mm yyyy" and "hh mm"...
Page 101 ® Instrument functions R&S NGA100 General instrument settings Current Time ← Date Time Displays instrument current system time. Remote command: n.a. Date ← Date Time Sets instrument system date. Remote command: n.a. Time ← Date Time Sets instrument system time. Remote command: n.a.
Page 102 ® Remote control commands R&S NGA100 Common setting commands 8 Remote control commands This chapter provides the description of all remote commands available for the R&S NGA100 series. The commands are sorted according to the menu structure of the instrument. A list of commands in alphabetical order is given in the "List of commands" at the end of this documentation.
Page 103 ® Remote control commands R&S NGA100 Common setting commands Parameters: <Value> Range: 0 to 255 *ESR? Event status read Returns the contents of the event status register in decimal form and then sets the reg- ister to zero. Return values: <Contents>...
Page 104 ® Remote control commands R&S NGA100 Common setting commands Manual operation: "<Key Option Status>" on page 94 *RST Reset Sets the instrument to a defined default status. The default settings are indicated in the description of commands. We recommend to start a program by *RST in order to set the instrument to a defined status prior to starting a program.
Page 105 ® Remote control commands R&S NGA100 System commands *WAI Wait to continue Prevents servicing of the subsequent commands until all preceding commands have been executed and all signals have settled (see also command synchronization and *OPC). Usage: Event *SAV <Number> Save Stores the current instrument settings under the specified number in an internal mem- ory.
Page 106 ® Remote control commands R&S NGA100 System commands Usage: Event Manual operation: "Sound" on page 92 "Buzzer Test" on page 97 SYSTem:LOCal Sets the system to front panel control. The front panel control is unlocked. Usage: Event Manual operation: "[Remote]" on page 45 "[Remote]"...
Page 107 ® Remote control commands R&S NGA100 System commands SYSTem:TEST:FANCtrl Runs the system test: Fan Control Test. Usage: Event Manual operation: "Fan Test" on page 97 SYSTem:TEST:KEYBacklight Runs the system test: Keypad Backlight Test. Usage: Event Manual operation: "Key Backlight Test" on page 97 SYSTem:TEST:SCReen Runs the system test: Screen Color Test.
Page 108 ® Remote control commands R&S NGA100 System commands Instrument with serial number below 110000 Manual operation: "Connect" on page 83 SYSTem:COMMunicate:WLAN:DISConnect Stops the connection to the predefined wireless access point. Usage: Event Options: R&S NGA-K102 Instrument with serial number below 110000 Manual operation: "Connect"...
Page 109 ® Remote control commands R&S NGA100 Configuration commands Manual operation: "Password" on page 83 SYSTem:COMMunicate:WLAN:SSID <arg0> SYSTem:COMMunicate:WLAN:SSID? Defines or queries the SSID string of the access point when the wireless interface works as a client. Parameters: <arg0> Options: R&S NGA-K102 Instrument with serial number below 110000 Manual operation: "SSID"...
Page 110 ® Remote control commands R&S NGA100 Configuration commands Example: Selecting a channel You can select a channel either with an OUTput parameter, or just by the channel number. This example lists all ways how you can select and query a selected channel. // ************************************************ // Select a channel // ************************************************...
Page 111 ® Remote control commands R&S NGA100 Configuration commands Example: INSTrument OUTPut1 INSTrument OUTP1 Selects the output channel as Ch 1. INST? -> 2 Return the output channel as Ch 2. Manual operation: "[Ch 1] / [Ch 2]" on page 44 8.3.2 Remote sense setting The VOLTage:SENSe subsystem contains the command for setting the remote sense for the instrument.
Page 112 ® Remote control commands R&S NGA100 Configuration commands Example: Configuring the output voltage This example contains all commands to configure and query the output voltage. // ************************************************ // Select the channel // ************************************************ INST OUT1 // ************************************************ // Set the voltage value // ************************************************ // selects a channel and sets the voltage VOLT 10...
Page 113 ® Remote control commands R&S NGA100 Configuration commands Manual operation: "[Voltage]" on page 45 "Set output voltage and current" on page 53 8.3.4 Current setting The SOURce:CURRent subsystem contains the commands for setting the current limit of the output channel. The default unit is A. Example: Configuring the current output // ************************************************ // Select the channel...
Page 114 ® Remote control commands R&S NGA100 Configuration commands [SOURce:]CURRent:RANGe <arg0> [SOURce:]CURRent:RANGe? Sets or queries the current range of the selected channel. Parameters: <arg0> AUTO | HIGH | LOW AUTO The measured output current is displayed in the following: - "A" with 10 µA resolution for current above 200 mA. - "mA"...
Page 115 ® Remote control commands R&S NGA100 Configuration commands Set current to minimum. Set current to maximum. Example: INST OUT1 APPLY "6,2" Set channel 1 to output 6 V and 2 A. APPLY? -> 6, 2 Return voltage and current value of the selected channel. Manual operation: "[Voltage]"...
Page 116 ® Remote control commands R&S NGA100 Configuration commands Example: Activating the channels You can activate a selected channel and turn on or off the outputs either individually or all outputs simultaneously. This example lists all ways how you can activate and query the outputs.
Page 117 ® Remote control commands R&S NGA100 Configuration commands Example: INST OUT1 OUTP ON Ch 1 and output state will be activated; i.e. Ch 1 and Output key on the front panel will be illuminated. OUTP? -> 1 Return the output state. Manual operation: "[Output]"...
Page 118 ® Remote control commands R&S NGA100 Configuration commands Example: INST OUT1 OUTP:SEL ON Volt 12 Curr 0.1 Ch 1 is activated. INST OUT2 OUTP:SEL ON Volt 12 Curr 0.2 Ch 2 is activated. OUTP:GEN ON Ch 1 and Ch 2 and output state are activated. OUTP:GEN? ->...
Page 119 ® Remote control commands R&S NGA100 Configuration commands *RST: OFF | 0 INST OUT1 Example: OUTP:SEL ON Ch 1 is activated. Manual operation: "[Output]" on page 44 "Activating the channel output" on page 54 OUTP:SEL? -> 1 Return the state of the selected channel. OTP:TRIPped? Queries the overtemperature protection (OTP) tripped state of the previous selected channel.
Page 120 ® Remote control commands R&S NGA100 Configuration commands Example: Configuring fuses This example contains all commands to configure and query the fuse states and set- tings. // ************************************************ // Activate a fuse // ************************************************ INST OUT1 // selects a channel and activates the overcurrent protection FUSE 1 // queries the state of the overcurrent protection in the selected channel FUSE?
Page 121 ® Remote control commands R&S NGA100 Configuration commands FUSE:LINK 2 // queries the combined overcurrent protection of the selected channel FUSE:LINK? 2 // response 1 // ************************************************ // Unlink linked overcurrent protection // ************************************************ FUSE:UNLink 2 // queries the combined overcurrent protection of the selected channel FUSE:LINK? 2 // response 0 FUSE:DELay <Delay>...
Page 122 ® Remote control commands R&S NGA100 Configuration commands Example: INST OUT1 FUSE:LINK 2 Fuse Ch 1 is linked with Ch 2. FUSE:LINK? 2 -> 1 If the fuse of Ch 1 is linked with Ch 2, a "1" is returned. Manual operation: "Fuse Linking"...
Page 123 ® Remote control commands R&S NGA100 Configuration commands Fuse is activated. Fuse is deactivated. *RST: OFF | 0 Example: INST OUT1 FUSE ON Fuse of Ch 1 is activated. FUSE? -> 1 Return fuse state of the selected channel. Manual operation: "[Fuse]"...
Page 124 ® Remote control commands R&S NGA100 Configuration commands Example: Configuring the overvoltage protection // ************************************************ // Set the overvoltage protection value // ************************************************ INST OUT1 //activates the OVP of the previous selected channel VOLT:PROT 1 // selects a channel and sets the OVP VOLT:PROT:LEV 5 // queries the output overvoltage value of a channel VOLT:PROT:LEV?
Page 125 ® Remote control commands R&S NGA100 Configuration commands [SOURce:]VOLTage:PROTection:MODE <arg0> [SOURce:]VOLTage:PROTection:MODE? Defines or queries the OVP mode for the previous selected channel. Parameters: <arg0> MEASured | PROTected MEASured The OVP switches off if the measured value exceeds the thresh- old. PROTected If the adjusted threshold is exceeded the output of the instru- ment will be not switched on;...
Page 126 ® Remote control commands R&S NGA100 Configuration commands OVP is deactivated. Example: INST OUT1 VOLT:PROT ON OVP of Ch 1 is activated. VOLT:PROT? -> 1 Return the OVP state of the selected channel. Manual operation: "Overvoltage Protection (OVP)" on page 64 [SOURce:]VOLTage:PROTection:LEVel <Voltage>...
Page 127 ® Remote control commands R&S NGA100 Configuration commands Example: Configuring the overpower protection // ************************************************ // Set the overpower protection value // ************************************************ INST OUT1 //activates the OPP of the previous selected channel POW:PROT 1 // selects a channel and sets the OPP POW:PROT:LEV 5 // queries the output overvoltage value of a channel POW:PROT:LEV?
Page 128 ® Remote control commands R&S NGA100 Configuration commands Set the OPP value to maximum. Default unit: W Example: INST OUT1 POW:PROT:LEV 5 Set the OPP value of channel 1 to 5 W. POW:PROT:LEV? -> 5 Return the selected channel OPP value. Manual operation: "<Level>"...
Page 129 ® Remote control commands R&S NGA100 Measurement commands [SOURce:]POWer:PROTection:CLEar Resets the OPP tripped status of the selected channel. If the OPP has tripped, the red blinking OPP message on the display will be cleared for the selected channel. Usage: Event Manual operation: "Overpower Protection (OPP)"...
Page 130 ® Remote control commands R&S NGA100 Advanced operating commands Usage: Query only 8.5 Advanced operating commands The following shows the subsystem that contains the commands for configuring the arbitrary function, EasyRamp and digital I/O functions. 8.5.1 Arbitrary commands The ARBitrary subsystem contains the commands for configuring an arbitrary sequence for the output channels.
Page 131 ® Remote control commands R&S NGA100 Advanced operating commands Example: Configuring an arbitrary sequence This programming example generates an arbitrary sequence for a selected channel. The sequence starts at 1 V and 1 A for 1 sec, and both values are incremented each second by 1.
Page 132 ® Remote control commands R&S NGA100 Advanced operating commands ARBitrary:DATA <arg0> ARBitrary:DATA? Defines or queries the arbitrary points for channel 1. The dwell time between two points is from 10 ms to 600 s. Parameters: <arg0> <Voltage1, Current1, Time1, Voltage2, Current2, Time2,..., Volt- age128, Current128, Time128>...
Page 133 ® Remote control commands R&S NGA100 Advanced operating commands ARBitrary:POINts? Returns the number of arbitrary points of EasyArb waveform. Return values: <arg0> Usage: Query only Manual operation: "Number of Data Points" on page 73 ARBitrary[:STATe] <arg0> ARBitrary[:STATe]? Sets or queries the EasyArb state ON, i.e. Ch 1 is ready to run arb waveform. Parameters: <arg0>...
Page 134 ® Remote control commands R&S NGA100 Advanced operating commands Usage: Event Manual operation: "Apply EasyArb Data" on page 74 8.5.2 EasyRamp commands The VOTage:RAMP subsystem contains the commands for configuring the ramp func- tion for the output channels. [SOURce:]VOLTage:RAMP:DURation <Time> [SOURce:]VOLTage:RAMP:DURation? Sets or queries the EasyRamp duration of the previous selected channel in seconds.
Page 135 ® Remote control commands R&S NGA100 Advanced operating commands Example: TRIG:DIR:DIO2 OUT Manual operation: "Direction" on page 68 TRIGger[:ENABle]:DIO<IO> <arg0> TRIGger[:ENABle]:DIO<IO>? Sets or queries the state of the specified digital I/O line. The state is disabled when any setting has been changed. Suffix: <IO>...
Page 136 ® Remote control commands R&S NGA100 Advanced operating commands Suffix: <IO> 1..4 Parameters: <arg0> ON | OFF | TOGGle | INHibit | ARBitrary Output is switched on. Output is switched off. TOGGle Output state is toggled. INHibit Output state remains off as long as the trigger input signal is activated.
Page 137 ® Remote control commands R&S NGA100 Advanced operating commands Parameters: <arg0> LOW | HIGH *RST: HIGH Manual operation: "Logic" on page 69 TRIGger:MASTer[:STATe] <arg0> TRIGger:MASTer[:STATe]? Defines or queries the master enable state for the digital I/O interface. The master enable state is disabled if any setting is changed. Parameters: <arg0>...
Page 138 ® Remote control commands R&S NGA100 Advanced operating commands Manual operation: "Condition" on page 69 TRIGger:OUT:CRITevent:DIO<IO> <arg0> TRIGger:OUT:CRITevent:DIO<IO>? Sets or queries the critical event of the trigger output of the specified digital I/O line. Suffix: <IO> 1..4 Parameters: <arg0> OVP | OPP | OTP Trigger output is linked to the OVP event.
Page 139 ® Remote control commands R&S NGA100 Data and file management commands *RST: Manual operation: "Channel" on page 69 TRIGger:OUT:VOLTlevel:DIO<IO> <Voltage> TRIGger:OUT:VOLTlevel:DIO<IO>? Sets or queries the threshold voltage level of the trigger output of the specified digital I/O line. Triggers when output voltage level exceeds or equals to the set level. Suffix: <IO>...
Page 140 ® Remote control commands R&S NGA100 Data and file management commands The LOG subsystem contains the commands for managing the data logging of the instrument. HCOPy:DATA? Queries current screen content. BMP format is supported. Return values: <arg0> Usage: Query only HCOPy:SIZE:X? Returns the horizontal expansion of the screenshots.
Page 141 ® Remote control commands R&S NGA100 Firmware update Parameters: <filepath> Filepath of the logging file data. Example: DATA:DATA? "log-20210101T101632.csv" -> #Device,NGA142 #Device Name,rs-instrument.local #Format,LOG #Date,2021-1-1 #Version,2.001 009F41098 #Logging Interval[s],0.1 Time- stamp,U1[V],I1[A],P1[W],U2[V],I2[A],P2[W] 10:16:33.370,16.855,0.00010,0.00,12.028,0.00026,0.00, 10:16:33.484,16.855,0.00010,0.00,12.028,0.00026,0.00 Usage: Query only Manual operation: "[Log]" on page 71 DATA:LIST? Queries all files in internal memory ('/int/') and external memory ('/USB').
Page 142 ® Troubleshooting R&S NGA100 Problems during firmware update 9 Troubleshooting ● Displaying status information................142 ● Problems during firmware update................. 142 ● Problems with remote control over LAN..............143 ● Contacting customer support................143 9.1 Displaying status information The R&S NGA100 displays notifications to inform you on current settings and states. It distinguishes between status, information, and warning and error notifications.
Page 143 ® Troubleshooting R&S NGA100 Contacting customer support 9.3 Problems with remote control over LAN 9.3.1 Cannot establish a LAN connection If you have problems to establish a LAN connection as described in Chapter 7.13.1.1, "LAN connection", on page 78: 1. Check if the TCP/IP address information is valid. 2.
Page 144 ® Troubleshooting R&S NGA100 Contacting customer support Figure 9-1: QR code to the Rohde & Schwarz support page User Manual 5601.8919.02 ─ 08...
Page 145 ® Transport R&S NGA100 10 Transport Lifting and carrying "Lifting and carrying the product" on page 10. Packing Use the original packaging material. It consists of antistatic wrap for electrostatic pro- tection and packing material designed for the product. If you do not have the original packaging, use similar materials that provide the same level of protection.
Page 146 ® Maintenance, storage and disposal R&S NGA100 Internal battery replacement 11 Maintenance, storage and disposal The product does not require regular maintenance. It only requires occasional clean- ing. It is however advisable to check the nominal data from time to time. ●...
Page 147 ® Maintenance, storage and disposal R&S NGA100 Disposal 11.4 Storage Protect the product against dust. Ensure that the environmental conditions, e.g. tem- perature range and climatic load, meet the values specified in the data sheet. 11.5 Disposal Rohde & Schwarz is committed to making careful, ecologically sound use of natural resources and minimizing the environmental footprint of our products.
Page 148 ® Applications R&S NGA100 Parallel and series mode 12 Applications 12.1 Parallel and series mode To increase output voltage and currents, it is possible to operate the channels in series or parallel mode. In general, the output voltages of R&S NGA100 to be combined are independent.
Page 149 ® Applications R&S NGA100 Parallel and series mode Figure 12-1: Example of series connection 12.1.2 Parallel mode If it is necessary to increase the total current, the power supply outputs must be wired in parallel. The maximum total current is the sum of the individual currents of all sour- ces connected in parallel.
Page 150 ® Applications R&S NGA100 Parallel and series mode Figure 12-2: Example of parallel connection Principles of operation in parallel mode Generally, a higher current is first supplied from the channel with the higher output volt- age. Once this channel reaches its power limit, the remaining current is made available by the channel that is connected in parallel.
Page 151 ® Additional basics on remote control R&S NGA100 Messages and SCPI command structure Annex A Additional basics on remote control A.1 Messages and SCPI command structure A.1.1 Messages Instrument messages are employed in the same way for all interfaces, if not indicated otherwise in the description.
Page 152 ® Additional basics on remote control R&S NGA100 Messages and SCPI command structure are device-specific, however, their syntax follows SCPI rules as permitted by the standard. Instrument responses Instrument responses (response messages and service requests) are messages which the instrument sends to the controller after a query. They can contain measurement results, instrument settings and information on the instrument status.
Page 153 ® Additional basics on remote control R&S NGA100 Messages and SCPI command structure Example: MEASure:CURRent? is equivalent to MEAS:CURR?. Case-insensitivity Uppercase and lowercase notation only serves to distinguish the two forms in the man- ual, the instrument itself is case-insensitive. Numeric suffixes If a command can be applied to multiple instances of an object, e.g.
Page 154 ® Additional basics on remote control R&S NGA100 Messages and SCPI command structure A.1.3 SCPI parameters Many commands are supplemented by a parameter or a list of parameters. The parameters must be separated from the header by a whitespace (ASCII code 0 to 9, 11 to 32 decimal, e.g.
Page 155 ® Additional basics on remote control R&S NGA100 Messages and SCPI command structure Example: OUTP:STAT ON OUTP:STAT? -> 1 Text Text parameters observe the syntactic rules for key words, i.e. they can be entered using a short or long form. Like any parameter, they have to be separated from the header by a white space.
Page 156 ® Additional basics on remote control R&S NGA100 Messages and SCPI command structure Table A-2: Syntax elements A colon separates the mnemonics of a command. The semicolon separates two commands within a program message. It does not alter the path. A comma separates several parameters of a command.
Page 157 ® Additional basics on remote control R&S NGA100 Command sequence and synchronization A.2 Command sequence and synchronization A sequential command finishes the execution before the next command is starting. To make sure that commands are actually carried out in a certain order, each command must be sent in a separate command line.
Page 158 ® Additional basics on remote control R&S NGA100 Command sequence and synchronization *OPC with a service request 1. Set the OPC mask bit (bit no. 0) in the ESE: *ESE 1 2. Set bit no. 5 in the SRE: *SRE 32 to enable ESB service request. 3.
Page 159 ® List of commands R&S NGA100 List of commands [SOURce:]CURRent:RANGe......................... 114 [SOURce:]CURRent[:LEVel][:IMMediate][:AMPLitude]..................113 [SOURce:]POWer:PROTection:CLEar......................129 [SOURce:]POWer:PROTection:LEVel......................127 [SOURce:]POWer:PROTection:TRIPped?.....................128 [SOURce:]POWer:PROTection[:STATe]......................128 [SOURce:]VOLTage:PROTection:CLEar......................126 [SOURce:]VOLTage:PROTection:LEVel......................126 [SOURce:]VOLTage:PROTection:MODE....................... 125 [SOURce:]VOLTage:PROTection:TRIPped?....................125 [SOURce:]VOLTage:PROTection[:STATe]......................125 [SOURce:]VOLTage:RAMP:DURation......................134 [SOURce:]VOLTage:RAMP[:STATe]......................134 [SOURce:]VOLTage:SENSe...........................111 [SOURce:]VOLTage[:LEVel][:IMMediate][:AMPLitude].................. 112 *CLS................................102 *ESE................................102 *ESR?................................103 *IDN?................................103 *OPC................................103 *OPT?................................103 *RCL................................
Page 160 ® List of commands R&S NGA100 HCOPy:SIZE:X?............................140 HCOPy:SIZE:Y?............................140 INSTrument:NSELect.............................110 INSTrument[:SELect]............................. 110 LOG[:STATe]..............................140 MEASure[:SCALar]:CURRent[:DC]?......................129 MEASure[:SCALar]:POWer?......................... 129 MEASure[:SCALar][:VOLTage][:DC]?......................129 OTP:TRIPped?...............................119 OUTPut:FUSion............................. 117 OUTPut:GENeral............................117 OUTPut:MODE?............................118 OUTPut:SELect..............................118 OUTPut[:STATe].............................116 SYSTem:BEEPer[:IMMediate]........................105 SYSTem:COMMunicate:SOCKet:DHCP[:STATe]..................107 SYSTem:COMMunicate:SOCKet:IPADdress?....................107 SYSTem:COMMunicate:WLAN:CONNect..................... 107 SYSTem:COMMunicate:WLAN:DISConnect....................108 SYSTem:COMMunicate:WLAN:IPADdress?....................108 SYSTem:COMMunicate:WLAN:PASSword....................
Page 161 ® Index R&S NGA100 Index Symbols Considerations EMI ................23 *OPC ................157 Test setup ..............22 *OPC? ................157 Customer support ............143 *WAI ................157 Data entry ................40 Access Data logging ..............69 Instrument ..............40 Data sheet ................. 15 Activate channel output .............
Page 162 ® Index R&S NGA100 Keypad ................ 92 Long and short form Sound ................. 92 SCPI syntax .............. 152 Getting started ..............15 GPIB interface messages Remote control basics ..........152 MAC address ..............80 Ground terminal MAC Status ............... 80 How to: ................
Page 163 ® Index R&S NGA100 Responses to queries Remote control basics ..........156 Parameters Entering ..............41 SCPI ................. 154 Safety instructions ............9, 15 Power SCPI command structure Connecting the instrument .......... 24 Remote control basics ..........152 Power derating ..............50 SCPI parameters .............
Page 164 ® Index R&S NGA100 Trying out the instrument Activating the channels output ........32 Selecting the channels ..........32 Setting the output voltage and current limit ....32 Storing/Recalling of instrument settings ..... 32 Unpacking the instrument ..........19 Update ................97 USB connection USB TMC ..............

This manual is also suitable for:

Nga100 series Nga101 Nga102 Nga141 Nga142
