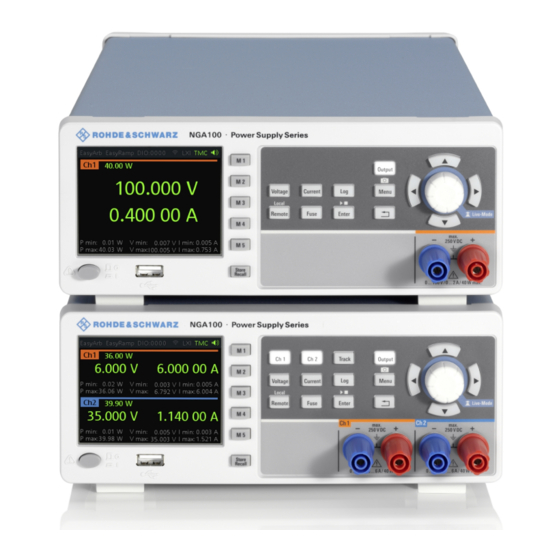

R&S
NGA100
Power Supply
User Manual
(Æ1çC2)
5601891902
Version 03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NGA100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rohde & Schwarz NGA100

Summary of Contents for Rohde & Schwarz NGA100

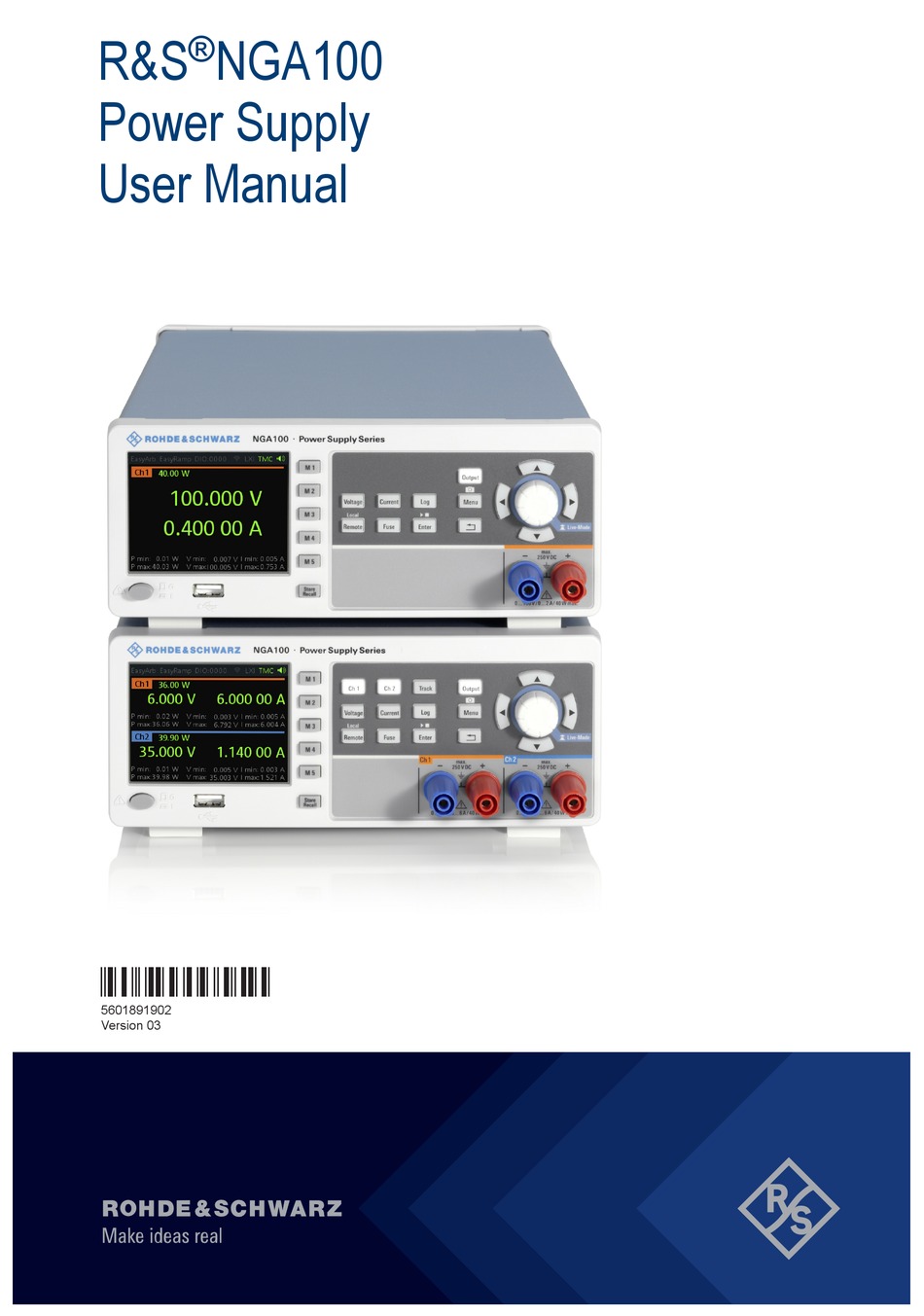

  • Page 1 ® R&S NGA100 Power Supply User Manual (Æ1çC2) 5601891902 Version 03...

  • Page 2 ® This manual describes the following R&S NGA100 models with firmware version 1.00 and higher: ● ® R&S NGA101 One-Channel 35V/6A Power Supply 40 W (5601.8002.02) ● ® R&S NGA102 Two-Channel 35V/6A Power Supply 80 W (5601.8002.04) ● ® R&S NGA141 One-Channel 100V/2A Power Supply 40 W (5601.8002.03)
  • Page 3 Safety Instructions Instrucciones de seguridad Sicherheitshinweise Consignes de sécurité Risk of injury and instrument damage The instrument must be used in an appropriate manner to prevent electric shock, fire, personal injury or instrument damage. Do not open the instrument casing. ●...
  • Page 4 Gefahr von Verletzungen und Schäden am Gerät Betreiben Sie das Gerät immer ordnungsgemäß, um elektrischen Schlag, Brand, Verletzungen von Personen oder Geräteschäden zu verhindern. Öffnen Sie das Gerätegehäuse nicht. ● Lesen und beachten Sie die "Grundlegenden Sicherheitshinweise", ● die als gedruckte Broschüre dem Gerät beiliegen. Lesen und beachten Sie die Sicherheitshinweise in den folgenden ●...
  • Page 5 이 기기는 업무용(A급) 전자파 적합기기로서 판매자 또는 사용자는 이 점을 주의하시기 바라며, 가정외의 지역에서 사용하는 것을 목적으로 합니다.

  • Page 6: Table Of Contents

    NGA100 Contents 1 Documentation Overview..............7 Manuals..........................7 Data Sheet........................7 Calibration Certificate....................7 Release Notes, Open Source Acknowledgment............8 2 Welcome to R&S NGA100..............9 3 Important Notes..................10 Symbols........................10 Ambient Conditions....................10 Measurement Categories....................11 Mains Voltage.......................11 Limits..........................12 4 Getting Started..................13 Putting into Operation....................
  • Page 7 ® Contents R&S NGA100 4.3.4 Storing/Recalling of Instrument Settings............... 25 Maintenance and Support..................26 4.4.1 Maintenance........................26 4.4.2 Contacting Customer Support..................27 5 Operating Basics..................28 Display Overview......................28 5.1.1 Status Bar Information....................28 5.1.2 Channel Display Area....................29 Front Panel Keys......................30 5.2.1 Function Keys.......................
  • Page 8 ® Contents R&S NGA100 6.10 Data Logging....................... 53 6.11 Advanced Functions....................54 6.11.1 EasyArb.........................54 6.11.2 EasyRamp........................56 6.12 Store and Recall......................57 6.13 Interfaces and Protocols.................... 59 6.13.1 Network Connection......................59 6.13.1.1 LAN Connection......................60 6.13.1.2 Wireless LAN Connection..................... 62 6.13.2 USB Connection......................63 6.13.2.1...
  • Page 9 ® Contents R&S NGA100 7.3.6 Output Setting....................... 86 7.3.7 Fuse Setting........................89 7.3.8 OVP Setting........................93 7.3.9 OPP Setting........................96 Measurement Commands..................99 Advanced Operating Commands................99 7.5.1 Arbitrary Commands....................100 7.5.2 EasyRamp Commands....................102 7.5.3 DIO Commands......................102 Data and File Management Commands..............107 Firmware Update.......................

  • Page 10: Documentation Overview

    You find the documents on the R&S NGA100 product page at: www.rohde-schwarz.com/manual/nga100 Getting Started Introduces the R&S NGA100 power supply series and describes how to set up and start working with the instrument. The printed document is delivered with the instru- ment.

  • Page 11: Release Notes, Open Source Acknowledgment

    The release notes list new features, improvements and known issues of the current firmware version, and describe the firmware installation. The open source acknowledg- ment document provides verbatim license texts of the used open source software. It can also be downloaded from the instrument. See www.rohde-schwarz.com/firmware/nga100. User Manual 5601.8919.02 ─ 03...

  • Page 12: Welcome To R&S Nga100

    All R&S NGA100 power supply series are equipped with a color LCD display (320 x 240 pixels resolution). The R&S NGA100 comes with a USB interface, LAN and optional wireless LAN (WLAN) interface.

  • Page 13: Important Notes

    ® Important Notes R&S NGA100 Ambient Conditions 3 Important Notes 3.1 Symbols Caution, general danger zone Ground PE terminal ON (supply voltage) OFF (supply voltage) Ground terminal 3.2 Ambient Conditions The allowed operating temperature ranges from +5 °C to +40 °C (pollution category 2).

  • Page 14: Measurement Categories

    ® Important Notes R&S NGA100 Mains Voltage allowed limit, overtemperature protection is triggered and the affected outputs are switched off automatically. Air circulation Do not obstruct the ventilation holes! 3.3 Measurement Categories This instrument is designed for supplying power-on circuits that are only indirectly con- nected to the low voltage mains or not connected at all.

  • Page 15: Limits

    The maximum values for the instrument must not be excee- ded. The protection limits are listed on the front panel of the R&S NGA100 to ensure the safe operation of the instrument.

  • Page 16: Getting Started

    4 Getting Started 4.1 Putting into Operation This chapter describes the steps to set up the R&S NGA100 for the first time. Risk of injury and instrument damage The instrument must be used in an appropriate manner to prevent electric shock, fire, personal injury, or damage.

  • Page 17: Safety

    4.1.1 Safety Recommendations on secure operation The R&S NGA100 is designed to operate at local workplaces or in secured networks (LAN). It should not be accessible from the internet, because of a potential security risk, e.g. attackers could misuse or damage your device.

  • Page 18: Intended Operation

    ® Getting Started R&S NGA100 Putting into Operation Risk of electric shock It is prohibited to disconnect the earthed protective connection inside or outside of the instrument! If it is assumed that a safe operation is no longer possible, the instrument must be shut down and secured against any unintended operation.
  • Page 19 ® Getting Started R&S NGA100 Putting into Operation The product may be operated only under the operating conditions and in the positions specified by the manufacturer, without the product's ventilation being obstructed. If the manufacturer’s specifications are not observed, this can result in electric shock, fire and/or serious personal injury, and in some cases, death.

  • Page 20: Unpacking And Checking The Instrument

    Delivery package The package contents contain the following items: ● R&S NGA100 power supply preloaded with two 230 V fuses ● Four power cables ● Two 115 V fuses (replace the preloaded fuses with these fuses depending on the mains voltage, see Chapter 4.2.2, "Switching On the...

  • Page 21: Bench Operation

    Putting into Operation 4.1.4.1 Bench Operation On a benchtop, the R&S NGA100 can either lie flat or stand on its feet. As shown in Figure 4-1, feet on the bottom can be folded out to set the instrument in an inclined position.

  • Page 22: Instrument Tour

    Operate R&S NGA100 power supply in an area where the ambient temperature is within +5 °C to +40 °C. The R&S NGA100 power supply is fan-cooled and must be installed with sufficient space along the sides to allow proper air circulation. Ensure that fan openings are unobstructed and airflow vents are unimpeded.
  • Page 23 ® Getting Started R&S NGA100 Instrument Tour Figure 4-2: Front panel of R&S NGA100 with 2 channels 1 = Display 2 = Function keys 3 = Rotary knob and arrow keys 4 = Output channels (see Table 4-2) 5 = USB connector...

  • Page 24: Rear Panel

    The [Power] key switches the instrument on and off. 4.2.1.2 Rear Panel Figure 4-3 shows the rear panel of the R&S NGA100 with its connectors. Figure 4-3: Rear panel of R&S NGA100 7 = Ground terminal 8 = AC inlet with fuse holder...
  • Page 25 ® Getting Started R&S NGA100 Instrument Tour AC inlet with fuse holder (8) Main supply cord Do not use detachable mains supply cord with inadequate rating. For safety reasons, the instrument can only be operated with authorized safety sock- ets.

  • Page 26: Bottom Panel

    The rear panel connector contains both output ("F+", "F-") and sense ("S+", "S-") con- nections. Connector for "Ch 2" is only available in the NGA102, NGA142 models. Kensington security slot (13) A Kensington lock can be anchored to the R&S NGA100 power supply housing to secure it to a workstation mechanically. 4.2.1.3 Bottom Panel The voltage selector is located at the bottom panel.

  • Page 27: Trying Out The Instrument

    By default, all output channels are turned off when the instrument is switched on to prevent connected loads from being damaged unintentionally. During startup, the R&S NGA100 is loaded with the last saved instrument settings from memory location "M1" and auto saved parameters. See Chapter 6.12, "Store...

  • Page 28: Setting The Output Voltage And Current Limit

    Alternatively: 1. Press [Voltage] or [Current] key on the front panel. 2. For the two-channel R&S NGA100, press the desired channel key to activate the respective voltage or current limit setting of that channel. The value on the respec- tive channel becomes editable and is positioned by a blue cursor.

  • Page 29: Maintenance And Support

    ® Getting Started R&S NGA100 Maintenance and Support 4.4 Maintenance and Support 4.4.1 Maintenance Regular maintenance improves the life span of the instrument, the following chapter provides information on instrument maintenance. Cleaning Before cleaning the instrument, ensure that it has been switched off and the power cable is disconnected.

  • Page 30: Contacting Customer Support

    ® Getting Started R&S NGA100 Maintenance and Support 4.4.2 Contacting Customer Support Technical support – where and when you need it For quick, expert help with any Rohde & Schwarz product, contact our customer sup- port center. A team of highly qualified engineers provides support and works with you to find a solution to your query on any aspect of the operation, programming or applica- tions of Rohde &...

  • Page 31: Operating Basics

    5 Operating Basics 5.1 Display Overview The following displays the screen layout of R&S NGA100. It shows the output voltage, current level and status bar information of the instrument. Figure 5-1: Screen layout of R&S NGA100 for two-channel and single channel display...

  • Page 32: Channel Display Area

    5.1.2 Channel Display Area The R&S NGA100 displays two channels display area (Ch 1, Ch 2) for NGA102 and NGA142 and a single channel display area for NGA101 and NGA141. The respective channel settings and functions are displayed for each channel.

  • Page 33: Front Panel Keys

    ® Operating Basics R&S NGA100 Front Panel Keys Figure 5-2: Channel display area for one-channel model 1 = Output voltage displays in volt. The display resolution for voltage is three digits after the decimal point 2 = Output current displays in ampere. The display resolution for current is five digits after the decimal point...

  • Page 34: Function Keys

    ® Operating Basics R&S NGA100 Front Panel Keys 5.2.1 Function Keys The keys can be categorized based on their functions. Output and channel controls Navigation keys Instrument functions Memory functions 5.2.1.1 Output and Channel Controls These keys control the channel output settings of the instrument.

  • Page 35: Navigation Keys

    ® Operating Basics R&S NGA100 Front Panel Keys 5.2.1.2 Navigation Keys These keys provide navigation control in the instrument. Function keys Description Enter Confirms menu selection or entry in dialog boxes. Start and stop (long press) the EasyArb function. See Chapter 6.11.1,...

  • Page 36: Navigation Controls

    ® Operating Basics R&S NGA100 Front Panel Keys Function keys Description M1 to M5 Five memory keys to save or recall instrument settings. Store Recall Saves/loads instrument settings. See Chapter 6.12, "Store and Recall", on page 57. 5.2.2 Navigation Controls Navigation and value setting are done via the rotary knob and arrow keys.

  • Page 37: Live-Mode

    To exit Live-mode, press the rotary knob. 5.2.3 Menu Key The R&S NGA100 [Menu] key provides access to instrument's functions and general instrumental settings. You can also obtain the instrument and service information via the [Menu] key.
  • Page 38 ® Operating Basics R&S NGA100 Front Panel Keys 4. Press key to return to the previous menu level or exit the menu mode if it is already at the main menu level. Alternatively, press [Menu] key to exit the menu mode from any menu level.

  • Page 39: On-Screen Keyboard

    ® Operating Basics R&S NGA100 On-screen Keyboard Menu Menu items Descriptions Digital IO Configures the Digital Trigger I/O settings. See Fig- 6-10. The Digital Trigger I/O option NGA-K103 must be installed for this function to be available in the instrument.

  • Page 40: Power Derating

    Select "ESC" or press [Menu] key to exit the screen without saving the changes. 5.4 Power Derating The R&S NGA100 power supply series provides a maximum output power of 40 W for a single channel model. Depending on the power supply models, up to 80 W of output power is provided for models with two identical channels with a continuous voltage range of 0 V to 35 V or 0 V to 100 V.

  • Page 41: Operation Modes

    Series Mode", on page 110. 5.5 Operation Modes The R&S NGA100 operates in two different modes, i.e. CV and CC. The instrument switches automatically between CV and CC depending on the connected load. CV mode Figure 5-8 shows that if the instrument is in the range of voltage regulation, the output...
  • Page 42 ® Operating Basics R&S NGA100 Operation Modes Figure 5-8: Current limit CC mode The current I corresponds to the current setting adjustable in the instrument. If I reaches I , the instrument switches to CC mode, i.e. the output current remains constant and limited to I even if the load increases.

  • Page 43: Instrument Functions

    If "Arbitrary" function of a Ch 1 is enabled, the channel voltage or current setting is dis- abled. "EasyArb function" on page 54. Depending on the instrument models, the R&S NGA100 adjusts the voltage and cur- rent values with the following step size. NGA101, NGA102 NGA141, NGA142...

  • Page 44: Activating The Channel Output

    Selected channel key (Ch 1, Ch 2) illuminates. 2. Press [Output] key. The R&S NGA100 outputs the set voltage on the channel. Depending on the operating mode, the font text in the channel display area shows green in CV mode and red in CC mode.

  • Page 45: Current Range

    The main menu screen appears. 2. Select "Output" > "CurrentRange" menu item to configure current range setting. The R&S NGA100 displays the "CurrentRange" dialog. 3. Set the required current range for respective channel. "High": The measured output current is displayed in "A" with 10 µA resolution ●...

  • Page 46: Remote Sense Function

    The "Remote Sense" is a mechanism used to monitor and compensate the voltage drops on the cables connected to the load. 1. Press [Menu] key. 2. Select "Output" > "Remote Sense" menu item to configure the remote sense mode. The R&S NGA100 displays the "Remote Sense" dialog. User Manual 5601.8919.02 ─ 03...

  • Page 47: Channel Fusion

    6.5 Channel Fusion The "ChannelFusion" provides configuration to set the connection mode (series or par- allel) of the device. The R&S NGA100 has an internal series link to connect Ch 1 and Ch 2 if series mode is configured. The device operates as a 1-channel device which combines both Ch 1 and Ch 2 out- put.
  • Page 48 ® Instrument Functions R&S NGA100 Channel Fusion 3. Set the required channel fusion mode: ● "Off": Channel operates separately ● "Series": In series mode, the two terminals in the middle are used for output. There is an internal series link activated to connect channel 1 and channel 2 output.

  • Page 49: Activating Fuse

    6.6 Activating Fuse To protect a connected, sensitive output in general, the R&S NGA100 power supply includes an electronic fuse which can be switched on individually for each channel. A fuse delay can be applied to each channel and individual electronic fuses can be log- ically linked to switch off the interlinked channels if a fuse triggers.

  • Page 50: Fuse Delay, Fuse Linking

    Fuse", on page 46 for more information. 1. Press [Menu] key. 2. Select "Output" > "Fuse" menu item. The R&S NGA100 displays the "Fuse" dialog. See Figure 6-7. Figure 6-7: Fuse dialog 3. Set "Fuse Delay" to a desire value.

  • Page 51: Tracking Function

    The R&S NGA100 provides individual overvoltage protection (OVP) and overpower protection (OPP) settings for each channel. With both function activated, the R&S NGA100 protects itself and the load in case of voltage or power overloads. User Manual 5601.8919.02 ─ 03...
  • Page 52 "Disabled": OVP is set to maximum value supported by hardware. See the R&S NGA100 brochure for the instrument specification. 4. Set the desired voltage for OVP. The R&S NGA100 turns off the respective channel when the measured voltage exceeded the preset value. 5. Set the OPP mode for the desired channel.

  • Page 53: Digital Trigger I/O

    "Disabled": Depending on models, output power is limited to maximum value of 40 W (NGA101, NGA102) or 80 W (NGA141, NGA142). 6. Set the desired power for OPP. The R&S NGA100 turns off the respective channel when the measured power exceeded the preset value. 6.9 Digital Trigger I/O Digital I/O Pins Voltage Rating Do not exceed the maximum voltage rating of the Digital I/O pins (5.25 V max) when...
  • Page 54 ® Instrument Functions R&S NGA100 Digital Trigger I/O Trigger in parameters Trigger conditions Description Output Inhibit Level Selected channel [Output] is inhibited when the selected logic level is met. When the selected channel [Output] is put to inhibit state, manual or remote operation on selected channel [Output] is no longer possi- ble .
  • Page 55 "Recall instrument settings" on page 59. 1. Press [Menu] key. 2. Select "Interface" > "Digital IO" menu item. The R&S NGA100 displays the "Digital IO" dialog. See Figure 6-10. Figure 6-10: Digital IO dialog 3. Select the desired DIO interface.

  • Page 56: Data Logging

    R&S NGA100 Data Logging The R&S NGA100 enabled the selected DIO interface and monitor or feedback the trigger condition on the selected channel. 9. Set the "Master Enable" to "Enabled". The "Master Enable" is the master DIO interface which activates or deactivates all the DIO interfaces.

  • Page 57: Advanced Functions

    EasyArb EasyRamp menu items found in the [Menu] key. 1. Press [Menu] key. The R&S NGA100 displays the main menu of the instrument. Chapter 5.2.3, "Menu Key", on page 34. 2. Select the "Output" menu item. The R&S NGA100 displays the respective menu item dialog.
  • Page 58 3. Set the desired repetition cycle for the EasyArb function. 4. Set the desired data points for the EasyArb function. The R&S NGA100 displays the number of EasyArb entry points in the EasyArb table. 5. Configure the EasyArb table with the desired values for voltage, current and dura- tion.

  • Page 59: Easyramp

    Select "Apply" to save EasyArb configuration. 6.11.2 EasyRamp With EasyRamp, the R&S NGA100 provides you the operating condition to output a constant rise of the supply voltage. The output voltage can be increased continuously within a 10 ms to 10 s timeframe. See Figure 6-13.

  • Page 60: Store And Recall

    Upon power-up, the instrument loads the stored setting from memory location M1 with the exception on EasyArb parameters. Auto saved parameters are also applied during startup. The R&S NGA100 output state of all channels (Ch 1, Ch 2) is disabled when the recall function is activated. User Manual 5601.8919.02 ─ 03...
  • Page 61 DIO settings are recalled. Store instrument settings 1. Long press [Store Recall] key to store instrument settings. The R&S NGA100 displays a message in the status bar "Store device settings: select any [Mx] key". User Manual 5601.8919.02 ─ 03...

  • Page 62: Interfaces And Protocols

    The R&S NGA100 recalls the instruments settings from the selected memory loca- tion. 6.13 Interfaces and Protocols There are various of ways how the R&S NGA100 can be remotely accessed and con- trolled. 1. Press [Menu] key. The R&S NGA100 displays the main menu of the instrument.

  • Page 63: Lan Connection

    6.13.1.1 LAN Connection The R&S NGA100 is equipped with a network interface and can be connected to an Ethernet LAN (local area network). A LAN connection is necessary for remote control of the instrument, and for access from a computer using a web browser.
  • Page 64 Instrument Functions R&S NGA100 Interfaces and Protocols a) Select "Ethernet" menu item. The R&S NGA100 displays the "Ethernet" dialog. Figure 6-15: Ethernet dialog b) Select "DHCP & Auto-IP" for "IP Mode". c) Enter the "IP Address". d) Enter the "Subnet Mask".

  • Page 65: Wireless Lan Connection

    An alterative to connection in local area network is wireless LAN connection. With the presence of an authenticated Wi-Fi signal, the R&S NGA100 automatically connects to a network and navigation can be made via the web browser according to the WLAN IEEE 802.11 b/g/n standards.

  • Page 66: Usb Connection

    Alternatively, connect a USB cable to the USB port and PC for a USB connection. The R&S NGA100 supports USB TMC and USB VCP connection. 1. Select "USB" menu item. The R&S NGA100 displays the "USB" dialog. User Manual 5601.8919.02 ─ 03...

  • Page 67: Usb Vcp

    ● "TMC": USB Test & Measurement class 3. Press [Enter] key to confirm the settings. The R&S NGA100 displays message to prompt the user to restart the instrument to apply the changes. 4. Restart the R&S NGA100 to apply changes.

  • Page 68: Usb Tmc

    ® Instrument Functions R&S NGA100 Interfaces and Protocols 6.13.2.2 USB TMC The USB Test & Measurement class (USB-TMC) is a protocol that allows GPIB-like communication via USB interfaces and is a separate instrument class of the USB spec- ification. The USB-TMC protocol supports service queries, triggers, and other GPIB- specific instructions.

  • Page 69: Scpi

    ® Instrument Functions R&S NGA100 Interfaces and Protocols Figure 6-19: Device manager 6.13.3 SCPI SCPI (Standard Commands for Programmable Instruments) commands - messages - are used for remote control. Commands that are not taken from the SCPI standard fol- low the SCPI syntax rules. The instrument supports the SCPI version 1999. The SCPI standard is based on standard IEEE 488.2 and aims at the standardization of device-...

  • Page 70: Setting Up Remote Control Connection

    ® Instrument Functions R&S NGA100 Interfaces and Protocols 6.13.5 Setting Up Remote Control Connection The following shows the resource string format used when setting up a remote connec- tion via the USB interface: ● USB TMC USB0::0x0AAD:: 0x0197::5601.8002<device_variant>-<device_serial_number>:: INSTR where k02 is used for NGA101 device, k03 is used for NGA141 device, k04 is used for NGA102 device, k05 is used for NGA142 device.

  • Page 71: General Instrument Settings

    2. Select "Device" menu item to configure the required instrument settings. 3. Select "Utilities" menu item to configure the utilities services. 6.14.1 Instrument Information The "Information" dialog provides the general instrument information of R&S NGA100. ► Select "Information" menu item. The R&S NGA100 displays the "Information" dialog. See Figure 6-20.

  • Page 72: General Instrument Settings

    MAC address of the network interface. "Export OSA to USB" The open-source acknowledgment (OSA) of the R&S NGA100 can be exported to USB stick for ref- erence. 6.14.2 General Instrument Settings General instrument settings such as keypad fallback time, screen display brightness and buzzer setting are provided.

  • Page 73: Reset Instrument

    ® Instrument Functions R&S NGA100 General Instrument Settings The R&S NGA100 displays the "License" dialog. See Figure 6-22. Figure 6-22: License dialog To install from an XML file, proceed as follows: 1. Copy the XML file containing the registered key code into the USB flash drive.
  • Page 74 ® Instrument Functions R&S NGA100 General Instrument Settings Figure 6-23: Reset dialog The following parameters are reset to default: Parameters Default settings NGA 101, NGA 102 NGA 141, NGA 142 Voltage, current 6.000 V, 6.050 20.00 V, 2.030 A Overvoltage Protection (OVP) Measured, 36.0 V...

  • Page 75: System Test

    This function provides a system test to check the instrument working conditions for screen color display, key backlight, beeper and cooling fan. ► Select "System Test" menu item. The R&S NGA100 displays the "System Test" dialog. See Figure 6-24. Figure 6-24: System test dialog...
  • Page 76 "Menu Key", on page 34. 5. Select "Utilities" > "Update" menu item. If firmware file is found, the R&S NGA100 displays the "Update" dialog. See Fig- 6-25. Figure 6-25: Update dialog 6. Press [Enter] key to start firmware update process.

  • Page 77: Help

    Figure 6-27: Date time dialog 2. Select "Set" to change the system date and time. The R&S NGA100 displays a dialog to set date and time in "dd mm yyyy" and "hh mm" format respectively. User Manual 5601.8919.02 ─ 03...
  • Page 78 ® Instrument Functions R&S NGA100 General Instrument Settings 3. Set the required date and time accordingly. User Manual 5601.8919.02 ─ 03...

  • Page 79: Remote Control Commands

    This chapter provides the description of all remote commands available for the R&S NGA100 series. The commands are sorted according to the menu structure of the instrument. A list of commands in alphabetical order is given in the "List of Command"s at the end of this documentation.
  • Page 80 ® Remote Control Commands R&S NGA100 Common Commands *IDN? Identification Returns the instrument identification. Return values: <ID> "Rohde&Schwarz,<device type>,<part number>/serial num- ber>,<firmware version>" Example: Rohde&Schwarz,NGA100,5601.8002k03/100421,1.00 *OPC Operation complete Sets bit 0 in the event status register when all preceding commands have been execu- ted.

  • Page 81: System Commands

    ® Remote Control Commands R&S NGA100 System Commands Prevents servicing of the subsequent commands until all preceding commands have been executed and all signals have settled (see also command synchronization and *OPC). Usage: Event 7.2 System Commands The SYSTem commands perform the various system functions and configure the com- munication interface (LAN, WLAN) for the instrument.

  • Page 82: System:communicate:socket:dhcp[:State]

    ® Remote Control Commands R&S NGA100 System Commands SYSTem:TEST:BEEPer The instrument runs the system test: Beeper Test. Usage: Event SYSTem:TEST:FANCtrl The instrument runs the system test: Fan Control Test. Usage: Event SYSTem:TEST:KEYBacklight The instrument runs the system test: Keypad Backlight Test.

  • Page 83: System:communicate:wlan[:State]

    ® Remote Control Commands R&S NGA100 System Commands SYSTem:COMMunicate:WLAN:DISConnect The instrument stops the connection to the predefined wireless access point. Available only if option R&S NGA-K102 is installed. Usage: Event SYSTem:COMMunicate:WLAN:IPADdress? This command queries the IP address of the device when the wireless interface works as a client.

  • Page 84: Configuration Commands

    ® Remote Control Commands R&S NGA100 Configuration Commands 7.3 Configuration Commands The following subsystems contain the commands for channel selection, voltage and current settings for the instrument. 7.3.1 Channel Selecting The INSTrument:Select subsystem contains the commands for selecting the output channels.

  • Page 85: Remote Sense Setting

    (S+, S- ) to the input of the load become necessary. Failure to connect remote sense can cause over voltage or unregulated voltage output from the R&S NGA100. The voltage sense relay remains switched on even when output is turned off. DISable | DIS Remote sense is disabled.

  • Page 86: Voltage Setting

    ® Remote Control Commands R&S NGA100 Configuration Commands 7.3.3 Voltage Setting The SOURce:VOLTage subsystem contains the commands for setting the voltage of the output channels. The default unit is V. Example: Configuring the output voltage This example contains all commands to configure and query the output voltage.

  • Page 87: Current Setting

    ® Remote Control Commands R&S NGA100 Configuration Commands Example: VOLT 10 Set the voltage value to 10 V. VOLT? -> 10 Return the voltage value of the selected channel. 7.3.4 Current Setting The SOURce:CURRent subsystem contains the commands for setting the current limit of the output channels.

  • Page 88: Combined Setting Of Voltage And Current Setting

    ® Remote Control Commands R&S NGA100 Configuration Commands [SOURce:]CURRent:RANGe <arg0> Sets or queries the current range of the selected channel. Parameters: <arg0> AUTO | HIGH | LOW AUTO The measured output current is displayed in the following: - "A" with 10 μA resolution for current above 200 mA - "mA"...

  • Page 89: Output Setting

    ® Remote Control Commands R&S NGA100 Configuration Commands Example: INST OUT1 APPLY "6,2" Set channel 1 to output 6 V and 2 A. APPLY? -> 6, 2 Return voltage and current value of the selected channel. 7.3.6 Output Setting The OUTPut subsystem contains the commands for activating the output channels.

  • Page 90: Output:fusion

    ® Remote Control Commands R&S NGA100 Configuration Commands ON | 1 Output state will be turned on. OFF | 0 Output state will be turned off. *RST: OFF | 0 Example: INST OUT1 OUTP ON Ch 1 and output state will be activated; i.e. Ch 1 and Output key on the front panel will be illuminated.

  • Page 91: Output:mode

    ® Remote Control Commands R&S NGA100 Configuration Commands Example: INST OUT1 OUTP:SEL ON Volt 12 Curr 0.1 Ch 1 is activated. INST OUT2 OUTP:SEL ON Volt 12 Curr 0.2 Ch 2 is activated. OUTP:GEN ON Ch 1 and Ch 2 and Output state are activated.

  • Page 92: Fuse Setting

    ® Remote Control Commands R&S NGA100 Configuration Commands Example: INST OUT1 OUTP:SEL ON Ch 1 is activated. OUTP:SEL? -> 1 Return the state of the selected channel. OTP:TRIPped? Queries the overtemperature protection (OTP) tripped state of the previous selected channel.
  • Page 93 ® Remote Control Commands R&S NGA100 Configuration Commands Example: Configuring fuses This example contains all commands to configure and query the fuse states and set- tings. // ************************************************ // Activate a fuse // ************************************************ INST OUT1 // selects a channel and activates the overcurrent protection...
  • Page 94 ® Remote Control Commands R&S NGA100 Configuration Commands FUSE:LINK 2 // queries the combined overcurrent protection of the selected channel FUSE:LINK? 2 // response 1 // ************************************************ // Unlink linked overcurrent protection // ************************************************ FUSE:UNLink 2 // queries the combined overcurrent protection of the selected channel...
  • Page 95 ® Remote Control Commands R&S NGA100 Configuration Commands FUSE:TRIPped? This command queries the fuse tripped of the previous selected channel. Return values: <arg0> Fuse is tripped. Fuse is not tripped. Example: INST OUT1 FUSE:TRIP? -> 0 Fuse of Ch 1 has not tripped.

  • Page 96: Ovp Setting

    ® Remote Control Commands R&S NGA100 Configuration Commands 7.3.8 OVP Setting The VOLTage:PROTection subsystem contains the commands for setting the over- voltage protection parameters for the output channels. The default unit is V. User Manual 5601.8919.02 ─ 03...
  • Page 97 ® Remote Control Commands R&S NGA100 Configuration Commands Example: Configuring the overvoltage protection // ************************************************ // Set the overvoltage protection value // ************************************************ INST OUT1 //activates the OVP of the previous selected channel VOLT:PROT 1 // selects a channel and sets the OVP...
  • Page 98 ® Remote Control Commands R&S NGA100 Configuration Commands [SOURce:]VOLTage:PROTection:MODE <arg0> This command defines or queries the OVP mode for the previous selected channel. Parameters: <arg0> MEASured | PROTected MEASured The OVP switches off if the measured value exceeds the thresh- old.

  • Page 99: Opp Setting

    ® Remote Control Commands R&S NGA100 Configuration Commands Example: INST OUT1 VOLT:PROT ON OVP of Ch 1 is activated. VOLT:PROT? -> 1 Return the OVP state of the selected channel. [SOURce:]VOLTage:PROTection:LEVel <Voltage> This command defines or queries the OVP value of the previous selected channel.
  • Page 100 ® Remote Control Commands R&S NGA100 Configuration Commands Example: Configuring the overpower protection // ************************************************ // Set the overpower protection value // ************************************************ INST OUT1 //activates the OPP of the previous selected channel POW:PROT 1 // selects a channel and sets the OPP...
  • Page 101 ® Remote Control Commands R&S NGA100 Configuration Commands Set the OPP value to maximum Default unit: W Example: INST OUT1 POW:PROT:LEV 5 Set the OPP value of channel 1 to 5 W. POW:PROT:LEV? -> 5 Return the selected channel OPP value.

  • Page 102: Measurement Commands

    ® Remote Control Commands R&S NGA100 Advanced Operating Commands 7.4 Measurement Commands The MEASure subsystem provides commands to query the voltage and current values of a channel. MEASure[:SCALar]:CURRent[:DC]? This command queries the measured current value of the previous selected channel.

  • Page 103: Arbitrary Commands

    The sequence starts at 1 V and 1 A for 1 sec, and both values are incremented each second by 1. The generated arbitrary waveform is transferred to Ch 1. When activated, the R&S NGA100 provides the arbitrary waveform at the output of the selected chan- nel, and repeats it 10 times.
  • Page 104 ® Remote Control Commands R&S NGA100 Advanced Operating Commands Note: If the repetition is set to "0", the arbitrary waveform repeats continuously. Parameters: <Repetitions> 0..255 Example: ARB:REP 10 Set the repetition rate of the defined arbitrary waveform as 10. ARB:REP? -> 10 Return the defined repetition rate of the selected channel.

  • Page 105: Easyramp Commands

    ® Remote Control Commands R&S NGA100 Advanced Operating Commands ARBitrary:STOP This command stops the EasyArb waveform in channel 1 if EasyArb is running. Usage: Event 7.5.2 EasyRamp Commands The VOTage:RAMP subsystem contains the commands for configuring the ramp func- tion for the output channels.

  • Page 106: Trigger:in:arbitrary:dio

    ® Remote Control Commands R&S NGA100 Advanced Operating Commands TRIGger[:ENABle]:DIO<IO> <arg0> This command sets or queries the state of the specified Digital I/O line. The state is disabled when any setting has been changed. Suffix: <IO> 1..4 Parameters: <arg0> {OFF | ON} Enable the state for Digital I/O line.

  • Page 107: Trigger:in:source:dio

    ® Remote Control Commands R&S NGA100 Advanced Operating Commands INHibit Output state remains off as long as the TRIG IN signal is activa- ted. ARBitrary Starts the EasyArb function. If level signal is selected, the Easy- Arb function is stopped when TRIG IN signal is deactivated.

  • Page 108: Trigger:out:condition:dio

    ® Remote Control Commands R&S NGA100 Advanced Operating Commands TRIGger:OUT:CONDition:DIO<IO> <arg0> This command sets the trigger condition of the trigger output of the specified Digital I/O line. The line triggers when the output of the specified control source is turned off or on Suffix: <IO>...

  • Page 109: Trigger:out:currlevel:dio

    ® Remote Control Commands R&S NGA100 Advanced Operating Commands TRIGger:OUT:CURRlevel:DIO<IO> <Current> This command sets or queries the threshold current level of the trigger output of the specified Digital I/O line. Triggers when output current level exceeds or equals to the set level.

  • Page 110: Data And File Management Commands

    ® Remote Control Commands R&S NGA100 Data and File Management Commands TRIGger:SAV <arg0> This command saves DIO settings into the respective memory locations M1-M5 Parameters: <arg0> Range: 0..4 Example: TRIG:SAV 1 Usage: Setting only 7.6 Data and File Management Commands The DATA and HCOPy subsystem contains commands for managing the files in the instrument and external USB stick.

  • Page 111: Firmware Update

    ® Remote Control Commands R&S NGA100 Firmware Update ON | 1 Data logging function is enabled. OFF | 0 Data logging function is disabled. *RST: Example: LOG ON LOG? -> 1 Data logging function is activated. DATA:DATA? <> DATA:DATA?? <>...
  • Page 112 ® Remote Control Commands R&S NGA100 Firmware Update For more information, see Chapter 6.14.6, "Updating the Firmware", on page 72. Parameters: <arg0> Example: DIAGnostic:SERVice:FWUP "/FRONT_USB/NGA1xx" Usage: Setting only User Manual 5601.8919.02 ─ 03...

  • Page 113: Applications

    It is assumed that only qualified and trained personnel service the power supplies and the connected loads. Use only the R&S NGA100 power supply series when operating the channels in a ser- ies or parallel mode to increase the output voltage and current.

  • Page 114: Parallel Mode

    ® Applications R&S NGA100 Parallel and Series Mode Figure 8-1: Example of series connection 8.1.2 Parallel Mode If it is necessary to increase the total current, the power supply outputs must be wired in parallel. The maximum total current is the sum of the individual currents of all sour- ces connected in parallel.
  • Page 115 ® Applications R&S NGA100 Parallel and Series Mode Figure 8-2: Example of parallel connection Principles of operation in parallel mode Generally, a higher current will first be supplied from the channel with the higher output voltage. Once this channel reaches its power limit, the remaining current will be made available by the channel that is connected in parallel.

  • Page 116: Annex

    ® Additional Basics on Remote Control R&S NGA100 Messages and Command Structure Annex A Additional Basics on Remote Control A.1 Messages and Command Structure A.1.1 Messages Instrument messages are employed in the same way for all interfaces, if not indicated otherwise in the description.

  • Page 117: Scpi Command Structure

    ® Additional Basics on Remote Control R&S NGA100 Messages and Command Structure are device-specific, however, their syntax follows SCPI rules as permitted by the standard. Instrument responses Instrument responses (response messages and service requests) are messages which the instrument sends to the controller after a query. They can contain measurement results, instrument settings and information on the instrument status.
  • Page 118 ® Additional Basics on Remote Control R&S NGA100 Messages and Command Structure Example: MEASure:CURRent? is equivalent to MEAS:CURR? Case-insensitivity Uppercase and lowercase notation only serves to distinguish the two forms in the man- ual, the instrument itself is case-insensitive. Optional mnemonics Some command systems permit inserting or omitting certain mnemonics in the header.
  • Page 119 ® Additional Basics on Remote Control R&S NGA100 Messages and Command Structure ● Character strings ● Block data The required parameters and the allowed value range are specified in the command description. Numeric values You can enter numeric values in the following form. Values exceeding the resolution of the instrument are rounded up or down.

  • Page 120: Command Sequence And Synchronization

    ® Additional Basics on Remote Control R&S NGA100 Command Sequence and Synchronization " Quotation marks introduce a string and terminate it. A whitespace (ASCII-Code 0 to 9, 11 to 32 decimal, e.g. blank) separates the header from the parameters. Responses to Queries You can query each setting command by adding a question mark.

  • Page 121: Preventing Overlapping Execution

    The controller can be forced to wait for the corre- sponding action. The R&S NGA100 series does not support parallel processing of remote commands. If OPC? returns a "1", the device is able to process new commands.
