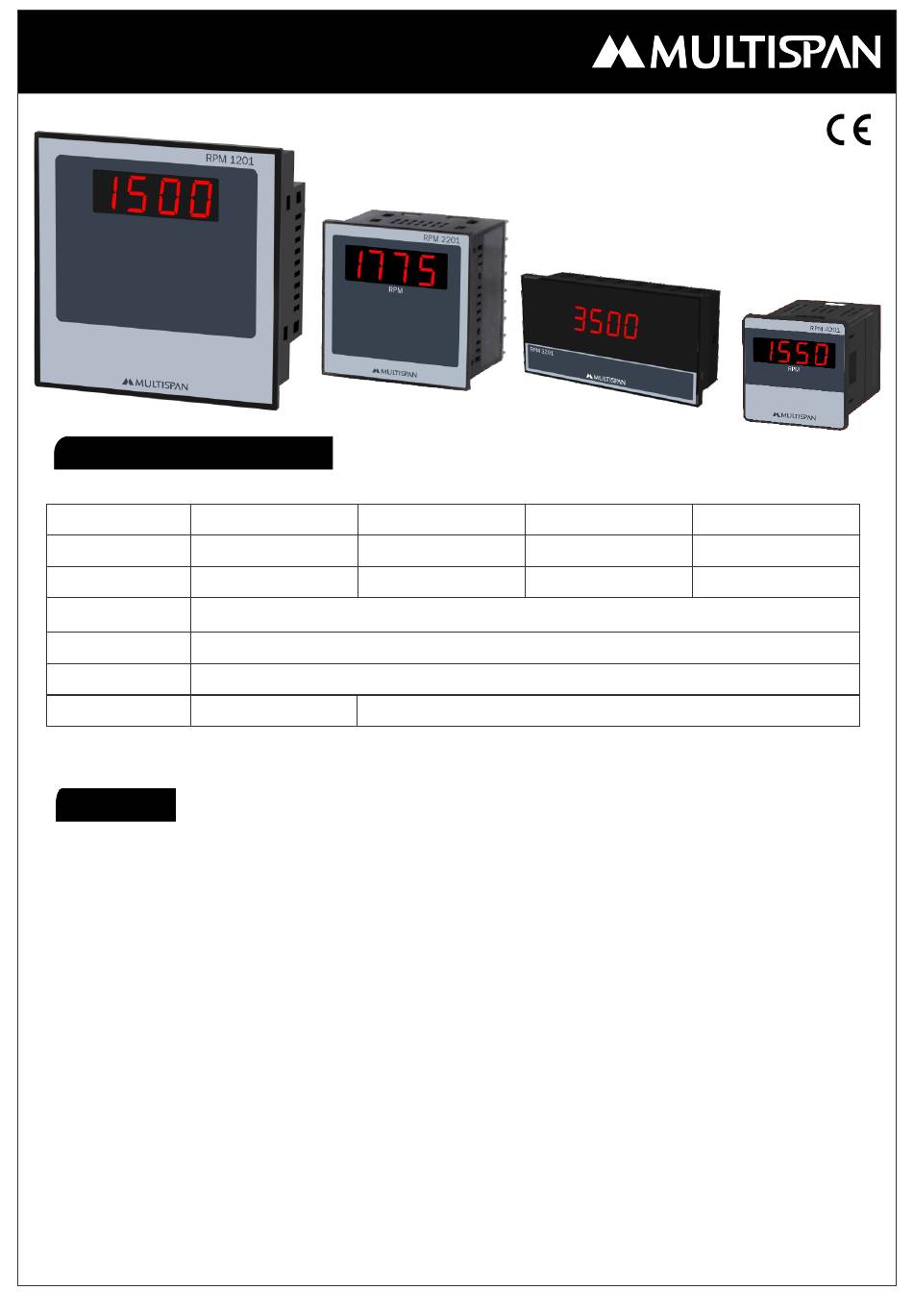

MULTISPAN RPM-1201 Operating Manual

OPERATING MANUAL
RPM INDICATOR
RPM - 1201 ,2201,3201,4201

Technical Specification

Model
Dimension
Panel Cutout
Display
Range
Input
Supply
Working
1). The Proximity switch is connected near the part (Roller), Which is rotating, and of
whose the rpm has to be measured.
2). As the rotating part starts rotating then proximity starts sensing pulses and the
display of the instrument gives the corresponding reading of rpm.
3). The following connection diagram helps you to make the connections of the
Proximity switch with the rotating element and the instrument.
RPM-1201,2201,3201,4201

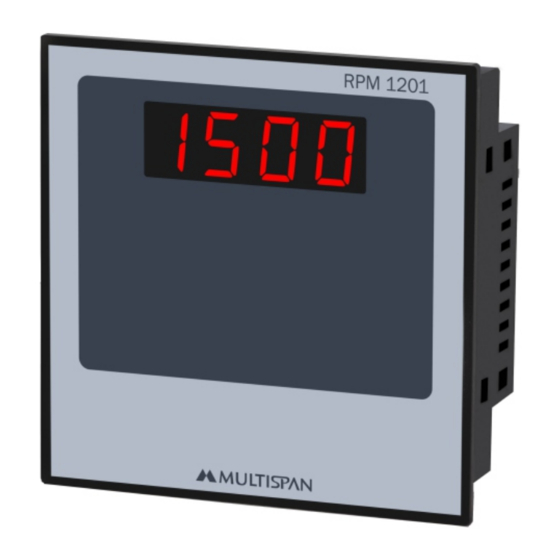

RPM-1201
96 X 96 X 42 mm
92 X 92 mm
Single Display : 4 digit, 0.56'', 7 Segment, Red LED Display
4 To 5000 RPM
NPN/PNP PROXIMITY Switch
230V AC,50Hz
RPM-2201
72 X 72 X 60 mm 48 X 96 X 26 mm
68 X 68 mm 46 X 92 mm
100 to 270V AC
Page - 1
RPM-3201 RPM-4201
48 X 48 X 70 mm
45 X 45 mm
