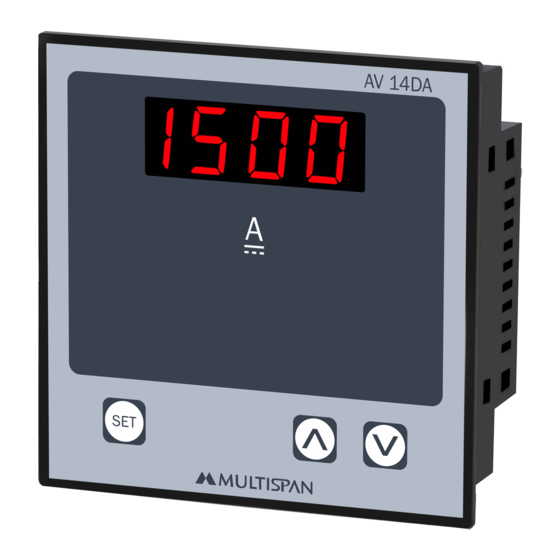

OPERATING MANUAL
DC AMPERE METER
AV-14DA,24DA,34DA
AV-14DA
96 X 96mm
Technical Specification
Model
Display
Size(HXWXD)
Panel Cutout
Input
Range
Power Supply
Protection Level
(As per request)
Operating
Temperature
NOTE
:
Every Time, When Instrument is turned on following parameter will be displayed.
AV-14DA/24DA/34DA
AV 14DA
AV 14DA
4 Digit, Single Display
96 X 96 X 50 mm
72 X 72 X 85 mm
92 X 92 mm
230V AC, 50 Hz, Approx 4VA
IP-65(Front side) AS per IS/IEC 60529:2001
0°C To 55°C
(POWER ON)
AV 24DA
AV-24DA
72 X 72mm
AV 24DA
68 X 68 mm
75mV DC
1 TO 9999
Relative
Humidity
(Previously selected High range
value Display for 2 Second)
(Process Value)
Page - 1
AV-34DA
48 X 96mm
AV 34DA
48 X 96 X 55 mm
44 X 92 mm
Up to 95% RH Non Condensing
www.multispanindia.com
AV 34DA
Advertisement
Related Manuals for MULTISPAN AV-14DA
Summary of Contents for MULTISPAN AV-14DA
- Page 1 OPERATING MANUAL DC AMPERE METER AV-14DA,24DA,34DA AV 14DA AV 24DA AV 34DA AV-14DA AV-24DA AV-34DA 48 X 96mm 96 X 96mm 72 X 72mm Technical Specification Model AV 14DA AV 24DA AV 34DA Display 4 Digit, Single Display...
- Page 2 Press (Enter“37” Password for parameter Setting) Press (Decimal Point) Press (Change by & key ) Press (High Range) Press (Set by & key) Press Press key Save & Exit AV-14DA/24DA/34DA Page - 2 www.multispanindia.com...
- Page 3 Connection Diagram AV-14DA Range: Selectable up to 9999 Amp DC CAT III 230V AC 50Hz,4VA Input 75mV DC AV-24DA Input 230V AC 50Hz,4VA 75mV DC AV-34DA 230V AC Range: Selectable up to 50Hz,4VA Input 9999A DC CAT III 75mV DC...
- Page 4 1) The equipment should be cleaned regularly to avoid blockage of ventilating parts. 2) Clean the equipment with a clean soft cloth. Do not use isopropyl alcohol or any other cleaning agent. 3) Fusible resistor must not be replaced by operator. AV-14DA/24DA/34DA Page - 4 www.multispanindia.com...
