Summary of Contents for Titan TTB949MLT

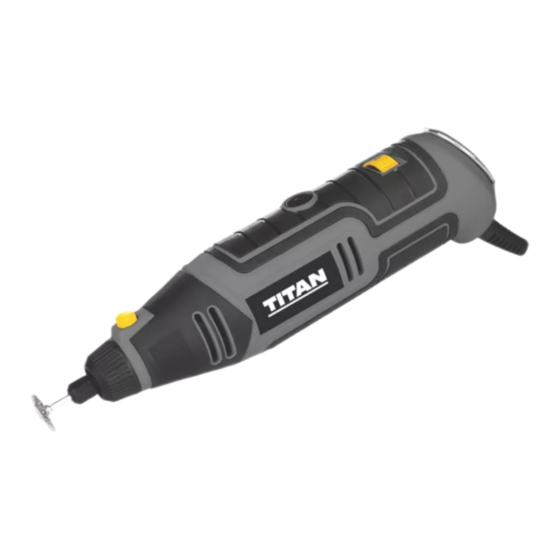

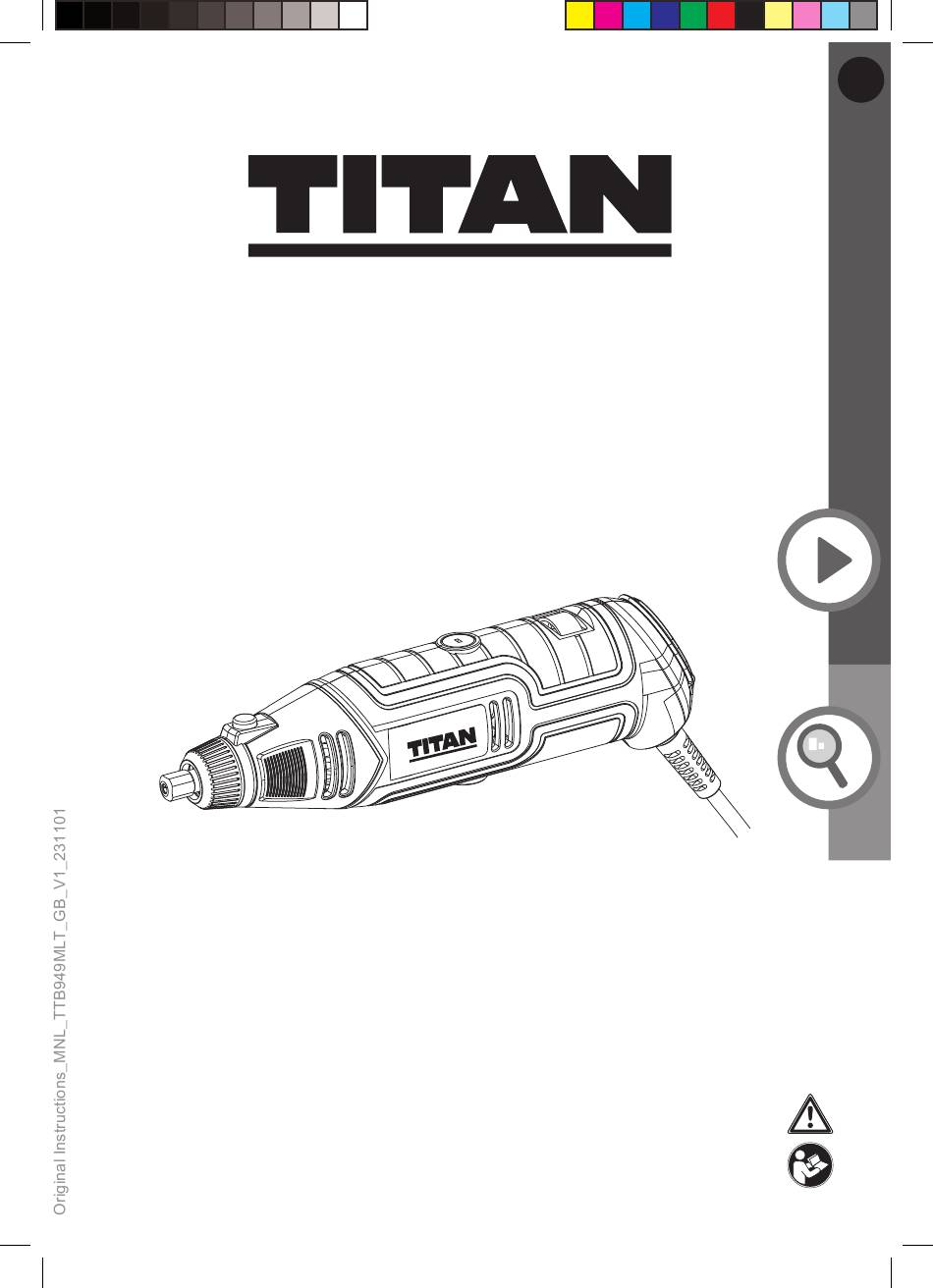

- Page 1 Rotary Multi Tool 130W TTB949MLT EAN: 5063022074201 WARNING: Read the instructions before using the product! V11101 / BX220IM...
- Page 2 Let’s get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Safety information Your product Technical Before you start detail... more Product functions & Settings Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee...
- Page 3 Safety information TTB949MLT by TITAN Safety warnings General power tool safety warnings WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool.
- Page 4 Safety information TTB949MLT by TITAN Safety warnings c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
- Page 5 Safety information TTB949MLT by TITAN d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times.
- Page 6 Safety information TTB949MLT by TITAN Safety warnings e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
- Page 7 Safety information TTB949MLT by TITAN designed recommended tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation. c) The rated speed of the grinding accessories must be at least equal to the maximum speed marked on the power tool.
- Page 8 Safety information TTB949MLT by TITAN Safety warnings g) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, sanding drum for cracks, tear or excess wear, wire brush for loose or cracked wires.
- Page 9 Safety information TTB949MLT by TITAN Hold power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live”...
- Page 10 Safety information TTB949MLT by TITAN Safety warnings q) Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards. materials. Sparks could ignite these materials.
- Page 11 Safety information TTB949MLT by TITAN b) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback.
- Page 12 Safety information TTB949MLT by TITAN Safety warnings c) Do not “jam” a cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or snagging of the wheel in the cut and the possibility of kickback or wheel breakage.
- Page 13 Safety information TTB949MLT by TITAN h) Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback. operations: a) Be aware that wire bristles are thrown by the brush even during ordinary operation.
- Page 14 Safety information TTB949MLT by TITAN Safety warnings c) Selection of abrasives Information on the label or the abrasive as well as restrictions of use, safety indications or any other instruction shall be followed. In case of doubt concerning the selection of abrasives, the user shall request information from the manufacturer or supplier.
- Page 15 Safety information TTB949MLT by TITAN Silica is a natural mineral present in large amounts in things like sand, sandstone and granite. It is also commonly found in many construction materials such as dust (also known as Respirable Crystalline Silica or RCS)
- Page 16 Safety information TTB949MLT by TITAN Safety warnings Please always work with approved safety equipment, out microscopic particles and use the dust extraction facility at all time. http://www.hse.gov.uk/construction or http://www.hse.gov. uk/pubns/cis69.pdf WARNING! Some dust particles created by power sanding, sawing, grinding, drill and other...
- Page 17 Safety information TTB949MLT by TITAN 1. Only use the product as intended by its design and these instructions. maintained. 3. Use correct attachments for the product and ensure they are in good condition. 4. Keep tight grip on the handles/grip surface.
- Page 18 Safety information TTB949MLT by TITAN Safety warnings Residual risks Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product: 1.
- Page 19 Safety information TTB949MLT by TITAN dB(A) Decibel (A-rated) m/s² Metres per second squared Lock / to tighten or secure. Unlock / to loosen. Read the instruction manual. Note / Remark. Caution / Warning. IP20 Protection against ingress of the solid foreign objects having a diameter of 12.5 mm and greater.
- Page 20 Your product TTB949MLT by TITAN Product description...
- Page 21 TTB949MLT by TITAN 1. Tool socket 11. Power guard 20. Silicon carbide a) Clamp nut 12. Rear grip handle grinding wheel 120 grit b) Collet (ø3.2mm) 13. Air vents (20mm x 4mm) (pre-mounted) 14. Ball shaped HSS cutter 21. Aluminum oxide c) Spindle (3.2mm)
- Page 22 TTB949MLT by TITAN The sound value(s) have been determined according to noise test code given in using the basic standards The sound intensity level for the operator may exceed 80 dB(A) and ear protection measures are necessary. The declared total vibration value(s) and the declared noise emission value(s) have been measured in accordance with a standard test method and may be used for comparing one tool with another;...
- Page 23 Before you start TTB949MLT by TITAN You will need (items not supplied) (items supplied) Suitable personal protective Ball shaped HSS cutter (3.2mm) (14) equipment Ball shaped diamond cutter (3.2mm) (15) Suitable collet Axial nylon brush (5mm x 43mm) (16) Suitable screwdriver...
- Page 24 TTB949MLT by TITAN Before you start Assembly WARNING! Always use the correct tool attachment according to the intended use! Observe the technical requirements of this product (see section Some tool attachments are very sharp and become hot during use! Handle them carefully! Wear protective gloves when handling tool attachments in order to avoid injuries like burns and cuts! Tool attachments are available in various shapes and sizes.
- Page 25 Before you start TTB949MLT by TITAN Felt polishing wheel 1. Hold the felt polishing wheel 2. Align polishing wheel mandrel (18) with the middle hole of the felt polishing wheel (23), then screw it in clockwise with the other hand until it stops (Fig.
- Page 26 Before you start TTB949MLT by TITAN Assembly NOTE: Inspect the collet (1b) regularly for damage and wear. Replace it with a new one of the same type if required. is suitable for the desired tool attachment, if not, remove the clamp nut (1a) and collet (1b) from the spindle (1c) (Fig.
- Page 27 Before you start TTB949MLT by TITAN stable surface. 2. Press the spindle lock button (3) and hold it in position while loosening the clamp nut (1a) anticlockwise with (24). 3. Pull the tool attachment out of the tool socket (1) and insert a new one as required Fig.
- Page 28 TTB949MLT by TITAN more detail... Product functions & Settings Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Declaration of conformity...
- Page 29 Product functions & Settings TTB949MLT by TITAN Intended use This Rotary Multi Tool TTB949MLT is designated with a rated input of 130 Watts. The intended use of this product includes the use of the corresponding tool attachment: rough grinding of wood, welds, plastics, leather and nonferrous metal;...
- Page 30 Product functions & Settings / Operation TTB949MLT by TITAN Speed dial Limit the maximum speed by turning the speed dial (7) to display the number marking (Fig. 8): Turn the speed dial (7) left to decrease the speed to a small number.
- Page 31 Operation TTB949MLT by TITAN 5. Switch the product off immediately if you are disturbed while working by other people entering the working area. Always let the product come to complete stop before putting it down. 6. Do not overwork yourself. Take regular breaks to ensure you can concentrate on the work and have full control over the product.
- Page 32 Operation TTB949MLT by TITAN Working position Depending on the application, the product must be held in different positions in order to work safely and reach optimal work results. 2. For rough work, such as grinding, hold the product like a hammer shaft (Fig.
- Page 33 Care and maintenance TTB949MLT by TITAN The golden rules for care WARNING! Always switch the product off, disconnect the product from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! 1. Keep the product clean. Remove debris from it after each use and before storage.
- Page 34 Care and maintenance TTB949MLT by TITAN UK plug (for UK only) IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Blue – Neutral Brown – Live As the colours of the wire in the mains lead of this product may not correspond with the coloured marking identifying the terminals in your plug, proceed as follows.
- Page 35 Care and maintenance / Troubleshooting TTB949MLT by TITAN Storage 1. Switch the product off and disconnect it from the power supply. 2. Clean the product as described above. 3. Store the product and its accessories in a dark, dry, frost-free, well-ventilated place.
- Page 36 Troubleshooting / Recycling and disposal TTB949MLT by TITAN Troubleshooting 2. Product does 2.1. Use a proper not reach full suitable for operation extension cord power with this product 2.2. Power source (e. g. 2.2. Connect to another generator) has too low...
- Page 37 Guarantee TTB949MLT by TITAN Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product ( Rotary Multi Tool 130W) has a manufacturer’s guarantee of...
- Page 38 Declaration of conformity TTB949MLT by TITAN (UK) DECLARATION OF CONFORMITY Product Rotary Multi Tool TTB949MLT SN: 000001-999999 Name and address of the manufacturer or his authorised representative: Kingfisher International Products Limited 1 Paddington Square London W2 1GG United Kingdom This declaration of conformity is issued under the sole responsibility of the manufacturer.
- Page 39 Declaration of conformity TTB949MLT by TITAN TTB949MLT 5063022074201 TTB949MLT...
- Page 40 Declaration of conformity TTB949MLT by TITAN 01/11/2023...
- Page 41 Kingfisher International Products Limited 1 Paddington Square, London, W2 1GG United Kingdom www.kingfisher.com/products Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.kingfisher.com/products www.diy.com To view instruction manuals online, visit www.kingfisher.com/products www.castorama.fr Pour consulter les manuels d’instructions en ligne, rendez-vous sur le site www.kingfisher.com/products www.castorama.pl www.bricodepot.ro...
