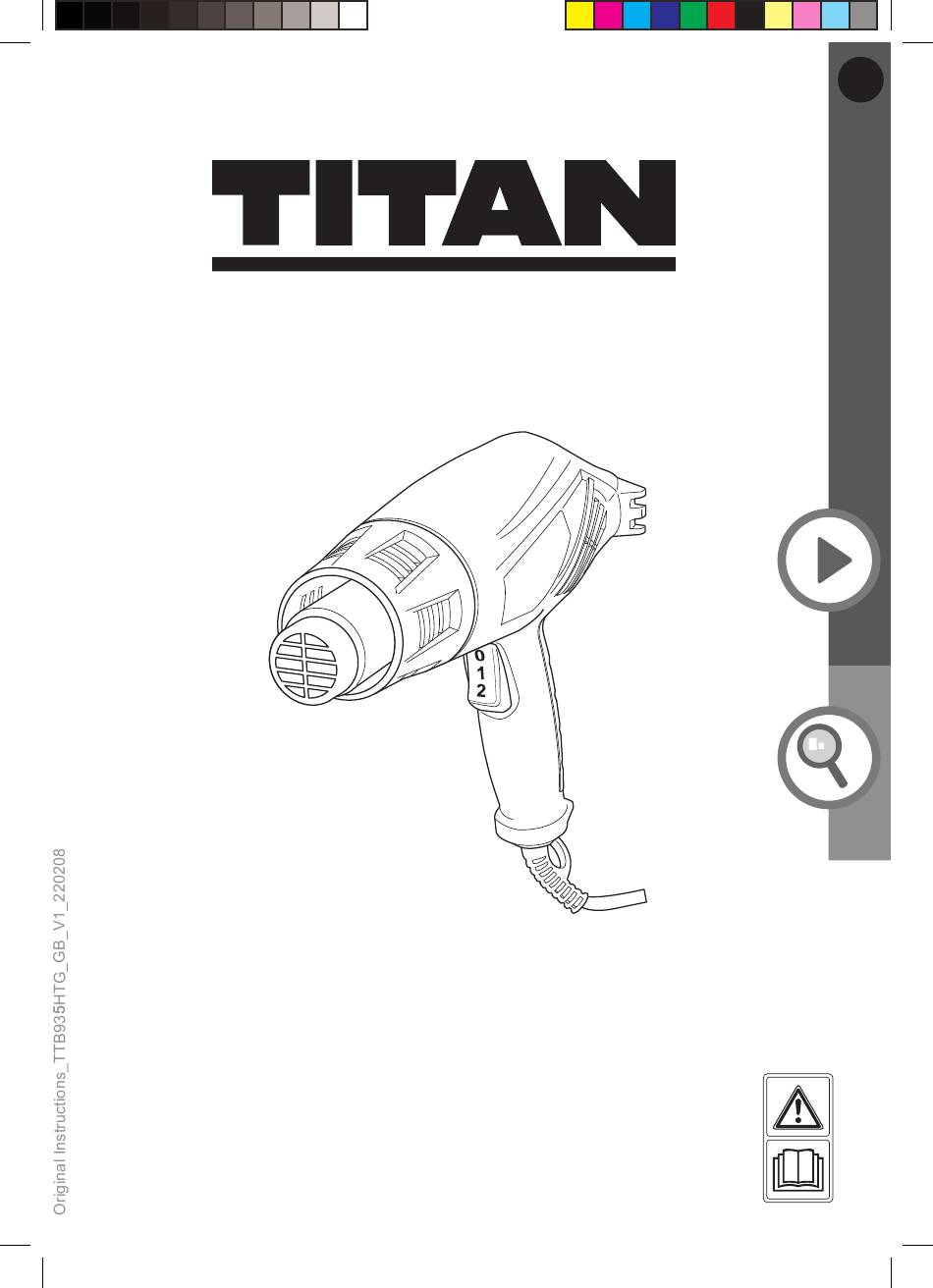

- Page 1 1800W Heat Gun TTB935HTG EAN:5059340397610 WARNING: Read the instructions before using the product! BX220IM...
-
Page 2: Table Of Contents
Let’s get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Technical and legal information Your product Technical specifications Before you start more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal... - Page 3 TITAN Safety information TTB935HTG Safety warnings 1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 4 Safety information by TITAN TTB935HTG Safety warnings Electrical safety 1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. of electric shock. 2. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
- Page 5 TITAN Safety information TTB935HTG 2. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. 3. Prevent unintentional starting. Ensure the switch...
- Page 6 Safety information by TITAN TTB935HTG Safety warnings 3. Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. 4. Store idle power tools out of the reach of children...
- Page 7 TITAN Safety information TTB935HTG Safety warnings for heat gun 1. The tool must be placed on its stand when not in use. 2. A fire may result if the product is not used with care, therefore ̛ be careful when using the product in places where there are combustible materials;...
- Page 8 Safety information by TITAN TTB935HTG Safety warnings 5. Clean up all paint scrapings and dust. Do not sweep, dry dust or vacuum to avoid the paint dust will be thrown up into the air where it can be inhaled or contaminate other areas.
- Page 9 TITAN Safety information TTB935HTG 16. Safety Warnings for stripping paint. Before stripping any paint, you should determine whether the paint contains any lead. Paint containing lead should be removed by a professional and not by using a heat gun.
- Page 10 Safety information by TITAN TTB935HTG Safety warnings 6. Plan your work schedule to spread any high vibration tool use across a longer period of time. 7. Prolonged use of the product exposes the user to vibrations that can cause a range of conditions collectively known as hand-arm vibration syndrome (HAVS) e.g.
- Page 11 TITAN Safety information TTB935HTG 2. Injuries and damage to property due to broken attachments or the sudden impact of hidden objects during use. 3. Danger of injury and property damage caused by flying objects. WARNING! This product produces electromagnetic field during operation! This field...
- Page 12 Safety information by TITAN TTB935HTG Symbols Read the instruction manual. Wear hearing protection. Wear eye protection. Wear respiratory protection. Wear protective gloves. Switch the product off and disconnect it from the power supply before assembly, cleaning, adjustments, maintenance, storage and transportation.
-
Page 13: Your Product
TITAN Your product TTB935HTG Your product 1. Hot air outlet 2. Air vents 3. Stand 4. On/off switch 5. Handle 6. Power cable with hanging hook 7. Scraper a) Blade b) Handle 8. Concentrator nozzle 9. Spreader nozzle 10. Glass protector nozzle... -
Page 14: Technical Specifications
Technical specifications / Before you start by TITAN TTB935HTG Technical specifications General Rated voltage : 220 - 240 V ~,50 Hz Rated input : 1800 W Temperature/air flow setting : Switch position 1 : 450 °C Switch position 2 : 600 °C... -
Page 15: Before You Start
TITAN Before you start TTB935HTG You will need (items not supplied) (items supplied) Suitable personal protective equipment Blade (7a) Handle (7b) Concentrator nozzle (8) Spreader nozzle (9) Glass protector nozzle (10) Reflector nozzle (11) Assembly WARNING! The product must be fully assembled before operation! - Page 16 Before you start by TITAN TTB935HTG Accessories Different nozzle attachments can be used depending on the work being conducted. WARNING! Always use accessories according to the intended use! Some accessories are very sharp and become hot during use! Handle them carefully! Wear safety gloves when handling accessories in...
- Page 17 TITAN Before you start TTB935HTG Attaching accessories > Align the required nozzle (8 - 11) with the hot air outlet (1) and attach it. Ensure Fig. 2 Removing/replacing accessories > After use, let the nozzle cool down before removing it.
-
Page 18: In More Detail
TITAN TTB935HTG more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee... - Page 19 TTB935HTG Intended use This heat gun TTB935HTG is designated with a rated input of 1800 watts. This product is intended for removing paint, forming and bending of plastic tubes, and the warming of heat-shrinkable tubing, using the respective nozzles. The product is also suitable for soldering and tinning, loosening adhesive joints and defrosting water pipes.
- Page 20 Product functions by TITAN TTB935HTG On/off switch Position Setting Applications “0” – Off – Cleaning and storage “1” – On, – Removing paint 450°C / – Shrinking plastic sleeves 300 l/min – Soldering pipes – Bending plastic tubes “2” – On, –...
-
Page 21: Operation
TITAN Operation TTB935HTG General operation > Check the product, its power cord and plug as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear. > Double check that accessories or attachments are properly fixed. - Page 22 Operation by TITAN TTB935HTG Operation > Place dust sheets in the work area to catch paint scrapings. Wear protective clothing such as hats, extra work shirts and overalls. Paint scrapings may contain chemicals that are hazardous. NOTE: The proper amount of heat for each application depends on the temperature range selected, distance between the nozzle and workpiece as well as the length of time heat is applied.
- Page 23 TITAN Operation TTB935HTG 450°C > property damage or personal injury. > 450°C Shrinking plastic sleeves > Apply the air stream evenly to the sleeve. > Avert the air stream once the sleeve shrinks. 450°C...
- Page 24 Operation by TITAN TTB935HTG Operation Soldering pipes > Apply suitable soldering grease or paste to the pipe ends to be soldered if > Stick the pipe end together and warm the connection for 1 to 2 minutes depending on the material.
- Page 25 TITAN Operation TTB935HTG Bending plastic tubes > Fill the tubing with sand and seal at both ends, to avoid kinking the tubing > Heat the tubing evenly by moving it from side to side. 450°C Defrosting taps and tubes WARNING! Do not attempt to use the product on gas pipes –...
- Page 26 Operation / Care and maintenance by TITAN TTB935HTG After use > Switch the product off, place the product on its stand (3), disconnect it from the power supply and let it cool down. > Check, clean and store the product as described below.
-
Page 27: Care And Maintenance
TITAN Care and maintenance TTB935HTG Maintenance Before and after each use, check the product and accessories (such as application tools) for wear and damage. If required, exchange them for new ones as described in this instruction manual. Observe the technical requirements. -
Page 28: Troubleshooting
Care and maintenance / Troubleshooting by TITAN TTB935HTG Repair This product does not contain any parts that can be repaired by the consumer. Contact an authorised service centre or a similarly qualified person to have it checked and repaired. Storage >... -
Page 29: Recycling And Disposal
TITAN Troubleshooting / Recycling and disposal TTB935HTG Problem Possible cause Solution 1. Product does not 1.1. Not connected to 1.1. Connect to power start power supply supply 1.2. Power cord or plug is 1.2. Check by a defective specialist electrician. -
Page 30: Guarantee
We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product (TITAN Heat Gun) has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost. - Page 31 Manufacturer, Fabricant, Producent, Produc tor, Fabricante: UK Manufacturer: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom EU Manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.screwfix.com www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products 95867_IM_TTB2200.indd 44 2020/8/26 下午1:40...
