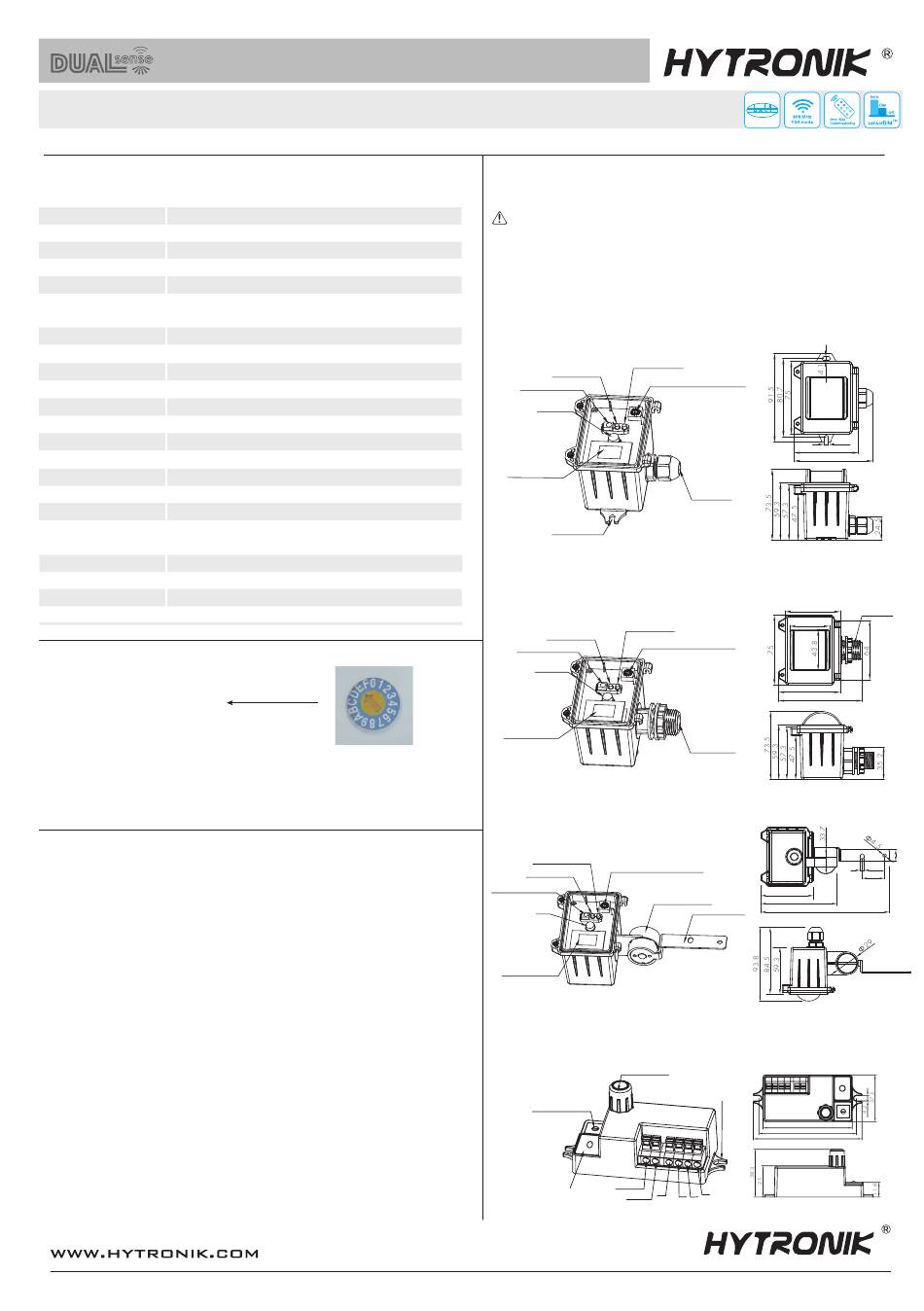

Installation and Instruction Manual
TM
RF WIRELESS DUAL SENSE SENSOR FOR HIGH BAY HIM39/RF AND HC034RF
1. Technical Specifications
Product type
RF wireless dual sense independent DALI sensor (tri-level control)
Operating voltage
220-240VAC 50/60Hz
Rated load
Maximum 20pcs DALI devices, Maximum 40mA
Power consumption
< 1.5W
o
Detection angle
360
Installation Height : 15m
Detection area (Max.)*
Detection Range (Ø) :18m
Detection range
10% / 50% / 75% / 100%
Hold time
2s / 30s / 1min / 5min / 10min / 15min / 20min / 30min
Stand-by time
0s / 10s / 1min / 5min / 10min / 30min / 1h / +∞
Stand-by dimming level
10% / 20% / 30% / 50%
Daylight threshold
2 ~ 500Lux, Disable
RF transmission distance
30 meters in the open area
RF frequency
868MHz (FSK mode)
Warming up time
30s
o
Operating temperature
-20
C ~ +50
IP rating
IP65
Sensor mode
HF, PIR, HF+PIR, HF / PIR
HC034RF
Product type
RF wireless receiver
Operating voltage
220-240V 50Hz
Rated load
Capacitive:400W; Resistive:1200W
IP rating
IP20
3. Rotary Switch for RF grouping
Rotary switch for RF grouping
(Please see the location in 2. Installation)
15 channels are available for fast grouping via rotary switch. By simply selecting the same channel on each
unit, the grouping is automatically completed.
Noted: channel "0" is not for fast grouping, and sensors can only be grouped by remote control.
4. Functions
4.1 Tri-level Control (Corridor Function)
Hytronik builds this function inside the motion sensor to achieve tri-level control, for some areas it requires
a light change notice before switch-off.
It offers 3 levels of light: 100%-->dimmed light-->off; and 2 periods of selectable waiting time: motion
hold-time and stand-by period; Selectable daylight threshold and freedom of detection area.
4.2 Lux Off Function
The built-in daylight sensor can read ambient natural light and switch off the fixture automatically
whenever artificial light is not required (natural light lux level exceeds daylight threshold).
Note: if the stand-by time is preset at "+∞", the fixture never switches off even when natural light
is sufficient.
4.3 Load Indication
The light will flash ONCE rapidly after receiving the command from the remote controller.
Note: There is no load indication (the light will not flash) when button ON/OFF, POWER 100% or POWER
80% is pressed.
o
C
2. Installation
Warnings:
1. Installation must be carried out by a qualified engineer in accordance with
local regulations.
2. Disconnect power supply before installing.
3. Install to a solid surface - vibrations may cause mis-triggering.
4. Ensure environmental conditions are suitable for electronic equipment
A. Ceiling mount
Daylight sensor
LED indicator
Rotary switch for RF grouping
Infrared receiver
PIR
Sensor module
Installation rack
B. Screw to the Luminaire by conduit
Daylight sensor
LED indicator
Rotary switch for RF grouping
Infrared receiver
PIR
Sensor module
C. Attach to the shade by clamp
Daylight sensor
Rotary switch for RF grouping
LED indicator
Infrared receiver
Angle adjustment
PIR
Sensor module
HC034RF (RF receiver)
RF antenna
Rotary switch
for RF grouping
1-10V+
L'
Infrared remote receiver
1-10V-
4.1
66.6
81.5
Cable entry
59.6
43
66.6
89.9
Cable entry
66.6
96.8
163.2
Luminaire clamp
Installation hole
71.5
78.2
87
N N L
HIM39/RF-20190104-A1
0.825"
15
4.5
28.5
