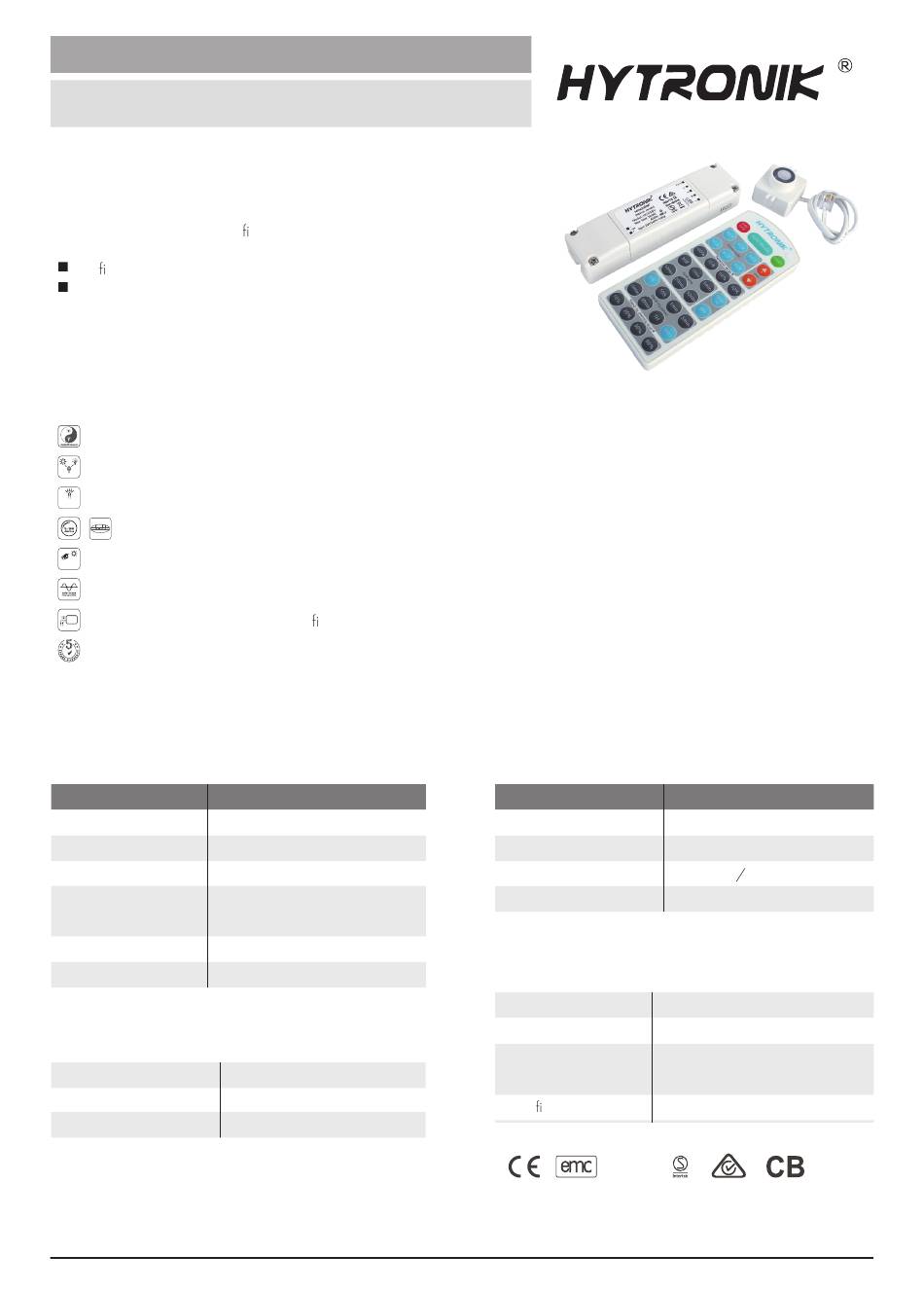

Hytronik HC038V Quick Start Manual

Daylight Harvest PIR Sensor
HC038V HCD038

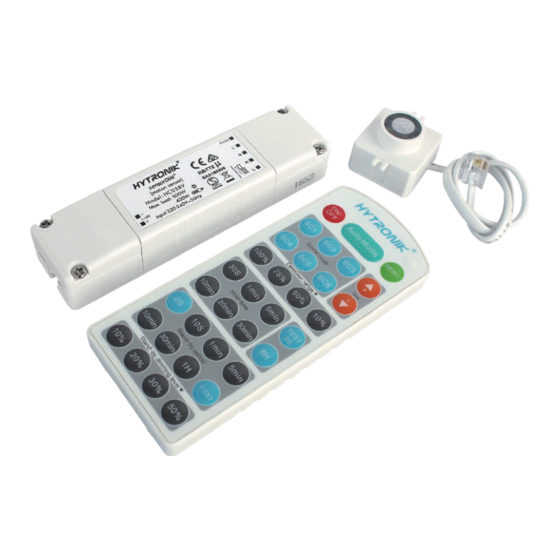

Detached Linear Version with Remote Control

Applications

Occupancy detector with daylight harvest suitable for indoor use.
Suitable for building into the xture:
Of ce / Commercial Lighting
Classroom
Use for new luminaire designs and installations

Features

Daylight harvest function to regulate light output for maintaining required lux level
Special photocell to measure and differentiate natural light from LED light
Photocell Advance
Lux Off Function, daylight threshold prior to motion detection
Intelligent
Photocell
Optional 1-10V or DALI dimming control method
One-touch daylight learning via remote control
Ambient daylight
threshold
Zero crossing detection circuit reduces in-rush current and prolongs relay life (HC038V)
Loop-in and loop-out terminal for ef cient installation (HC038V)
Loop in
Loop out
5-Year Warranty

Technical Data

Input Characteristics
Model No.
Mains voltage
Stand-by power
Load ratings:
HC038V
HCD038 30mA, 16VDC (max. 15 devices)
Warming-up
Environment
Operation temperature
Case temperature (Max.)
IP rating
Subject To Change Without Notice.
HC038V HCD038
220~240VAC 50/60Hz
<0.5W
400VA (capacitive)
800W (resistive)
20s
Ta: -20 O C ~ +55 O C
Tc: +80 O C
IP20
Sensor Data
Model No.
Sensor principle
Operation voltage
Detection range
Detection angle
Safety and EMC
EMC standard (EMC)
Safety standard (LVD)
Radio Equipment (RED)
Certi cation Semko, CB, CE , EMC, RED, RCM
RED
Edition: 26 Feb. 2020
HIR01 HIR01/FM HIR03
PIR Detection
5VDC
Max. ( O x H) 6m x 3m
360 O
EN55015, EN61000
EN60669, AS/NZS60669
EN300440, EN301489,
EN62479
IP20
Ver. A0 Page 1/7
