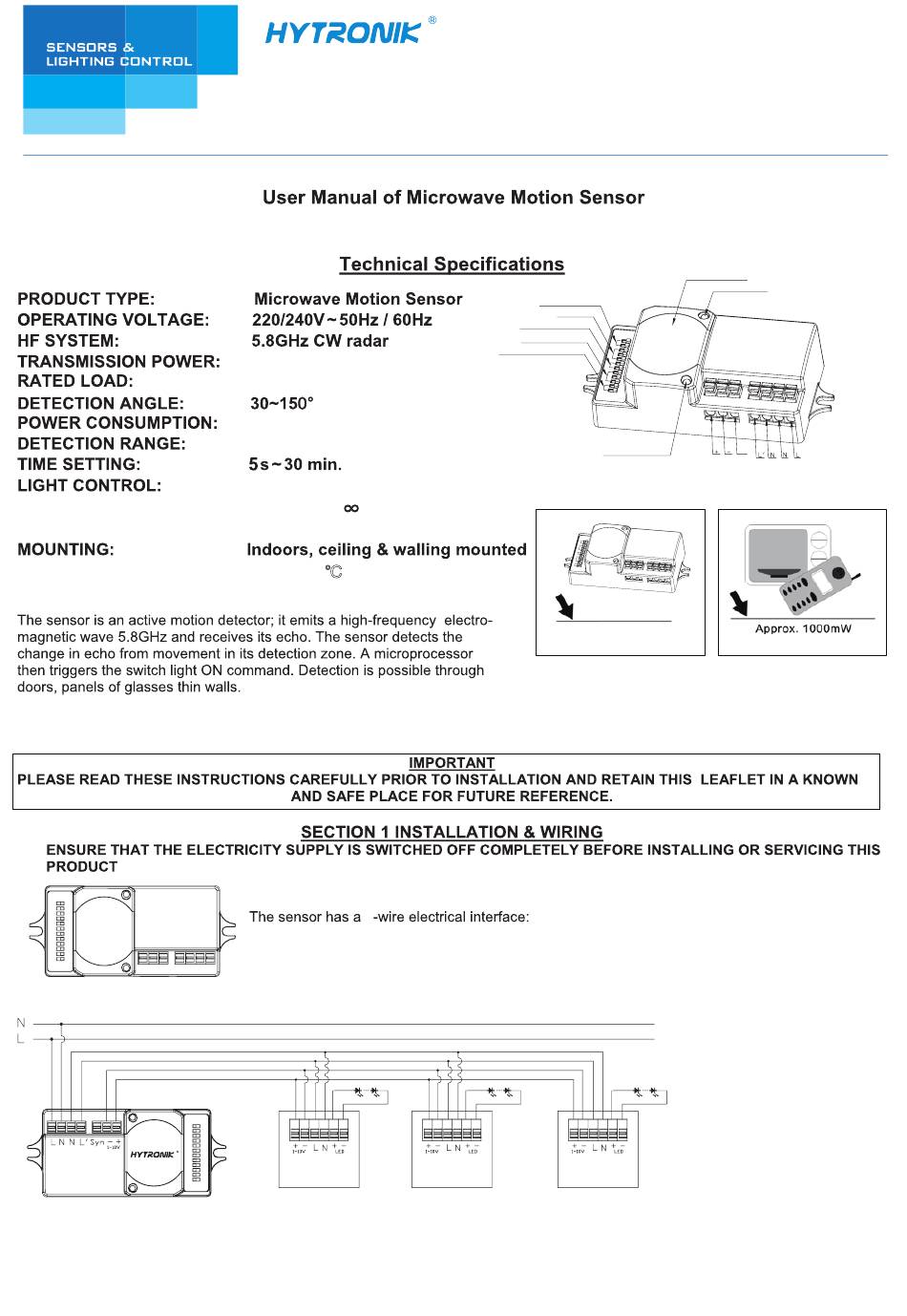

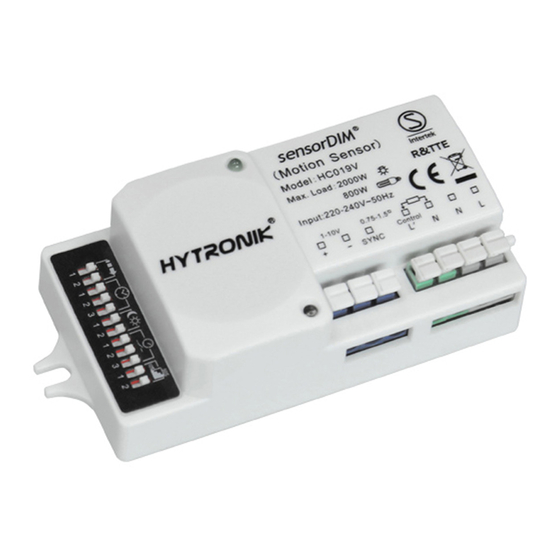

Hytronik HC019V User Manual

STAND-BY PERIOD:
Stand-By Dimming Level : 10% ~ 50%
WORKING TEMPERATURE:
NOTE:the high-frequency output of this sensor is <0.2mW;approximately just 1‰ of the transmission power of a mobile telephone or
the output of a microwave oven.
1.0
Wiring of 1 sensor controls a group of ballast /driver.
HC019V
HYTRONIK INDUSTRIAL LIMITED
Room D, 10/f, Tower A, Billion Center, 1 wang Kwong Road,
Kowloon Bay, Kowloon, Hongkong
T: 00852-35197525 F: 00852-30116936
E: info@hytronik.com
+
New advanced version Model No.:HC019V
<0.2mW
800W(capacitive Load)
Approx. 0.8W
Max. 12 meters in diameter, adjustable.
2~50LUX, disable
∞
0s, 10s-1h, +
-35 ~ +70 ℃
The sensor works with a main voltage of 220-240VAC 50/60 Hz.100-120VAC version is available
on request.
4
Nx2(neutral / 220-240VAC)
L (phase / 220-240VAC)
L' (switched phase / output)
LED Driver
CHINA FACTORY
3rd Floor, block C, complex building, 155#, Bai'gang road south,
Bai'gang village, Xiao Jin Kou town, Huicheng district, Huizhou 516023
Tel:86-752-2772020
E: info@hytronik.com
Detection Area
Hold-time
Daylight threshold
Stand-by period
Stand-by dimming level
SYNC (synchronization interface)
+ (1-10V "+" interface)
- (1-10V "-" interface)
LED Driver LED Driver
F:86-752-2777877
W:www.hytronik.com
Antenna module
Led indication
Daylight Sensor
Sync
0-10V
output
<0.2mW
MAX.800w
