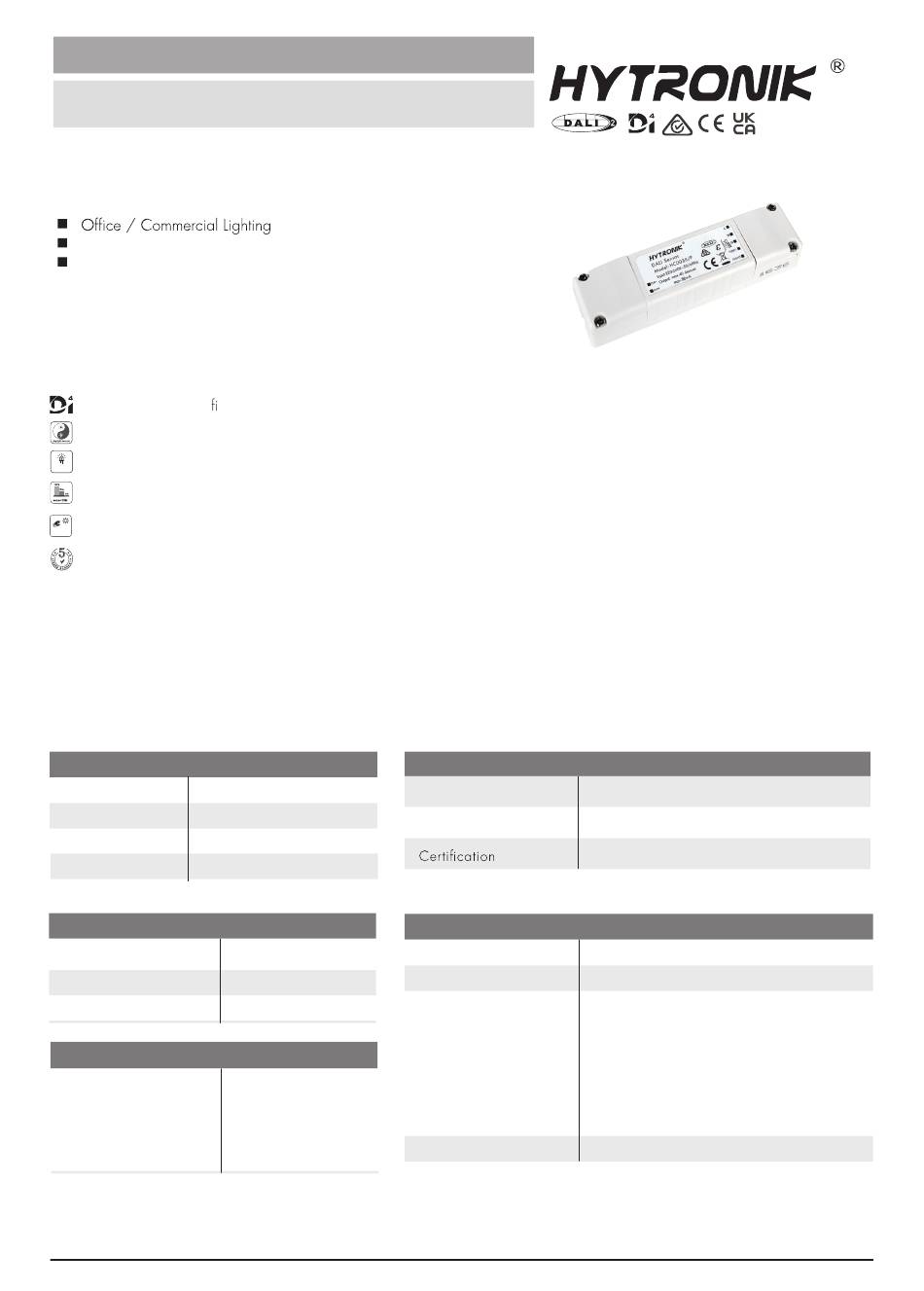

Tri-level Control & Daylight Harvest Sensor
HCD038/P + HIR17 or HIR17/R
Detached Linear Version with Remote Control
Applications
Occupancy detector with tri-level dimming control suitable for indoor use:
Classroom
Meeting Room
Use for new luminaire designs and installations
Features
DALI-2 and D4i certi ed
Daylight harvest function to regulate light output for maintaining required lux level
Active Lux Switching, daylight threshold prior to motion detection
Active Lux
Switching
Tri-level dimming control based upon occupancy (also known as corridor function)
TM
One-touch daylight learning via remote control
Ambient daylight
threshold
5-year warranty
Technical Data
Input & Output Characteristics
Operating voltage
220~240VAC 50/60Hz
Stand-by power
Load ratings:
80mA (max. 40devices)
Warming-up
Environment
Operation temperature
Case temperature (Max.)
IP rating
DALI-2 Standards
HCD038/P+HIR17
Subject to change without notice.
<0.5W
20s
Ta: -20 °C ~ +55
Tc: +75 °C
IP20
IEC62386 101
IEC62386 103
IEC62386 303
IEC62386 304
DALI Part 351
Safety & EMC
EMC standard (EMC)
EN55015, EN61000-3-2/-3-3, EN61547
Safety standard (LVD)
EN60669-1/-2-1, AS/NZS60669-1/-2-1
PIR Sensor Propertie (HIR17 & HIR17/R)
Sensor principle
Operation voltage
Detection range
*
Detection angle
Edition: 1 Mar. 2023
CE , EMC, RCM,UKCA
PIR detection
5VDC
5VDC
HIR17
Max installation height：3m (single person)
Max detection range (Ø)：12m
HIR17/R
Max installation height：8m (single person)
Max installation height：12m (forklift)
Max detection range (Ø)：14m
360°
Ver. A0
Page 1/9
Advertisement
Related Manuals for Hytronik HCD038/P
Summary of Contents for Hytronik HCD038/P
- Page 1 Tri-level Control & Daylight Harvest Sensor HCD038/P + HIR17 or HIR17/R Detached Linear Version with Remote Control Applications Occupancy detector with tri-level dimming control suitable for indoor use: Classroom Meeting Room Use for new luminaire designs and installations Features DALI-2 and D4i certi ed...
- Page 2 The cable length is around 30cm. 21.7 Note: Only when both HCD038/P and HIR17 or HIR17/R are used together, then the combination is DALI-2 enabled as a whole. HIR17 can freely switch between tri-level control and daylight harvest through remote controller HRC-11 setting.
-
Page 3: Functions And Features
Tri-level Control (Corridor Function) Hytronik builds this function inside the motion sensor to achieve tri-level control, for some areas which require a light change notice selectable waiting time: motion hold-time and stand-by period; Selectable daylight threshold and freedom of detection area. - Page 4 Note: When loaded with D4i driver, please disable the PSU of D4I drivers and the total maximum bus supply current in the same DALI bus line shall not exceed 250 mA, hence Max 3pcs HCD038/P allowed Subject to change without notice.
- Page 5 Active Lux Switching (Daylight Detection Prior to Motion Detection) The built-in photocell will also automatically turn off the light when the ambient ambient light exceeds the programmed lux level for more than 5min, regardless of whether motion is detected or not. The sensor switches off the light when does not switch on when presence is switches on the light automatically when...
-
Page 6: Wiring Diagram
2. 300 metres (total) max. for 1.5mm² CSA (Ta = 50℃) Note: 1. When HIR17 or HIR17/R plug with HCD038/P, only one push terminal can be activated for con guration. 2. When loaded with D4i driver, please disable the PSU of D4i drivers. - Page 7 Settings (Remote Control HRC-11, for HIR17 & HIR17/R) Permanent ON/OFF function Press button “ON/OFF” to select permanent ON or permanent OFF mode. * Press button “AUTO”, “RESET” or “Ambient” to quit this mode. The mode will change to AUTO Mode after power failure. Shift Send SEMI-AUTO...
- Page 8 Detection range All buttons in this zone are disabled. Master Master (HCD038/P) network. Other HIR17 will only report sensing events. Daylight threshold Press buttons in zone “ Daylight threshold” to set daylight sensor at 2Lux/ 10Lux / 50Lux / 100Lux / 300Lux / 500Lux / Disable.
- Page 9 Additional Information / Documents 1. Regarding precautions for PIR sensor installation and operation, please kindly refer to www.hytronik.com/download ->knowledge ->PIR Sensors - Precautions for Product Installation and Operation 2. Regarding precautions for Photodiode/Photocell Usages, please kindly refer to www.hytronik.com/download ->knowledge ->Precautions for Photodiode/Photocell Usages 3.
