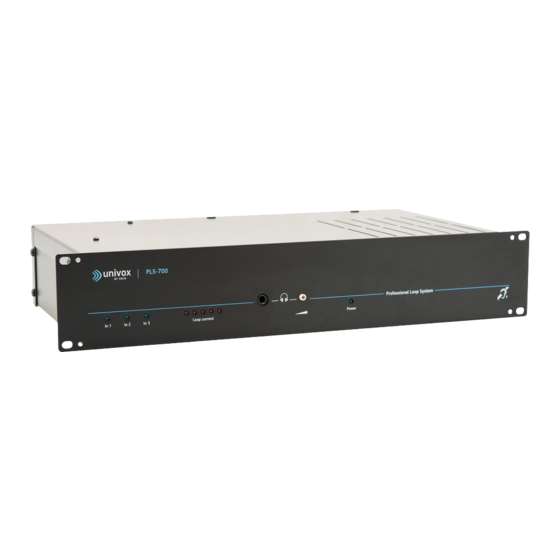

PLS-700
Univox Loop driver
Installation Guide
Maximum area coverage in free field conditions
•
With 4 parallel multi-loops 1800 m²
•
With a perimeter loop 1:1-1:3 room ratio 700 m²
Note that metallic interference will impact on the coverage by 30 % to total dampening depending
on loop wire placement.
Hearing excellence since 1965
PLS-700, Part No 214700
Advertisement
Related Manuals for Univox PLS-700
Summary of Contents for Univox PLS-700
- Page 1 PLS-700 Univox Loop driver Installation Guide PLS-700, Part No 214700 Maximum area coverage in free field conditions • With 4 parallel multi-loops 1800 m² • With a perimeter loop 1:1-1:3 room ratio 700 m² Note that metallic interference will impact on the coverage by 30 % to total dampening depending on loop wire placement.
- Page 2 K. In 3 E. Mains connector G. Loop current control J. SLS Treble I. Line out Recommended minimum loop area for Univox® PLS-700 when installed to an existing perimeter loop system Loop area m² Wire area Wire area 1-turn-loop 2-turn-loop >...
-
Page 3: Installation
If the smallest distance in a loop exceeds 10 meters, please consider another loop configuration, like the “eight”- loop. • Please be aware of the overspill effect. If the overspill is not acceptable, plan the system for Univox Super ®... - Page 4 The AGC-function for inputs IN1-3 can be disabled by setting the switch S18 according to table on page 4. Connect Line Outputs Univox PLS-700 has 2 line outputs; I = ”LINE OUT” 0dBm without the input AGC activated (linear), and J ”SLS” 0 dBm with the AGC-function activated.
- Page 5 Connections How to connect a 1-turn / 2-turn loop How to connect unbalanced / balanced input Unbalanced Balanced 1-turn loop 2-turn loop Shield Shield Signal to pin 2 or 3 Signal to pin 2 and 3 Strap settings for Inputs 1-3 and for the AGC-function WARNING! Live terminals enclosed! S11/IN1...
-
Page 6: Warranty
Do not use solvent or strong detergents. Trouble shooting Verify the control LEDs following the instructions in this installation guide. Use Univox® Listener to check the sound quality and basic level of the loop. - Page 8 Distributor Univox by edin, the world’s leading expert and producer of high quality hearing loop systems, created the very first true loop amplifier 1969. Ever since our mission is to serve the hearing community with the highest degree of service and performance with strong focus on Research and Development for new technical solutions.
