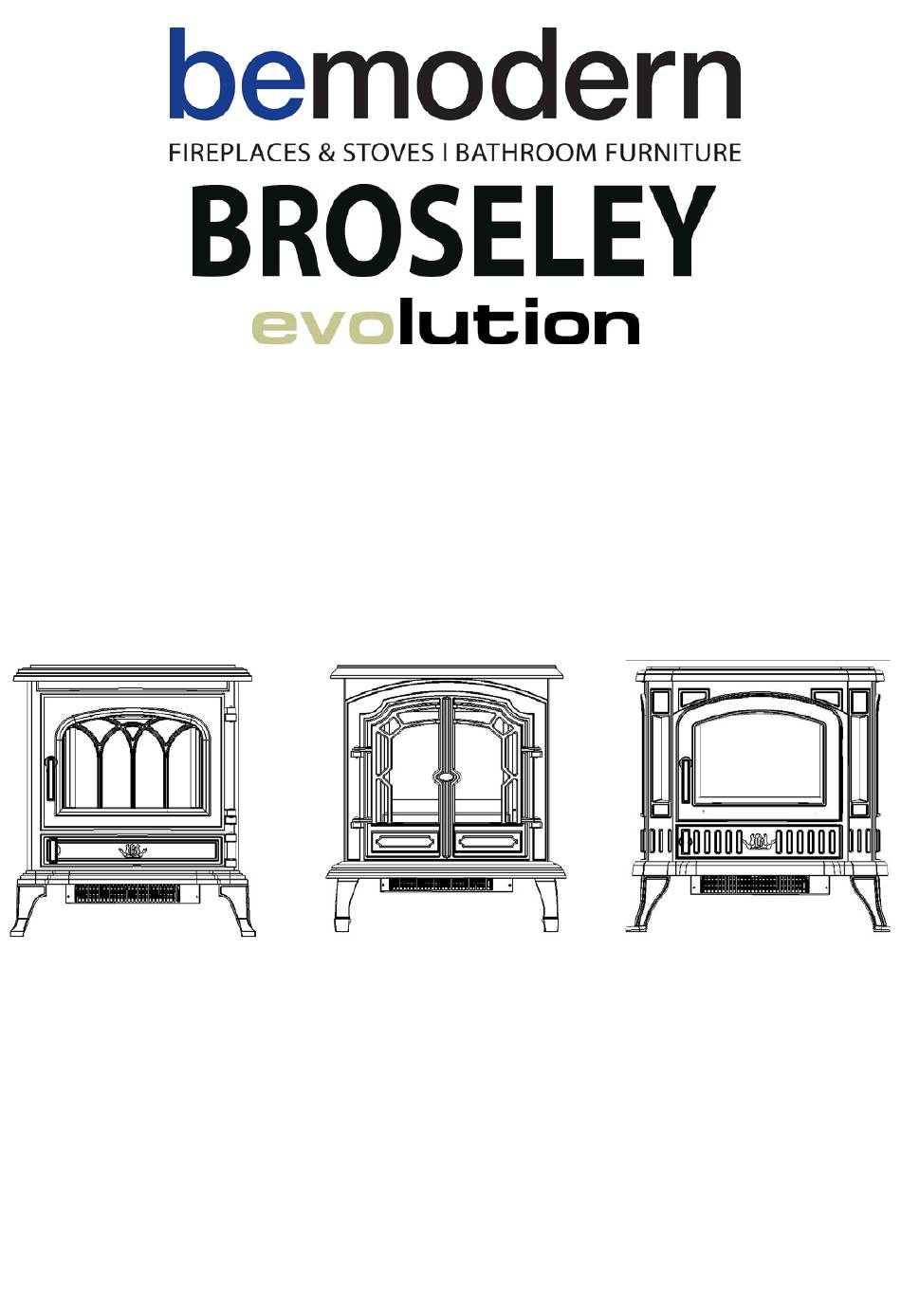

200695 Issue 3
Electric Installation & Operating Instructions
PLEASE NOTE THAT THIS APPLIANCE USES A MOTOR TO OPERATE THE FLAME EFFECT AND THAT IT
MAY BE POSSIBLE TO HEAR IT WHERE THE BACKGROUND NOISE IS VERY LOW. THIS IS NORMAL AND
SHOULD NOT BE A CAUSE OF CONCERN.
These instructions should be read carefully and retained for future reference
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for bemodern BROSELEY EVOLUTION Canterbury Remote
Summary of Contents for bemodern BROSELEY EVOLUTION Canterbury Remote
- Page 1 200695 Issue 3 Electric Installation & Operating Instructions PLEASE NOTE THAT THIS APPLIANCE USES A MOTOR TO OPERATE THE FLAME EFFECT AND THAT IT MAY BE POSSIBLE TO HEAR IT WHERE THE BACKGROUND NOISE IS VERY LOW. THIS IS NORMAL AND SHOULD NOT BE A CAUSE OF CONCERN.
-
Page 2: Table Of Contents
200695 Issue 3 Contents Models Covered Page 2 Important Safety Advice Page 3-4 Assembly – Fitting The Winchester “Wings” Page 5 Assembly – Installing The Flame Effect Unit Page 6 Assembly – Positioning The Decorative Fuel Effect Page 7 Operating Your Stove Page 8 Maintenance Page 9... -
Page 3: Important Safety Advice
200695 Issue 3 Important Safety Advice Warning: this appliance must be earthed. The wires in the main lead to this appliance are coloured in accordance with the following code: GREEN and YELLOW Earth BLUE Neutral BROWN Live As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:... - Page 4 200695 Issue 3 Important Safety Advice WARNING: In order to avoid overheating do not cover the heater. In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device ,such as a timer, or connected to circuit that is regularly switched on and off by utility.
-
Page 5: Assembly - Fitting The Winchester "Wings
200695 Issue 3 Assembly – Fitting The Winchester “Wings” For Winchester electric models only Before inserting the ‘Flame Effect Unit’ into the ‘Cast iron stove body’, it is necessary to fit the two wings supplied. This will allow the flame effect unit to sit at the correct height within the cast iron stove body. -
Page 6: Assembly - Installing The Flame Effect Unit
200695 Issue 3 Assembly – Installing The Flame Effect Unit The stove will be supplied in two separate boxes. The first contains the cast iron stove body and the second the flame effect unit. Check that the specified components are included before you start setting up your Stove. -
Page 7: Assembly - Positioning The Decorative Fuel Effect
200695 Issue 3 Assembly – Positioning The Decorative Fuel Effect Log Installation For the coal effect simply spread the loose coals across the fuel bed in place of the logs, you can even have a mixture of coals and logs for a more unique look. -
Page 8: Operating Your Stove
200695 Issue 3 Operating Your Stove Manual Operation To access the controls on the stove you will need to open the door (lower ash door on York Midi only), you should be able to see the following controls: Thermostat Control The thermostat can be used to control the heat output to maintain a constant room temperature to suit user requirements. -
Page 9: Maintenance
200695 Issue 3 Maintenance Warning: Before undertaking any maintenance or cleaning disconnect your appliance from main supply and ensure it is completely cool. Only competent persons should service / repair these appliances. Changing Bulbs Open the main door(s) as described in the “Assembly” section. Remove the decorative fuel effect (logs or coals) then gently lift out the fuel bed (flat surface your fuel effect was resting on). -
Page 10: Trouble-Shooting
200695 Issue 3 Trouble-shooting It is highly unlikely you should have a fault with your heater, but should there appear to be a problem, please refer to the following checklist of our most frequent questions from customers. If these do not answer your query please contact your retailer, or call us. No light or flame effect Please check –... -
Page 11: Guarantee
200695 Issue 3 Guarantee Please note your point of contact with regards to any warranty claims is the retailer from whom you purchased the appliance. Broseley Fires Ltd. (the ‘Company’) provides a Twelve month guarantee in respect to electric stoves (the ‘Product’) ranges.
