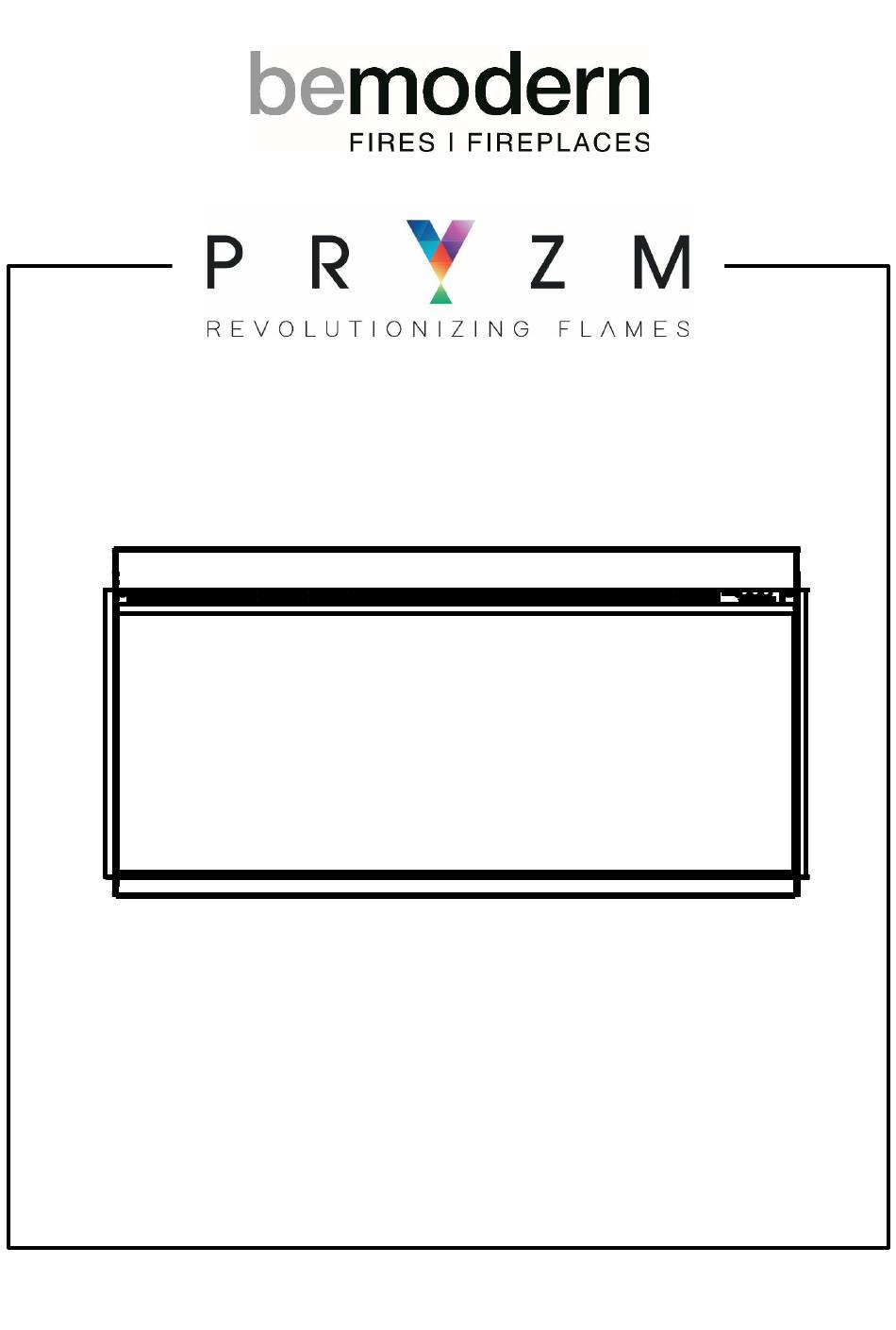

A R T E O N - Pryzm 3 Sided Fire
1000 3SL - 1250 3SL - 1500 3SL – 2000 3SL - 600 3SP - 750 3SP
A R T E O N – Pryzm Inset Fire
16" & 22-16"
Prior to installing this product locate the data label and note the model
and serial number. This is required when registering your guarantee.
Model:____________________
Serial Number:___________________________
Instructions For Installation & Operation
200827_3
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARTEON PRYZM 5D 1000 3SL and is the answer not in the manual?

Questions and answers

Related Manuals for bemodern ARTEON PRYZM 5D 1000 3SL

Summary of Contents for bemodern ARTEON PRYZM 5D 1000 3SL

  • Page 1 A R T E O N - Pryzm 3 Sided Fire 1000 3SL - 1250 3SL - 1500 3SL – 2000 3SL - 600 3SP - 750 3SP A R T E O N – Pryzm Inset Fire 16” & 22-16” Prior to installing this product locate the data label and note the model and serial number.

  • Page 2: Table Of Contents

    Contents Page Technical Specification 2 - 4 Important Safety Information 5 - 6 Contents of the Box(es) 7 - 8 Unpacking The Fire- Arteon 3SL/P 9- 10 Preparing the Fire- Arteon 3SL/P 11 - 12 Installation – Stud wall- Arteon 3SL/P 13 - 14 Installing The Fire- Arteon 3SL/P Fuel Bed Layout- Arteon 3SL/P...

  • Page 3: Technical Specification

    Technical Specification Detailed: 3 Sided Fire Set Up Dimensions (mm) Fire Logs ARTEON PRYZM 1002 1028 5D 1000 3SL- 2959 ARTEON PRYZM 1252 1278 5D 1250 3SL-3098 ARTEON PRYZM 1502 1528 5D 1500 3SL-3099 ARTEON PRYZM 2002 2028 5D 2000 3SL-4061 ARTEON PRYZM 5D 600 3SP-4025 ARTEON PRYZM...
  • Page 4 Technical Specification Continued….. Detailed: 16” Curved Inset (L) & 22-16” Inset Fire (R) Dimensions (mm) Fire Logs ARTEON PRYZM 16” Inset Fire- 4119 ARTEON PRYZM 16” Inset Fire- 4119 Curved ARTEON PRYZM 22-16” Inset Fire- 4112 Tolerance +/- 1mm Visible Glass Area (mm) Fire ARTEON PRYZM 16”...
  • Page 5 Technical Specification Continued….. Model No: 4119 (16”), 4112 (22”-16”), 4025 (600), 4024 (750), 2959 (1000), 3098 (1250), 3099 (1500), 4061 (2000) Supply Voltage: AC 230-240V 50Hz, Maximum power consumption: 2016W. Model: 4119 4112 4025 4024 2959 3098 3099 4061 Power for Flame Effect 2.4w 2.4w 4.8w...

  • Page 6: Important Safety Information

    Important Safety Information Read all the instructions carefully before using the appliance. For indoor use only. This appliance is not suitable for use outside the house and only suitable for well insulated spaces or occasional use. If the fire is to be placed in front of an existing chimney opening and there is any risk of chimney debris falling down onto the fire or drafts from the chimney it is recommended that the flue or opening is sealed off with non-combustible non-fibrous insulation materials.
  • Page 7 Important Safety Information Continued….. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 years and less than 8 years only can switch on / off the appliance provided that it has been placed or installed in its intended normal operating position and instructions and supervisions concerning the safe way of the use of the appliance are offered.

  • Page 8: Contents Of The Box(Es)

    Bags of Bark (Large Box Inside Fire) 1.8M IEC Power Cable with Molded Plug (Large Box Inside Fire Please ensure all fixings are present before commencing installation. If anything is missing please call Customer Services on 01914300901 or email us at customerservices@bemodern.co.uk 200827_3...
  • Page 9 LED Light Set- 830mm Fly Lead plus 3m LED Lights can be purchased separately. Note: Compatible LED Light Set are available from Bemodern Ltd. Other makes may not be suitable, and will void the warranty. Please ensure all fixings are present before commencing installation. If anything is missing please call Customer Services on 01914300901 or email us at customerservices@bemodern.co.uk...

  • Page 10: Unpacking The Fire- Arteon 3Sl/P

    There is 1 X Screw either side of the fire. See Diagram 3. Large Smal Diagram 3 Please ensure all fixings are present before commencing installation. If anything is missing please call Customer Services on 01914300901 or email us at customerservices@bemodern.co.uk 200827_3...
  • Page 11 Unpacking The Fire Arteon 3SL/P Continued….. Once the screws are removed- the Glass and Glass Bracket can be angled forward from the top of the fire and lifted out of the channel at the base of the glass. Note: Place the Glass, Glass Bracket and 2 X Screws in a safe place- these will be required later.

  • Page 12: Preparing The Fire Arteon 3Sl/P

    Preparing the Fire Arteon 3SL/P 1 Sided (Fully Recessed) Installation The fire comes out the box, already set up for 1 sided installation. The 2 X Side Panels will be fixed to the fire. See Diagram 8 Side Panels Diagram 8 2 Sided Installation- Right Hand Leaving the left hand side panel fixed.
  • Page 13 830mm Fly Lead plus 3m LED lights are provided in a set. Note: A compatible LED Light Set is available from Bemodern Ltd. (Code: 050199). Other makes may not be Diagram 17 suitable, and will void the warranty. NOTE: When the LED Light Set is fitted, they should be checked for operation before the access is closed off by the installation.

  • Page 14: Installation - Stud Wall- Arteon 3Sl/P

    Installation Arteon 3SL/P - Stud wall Once the fire has been prepared, use the following opening dimensions to construct the stud wall which the fire will be housed in. The stud wall must include a header as specified in the following diagrams. This is to ensure that the weight of the finished wall is not resting on top of the fire.
  • Page 15 Installation Arteon 3SL/P - Stud wall continued….. 2 Sided Installation REQUIRED OPENING DIMENSIONS (mm) FIRE 1000 3SL 1003 246* 1250 3SL 1253 271* 1500 3SL 1503 271* 2000 3SL 2003 271* 600 3SP 246* 750 3SP 246* * + TT- Timber Thickness Note: Ensure there is a minimum 10mm clearance between the fire and the wall behind.

  • Page 16: Installing The Fire- Arteon 3Sl/P

    Installing The Fire- Arteon 3SL/P Note: The fire is a two adult person lift Lift the fire into the stud wall opening- leaving approx. 50mm of the fire protruding to the front. Unfolded the fixing brackets at the top and bottom of the fire.

  • Page 17: Fuel Bed Layout- Arteon 3Sl/P

    Fuel Bed Layout & Log Positioning- Arteon 3SL/P Tip: Before dressing the fuel bed- position the previously removed glass bracket in the channel in the base of the fire, this will help to stop the smaller fuel bed material falling into the channel during installation.

  • Page 18: Replacing The Glass- Arteon 3Sl/P

    Replacing The Glass- Arteon 3SL/P Finally the Glass and Glass Bracket can be refitted, using the previously removed 2 X Screws. Tip- Check the channel in the base of the fire is free of any fuel bed material before proceeding further. Centralize the Glass Bracket on top of the Glass.

  • Page 19: Opening Sizes & Installation Introduction- Arteon 3Sp

    Arteon 3SP Opening Sizes & Installation Introduction Opening Sizes Note: Follow the below minimum clearances in order to fit the appliances into a back panel. Before the fire can be installed, consideration will need to be given to routing the power supply to the fire. We advise a qualified electrician conduct any electrical parts of the installation.

  • Page 20: Installation In A Marble Back Panel- Arteon 3Sp

    Arteon 3SP Installation Continued….. Installation in a Marble Back Panel Using the recommended sizes in the table on P18,make a cut out in the wall to fit the fire into- the opening size will depend on the model purchased. Ensure the brick work above the fire is support by a lintel. If unsure of these requirements please consult professional trades person expert advice.
  • Page 21 Arteon 3SP Installation Continued….. Install the fire. Set the fire so the back panel will sit at the required rebate for the surround purchased. IMPORTANT: If a power cable is to be routed to the rear of the mantel. Care must be taken not to crush or damage the cable when positioning the fire.

  • Page 22: Opening Sizes & Installation Introduction- Arteon Inset

    Inset Fire Opening Sizes & Installation Introduction Opening Sizes Note: Follow the below minimum clearances in order to fit the appliances into a back panel or cavity. Before the fire can be installed, consideration will need to be given to routing the power supply to the fire. We advise a qualified electrician conduct any electrical parts of the installation.

  • Page 23: Installation In A Marble Back Panel

    Inset Fire Installation Continued….. Installation in a Marble Back Panel Fig.2 6. Screw the back panel clamp bracket to the top of the fire by removing 3-off 10mm dome head screws fixed in the top of the fire. (See Fig. 2.) There are three mounting positions dependent on the back panel thickness or if a spacer is being used.

  • Page 24: Spacer Frame Assembly & Installation

    Inset Fire Installation Continued….. Spacer Frame Assembly & Installation Fig.5 10. If the spacer frame is to be used for the installation, position the back panel clamp to the rear screw position. Begin by removing 3-off 10mm dome head screws fixed in the top/front of the fire.

  • Page 25: Devotion Trim Assembly & Installation

    Inset Fire Installation Continued….. Devotion Trim & Fret Assembly & Installation Fig.9 15. Remove the trim from the packaging and unpack the fret part from the secondary packaging box, packed down the side of the fire. 16. If applicable remove the protective film from the finished face of the trim and fret parts.

  • Page 26: Ray Trim Assembly & Installation

    Inset Fire Installation Continued….. Ray Trim Assembly & Installation Fig.13 24. If applicable remove the protective film from the finished face of Parts A. & C. NOTE: Care must be taken when assembling the trim components to prevent scratching or damage. If the trim is pre-assembled please proceed to Step 29, if not please follow from Step 25.
  • Page 27 Inset Fire Internal Fuel Bed Layout & Log Positioning NOTE: The logs between the 16” and 22-16” Fires differ in size. Fig.15 The dressing of the fuel bed can be fully tailored to the customers individual tastes. A sufficient amount of each fuel bed finishing material has been provided to cover the fuel bed in a single type of material.

  • Page 28: Internal Fuel Bed Layout & Log Positioning

    Internal Fuel Bed Layout & Log Positioning Continued….. Fuel Bed Dressing- As a starting point follow the example below: Place a large amount of crystals in the centre of the fuel bed- leaving a gap around the edges. Tip- The crystals pick up light from the under bed lights to give you a realistic glowing ember effect, so we recommend using a generous amount.

  • Page 29: Dressing The External Curved Fuel Bed

    Inset Fire Dressing The External Fuel Bed (16” Arteon Curved Only) Fig.17 NOTE: There are two options for the curved front fuel bed: A. A molded pebble & crystal fuel bed B. An acrylic fuel bed ( for use if full crystal, bark, slate coverage is required) Please follow the below steps: 1.

  • Page 30: User Instructions - Introduction

    User Instructions - Introduction WARNING! Do not operate the appliance if it is damaged or has malfunctioned. If you suspect the appliance is damaged or has malfunctioned call a qualified service engineer to inspect the appliance, and replace any part of the electrical system if necessary, before reuse. WARNING! To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 meter from the air outlet.

  • Page 31: User Instructions - Manual Control

    User Instructions – Manual Control Wi-Fi pairing button Main ON / OFF Switch Heater Low, High, Off All lights On / Off 050199 LED mood light set connection Flame effect On, change colour x 3, Off point. Note: (Optional Extra) NOTE: The manual buttons control basic functions, not a full range of controls.

  • Page 32: User Instructions - Remote Control

    User Instructions – Remote Control Power Used to turn on and off all the lighting effects. Button Used to turn on the flame effect function. There are total three flame effects: high power yellow, high power Flame yellow + amber, high power red and off. Press “←” “→”buttons to choose the type of flame, press “+”...

  • Page 33: User Instructions - App Control

    User Instructions - APP Control Download the APP and Register an account 2. Register an account 1. Download "My PRYZM" APP 3. Choose your country. Enter your mobile 4. Enter the verification code. number or a valid Email address to get verification code.
  • Page 34 User Instructions - APP Control Add a device 3. Select Wi-Fi network and 1. Click Add Device or “+” 2. Download enter the password, click "My Pryzm" APP “Next” NOTE: Make sure your router is using a 2.4 GHz channel. The distance between the router and fireplace isn't less than 50cm.
  • Page 35 User Instructions - APP Control Continued….. Add a device - continued 6. Start to add device 7. Once added the fuel bed will 8. Click "Done" to turn green and stop flashing Complete Pairing 8. If the pairing fails in EZ 9.
  • Page 36 User Instructions - APP Control Continued….. Add a device - continued 10. Choose the AP Mode, confirm 11. Click "Go to Connect" 12. Choose a Wi-Fi called the indicator is flashing and click "SmartLife-XXX". "Next". 13. Go back to the APP. Start to 14.
  • Page 37 User Instructions - APP Control Continued….. Add a device - continued 16. Click the name of fireplace to enter the home screen 200828_1...
  • Page 38 User Instructions - APP Control Continued….. Using the APP - Home Screen Flame mode Heater mode NOTE: The AUTO mode will only work when you set the daily / weekly timer for the flame effect or heater. Using the APP - Changing the Flame Effect Colour Use the slide bar to turn off / on the lights NOTE: The slider under the flame effect colour options controls the brightness from 0% (off) to 100%.
  • Page 39 User Instructions - APP Control Continued….. Using the APP - Changing the Fuel Bed Colour Use the slide bar to turn off / on the lights Use the slide bar to turn Using the APP - Changing the Downlight Colour off / on the lights NOTE: The slider under the colour options controls the brightness of the lights from 0% (off) to 100%.
  • Page 40 User Instructions - APP Control Continued….. Using the APP - Changing the optional mood light Colour Use the slide bar to turn off / on the lights NOTE: The slider under the colour options controls the brightness of the lights from 0% (off) to 100%. 200828_1...
  • Page 41 User Instructions - APP Control Continued….. Using the APP - Setting a flame effect program. Up to 4 time periods per day with 4 different weekly schedules can be programmed 200828_1...
  • Page 42 User Instructions - APP Control Continued….. Using the APP – Setting temperature unit Manually changing the temperature Using the APP – Setting a heating program. Up to 4 time periods per day with 4 different weekly schedules can be programmed 200828_1...
  • Page 43 User Instructions - APP Control Continued….. Using the APP - Setting a heating program continued Using the APP – Setting the timer 200828_1...
  • Page 44 User Instructions - APP Control Continued….. Using the APP - Renaming your device 2. Click the you can create a new 1. Click the name for your device Using the APP – Creating a “Home” 3. Enter a home name, select the 1.
  • Page 45 User Instructions - APP Control Continued….. Using the APP – Adding a Member NOTE: Download the APP for the new member first. 1. Select "Me" → "Home Management" → "Name of Home“ → "Home Settings". Select "Add Member". OTHERS 2. Select 1: "APP account". OTHERS NOTE: This is to be completed on the new members account not your own 200828_1...
  • Page 46 User Instructions - APP Control Continued….. Using the APP – Adding a Member continued 1. Select "Others" to get invitation code. Then go to "Me > Home Management > Join Home“ and enter the code. Select the Home and ready for operate the appliance. OTHERS 200828_1...
  • Page 47 User Instructions - APP Control Using the APP – Share Device 2. Click “Share Device” 3. Click “Add Sharing” 1. Click the 5. Receive the message 4. Select APP account or Others APP ACCOUNT OTHERS 200828_1...

  • Page 48: Maintenance & Troubleshooting

    “+” button APP not operating fire Ensure the fire and mobile are connected to same Wi-Fi Should you be experiencing any problems with your fire please call Customer Services on 01914300901 or email us at customerservices@bemodern.co.uk 200828_1...

  • Page 49: General Information

    General Information Environment Meaning of crossed –out wheeled dustbin: Electrical appliances should not be disposed as unsorted municipal waste. Separate collection facilities should be used in the disposal of electrical appliances. Contact your local government for the information about the available collection systems. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well- being.

  • Page 50: Guarantee

    On requiring service the purchaser should contact the retailer who supplied your product who will assist and advise you as necessary. Be Modern Ltd. 19-34 Bedesway Bede Industrial Estate Jarrow Tyne and Wear NE32 3BE Tel: (0191) 430 0901 Fax: (0191) 430 9522 Website: Bemodern 200828_1...
