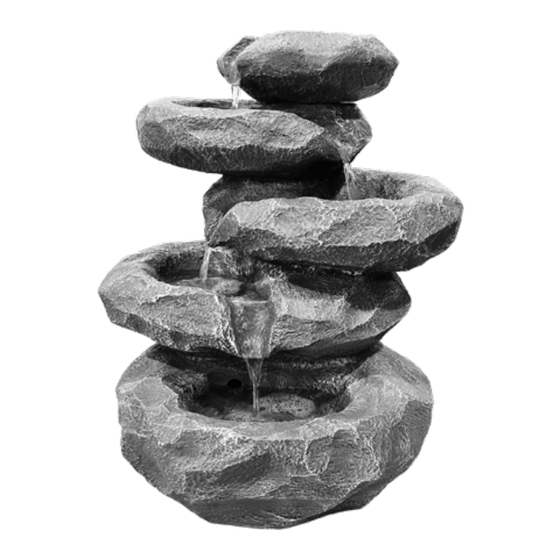

- Page 1 BERNINI MOLINA CORDED FOUNTAIN OWNER’S MANUAL 2023...
- Page 2 We think rights. However, registering your fountain will it’s important that you know what allow Bernini Fountains to better serve you you can expect from us. This is with any of your customer care needs. why we have a limited one year warranty on our fountains.
- Page 3 This product comes with a one year limited warranty against materials and workmanship, see page 18. Please review the list of accessories included with your Bernini™ Fountain on the next page. Please note, images of parts are not to scale with one another.
- Page 4 PARTS FOR YOUR BERNINI FOUNTAIN ™ Leveling Shim Water Pump & Light Connector Top Bowl AC Inverter Water Pump Base with Compartment Door Lights...
-
Page 5: Table Of Contents
CONTENTS Page: STEP1: TOP BOWL INSTALLATION Base & Top Bowl Locking System STEP 2: WATER PUMP INSTALLATION & LIGHT CONNECTION Water Pump Installation & Light Connection 5 - 6. Fountain Door Installation STEP 3: SETTING UP YOUR FOUNTAIN Fill Your Fountain Operating Your Fountain TROUBLESHOOTING AND MAINTENANCE Water Pump Connection... -
Page 6: Step1: Top Bowl Installation
TOP BOWL INSTALLATION You will need: Top Bowl Base... -
Page 7: Base & Top Bowl Locking System
BASE & TOP BOWL LOCKING SYSTEM A look at how the Base Top Bowl locking system works on your Fountain. Top of the Base Bottom of the Top Bowl Note: You will notice that there are two different sized tabs on the bottom of the Top Bowl and there are two corresponding grooves in the top of the Base. -
Page 8: Water Pump Installation & Light Connection
WATER PUMP INSTALLATION & LIGHT CONNECTION You will need: Fountain Door Assembled Base & Water Pump & AC Inverter Top Bowl Light Connector... - Page 9 WATER PUMP INSTALLATION & LIGHT CONNECTION Note: Make sure all electrical connections are completely tight to prevent water from entering inside connector and shorting out the electrical components. Step 1: Turn to foun- Step 2: Reach inside the wa- Step 3: Connect the tain around so you can ter/pump cavity and pull out outlet of the water pump...
-
Page 10: Fountain Door Installation
FOUNTAIN DOOR INSTALLATION Slide the Fountain Door down into the Step 1: Ensure the wiring is placed in the groove in the middle of the Fountain Door. groove in the base. (Black Arrow). At this point, your fountain should Step 2: Ensure the light is in the middle look like the image above. -
Page 11: Step 3: Setting Up Your Fountain
SETTING UP YOUR FOUNTAIN You will need: WATER TO FILL YOUR FOUNTAIN Fountain Assembled... -
Page 12: Fill Your Fountain
FILL YOUR FOUNTAIN Fill the Fountain Tier until water pours over the spouts. Then fill the Large Bowl until the water is about 1 inch (2.5 centimeters) from the top of the bowl. OPERATING YOUR FOUNTAIN After you have filled your Fountain: •... -
Page 13: Troubleshooting And Maintenance
USING LEVELING SHIMS If you are having trouble getting water to flow evenly off of the spouts on your Bernini™ Fountain, you may need to level the surface that your fountain is placed on. With the included leveling shims, you do not need to move your fountain, just follow the instructions below to get even water flow. -
Page 14: Priming The Water Pump
PRIMING THE WATER PUMP IS YOUR FOUNTAIN MAKING A LOUD NOISE OR DO YOU NOT SEE WATER FLOWING? If you find the water pump is running, but water is not flowing from your fountain, or you hear a loud grinding noise coming from your fountain, not to worry, you can try priming the water pump: •... -
Page 15: Water Pump Flow Adjustment
To clean your fountain: • Drain all water and disassemble. • Use a mild soap and a soft cloth to clean the parts of your Bernini™ fountain. • Your fountain bowl will form a natural patina finish which with time may appear lighter or whiter than the original color. -
Page 16: Cleaning Your Water Pump Impeller
Bernini™ Fountain. After long periods of usage, this part will need to be cleaned to make sure your foun- tain runs optimally. - Page 17 CLEANING YOUR WATER PUMP IMPELLER (CONTINUED) Step 2: Remove the impeller chamber Step 1: Remove the front of the Water cover. This is tightly fitted onto the Pump by grabbing the sides of the front impeller chamber, but will come off. panel and pull it off the unit.
-
Page 18: Cold Storage
COLD STORAGE • Drain the water from fountain prior to the first freeze of the season. • Clean and dry the fountain of all water. • Remove the water pump and bring it indoors. • Now is a great time to clean the pump to remove any debris that may have accumulated throughout the year. - Page 19 If within one (1) year this product fails due to defect in material or workmanship, Bernini™ will repair, replace or supply any defective part at their discretion. The purchaser must contact Bernini™ and provide a description...
- Page 20 BERNINI THANK YOU FOR SELECTING BERNINI FOUNTAINS Were excited to offer you the highest quality fountains with the reliability you need! We would love to hear if you have any sug- gestions or ideas that can be incorporated into new or enhanced features.
