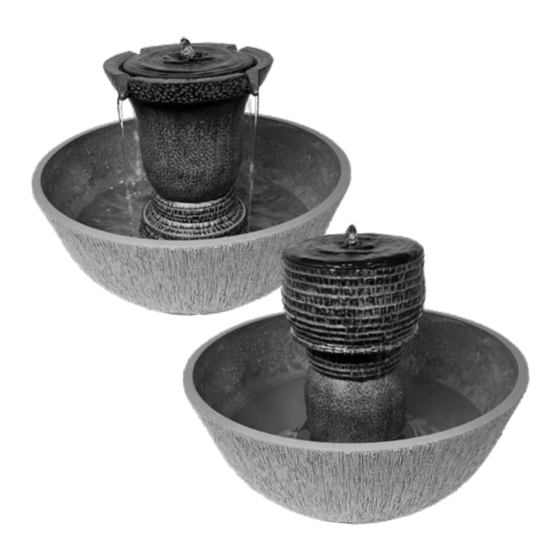

Bernini MATERA Owner's Manual

The modular 4-in-1 fountain tower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BERNINI
TM
THE MATERA MODULAR
4-IN-1 FOUNTAIN TOWER
OWNER'S MANUAL
2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MATERA and is the answer not in the manual?

Questions and answers

Related Manuals for Bernini MATERA

Summary of Contents for Bernini MATERA

  • Page 1 BERNINI THE MATERA MODULAR 4-IN-1 FOUNTAIN TOWER OWNER’S MANUAL 2023...
