Bernini Flippable Fountain Tower Owner's Manual

*PLEASE READ THESE INSTRUCTIONS COMPLETELY BEFORE ATTEMPTING TO ASSEMBLE YOUR NEW FOUNTAIN
CONTENTS:
Dancing Water
Flip Tower
Please note, images of parts
are not to scale with one another.
STEP
2.
Assembly
Battery Compartment Battery Compartment
Retaining Screws X2 Retaining Screws X2
Figure 1a
Figure 1b
Battery Cover Battery Cover
O-Rings O-Ring
Figure 3a

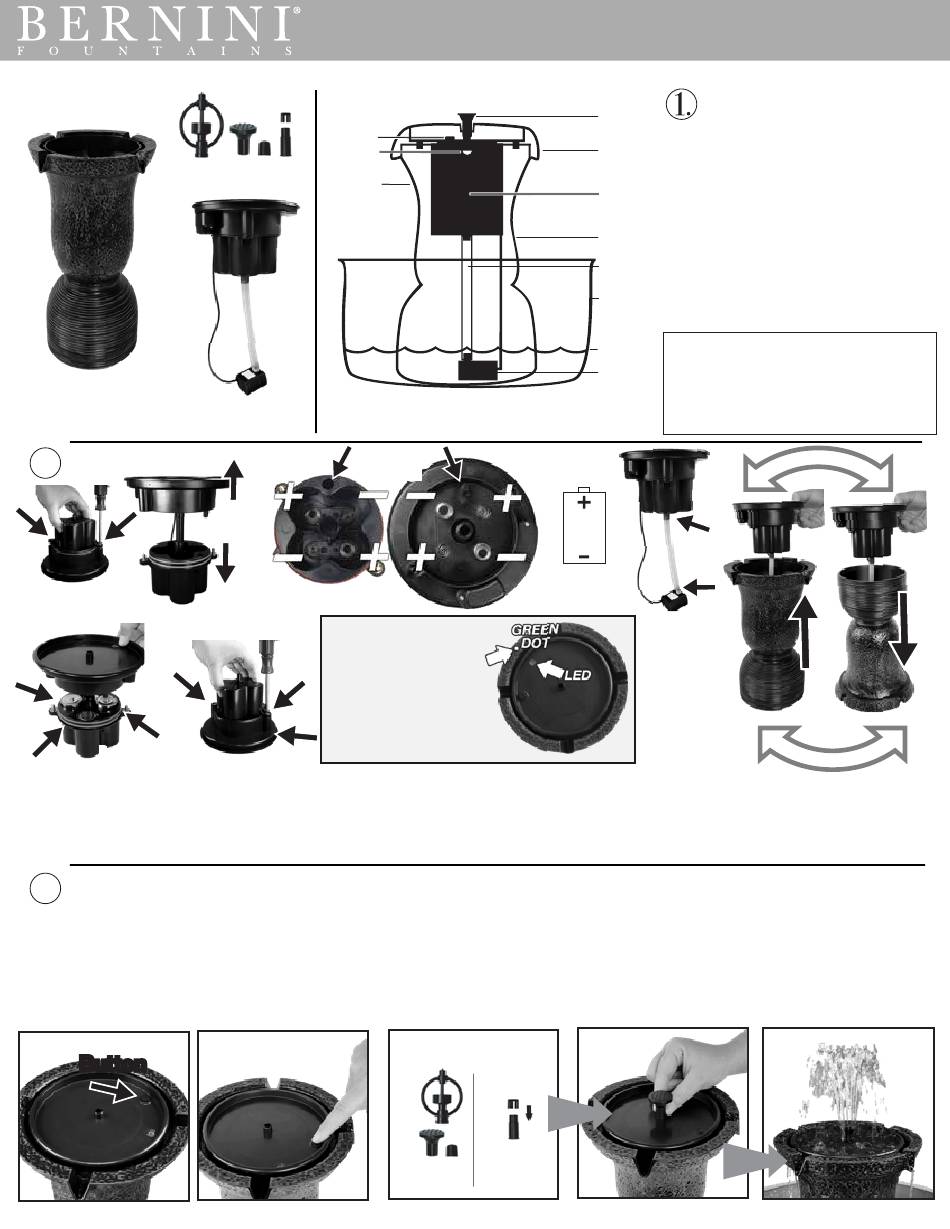

1. Take the Fountain Top/Battery Compartment and Water Pump, connect one side of the Water Tube to the Water Pump and the other end to the bottom side of the
Battery Compartment (A & B of Figure 4).
2. Find a suitable bowl and place it on a flat, level surface. Place the Fountain Base, without the Fountain Top with Battery Compartment and Water Pump, into the center of the bowl.
3. Lower the Fountain Top with Battery Compartment and Water Pump into the Fountain Base.
you align the Fountain Top to the Fountain Base. Fit these into place and your Fountain Top and Base should be secure. Fountain Battery Compartment should be flush with fountain top (Figure 6).
4. Fill bowl with water, water level should be 4 inches from the bottom of the Fountain Base. (Diagram 1a).
STEP 3.
Turn Fountain on and set timer: When the Fountain is off, set the run time from 1 to 4 hours by slowly pressing the button 1 to 4 times (Figure 7a & 7b). 3 seconds after
pressing the button, the LED light will repeatedly flash the number of times the button was pressed (Figure 7a). This indicates the number of hours the Fountain will run every day.
The Fountain will turn on at the same time, for the selected number of hours, daily thereafter.
Stop Fountain for one day: To stop the Fountain manually for one day, hold the button for over 2 seconds (Figure 7a &7b). The Fountain will turn off for one day, but will still turn on at
the same time, for the same number of hours selected, daily thereafter.
Reset/Change the timer: To change the run time, stop the Fountain if its running by holding the button for over 2 seconds (Figure 7a and 7b). The Fountain will stop. Once the Fountain is
off, you can press the button again to set the duration (See Step 1). Fully shut off and clear timer: To fully turn off the Fountain so that it will not turn on automatically the next day, press hold
the button for over 2 seconds to turn it off (Figure 7a &7b). When the Fountain is NOT operating, simply press hold the button again for over 2 seconds, the LED will come on for 3
seconds steady to confirm daily program is off.
DANCING WATER ATTACHMENTS: (OPTIONAL): To prevent overspray there are 3 Dancing Water Attachments designed for large bowls and 1 designed for small bowls please use
accordingly. When Fountain is not running, select one of the Dancing Water Attachments and attach to the outlet in the middle of the Fountain Tower (Figure 8a, 8b & 8c).
Button Button
Figure 7a
Diagram 1a:
Start/Stop
Button
Battery
Compartment
Screws x2
Attachments
Max. Water
Level
(2 inches
from top of
Fountain)
Battery Compartment,
Water Tube
& Water Pump
Locating Locating
Figure 2a
Figure 7: (Below)
On Spout Side of
Flippable Fountain
Tower Align LED to
green dot for
correct placement.
Figure 3b
Figure 7b

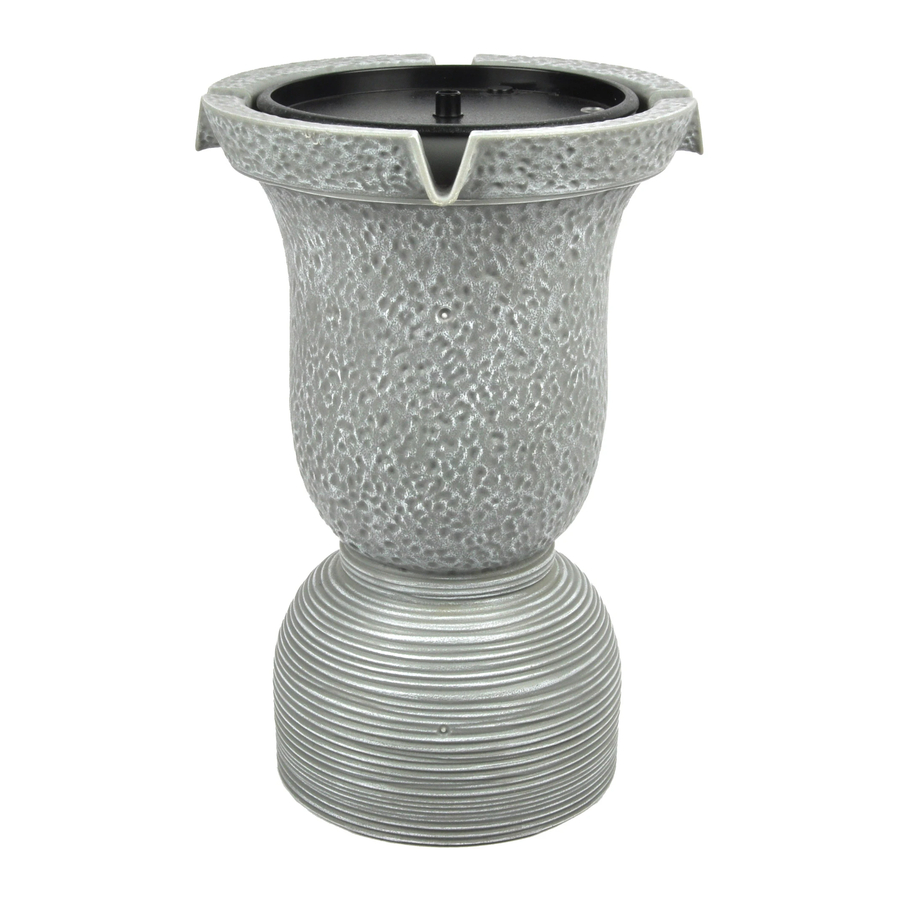

Flippable Fountain Tower
Recommended minimum bowl size
is approximately 12 inches
Dowel Dowel
Figure 7
Dancing Water Attachments
Please use accordingly
to prevent overspray
Large Bowls Small Bowls
17 in (43.18cm) 11.5 in (29.21cm)
diameter or to 17 in (43.18cm)
larger bowls diameter bowls
Figure 8a
O W N E R S M A N U A L
STEP
INSTALLING BATTERIES:
1. Lift Fountain Top with Battery Compartment & Water
Dancing
Water
Pump out of the Fountain Base (Figure 5). Disconnect
Attachments
the Water Tube from the Battery Compartment.
Fountain
2. Unscrew (counter clockwise) the Battery Compartment
Top
Screws, slip pump cable out of cable notch, and open cover (Figure
1a, 1b). Note: Cover fits tightly
3. Insert x2 D Batteries with the (+) side facing up in
Battery
Battery Compartment and x2 D Batteries with the (-) facing up in
Compartment
(4 1.5v D
Battery Compartment (Figure 2a).
Batteries
4. Reinstall the Fountain Top by aligning the locating dowel in
Not Included)
the Battery Compartment and Fountain Top. Set the Battery
Fountain Cover down onto the Battery Compartment ensuring the dowel
Base
sets into the alignment hole and that the pump wire is placed back in
the cable notch. Apply pressure and tighten the Battery Cover
Water Pump
Screws by turning clockwise. NOTE: Pressure must be applied to
Tube
the Battery Compartment while tightening the screws for the
Bowl
threads to catch and assure the compartment is properly sealed. If
(Not Included)
needed while holding battery compartment and place upside-down
on an even surface to tighten screws
Minimum
Water Level
CHANGING BATTERIES:
(4 inches from
bottom of 1. Remove any Dancing Water Attachment, lift Battery
Fountain Base) Compartment and Water Pump out of the Fountain (Figure 5),
ensure Battery Compartment and Water Pump are completely
Water
dry before opening Battery Compartment. It is important that
Pump
no water enters the Battery Compartment.
2. See Installing Batteries Section above on how to reinstall
batteries and reassemble.
3. Set the Battery Compartment and Water Pump back into the
Fountain (Figure 6).
A
Figure 2b
B
Figure 4
Figure 8b
TM
Figure 5 Figure 6
Figure 8c
