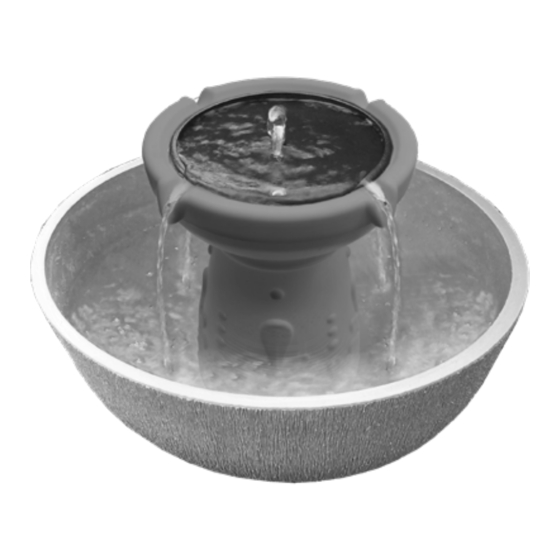

- Page 1 BERNINI TRAPANI FOUNTAIN TOWER OWNER’S MANUAL 2022...
- Page 2 We think rights. However, registering your fountain will it’s important that you know what allow Bernini Fountains to better serve you you can expect from us. This is with any of your customer care needs. why we have a limited one year warranty on our fountains.
- Page 3 Bernini™ Fountain on the next page. Please note, images of parts are not to scale with one another. About Trapani: Trapani is a city in western Sicily with a crescent-shaped coastline. At the western tip, offering views as far as the Aegadian Islands, is the 17th-century Torre di Ligny watchtower.
- Page 4 FOR YOUR BERNINI FOUNTAIN ™ Shower Umbrella Dancing Water Attachments Battery Compartment, Water Tube & Water Pump Infinity Bowl/Planter /Bird Feeder 3 Prong Foot Items/Tools Required: (Not Included) . Philips Screwdriver . 4 D Cell Batteries Fountain Base...
-
Page 5: Table Of Contents
CONTENTS PAGE: 1. STEP 1: BATTERY INSTALLATION Inserting Batteries Into The Battery Compartment 3-4. Installing Batteries Assembling Battery Compartment Housing & Battery Cover Assembling the Water Pump, Water Tube to Battery Compartment 6-7. Changing The Batteries 8. STEP 2: SETTING UP YOUR FOUNTAIN Fill Your Fountain 9-10. -
Page 6: Step 1: Battery Installation
BATTERY INSTALLATION You will need: Items/Tools Required: (Not Included) . Philips Screwdriver . 4 D Cell Batteries Fountain Battery Compartment Assembled Water Tube & Water Pump... -
Page 7: Inserting Batteries Into The Battery Compartment
INSERTING BATTERIES INTO THE BATTERY COMPARTMENT Figure 1b Figure 1a Figure 1c Battery Compartment Retaining Screws X2 Figure 1d Remember if you need help contact Customer Care: 1+ (619) 449-2392... -
Page 8: Installing Batteries
INSTALLING BATTERIES NOTE: The Battery Housing utilizes screws that are captive in the Battery Housing. When they are loosened they will stay within the Battery Housing and will not come loose (Arrow A & B Figure 2c). 1. (If Battery Compartment & Water Pump are installed into the Topper) Lift out of the Topper (Figure 1a). - Page 9 INSTALLING BATTERIES (CONTINUED) Locating Dowel Figure 2a Figure 2b Battery Cover O-Rings Figure 2c Remember if you need help contact Customer Care: 1+ (619) 449-2392...
- Page 10 ASSEMBLING BATTERY COMPARTMENT HOUSING & COVER 1. Place Battery Cover on Battery Compartment Housing. Turn over assembled Battery unit and place on a flat, level surface. Using a Phillips screwdriver (not included) alternate tightening both screws down firmly. 2. After both screws have been tightened, you may notice a small gap between the Battery Cover and the Battery Compartment Housing.
-
Page 11: Assembling The Water Pump, Water Tube To Battery Compartment
ASSEMBLING THE WATER PUMP, WATER TUBE TO BATTERY COMPARTMENT Figure 3a Figure 3b 1. Connect one side of the Water Tube to the Water Pump and the other end of the tube to the bottom side of the Battery Compartment (A & B of Figure 3a). 2. - Page 12 CHANGING THE BATTERIES (CONTINUED) Figure 4b Figure 4d Figure 4a Figure 4c At this point, your fountain should look like the image on the right. GO TO THE NEXT PAGE TO CONTINUE WITH SETUP OF YOUR FOUNTAIN. Figure 4d Remember if you need help contact Customer Care: 1+ (619) 449-2392...
-
Page 13: Step 2: Setting Up Your Fountain
SETTING UP YOUR FOUNTAIN You will need: WATER TO FILL YOUR FOUNTAIN Shower Pirouette Umbrella Fountain Dancing Water Assembled Attachments... -
Page 14: Fill Your Fountain
FILL YOUR FOUNTAIN Fill Bowl with water. Depending on bowl size or depth, ensure water does not touch bottom of battery housing . To dislodge any air bubbles from the pump, grab both sides of the large bowl and quickly shake your fountain for ten seconds. . -
Page 15: Dancing Water Attachments
OPERATING YOUR FOUNTAIN (CONTINUED) Programing The Fountain: . Press the A Button 2 times: Clears out all programing. Press the B Button 1 time: Will program the fountain to run for 1 hour each day at the same time. The light (Figure 5), will flash once to confirm your selection. - Page 16 DANCING WATER ATTACHMENTS OPTIONAL (CONTINUED) Figure 6a Shower Pirouette Umbrella Figure 6b Figure 6c FLIPPING THE SELF-CONTAINED FOUNTAIN TOWER Step 1 Step 2 Step 3 Simply remove the Battery Compartment, Water Tube & Water Pump Assembly flip the Self-Contained Fountain Tower, set the Battery Compartment, Water Tube & Water Pump Assembly back into the Self-Contained Fountain Tower and you have a new look for your Self-Contained Fountain Tower, One Fountain two unique looks.
-
Page 17: Step 3: 3-In-1 Infinity Bowl/Bird Feeder
3-IN-1 INFINITY BOWL BIRD FEEDER PLANTER BOWL You will need: Infinity Bowl/Planter 3 Prong Foot /Bird Feeder... -
Page 18: Infinity Bowl
INFINITY BOWL To install the Bowl as an Infinity Pool: • Take the Bowl and the Cap, screw the Cap into the inside of the bowl turning clockwise (Figure 1, 2 & 3). DO NOT OVER TIGHTEN. • Place infinity Bowl on the fountain spout just as you would place one of the Dancing Waters Attachments. -
Page 19: Planter
BIRDFEEDER PLANTER Figure 7 Figure 8 PLANTER To install the Bowl as a Planter: • Take the Bowl and 3 Prong Foot, line up the arrows (Figure 11 white circle) on the 3 Prong Foot to the “Planter” position located on the bottom of the bowl (Figure 8). -
Page 20: Bird Feeder
Figure 9 Figure 10 BIRD FEEDER To install the bird feeder: • Take the Infinity bowl and 3 prong foot, line up the arrows (Figure 11 white circle) on the 3 prong foot to the bird feeder position located on the bottom of the bowl (Figure 9 &... -
Page 21: Troubleshooting And Maintenance
TROUBLESHOOTING AND MAINTENANCE WATER PUMP CONNECTION If your fountains water pump tube becomes disconnected from pump and or Battery Compartment use these instructions to reconnect your water pump. Before beginning, remove the Battery Step 2: Rest the Battery and Pump Assembly from Topper. -
Page 22: Priming The Water Pump
PRIMING THE WATER PUMP If you find the Water Pump is running, but water is not flowing from your Fountain, you can try priming the Water Pump: . Turn off Fountain: Grab both sides of the Fountain and quickly shake your Fountain for ten seconds. -
Page 23: Cleaning Your Water Pump Impeller
CLEANING YOUR WATER PUMP’S PARTS (CONTINUED) Step 2: Remove the impeller chamber Begin by disconnecting the pump from the water tube. (See inset image) cover. This is tightly fitted on to the impeller chamber, but will come off. Step 1: Remove the front of the water pump by grabbing the sides of the front panel and pull it off the unit. -
Page 24: Cold Storage
CLEANING YOUR WATER PUMP IMPELLER (CONTINUED) Reassembly is the reverse of disassembly. . Replace the impeller in the impeller chamber. . Put the impeller chamber cover back on. . Replace the pump’s front panel. COLD STORAGE . Turn power off . - Page 25 TROUBLESHOOTING AND MAINTENANCE PROBLEM SOLUTION Fountain is Check that batteries have a full charge: (See Changing not working Battery Section). Prime Pump as instructed. (Refer to Priming The Water Pump). Check batteries are installed correctly: (See Installing Battery Section). Check that batteries have a full charge: (See Changing Water Not Battery Section).
- Page 26 If within one (1) year this product fails due to defect in material or workmanship, Bernini™ will repair, replace or supply any defective part at their discretion. The purchaser must contact Bernini™ and provide a description...
- Page 27 BERNINI IMPORTANT BATTERY SAFETY INSTRUCTIONS DANGER: Do not store battery in an airtight container as it may cause an explosion. WARNING: When using electric devices, basic safety precautions should always be followed to reduce the risk of fire, electric shock...
- Page 28 BERNINI THANK YOU FOR SELECTING BERNINI FOUNTAINS Were excited to offer you the highest quality fountains with the reliability you need! We would love to hear if you have any sug- gestions or ideas that can be incorporated into new or enhanced features.
