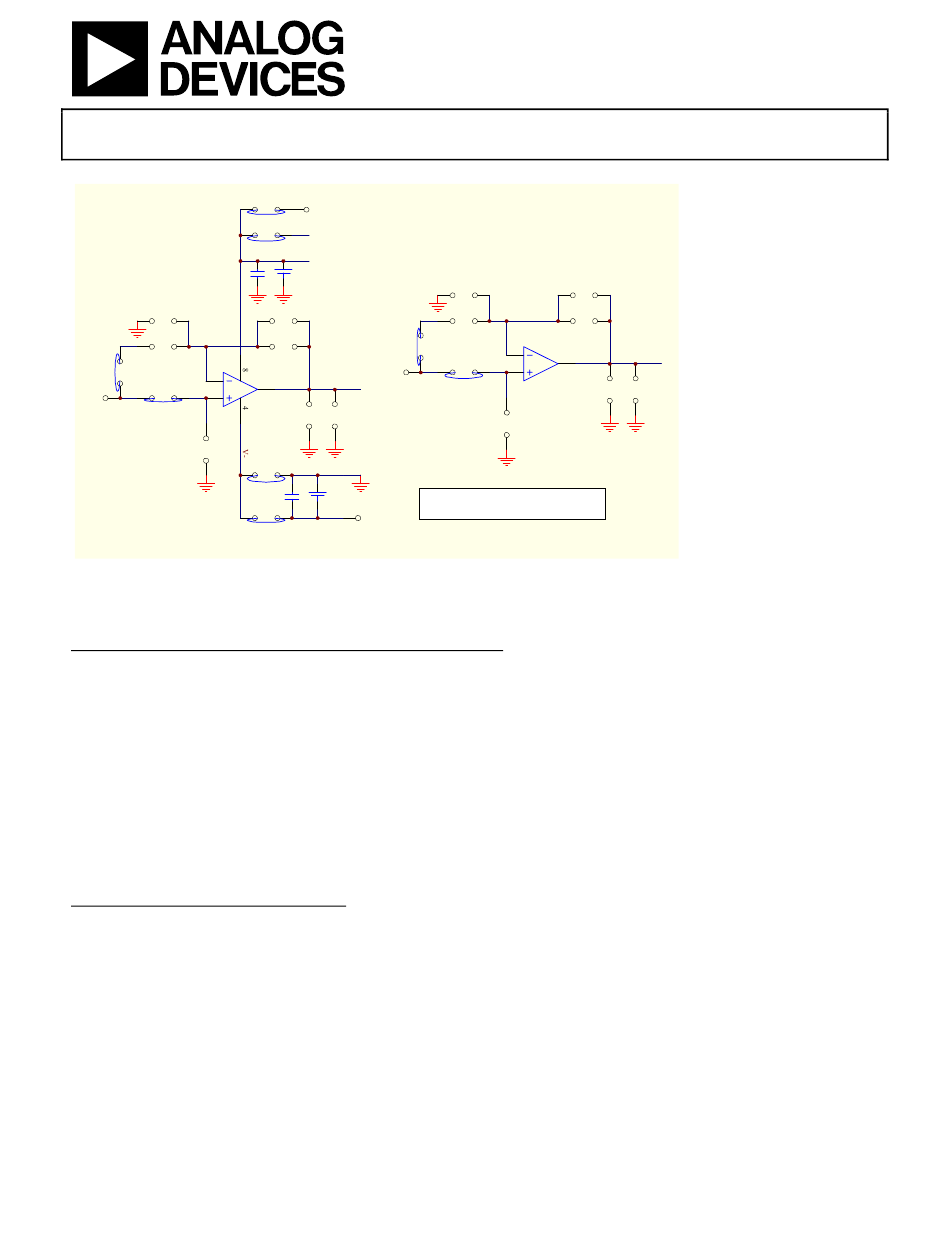

Figure 4. Detailed Opamp Connections

Powering the AD5245: Two Options for Powering

I. Using the power from the parallel port as VDD
Simply connect JP1.
The voltage level will be whatever your parallel port operates at.
II. Using a separate supply
DO NOT connect JP1.
Connect voltage supply power and ground to the VDD and GND pads on the board.

Configuring other Components

Two Channel Opamp - AD822
Positive Supply
To use the same VDD as the AD5245, connect JP6.
To use a separate positive supply, connect JP7 and apply positive supply(no more than +15V) to the VCC
pad.
Negative Supply
To use GND, simply connect JP8.
To use a negative supply, connect JP9 and apply negative supply to VEE pad.
For more details on connecters and jumpers around the opamp, refer to Figure 4.
