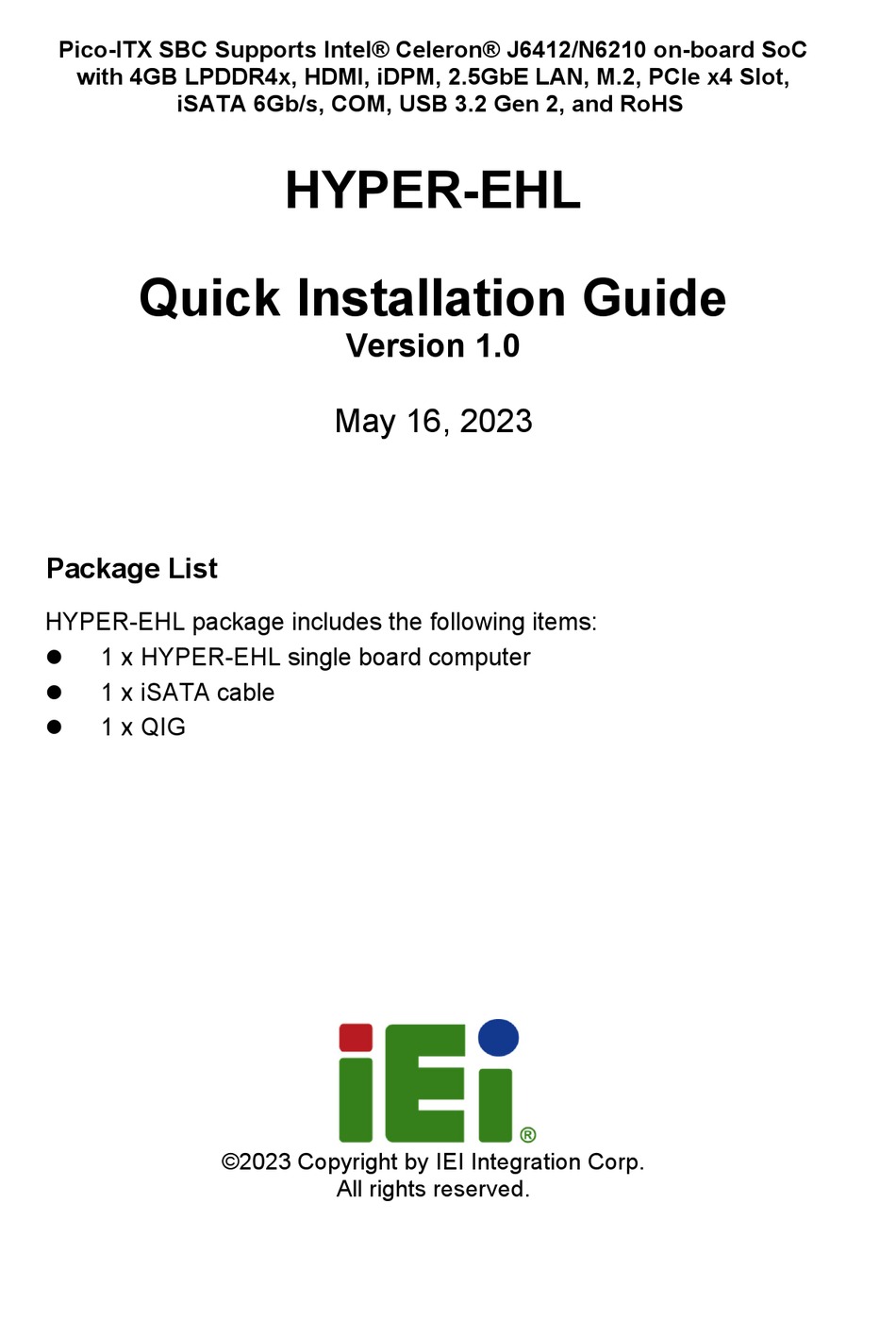

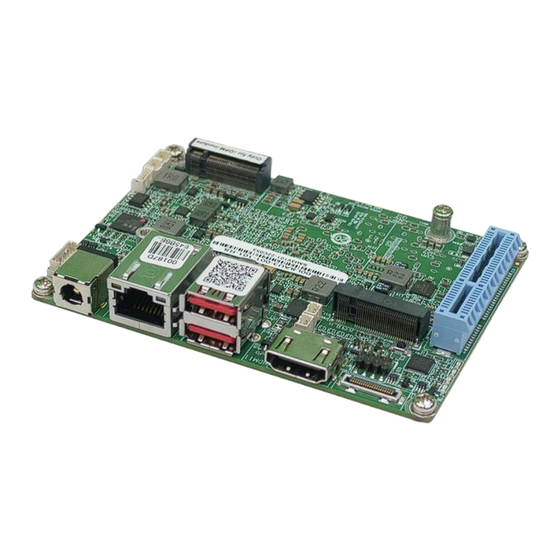

Pico-ITX SBC Supports Intel® Celeron® J6412/N6210 on-board SoC
with 4GB LPDDR4x, HDMI, iDPM, 2.5GbE LAN, M.2, PCIe x4 Slot,
iSATA 6Gb/s, COM, USB 3.2 Gen 2, and RoHS
Quick Installation Guide
Package List
HYPER-EHL package includes the following items:
1 x HYPER-EHL single board computer
1 x iSATA cable
1 x QIG
HYPER-EHL
Version 1.0
May 16, 2023
©2023 Copyright by IEI Integration Corp.
All rights reserved.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for IEI Technology HYPER-EHL
Summary of Contents for IEI Technology HYPER-EHL
- Page 1 6Gb/s, COM, USB 3.2 Gen 2, and RoHS HYPER-EHL Quick Installation Guide Version 1.0 May 16, 2023 Package List HYPER-EHL package includes the following items: 1 x HYPER-EHL single board computer 1 x iSATA cable 1 x QIG ©2023 Copyright by IEI Integration Corp.
-
Page 2: Specifications
Specifications CPU: Onboard Intel® Atom® x6000 series / Pentium® / Celeron® processor (Elkhart Lake platform) Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M cache, TDP=10W) Intel® Celeron® N6210 on-board SoC (up to 2.6GHz, dual-core, 1.5M cache, TDP=6.5W) ... -
Page 3: Ordering Information
M.2 M key, USB 3.2, SATA 6GB/s, COM, PCIe x4 for riser card and RoHS HYPER-EHL-N6210B-R10: Pico-ITX SBC supports Intel® Celeron® N6210 dual-core 1.2GHz on-board SoC with 4GB on-board LPDDR4x memory, HDMI, iDPM, M.2 M key, USB 3.2, SATA 6GB/s, COM, PCIe x4 for riser card and RoHS ... - Page 4 All the drivers and utility for the https://download.ieiworld.com HYPER-EHL are available on IEI Resource Download Center. Type HYPER-EHL and press Enter to find all the relevant software, utilities, and documentation. To install software from the downloaded ISO file, mount the file...
-
Page 5: Jumpers Setting And Connectors
Jumpers Setting and Connectors LABEL FUNCTION J_CMOS1 Clear CMOS button J_ATX_AT1 AT/ATX power mode setting switch BAT2 Battery connector Buzzer connector DIO1 Digital I/O connector JBIOS1 Flash SPI ROM connector I2C1 C connector ISATA iSATA 6Gb/s connector PWR_BTN1 Power button connector RST_BTN1 Reset button connector COM1... - Page 6 J_ATX_AT1: AT/ATX Power Mode Setting Switch PIN NO. DESCRIPTION Short A - B ATX Power Mode (default) Short B - C AT Power Mode BAT2: RTC Battery Connector DESCRIPTION DESCRIPTION VBATT SP1: Buzzer Connector DESCRIPTION DESCRIPTION PC_BEEP DIO1: Digital Input/Output Connector PIN NO.
- Page 7 ISATA: iSATA 6Gb/s Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION SATA RX+ SATA_RX‐ SATA_TX‐ SATA_TX+ PWR_BTN1: Power Button Connector DESCRIPTION DESCRIPTION PWR_BTN+ PWR_BTN- RST_BTN1: Reset Button Connector DESCRIPTION DESCRIPTION RST_BTN+ RST_BTN- COM1: RS-232/422/485 Serial Port Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION SOUT...
- Page 8 USB2-1: Internal USB 2.0 Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION USB_DATA- USB_DATA+ USB_DATA+ USB_DATA- M2_1: M.2 M-key Slot PIN NO. DESCRIPTION PIN NO. DESCRIPTION +V3.3A +V3.3A +V3.3A +V3.3A +V3.3A +V3.3A +V3.3A PCIE_RX7- PCIE_RX7+ USB+ PCIE_TX7- USB- PCIE_TX7+ MKEY_SSD_SLP M2_I2C_CLK PCIE_RX6- M2_I2C_DATA PCIE_RX6+...
- Page 9 CLK_M2_B- PCIE_WAKE# CLK_M2_B+ Module Key Module Key Module Key Module Key Module Key Module Key Module Key Module Key +V3.3A +V3.3A +V3.3A +V3.3A DCIN1: External 12V DC Input Jack PIN NO. DESCRIPTION PIN NO. DESCRIPTION +12V LAN1: 2.5GbE RJ-45 Connector PIN NO.
- Page 10 HDMI1: External HDMI Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION HDMI2_DATA2 HDMI2_DATA2# HDMI2_DATA1 HDMI2_DATA1# HDMI2_DATA0 HDMI2_DATA0# HDMI2_CLK HDMI2_CLK# HDMI2_SCL HDM2I_SDA HDMI2_HPD USB1: External Dual USB 3.2 Gen 2 (10Gb/s) Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION USB_DATA- USB_DATA- USB_DATA+ USB_ DATA+ USB3_RX- USB3_RX- USB3_RX+...
- Page 11 Board Layout: Jumper and Connector Locations (Unit: mm)
