PCI/PICOe
Quick Installation Guide
1.
Fan Connectors
The product provides fan connector, This connectors can supply
12V/500mA to the cooling fan.
2.
Backplane to Mainboard ATX Power Control Connector
Power source from Backplane with ATX Connector
• ATXCTL1 : Backplane to Mainboard Connector
PIN NO.
1
2
3

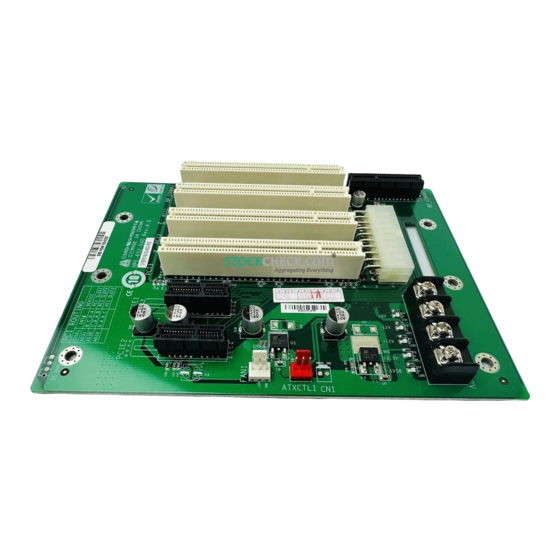

HPE-6S2
with PCI Slots
Aug. 21, 2006
• FAN1 : CPU Fan Connector
PIN NO.
1
Ground
2
+12V
3
NC
DESCRIPTION
6 Slots Backplane
Version 1.0
DESCRIPTION
3
2
1
GND
PS_ON#
5VSB
3
2
1
