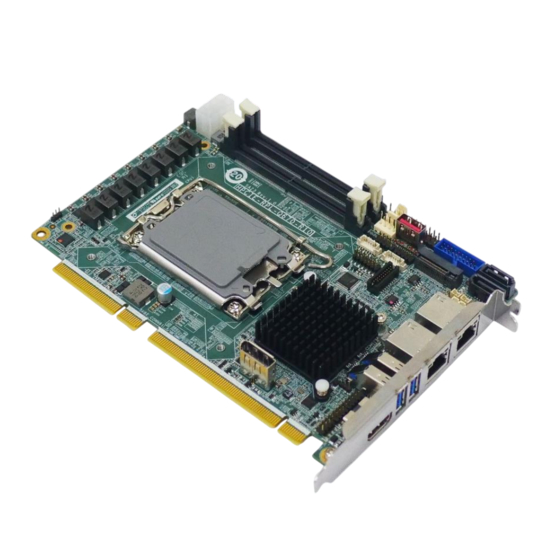

IEI Technology HPCIE-RPL-Q670 User Manual

Hide thumbs Also See for HPCIE-RPL-Q670:

Advertisement

Quick Links

Download this manual

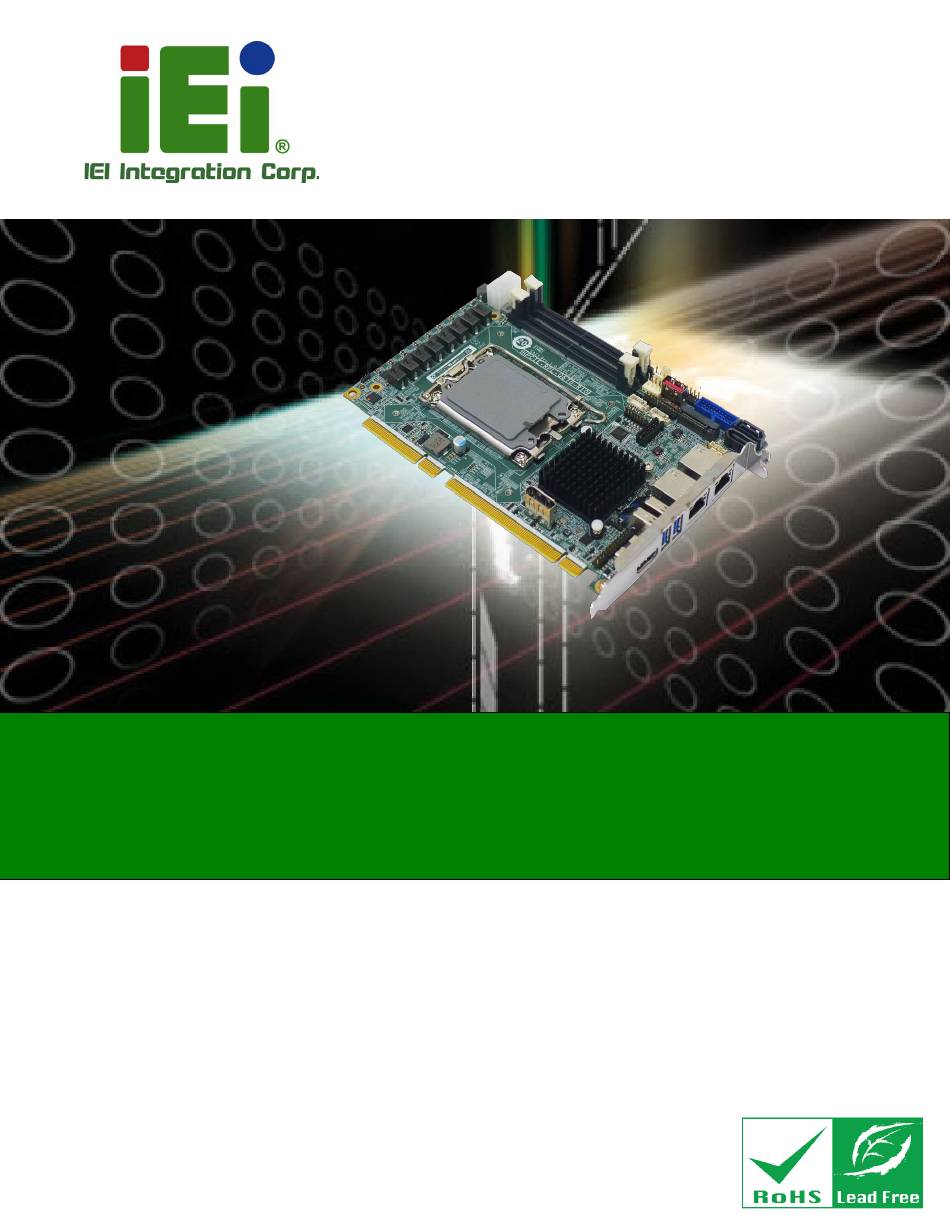

HPCIE-RPL-Q670
MODEL:
HPCIE-RPL-Q670
Half-size PICMG 1.3 CPU Card supports LGA1700 Intel®
12th/13th/14th Gen. Core™ i9/i7/i5/i3/Pentium®/Celeron®
Processor with Q670/Q670E, DDR5, HDMI, DP, Dual Intel®
2.5GbE, USB 3.2, SATA 6Gb/s, M.2, HD Audio and RoHS
Rev. 1.00 – January 24, 2025
User Manual
Page I

Advertisement

loading
Need help?

Need help?

Do you have a question about the HPCIE-RPL-Q670 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology HPCIE-RPL-Q670

Summary of Contents for IEI Technology HPCIE-RPL-Q670

  • Page 1 HPCIE-RPL-Q670 MODEL: HPCIE-RPL-Q670 Half-size PICMG 1.3 CPU Card supports LGA1700 Intel® 12th/13th/14th Gen. Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor with Q670/Q670E, DDR5, HDMI, DP, Dual Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, HD Audio and RoHS User Manual Page I Rev. 1.00 – January 24, 2025...
  • Page 2 HPCIE-RPL-Q670 Revision Date Version Changes January 24, 2025 1.00 Initial release Page II...

  • Page 3: Copyright Notice

    HPCIE-RPL-Q670 Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 4: Manual Conventions

    HPCIE-RPL-Q670 Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product.

  • Page 5: Table Of Contents

    PTIONAL TEMS 3 CONNECTORS ......................15 3.1 P ..............16 ERIPHERAL NTERFACE ONNECTORS 3.1.1 HPCIE-RPL-Q670 Layout ................16 3.1.2 Internal Interface Connectors ................17 3.1.3 External Interface Panel Connectors ............... 18 3.2 I ................ 19 NTERNAL NTERFACE ONNECTORS 3.2.1 CPU 12V Power Connector ................19 3.2.2 Battery Connector ....................
  • Page 6 HPCIE-RPL-Q670 3.2.12 Fan Connector (CPU) ..................32 3.2.13 Fan Connector (System) ................33 3.2.14 Audio Connector .................... 34 3.2.15 I C Connector ....................35 3.2.16 SMBus Connector ..................36 3.2.17 LAN Link LED Connector ................37 3.2.18 M.2 M Key Slot ....................38 3.2.19 DDR5 DIMM Slots ..................
  • Page 7 HPCIE-RPL-Q670 5.1.2 Using Setup ...................... 72 5.1.2.1 Keyboard Navigation ................72 5.1.2.2 Touch Navigation ..................73 5.1.3 Getting Help ..................... 74 5.1.4 Unable to Reboot after Configuration Changes ..........74 5.1.5 BIOS Menu Bar ....................74 5.2 M ........................75 5.3 A...
  • Page 8 HPCIE-RPL-Q670 5.6.1 Boot Configuration ..................118 5.6.2 Boot Option Priorities ..................119 5.7 S & E ......................120 A REGULATORY COMPLIANCE ................122 B PRODUCT DISPOSAL .................... 124 C BIOS OPTIONS ......................126 D WATCHDOG TIMER ....................130 E ERROR BEEP CODE ....................133 E.1 PEI B...
  • Page 9 List of Figures Figure 1-1: HPCIE-RPL-Q670 ......................2 Figure 1-2: Connectors ........................4 Figure 1-3: HPCIE-RPL-Q670 Dimensions (mm) ................. 5 Figure 1-4: Data Flow Diagram ...................... 6 Figure 3-1: Peripheral Interface Connectors ................16 Figure 3-2: ATX CPU 12V Power Connector Location ..............19 Figure 3-3: Battery Connector Location ..................21...
  • Page 10 HPCIE-RPL-Q670 Figure 3-28: External Peripheral Interface Connector ..............48 Figure 3-29: LAN Location ......................49 Figure 3-30: LAN LED Location ....................49 Figure 3-31: HDMI Connector ......................50 Figure 3-32: USB 3.2 Gen2 Connectors (Type-A) ..............51 Figure 4-1: SATA Drive Cable Connection .................54 Figure 4-2: SATA Power Drive Connection ................55 Figure 4-3: Disengage the CPU Socket Load Lever ..............58...
  • Page 11 HPCIE-RPL-Q670 List of Tables Table 1-1: HPCIE-RPL-Q670 Specifications ................. 9 Table 2-1: Packing List .........................12 Table 2-2: Optional Items ......................14 Table 3-1: Internal Interface Connectors ..................18 Table 3-2: External Peripheral Connectors ................18 Table 3-3: ATX CPU 12V Power Connector Pinouts ..............19 Table 3-4: Battery Connector Pinouts ..................21...
  • Page 12 HPCIE-RPL-Q670 Table 3-29: External USB 3.2 Gen 2 Connectors (Type-A) Pinouts .........51 Table 5-1: BIOS Navigation Keys ....................72 Table 5-2: BIOS On-screen Navigation Keys ................73 Page XII...

  • Page 13: Introduction

    HPCIE-RPL-Q670 Chapter Introduction Page 1...

  • Page 14: Ntroduction

    1.1 Introduction Figure 1-1: HPCIE-RPL-Q670 The HPCIE-RPL-Q670 is a half-size PICMG 1.3 CPU card. It is powered by the 12th/13th/14th Generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor and two 262-pin 5200MHz dual-channel DDR5 DIMMs (up to 96GB). The integrated Intel®...

  • Page 15: Features

    HPCIE-RPL-Q670 1.2 Features The HPCIE-RPL-Q670 motherboard features are listed below:  Half-size PICMG 1.3 CPU card  LGA1700, 12th/13th/14th Generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor  Intel® Q670/Q670E chipset  Two 262-pin 5200 MHz dual-channel DDR5 SO-DIMMs supported up to 96GB ...

  • Page 16: Connectors

    HPCIE-RPL-Q670 1.3 Connectors Some of the main connectors on the HPCIE-RPL-Q670 are shown in the figure below. Figure 1-2: Connectors Page 4...

  • Page 17: Dimensions

    HPCIE-RPL-Q670 1.4 Dimensions The main dimensions of the HPCIE-RPL-Q670 are shown in the diagram below. Figure 1-3: HPCIE-RPL-Q670 Dimensions (mm) Page 5...

  • Page 18: Data Flow

    HPCIE-RPL-Q670 1.5 Data Flow Figure 1-4 shows the data flow between the system chipset, the CPU and other components installed on the motherboard. Figure 1-4: Data Flow Diagram Page 6...

  • Page 19: Technical Specifications

    HPCIE-RPL-Q670 1.6 Technical Specifications The HPCIE-RPL-Q670 technical specifications are listed below. Model HPCIE-RPL-Q670 Half-size PICMG 1.3 CPU Card Form Factor LGA1700 socket supports the 12th/13th/14th generation Alder Lake-S Intel® Core® i9/i7/i5/i3/Pentium®/Celeron® CPU Supported Processor（up to 65W) Intel® Q670/ Q670E Two 262-pin 5200 MHz Dual-Channel DDR5 So-DIMMs...
  • Page 20 HPCIE-RPL-Q670 Two RJ-45 GbE ports Ethernet 1 x CPU fan connector (1 x 4 pin) 1 x System fan connector (1 x 4 pin) 1 x Front panel (2 x 7 pin, power LED, HDD LED, speaker, Front Panel power button, reset button)

  • Page 21: Table 1-1: Hpcie-Rpl-Q670 Specifications

    HPCIE-RPL-Q670 168 x 126 Dimensions (L x W) (mm) 1000/420 Weight (Gross/Net) (g) Certification CE/FCC compliant Table 1-1: HPCIE-RPL-Q670 Specifications Page 9...

  • Page 22: Packing List

    HPCIE-RPL-Q670 Chapter Packing List Page 10...

  • Page 23: Anti-Static Precautions

    Only handle the edges of the PCB: Don't touch the surface of the motherboard. Hold the motherboard by the edges when handling. 2.2 Unpacking Precautions When the HPCIE-RPL-Q670 is unpacked, please do the following:  Follow the anti-static guidelines above.

  • Page 24: Packing List

    If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the HPCIE-RPL-Q670 was purchased from or contact an IEI sales representative directly by sending an email to sales@ieiworld.com.

  • Page 25: Optional Items

    HPCIE-RPL-Q670 2.4 Optional Items The following are optional components which may be separately purchased: Item and Part Number Image TPM2.0 module, software management tool (P/N: TPM-IN03-R10) Realtek ALC888S 7.1 Channel HD Audio peripheral board (P/N: AC-KIT-888S-R10) USB 3.0 cable 450mm with bracket, P=2.0 mm (P/N: 19800-010500-200-RS) SATA power cable, 200mm, P=2.0 mm...

  • Page 26: Table 2-2: Optional Items

    HPCIE-RPL-Q670 Item and Part Number Image High-performance 1 U LGA1700 cooler, 65W (95 x 90 x 27.45 mm) (P/N: 19100-000319-00-RS) Table 2-2: Optional Items Page 14...

  • Page 27: Connectors

    HPCIE-RPL-Q670 Chapter Connectors Page 15...

  • Page 28: Peripheral Interface Connectors

    HPCIE-RPL-Q670 3.1 Peripheral Interface Connectors This chapter details all the peripheral interface connectors. 3.1.1 HPCIE-RPL-Q670 Layout The figure below shows all the peripheral interface connectors. Figure 3-1: Peripheral Interface Connectors Page 16...

  • Page 29: Internal Interface Connectors

    HPCIE-RPL-Q670 3.1.2 Internal Interface Connectors The table below lists all the internal connectors on the board. Connector Type Label 8-pin Molex power CPU12V1 ATX CPU 12V power connector connector BAT2 Battery connector 2-pin wafer Buzzer connector 2-pin wafer J_ATX_AT1 AT/ATX power mode setting...

  • Page 30: External Interface Panel Connectors

    HPCIE-RPL-Q670 Connector Type Label JUSB3_4 Internal USB 3.2 Gen 1 connector 19-pin box header Internal USB 3.2 Gen 2 connector USB 3.2 Gen2 Type-A USB3_3 USB2_CN1, Internal USB 2.0 connector 6-pin header USB2_CN2 DisplayPort DP connector Table 3-1: Internal Interface Connectors 3.1.3 External Interface Panel Connectors...

  • Page 31: Internal Interface Connectors

    HPCIE-RPL-Q670 3.2 Internal Interface Connectors The section describes all of the internal connectors on the HPCIE-RPL-Q670. 3.2.1 CPU 12V Power Connector CN Label: CPU12V1 CN Type: 8-pin Molex power connector, p=4.2 mm CN Location: See Figure 3-2 CN Pinouts: See Table 3-3 This connector provides power to the CPU.

  • Page 32: Battery Connector

    Dispose of used batteries according to instructions and local regulations. NOTE: It is recommended to attach the RTC battery to the system chassis in which the HPCIE-RPL-Q670 is installed. CN Label: BAT2 CN Type: 2-pin wafer, p=1.25 mm...

  • Page 33: Figure 3-3: Battery Connector Location

    HPCIE-RPL-Q670 Figure 3-3: Battery Connector Location Description Description VBATT Table 3-4: Battery Connector Pinouts Page 21...

  • Page 34: Buzzer Connector

    HPCIE-RPL-Q670 3.2.3 Buzzer Connector CN Label: 2-pin header, p=1.25 mm CN Type: CN Location: See Figure 3-4 CN Pinouts: See Table 3-5 The buzzer connector is connected to the buzzer to give a beep warning when the motherboard goes wrong.

  • Page 35: At/Atx Power Mode Setting

    HPCIE-RPL-Q670 3.2.4 AT/ATX Power Mode Setting CN Label: J_ATX_AT1 3-pin switch CN Type: CN Location: See Figure 3-5 CN Pinouts: See Table 3-6 The AT/ATX power mode selection is made through the AT/ATX power mode switch. Figure 3-5: AT/ATX Power Mode Switch Locations...

  • Page 36: Clear Cmos Button

    HPCIE-RPL-Q670 3.2.5 Clear CMOS Button CN Label: J_CMOS1 Button CN Type: CN Location: See Figure 3-6 CN Pinouts: See Table 3-7 The J_CMOS1 is used to clear the CMOS setup. Figure 3-6: Clear CMOS Jumper Location Description Keep CMOS Setup (Normal Operation)

  • Page 37: Flash Descriptor Security Override Jumper

    HPCIE-RPL-Q670 3.2.6 Flash Descriptor Security Override Jumper CN Label: ME_FLASH1 2-pin header, p=1.25 mm CN Type: CN Location: See Figure 3-7 CN Pinouts: See Table 3-8 The ME_FLASH1 connector is used for the flash descriptor security override jumper. Figure 3-7: Flash Descriptor Security Override Jumper Location...
  • Page 38 HPCIE-RPL-Q670 To update the ME firmware, please follow the steps below. Step 1: Before turning on the system power, short the flash descriptor security override jumper. Step 2: Update the BIOS and ME firmware, and then turn off the system power.

  • Page 39: Front Panel Connector

    HPCIE-RPL-Q670 3.2.7 Front Panel Connector CN Label: F_PANEL1 14-pin header, p=2.54 mm CN Type: CN Location: See Figure 3-8 CN Pinouts: See Table 3-9 The front panel connector connects to the indicator LEDs and buttons on the computer's front panel.

  • Page 40: Bios Selection Switch

    HPCIE-RPL-Q670 3.2.8 BIOS Selection Switch CN Label: SW_BIOS1_2 3-pin switch CN Type: CN Location: See Figure 3-9 CN Pinouts: See Table 3-10 The BIOS selection is made through the BIOS switch. Figure 3-9: BIOS Switch Location Description Short A - B...

  • Page 41: Chassis Intrusion Connector

    HPCIE-RPL-Q670 3.2.9 Chassis Intrusion Connector CN Label: CHASSIS1 2-pin header, p=2.54 mm CN Type: CN Location: See Figure 3-10 CN Pinouts: See Table 3-11 The chassis intrusion connector is for a chassis intrusion detection sensor or switch that detects if a chassis component is removed or replaced.

  • Page 42: Digital Input /Output Connector

    HPCIE-RPL-Q670 3.2.10 Digital Input /Output Connector CN Label: DIO1 14-pin header, p=2.00 mm CN Type: CN Location: See Figure 3-11 CN Pinouts: See Table 3-12 The digital I/O connector provides programmable input and output for external devices. Figure 3-11: Digital I/O Connector Location...

  • Page 43: Ec Debug Connector

    HPCIE-RPL-Q670 3.2.11 EC Debugging Connector CN Label: DEBUG_1 6-pin wafer, p=1.25 mm CN Type: CN Location: See Figure 3-12 CN Pinouts: See Table 3-13 The EC debugging connector is used for EC debugging. Figure 3-12: EC Debugging Connector Location Description...

  • Page 44: Fan Connector (Cpu)

    HPCIE-RPL-Q670 3.2.12 Fan Connector (CPU) CN Label: CPU_FAN1 4-pin wafer, p=2.54 mm CN Type: CN Location: See Figure 3-13 CN Pinouts: See Table 3-14 The fan connector attaches to a CPU cooling fan. Figure 3-13: CPU Fan Connector Location Description...

  • Page 45: Fan Connector (System)

    HPCIE-RPL-Q670 3.2.13 Fan Connector (System) CN Label: SYS_FAN1 4-pin wafer, p=2.54 mm CN Type: CN Location: See Figure 3-14 CN Pinouts: See Table 3-15 The fan connector attaches to a system cooling fan. Figure 3-14: System Fan Connector Location Description...

  • Page 46: Audio Connector

    HPCIE-RPL-Q670 3.2.14 Audio Connector CN Label: IAUDIO 10-pin header, p=2.00 mm CN Type: CN Location: See Figure 3-15 CN Pinouts: See Table 3-16 This connector allows connection to an external audio kit. Figure 3-15: Audio Connector Location Description Description HDA_SYNC_R...

  • Page 47: I 2 C Connector

    HPCIE-RPL-Q670 3.2.15 I C Connector CN Label: J_I2C1 4-pin wafer, p=1.25 mm CN Type: CN Location: See Figure 3-16 CN Pinouts: See Table 3-17 The I C connector is used to connect I C-bus devices to the motherboard. Figure 3-16: I...

  • Page 48: Smbus Connector

    HPCIE-RPL-Q670 3.2.16 SMBus Connector CN Label: J_SMB1 4-pin wafer, p=1.25 mm CN Type: CN Location: See Figure 3-17 CN Pinouts: See Table 3-18 The SMBus (System Management Bus) connector provides low-speed system management communications. Figure 3-17: SMBus Connector Location Description...

  • Page 49: Lan Link Led Connector

    HPCIE-RPL-Q670 3.2.17 LAN Link LED Connector CN Label: JLAN_LED1, JLAN_LED2 2-pin header, p=2.00 mm CN Type: CN Location: See Figure 3-18 CN Pinouts: See Table 3-19 The LAN LED connectors are used to connect to the LAN LED indicators on the chassis to indicate to users the link activities of the two LAN ports.

  • Page 50: M Key Slot

    HPCIE-RPL-Q670 3.2.18 M.2 M Key Slot CN Label: M2_M1 M.2 M key slot CN Type: CN Location: See Figure 3-19 CN Pinouts: See Table 3-20 The M.2 2242 slot is keyed in the M position. Figure 3-19: M.2 M Key (2242) Slot Location...

  • Page 51: Table 3-20: M.2 M Key (2242) Slot Pinouts

    HPCIE-RPL-Q670 Description Description PCIE_TX_DN19 PCIE_TX_DP19 PCIE_18_RX_DN PCIE_18_RX_DP PCIE_TX_DN18 PCIE_TX_DP18 M_2_SSD_SLP PCIE_17_RX_DN PCIE_17_RX_DP PCIE_TX_DN17 PCIE_TX_DP17 PLT_RST_N SRCCLKREQB_17 PCIE_CLK_DN17 PCIE_CLK_DP17 +3.3V +3.3V +3.3V Table 3-20: M.2 M Key (2242) Slot Pinouts Page 39...

  • Page 52: Ddr5 Dimm Slots

    HPCIE-RPL-Q670 3.2.19 DDR5 SO-DIMM Slots CN Label: DIMM1, DIMM2 262-pin DDR5 SO-DIMM socket CN Type: CN Location: See Figure 3-20 The SO-DIMM sockets are for DDR5 SO-DIMMs. Figure 3-20: DDR5 SO-DIMM Sockets Locations Page 40...

  • Page 53: Sata 6 Gb/S Connectors

    HPCIE-RPL-Q670 3.2.20 SATA 6 Gb/s Connectors CN Label: SATA1, SATA2 7-pin SATA connector CN Type: CN Location: See Figure 3-21 CN Pinouts: See Table 3-21 The SATA drive connectors can be connected to SATA drives and support up to 6 Gb/s data transfer rate.

  • Page 54: Rs-232/422/485 Serial Port Connectors

    HPCIE-RPL-Q670 3.2.21 RS-232/422/485 Serial Port Connectors CN Label: COM1, COM2 10-pin header, p=2.00 mm CN Type: CN Location: See Figure 3-22 CN Pinouts: See Table 3-22 Each of these connectors provides RS-232, RS-422 or RS-485 communications. Figure 3-22: RS-232/422/485 Serial Port Connectors Location...

  • Page 55: Flash Spi Rom Connector

    HPCIE-RPL-Q670 3.2.22 Flash SPI ROM Connector CN Label: JSPI1 6-pin wafer, p=1.25 mm CN Type: CN Location: See Figure 3-23 CN Pinouts: See Table 3-23 The Flash SPI ROM connector is used to flash the SPI ROM. Figure 3-23: Flash SPI ROM Connector Location...

  • Page 56: Internal Usb 3.2 Gen 1 Connector

    HPCIE-RPL-Q670 3.2.23 Internal USB 3.2 Gen 1 Connector CN Label: JUSB3_4 19-pin box header, p=2.00 mm CN Type: CN Location: See Figure 3-24 CN Pinouts: See Table 3-24 The JUSB3_4 provides USB 3.2 Gen 1 (5 Gb/s) ports. Figure 3-24: Internal USB 3.2 Gen 1 Connector Location...

  • Page 57: Internal Usb 3.2 Gen 2 Connector

    HPCIE-RPL-Q670 3.2.24 Internal USB 3.2 Gen 2 Connector CN Label: USB3_3 USB 3.2 Gen 2 Type-A CN Type: CN Location: See Figure 3-24 CN Pinouts: See Table 3-24 The USB3_3 provides USB 3.2 Gen 2 (10 Gb/s) ports. Figure 3-25: Internal USB 3.2 Gen 2 Connector Location...

  • Page 58: Internal Usb 2.0 Connectors

    HPCIE-RPL-Q670 3.2.25 Internal USB 2.0 Connectors CN Label: USB2_CN1, USB2_CN2 8-pin header, p=2.00 mm CN Type: CN Location: See Figure 3-26 CN Pinouts: See Table 3-26 The Internal USB 2.0 connectors connect to USB 2.0 devices. Each pin header provides two USB 2.0 ports.

  • Page 59: Internal Dp Connector

    HPCIE-RPL-Q670 3.2.26 Internal DP Connector CN Label: DisplayPort CN Type: CN Location: See Figure 3-27 The DP1 connector connects to a display device with DisplayPort interface. Figure 3-27: Internal DP Connector Location Page 47...

  • Page 60: External Peripheral Interface Connector Panel

    HPCIE-RPL-Q670 3.3 External Peripheral Interface Connector Panel The figure below shows the external peripheral interface connector (EPIC) panel. The EPIC panel consists of the following: Figure 3-28: External Peripheral Interface Connector Page 48...

  • Page 61: External 2.5Gbe Rj-45 Connectors

    HPCIE-RPL-Q670 3.3.1 External 2.5GbE RJ-45 Connectors CN Label: LAN1, LAN2 RJ-45 CN Type: CN Location: See Figure 3-29 CN Pinouts: See Table 3-27 Each LAN connector connects to a local network. Figure 3-29: LAN Location Description Description on: linked off: 100 Mb/s...

  • Page 62: External Hdmi Connector

    HPCIE-RPL-Q670 3.3.2 External HDMI Connector CN Label: HDMI1 HDMI connector CN Type: CN Location: See Figure 3-31 CN Pinouts: See Table 3-28 The HDMI connector can connect to an HDMI device. Description Description HDMI_DATA2 HDMI_CLK# HDMI_DATA2# HDMI_DATA1 HDMI_SCL HDMI_DATA1# HDMI_SDA...

  • Page 63: External Usb 3.2 Gen 2 Connectors (Type-A)

    HPCIE-RPL-Q670 3.3.3 External USB 3.2 Gen 2 Connectors (Type-A) CN Label: USB3_1, USB3_2 USB 3.2 Gen 2 Type A CN Type: CN Location: See Figure 3-32 CN Pinouts: See Table 3-29 The pinouts of USB 3.2 Gen 2 connectors are shown below.

  • Page 64: Installation

    HPCIE-RPL-Q670 Chapter Installation Page 52...

  • Page 65: Anti-Static Precautions

    This section outlines the installation of peripheral devices to the onboard connectors. 4.2.1 SATA Drive Connection The HPCIE-RPL-Q670 is shipped with two SATA drive cables. To connect the SATA drives to the connectors, please follow the steps below. Step 1: Locate the connectors.

  • Page 66: Figure 4-1: Sata Drive Cable Connection

    HPCIE-RPL-Q670 Step 2: Insert the cable connector. Insert the cable connector into the on-board SATA drive connector until it clips into place. See Figure 4-1. Figure 4-1: SATA Drive Cable Connection Step 3: Connect the cable to the SATA disk. Connect the connector on the other end of the cable to the connector at the back of the SATA drive.

  • Page 67: Figure 4-2: Sata Power Drive Connection

    HPCIE-RPL-Q670 Figure 4-2: SATA Power Drive Connection The SATA power cable can be bought from IEI. See Optional Items in Section 2.4. Page 55...

  • Page 68: Installation Considerations

    This helps to prevent potential ESD damage.  Turn all power to the HPCIE-RPL-Q670 off: When working with the HPCIE-RPL-Q670, make sure that it is disconnected from all power supplies and that no electricity is being fed into the system.

  • Page 69: Socket Lga1700 Cpu Installation

    HPCIE-RPL-Q670  Remove any of the stickers on the PCB board. These stickers are required for warranty validation.  Use the product before verifying all the cables and power connectors are properly connected.  Allow screws to come in contact with the PCB circuit, connector pins, or its components.

  • Page 70: Figure 4-3: Disengage The Cpu Socket Load Lever

    HPCIE-RPL-Q670 Figure 4-3: Disengage the CPU Socket Load Lever Step 2: Open the socket and remove the protective cover. The black protective cover can be removed by pulling up on the tab labeled "Remove". See Figure 4-4. Figure 4-4: Remove Protective Cover...
  • Page 71 HPCIE-RPL-Q670 Step 3: Inspect the CPU socket. Make sure there are no bent pins and make sure the socket contacts are free of foreign material. If any debris is found, remove it with compressed air. Step 4: Orientate the CPU properly. The contact array should be facing the CPU socket.

  • Page 72: Figure 4-5: Insert The Socket Lga1700 Cpu

    HPCIE-RPL-Q670 Figure 4-5: Insert the Socket LGA1700 CPU Step 8: Close the CPU socket. Close the load plate and pull the load lever back a little to have the load plate be able to secure to the knob. Engage the load lever by latching it to its original position (Figure 4-6).

  • Page 73: Figure 4-6: Close The Socket Lga1700

    HPCIE-RPL-Q670 Figure 4-6: Close the Socket LGA1700 Step 9: Connect the 12 V power to the board. Connect the 12 V power from the power supply to the board. Step 0: Page 61...

  • Page 74: Socket Lga1700 Cooling Kit Installation

    HPCIE-RPL-Q670 4.5 Socket LGA1700 Cooling Kit Installation WARNING: DO NOT attempt to install a push-pin cooling fan. The pre-installed support bracket prevents the board from bending and is ONLY compatible with captive screw type cooling fans. The cooling kit can be bought from IEI. The cooling kit has a heat sink and fan.

  • Page 75: Dimm Installation

    Do not overtighten the screws. Step 5: Connect the fan cable. Connect the cooling kit fan cable to the CPU fan connector on the HPCIE-RPL-Q670. Carefully route the cable and avoid heat generating chips and fan blades.Step 0: 4.6 DIMM Installation...
  • Page 76 HPCIE-RPL-Q670 Step 2: Align the DIMM with the socket. Align the DIMM so the notch on the memory lines up with the notch on the memory socket. See Figure 4-8. Step 3: Insert the DIMM. Once aligned, press down until the DIMM is properly seated.

  • Page 77: Module Installation

    HPCIE-RPL-Q670 4.7 M.2 Module Installation The HPCIE-RPL-Q670 provides two ways to install the M.2 expansion card. One is using a screw, and the other is using the retainer. Please follow the steps below. Mode One: Using a Screw Step 1: Locate the M.2 module slot.

  • Page 78: Figure 4-10: Securing The M.2 Module

    HPCIE-RPL-Q670 Figure 4-10: Securing the M.2 Module Mode Two: Using a Retainer Step 1: Press the retainer down as shown below. (See Figure 4-11) Figure 4-11: Press the Retainer Page 66...

  • Page 79: Figure 4-12: Aligning The M.2 Module With The Retainer

    HPCIE-RPL-Q670 Step 2: Line up the notch on the M.2 module with the notch on the slot. Slide the M.2 module into the socket at an angle of about 20º. (See Figure 4-9) Step 3: Align the notch on the end of the M.2 module with the clip of the retainer. (See Figure 4-12) Figure 4-12: Aligning the M.2 Module with the Retainer...

  • Page 80: Software Installation

    HPCIE-RPL-Q670 4.8 Software Installation All the drivers for the HPCIE-RPL-Q670 are available on the IEI Resource Download Center (https://download.ieiworld.com). Type HPCIE-RPL-Q670 and press Enter to find all the relevant software, utilities, and documentation. Figure 4-14: IEI Resource Download Center 4.9 Driver Download To download drivers from the IEI Resource Download Center, follow the steps below.
  • Page 81 HPCIE-RPL-Q670 Step 3: Click the driver file name on the page and you will be prompted with the  following window. You can download the entire ISO file ( ), or click the small  arrow to find an individual driver and click the file name to download (...

  • Page 82: Bios

    HPCIE-RPL-Q670 Chapter BIOS Page 70...

  • Page 83: Introduction

    HPCIE-RPL-Q670 5.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. NOTE: Some of the BIOS options may vary throughout the life cycle of the product and are subject to change without prior notice.

  • Page 84: Using Setup

    HPCIE-RPL-Q670 5.1.2 Using Setup The BIOS Setup menu can be navigated by using a keyboard or a touchscreen. 5.1.2.1 Keyboard Navigation For keyboard navigation, use the navigation keys shown in Table 5-1. Function Up arrow Move to the previous item...

  • Page 85: Touch Navigation

    HPCIE-RPL-Q670 5.1.2.2 Touch Navigation For touchscreen navigation, use the on-screen navigation keys shown below. On-screen Button Function Previous Values Load the last value you set. Optimized Defaults Load the factory default values to achieve the best performance. Back Return to the previous menu.

  • Page 86: Getting Help

    HPCIE-RPL-Q670 5.1.3 Getting Help When F1 is pressed a small help window describing the appropriate keys to use and the possible selections for the highlighted item appears. To exit the Help Window, press the key. 5.1.4 Unable to Reboot after Configuration Changes If the computer cannot boot after changes to the system configuration are made, CMOS resets to default settings.

  • Page 87: Main

    HPCIE-RPL-Q670 5.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. BIOS Menu 1: Main (1/3) BIOS Menu 2: Main (2/3) Page 75...
  • Page 88 HPCIE-RPL-Q670 BIOS Menu 3: Main (3/3)  BIOS Information The BIOS Information lists a summary of the BIOS. The fields in BIOS Information cannot be changed. The items shown in the system overview include:  BIOS Vendor: installed BIOS vendor ...
  • Page 89 HPCIE-RPL-Q670  ID: displays the processor's ID PCH Information  The PCH Information lists a brief summary of the PCH. The fields in PCH Information cannot be changed. The items shown in the system overview include:  Name: displays the PCH’s name ...

  • Page 90: Advanced

    HPCIE-RPL-Q670 5.3 Advanced Use the Advanced menu (BIOS Menu 4) to configure the CPU and peripheral devices through the following sub-menus: WARNING! Setting the wrong values in the sections below may cause the system to malfunction. Make sure that the settings are compatible with the hardware.
  • Page 91 HPCIE-RPL-Q670 BIOS Menu 5: Advanced (2/2) Page 79...

  • Page 92: Cpu Configuration

    HPCIE-RPL-Q670 5.3.1 CPU Configuration Use the CPU Configuration menu (BIOS Menu 6) to view detailed CPU specifications or enable the Intel Virtualization Technology. BIOS Menu 6: CPU Configuration (1/3) Page 80...
  • Page 93 HPCIE-RPL-Q670 BIOS Menu 7: CPU Configuration (2/3) BIOS Menu 8: CPU Configuration (3/3) Page 81...
  • Page 94 HPCIE-RPL-Q670  Intel (VMX) Virtualization Technology [Enabled] Use the Intel (VMX) Virtualization Technology option to enable or disable virtualization on the system. When combined with third party software, Intel® Virtualization technology allows several OSs to run on the same system at the same time.
  • Page 95 HPCIE-RPL-Q670  Hyper-Threading [Enabled] Use the Hyper-Threading option to enable or disable the Hyper-Threading Technology.  Disabled Disables Hyper-Threading Technology  Enabled EFAULT Enables Hyper-Threading Technology  Intel(R) SpeedStep(tm) [Enabled] Use the Intel(R) SpeedStep(tm) option to enable or disable the Intel® SpeedStep Technology which allows more than two frequency ranges to be supported.

  • Page 96: Efficient-Core Information

    HPCIE-RPL-Q670  Power Limit 1 Time Window [0] Use the Power Limit 1 Time Window option to select the PL1 time duration. The value may vary from 0 to 128. For 0 is the default value  Power Limit 2 [0] Use the + or –...

  • Page 97: Performance-Core Information

    HPCIE-RPL-Q670 5.3.1.2 Performance-core Information Use the Performance-core Information menu (BIOS Menu 10) to display the P-core information. BIOS Menu 10: Performance-core Information Page 85...

  • Page 98: Trusted Computing

    HPCIE-RPL-Q670 5.3.2 Trusted Computing Use the Trusted Computing menu (BIOS Menu 11) to configure settings related to the Trusted Computing Group (TCG) Trusted Platform Module (TPM). BIOS Menu 11: PCH-FW Configuration  TPM Support [Enable] Use the TPM Support option to select the TPM device.

  • Page 99: Iei One Key Recovery 2

    HPCIE-RPL-Q670  Pending Operation [None] Use the Pending Operation option to schedule an operation for the security device.  None TPM information remains unchanged as the EFAULT previous  TPM information is cleared TPM Clear 5.3.3 iEi One Key Recovery 2 The iEi One Key Recovery 2 menu (BIOS Menu 12) configures iEi One Key Recovery 2.

  • Page 100: Rtc Wake Settings

    HPCIE-RPL-Q670 5.3.4 RTC Wake Settings The RTC Wake Settings menu (BIOS Menu 13) configures the RTC wake event. BIOS Menu 13: RTC Wake Settings (1/2) BIOS Menu 14: RTC Wake Settings (2/2) Page 88...
  • Page 101 HPCIE-RPL-Q670  Wake system with Fixed Time [Enabled] Use the Wake system with the Fixed Time option to enable or disable the system wake on alarm event.  The real-time clock (RTC) cannot generate a wake Disabled event.  Enabled...

  • Page 102: F81804 Super Io Configuration

    HPCIE-RPL-Q670 5.3.5 F81804 Super IO Configuration Use the F81804 Super IO Configuration menu (BIOS Menu 15) to set or change the configurations for serial ports. BIOS Menu 15: F81804 Super I/O Configuration Page 90...

  • Page 103: Serial Port 1 Configuration

    HPCIE-RPL-Q670 5.3.5.1 Serial Port 1 Configuration Use the Serial Port 1 Configuration menu (BIOS Menu 16) to configure the serial port n. BIOS Menu 16: Serial Port 1 Configuration Menu  Serial Port [Enabled] Use the Serial Port option to enable or disable the serial port.

  • Page 104: Serial Port 2 Configuration

    HPCIE-RPL-Q670  The serial port mode is RS-232 RS232 EFAULT RS422 with Register The serial port mode is RS-422 RS485 with Register The serial port mode is RS-485 5.3.5.2 Serial Port 2 Configuration Use the Serial Port 2 Configuration menu (BIOS Menu 17) to configure the serial port n.

  • Page 105: Ec Kb9068 H/W Monitor

    HPCIE-RPL-Q670  The serial I/O port address is 2F8h and the interrupt IO=2F8h; address is IRQ3 IRQ=3  Device Mode [RS232] Use the Device Mode option to change the serial port mode.  The serial port mode is RS-232 RS232...
  • Page 106 HPCIE-RPL-Q670 BIOS Menu 19: EC KB9068 H/W Monitor (2/2)  PC Health Status The following system parameters and values are shown. The system parameters that are monitored are:  System Temperatures: CPU Temperature System Temperature1 System Temperature2  Fan Speeds:...
  • Page 107 HPCIE-RPL-Q670 +5VSB 3.3VSB VCCIN_AUX_CPU Page 95...

  • Page 108: Smart Fan Mode Configuration

    HPCIE-RPL-Q670 5.3.6.1 Smart Fan Mode Configuration Use the Smart Fan Mode Configuration submenu (BIOS Menu 20) to configure the CPU/system fan start/off temperature and control mode. BIOS Menu 20: Smart Fan Mode Configuration (1/2) Page 96...
  • Page 109 HPCIE-RPL-Q670 BIOS Menu 21: Smart Fan Mode Configuration (2/2)  CPU_FAN1 Smart Fan Control [Auto Mode] Use the CPU_FAN1 Smart Fan Control option to configure the CPU Smart Fan.  Manual Mode The fan spins at the speed set in Manual Mode settings.
  • Page 110 HPCIE-RPL-Q670  CPU_FAN1 Normal Duty [30] Use the CPU_FAN1 Start PWM option to set the system power on fan speed and minimum fan speed percentage. Use the + or – key to change the value or enter a decimal number.

  • Page 111: Serial Port Console Redirection

    HPCIE-RPL-Q670 5.3.7 Serial Port Console Redirection The Serial Port Console Redirection menu (BIOS Menu 22) allows the console redirection options to be configured. Console Redirection allows users to maintain a system remotely by re-directing keyboard input and text output through the serial port.
  • Page 112 HPCIE-RPL-Q670 BIOS Menu 23: COM Console Redirection Settings  Terminal Type [ANSI] Use the Terminal Type option to specify the remote terminal type.  VT100 The target terminal type is VT100  The target terminal type is VT100+ VT100+ ...
  • Page 113 HPCIE-RPL-Q670  Sets the serial port transmission speed at 57600. 57600  115200 Sets the serial port transmission speed at 115200. EFAULT  Data Bits [8] Use the Data Bits option to specify the number of data bits.  Sets the data bits at 7.

  • Page 114: Nvme Configuration

    HPCIE-RPL-Q670 5.3.8 NVMe Configuration Use the NVMe Configuration (BIOS Menu 24) menu to display the NVMe controller and device information. BIOS Menu 24: NVMe Configuration Page 102...

  • Page 115: Chipset

    HPCIE-RPL-Q670 5.4 Chipset Use the Chipset menu (BIOS Menu 25) to access the PCH IO and System Agent (SA) configuration menus. WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction.

  • Page 116: System Agent (Sa) Configuration

    HPCIE-RPL-Q670 5.4.1 System Agent (SA) Configuration Use the System Agent (SA) Configuration menu (BIOS Menu 26) to configure the System Agent (SA) parameters. BIOS Menu 26: System Agent (SA) Configuration  VT-d [Enabled] Use the VT-d option to enable or disable the VT-d capability.

  • Page 117: Memory Configuration

    HPCIE-RPL-Q670 5.4.1.1 Memory Configuration Use the Memory Configuration submenu (BIOS Menu 27) to view memory information. BIOS Menu 27: Memory Configuration Page 105...

  • Page 118: Graphics Configuration

    HPCIE-RPL-Q670 5.4.1.2 Graphics Configuration Use the Graphics Configuration (BIOS Menu 28) menu to configure the video device connected to the system. BIOS Menu 28: Graphics Configuration  Primary Display [Auto] Use the Primary Display option to select the primary graphics controller the system uses.
  • Page 119 HPCIE-RPL-Q670 Graphics option should be set to Enabled and the above Primary Display option should be set to IGFX.  Auto Auto mode  Disabled Disables IGFX.  Enables IGFX. Enabled Default DVMT Pre-Allocated [160M]  Use the DVMT Pre-Allocated option to set the amount of system memory allocated to the integrated graphics processor when the system boots.

  • Page 120: Vmd Configuration

    HPCIE-RPL-Q670 5.4.1.3 VMD Configuration BIOS Menu 29: VMD Configuration Enable VMD controller [Disabled]  Use the Enable VMD controller option to enable or disable the VMD controller.  Disable the VMD controller. Disabled Default  Enabled Enable the VMD controller.

  • Page 121: Peg Port Configuration

    HPCIE-RPL-Q670 5.4.1.4 PEG Port Configuration BIOS Menu 30: PEG Port Configuration  Detect Non-Compliance Device [Disabled] Use the Detect Non-Compliance Device option to detect non-compliance PCIe devices in PEG.  Disabled Do not detect non-compliance PCIe device in PEG EFAULT ...

  • Page 122: Pch-Io Configuration

    HPCIE-RPL-Q670 5.4.2 PCH-IO Configuration Use the PCH-IO Configuration menu (BIOS Menu 31) to configure the PCH parameters. BIOS Menu 31: PCH-IO Configuration (1/2) BIOS Menu 32: PCH-IO Configuration (2/2) Page 110...
  • Page 123 HPCIE-RPL-Q670  Auto Power Button Function [Disabled (ATX)] Use the Auto Power Button Function BIOS option to show the power mode state. Use the J_ATX_AT1 to switch the AT/ATX power mode.  Enabled (AT) The system power mode is AT.

  • Page 124: Pci Express Configuration

    HPCIE-RPL-Q670  ME Override is disabled. Disabled EFAULT  Enabled ME Override is enabled. 5.4.2.1 PCI Express Configuration Use the PCI Express Configuration submenu (BIOS Menu 33) to configure the PCI Express slots. BIOS Menu 33: PCI Express Configuration Page 112...

  • Page 125: Pcie Root Port Setting

    HPCIE-RPL-Q670 5.4.2.1.1 PCIe Root Port Setting Use the M2_M1, PCIE1, PCIE2, PCIE3, and PCIE4 submenu (BIOS Menu 34) to configure the PCI Root Port Setting. BIOS Menu 34: PCIe Slot Configuration Submenu  PCIe Speed [Auto] Use the PCIe Speed option to specify the PCI Express port speed. Configuration options are listed below.

  • Page 126: Sata Configuration

    HPCIE-RPL-Q670  Do not detect if a non-compliant PCI Express Disabled EFAULT device is connected to the PCI Express port.  Enabled Detect if a non-compliant PCI Express device is connected to the PCI Express port. 5.4.2.2 SATA Configuration Use the SATA Configuration menu (BIOS Menu 35) to change and/or set the configuration of the SATA devices installed in the system.

  • Page 127: Hd Audio Configuration

    HPCIE-RPL-Q670  Hot Plug [Disabled] Use the Hot Plug option to designate the correspondent port as hot-pluggable.  Disabled EFAULT Disables the hot-pluggable function of the SATA port.  Enabled Designates the SATA port as hot-pluggable. 5.4.2.3 HD Audio Configuration Use the HD Audio Configuration menu (BIOS Menu 36) to configure the PCH Azalia settings.

  • Page 128: Security

    HPCIE-RPL-Q670  The onboard High Definition Audio controller is enabled. Enabled EFAULT 5.5 Security Use the Security menu (BIOS Menu 37) to set system and user passwords. BIOS Menu 37: Security (1/2) Page 116...
  • Page 129 HPCIE-RPL-Q670 BIOS Menu 38: Security (2/2)  Administrator Password Use the Administrator Password to set or change an administrator password.  User Password Use the User Password to set or change a user password. Page 117...

  • Page 130: Boot

    HPCIE-RPL-Q670 5.6 Boot Use the Boot menu (BIOS Menu 39) to configure system boot options. BIOS Menu 39: Boot 5.6.1 Boot Configuration  Quiet Boot [Enabled] Use the Quiet Boot BIOS option to select the screen display when the system boots.

  • Page 131: Boot Option Priorities

    HPCIE-RPL-Q670  Load PXE Option ROMs. Enabled 5.6.2 Boot Option Priorities Use the Boot Option # N to choose the system boots from the peripherals you selected. The following Boot Options are listed as an example.  Boot Option #1 Sets the system boot order ADATA SP580 as the first priority.

  • Page 132: Save & Exit

    HPCIE-RPL-Q670 5.7 Save & Exit Use the Save & Exit menu (BIOS Menu 40) to load default BIOS values, optimal failsafe values and to save configuration changes. BIOS Menu 40: Save & Exit  Save Changes and Reset Use the Save Changes and Reset option to save the changes made to the BIOS options and reset the system.
  • Page 133 HPCIE-RPL-Q670  Save as User Defaults Use the Save as User Defaults option to save the changes done so far as user defaults.  Restore User Defaults Use the Restore User Defaults option to restore the user defaults to all the setup options.

  • Page 134: Regulatory Compliance

    HPCIE-RPL-Q670 Appendix Regulatory Compliance Page 122...

  • Page 135: Declaration Of Conformity

    HPCIE-RPL-Q670 DECLARATION OF CONFORMITY This equipment has been tested and found to comply with specifications for CE marking. If the user modifies and/or installs other devices in the equipment, the CE conformity declaration may no longer apply. FCC WARNING This equipment complies with Part 15 of the FCC Rules. Operation is subject to the...

  • Page 136: Product Disposal

    HPCIE-RPL-Q670 Appendix Product Disposal Page 124...
  • Page 137 HPCIE-RPL-Q670 CAUTION: Risk of explosion if battery is replaced by an incorrect type. Only certified engineers should replace the on-board battery. Dispose of used batteries according to instructions and local regulations.  Outside the European Union–If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method.

  • Page 138: Cbios Options

    HPCIE-RPL-Q670 Appendix BIOS Options Page 126...
  • Page 139 HPCIE-RPL-Q670 Below is a list of BIOS configuration options in the BIOS chapter.  BIOS Information .........................76  Processor Information ......................76  PCH Information ........................77  System Date [xx/xx/xx] ......................77  System Time [xx:xx:xx] .......................77  Intel (VMX) Virtualization Technology [Enabled] ..............82 ...
  • Page 140 HPCIE-RPL-Q670  SYS_FAN1 Off Temperature [40] ..................98  SYS_FAN1 Start PWM [30] ....................98  Auto mode fan slop PWM [1] ....................98  Console Redirection [Disabled]..................99  Terminal Type [ANSI] ......................100  Bits per second [115200] ....................100  Data Bits [8] ........................101 ...
  • Page 141 HPCIE-RPL-Q670  Restore User Defaults .......................121 Page 129...

  • Page 142: Watchdog Timer

    HPCIE-RPL-Q670 Appendix Watchdog Timer Page 130...
  • Page 143 HPCIE-RPL-Q670 NOTE: The following discussion applies to DOS environment. Contact IEI support or visit the IEI website for specific drivers for other operating systems. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash. This condition may have occurred by external EMIs or a software bug.

  • Page 144: Example Program

    HPCIE-RPL-Q670 NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. EXAMPLE PROGRAM: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BL, 30 ;time-out value is 48 seconds ; ADD THE APPLICATION PROGRAM HERE EXIT_AP, 1 ;is the application over?

  • Page 145: E Error Beep Code

    HPCIE-RPL-Q670 Appendix Error Beep Code Page 133...

  • Page 146: Pei Beep Codes

    HPCIE-RPL-Q670 E.1 PEI Beep Codes Number of Beeps Description Memory not Installed Memory was installed twice (InstallPeiMemory routine in PEI Core called twice) Recovery started DXEIPL was not found DXE Core Firmware Volume was not found Recovery failed S3 Resume failed Reset PPI is not available E.2 DXE Beep Codes...

  • Page 147: F Hazardous Materials Disclosure

    HPCIE-RPL-Q670 Appendix Hazardous Materials Disclosure Page 135...

  • Page 148: Rohs Ii Directive (2015/863/Eu)

    HPCIE-RPL-Q670 F.1 RoHS II Directive (2015/863/EU) The details provided in this appendix are to ensure that the product is compliant with the RoHS II Directive (2015/863/EU). The table below acknowledges the presences of small quantities of certain substances in the product, and is applicable to RoHS II Directive (2015/863/EU).

  • Page 149: China Rohs
