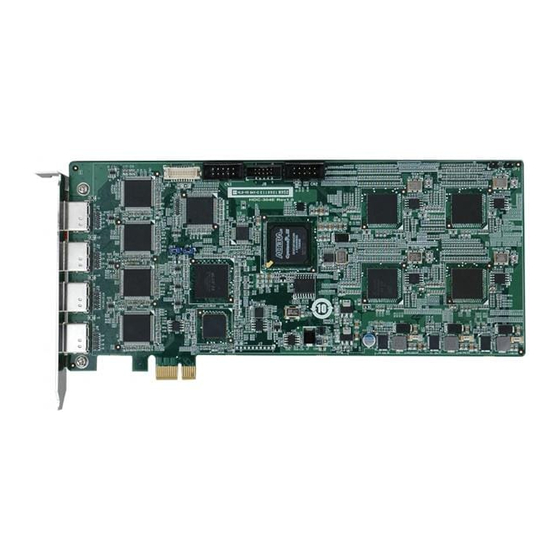

PCI express video/audio capture card with four HDMI input
channels,1920x1080@60p,and Hardware H.264 codec
HDC-304E
Quick Installation Guide
Version 1.0
Jan. 10, 2011
Package List
HDC-304E package includes the following items:
1 x HDC-304E video capture card
1 x HDMI output kit
1 x Utility CD (within manual)
1 x QIG (Quick Installation Guide)
©2010 Copyright by IEI Technology corp.
All rights reserved.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for IEI Technology HDC-304E
Summary of Contents for IEI Technology HDC-304E
- Page 1 HDC-304E Quick Installation Guide Version 1.0 Jan. 10, 2011 Package List HDC-304E package includes the following items: 1 x HDC-304E video capture card 1 x HDMI output kit 1 x Utility CD (within manual) 1 x QIG (Quick Installation Guide) ©2010 Copyright by IEI Technology corp.
-
Page 2: Specifications
Windows:Provide SDK and demo program with sample source code in C# Linux:Provide SDK and driver/demo program with sample source code in C Ordering Information HDC-304E-R10 PCI express video/audio capture card with four HDMI input channels,1920x1080@60p,and Hardware H.264 codec... - Page 3 Hardware Connections & Illustration for Video Capture Card Connections to the Video Source HDMI Input Device Connect to the Video Capture Card.
- Page 4 Installing HDMI Output Kit The HDC-304E contains a HDMI output kit. The HDMI output kit allows users to connect display. 1. Connect the HDMI output kit to HDC-304E board 2. Connect the HDMI cable (not included) from the HDMI output kit to the...
- Page 5 Installation Procedures-Driver Installation To install the HDC-304E driver, please follow the steps below: If the HDC-304E driver is already installed, please uninstall the driver first. Step 1: Make sure to log in the system as the administrator. Step 2: Insert the driver CD.
- Page 6 Step 6: The driver starts to install. Step 7: When the driver installation is complete.Click the “Finish” button to finish. Step 8: Check the device manager in the Windows control panel to ensure the driver (MB86H55-REB PCI, HDC controller and WinDriver) has been properly installed.
-
Page 7: Uninstall Driver
Uninstall Driver To uninstall the driver, please follow the steps below. Step 1: Make sure to log in the system as the administrator. Step 2: Locate the “Driveruninstaller.bat” file in the driver CD. Double click it to uninstall the driver. Step 3: The console window pop-up and all drivers will be uninstalled. - Page 8 Installation of HDCapture Demo Program To install the HDCapture demo program, please follow the steps below. Step 1: Insert the driver CD. Step 2: Locate the HDCapture_x86_Vxxxx.msi file in the driver CD. Double click the setup file to start the installation. The user can also download the latest setup file from IEI website.
- Page 9 Step 4: Select a folder for HDCapture installation. Click Next to continue. Step 5: The following screen appears. Click Next to confirm the installation.
- Page 10 Step 6: The system starts installing the HDCapture. Step 7: When the HDCapture is successfully installed, the following window appears. Click Close to exit.
- Page 11 HDCapture Demo Program Video Capture To use the HDCapture to capture video, follow the steps below. If the older version of the HDCapture is already installed, please uninstall it. Step 1: Launch the HDCapture. The following window appears. The best resolution to view HDCapture is 1280 x 1024 or above.
- Page 12 Step 4: To preview a video, please check the Preview check box of the video Step 5: Click Start to start capture the video. Click Stop to stop capture.
- Page 13 HDCapture Demo Program Video Decoding The HDCapture includes decoding function that decodes the video signal for video output to the HDMI-enabled display device. To decode a captured video clip, follow the steps below. Step 1: Launch the HDCapture. Step 2: Bring up the Decoding page by clicking one of the Device # buttons. Click the Decoding tab to access the decoding page.
- Page 14 the device4 (transmitter bus) drop-down menu to display the video on HDMI display device by output kit. Please refer to the following table: Step 7: Click Operation Start to start decoding the selected video.
- Page 15 Uninstall the HDCapture demo program To uninstall the HDCapture, follow the steps below. Step 1: Select Control Panel Add/Remove Programs. Step 2: Select HDCapture and click the Remove button to uninstall the HDCapture.
- Page 16 HDC-304E Hardware Diagrams Unit:mm...
