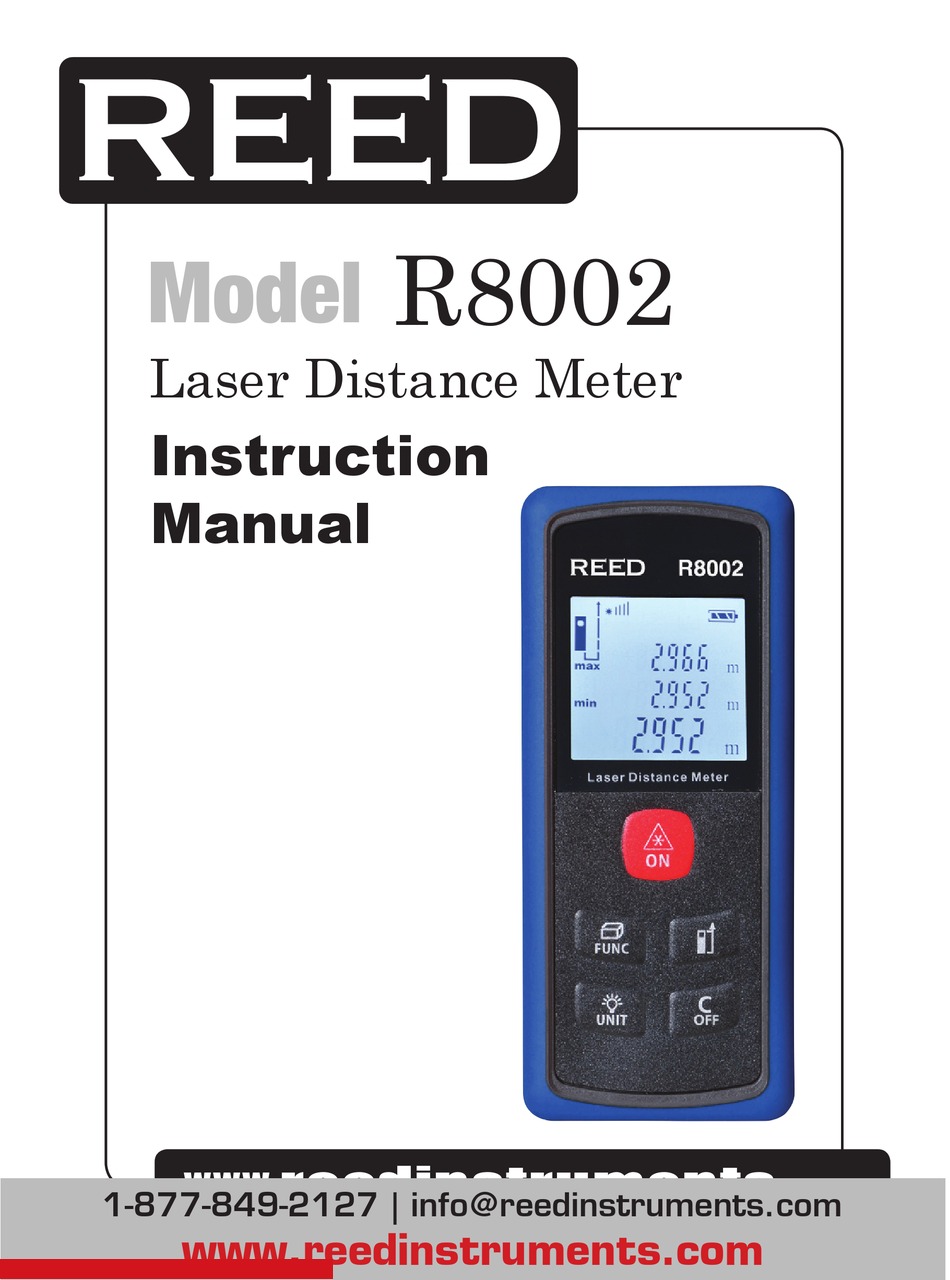

- Page 1 Black R8002 Model Pantone 534 Blue - 100/80/30/5 Laser Distance Meter Pantone 485 Red - 10/100/100/5 Pantone 123 Yellow - 0/27/100/ Instruction Manual reedinstruments 1-877-849-2127 | info@reedinstruments.com www.reedinstruments.com...
-
Page 2: Table Of Contents
Table of Contents Features ..................3 Specifications ................3 Instrument Description ..............4 Operating Instructions ..............5-7 Setting the Reference Point ............5 Area Measurements ..............5 Volume Measurements ............... 6 2-Point Indirect Measurements ........... 6 3-Point Indirect Measurements ........... 6 Continuous, Max/Min Measurement ........... -
Page 3: Features
Features • Measures Distance, Area, and Volume • Indirect measurement using Pythagoras • Max/Min Measurements • Continuous Measurements • Reference Setting • Saves the last 10 measured records Specifications Measuring Range: 0.05 to 45m Measuring Accuracy: Within 10m: ±2.00mm; < 10m: ±2mm ± 0.05 x (Distance in Meters - 10) Measuring Units: m, ft, in Laser Type:... -
Page 4: Instrument Description
Instrument Description On/Measure Button Function Button Unit/Backlight Button Reference Set Button Clear/Off Button Display Description Signal Strength Laser Icon Reference Point Max/Min Icon Measurement Type Battery Indicator Record Number Continuous Measurement Hardware Error 10. Measurement Result 11. Unit of Measurement Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0... -
Page 5: Operating Instructions
Operating Instructions Press the On button to turn the meter on. Press the Off button to turn the meter off. The meter will automatically turn off after 3 minutes of inactivity. Press the Measure button to activate the laser. Press the Measure button again to take the measurement. -
Page 6: Volume Measurements
Volume Measurements While the meter is on, press the Function button till the Volume symbol appears on the LCD. Press the Measure button to take the first measurement. Press the Measure button to take the second measurement. Press the Measure button to take the third measurement. The Volume will be automatically calculated and displayed on the LCD. -
Page 7: Continuous, Max/Min Measurement
Continuous, Max/Min Measurement While the meter is on, press and hold the Measure button to start Continuous Measurement. While measuring the Maximum and Minimum measurements will appear on the first and second rows on the LCD. Press the Measure button to stop taking measurements. The meter will automatically stop after taking 100 continuous measurements. -
Page 8: Troubleshooting
Stabilize the meter When the Hardware Error icon appears on the LCD, turn the meter on and off several times. If the symbol still appears contact REED Instruments at info@reedinstruments.com for repair. Be sure to take care with the meter’s mirror. Avoid dirt, scratches, and solvents.
