Summary of Contents for REED R6001

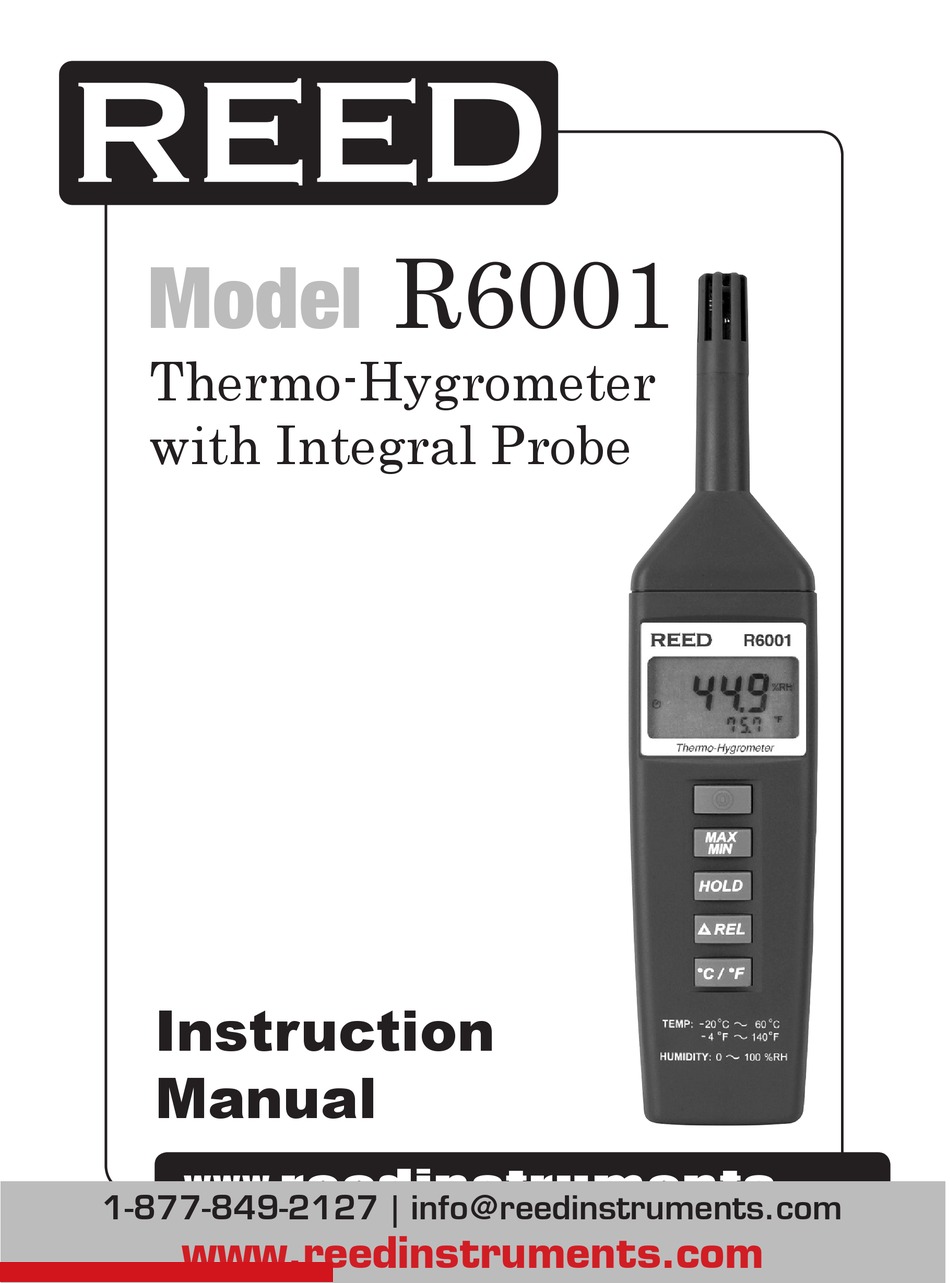

- Page 1 Black R6001 Model Pantone 534 Blue - 100/80/30/5 Thermo-Hygrometer Pantone 485 Red - 10/100/100/5 Pantone 123 Yellow - 0/27/100/ with Integral Probe Instruction Manual reedinstruments 1-877-849-2127 | info@reedinstruments.com www.reedinstruments.com...
-
Page 2: Table Of Contents
Table of Contents Features ..................3 Specifications ................3 Instrument Description ..............4 Operating Instructions ............... 5-7 Temperature Unit ..............5 Data Hold Function ..............5 Relative Function ..............5 MAX/MIN Function ..............5 Auto Power Off ................6 Temperature Calibration ............6 Humidity Calibration ..............7 Factory Default Calibration............7 Battery Replacement ..............8 Blue - 100/80/30/5 Pantone 534 Blue... -
Page 3: Features
Features • Dual LCD readout shows ambient temperature and relative humidity • User selectable °F / °C • Min/Max memory for both functions • Data hold and relative functions • Auto power off Specifications Humidity Range: 0 to 100% RH Humidity Resolution: 0.1% RH Humidity Accuracy:... -
Page 4: Instrument Description

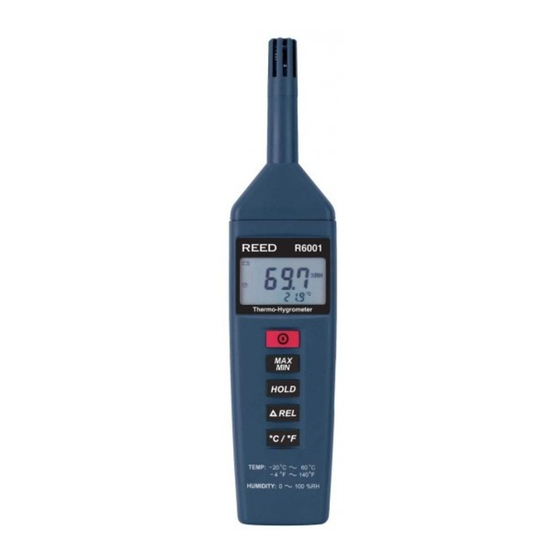

Instrument Description Dust mask LCD display ON/OFF button MAX MIN button HOLD button RELATIVE button °C/°F button Battery cover Display Description Data Hold indicator Relative indicator Minimum indicator Humidity display Maximum indicator Low battery indicator Unit indicator Auto power off indicator Temperature dispay Blue - 100/80/30/5 Pantone 534 Blue... -
Page 5: Operating Instructions
Operating Instructions Press the ON/OFF button to turn the meter ON or OFF. Temperature Unit When the meter is first powered on the default temperature scale is set to °C. Press the °C/°F button to switch between °C or °F. The selected unit will be saved as the new default. -
Page 6: Auto Power Off
Auto Power Off By default, when the meter is powered on it is under auto power off mode. The meter will power itself off after 30 minutes of inactivity. To disable the auto power off feature press and hold the HOLD button and then power on the meter. -
Page 7: Humidity Calibration
Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 For service on this or any other REED product or for information on other Pantone 123 Yellow REED Products, contact REED Instruments at info@reedinstruments.com Blue - 100/80/30/5 Pantone 534 Blue 1-877-849-2127 | info@reedinstruments.com... -
Page 8: Battery Replacement
Battery Replacement When the battery voltage is under proper operation requirement, symbol will show on the LCD and the battery needs to be replaced with a new one. Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5...
