- Page 1 INSTR R6010 Model Pinless Moisture Meter INSTR Instruction Manual reedinstruments GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Table Of Contents
Table of Contents Features ..................3 Specifications ................3 Instrument Description ..............4 Display Description ............... 4 Operating Instructions ..............5 Taking a Measurement ..............5 Alarm Set Mode ................5 Backlighting ................5 Moisture Comparison Table ............6 reedinstruments INSTRUMENTS GlobalTestSupply www. -
Page 3: Features
Features • Non-invasive measurements, run sensor over surface being tested without scratching or penetrating the surface • Classifies moisture status as: dry, at risk or wet • Detects moisture content in various building materials • Measurement depth from 0.8" (20mm) to 1.6" (40mm) • Data Hold and Min/Max functions • User adjustable alarms with audible and visual indicators • Large backlit LCD display • Low battery indicator and auto shut-off Specifications Measuring Range: 0 to 100.0% Moisture Content Depth Detection: 0.8 to 1.6" (20 to 40mm) Resolution: 0.1% Sensor Type: Pinless Display LCD Display Backlit Display: Data Hold: Min: Max: Auto Shut-off: Yes (30 secs) Low Battery Indicator: Power Supply: 3 x AAA batteries Product Certifications: Operating Temperature: 32 to 104°F (0 to 40°C) Storage Temperature: 14 to 140°F (-10 to 60°C) -
Page 4: Instrument Description

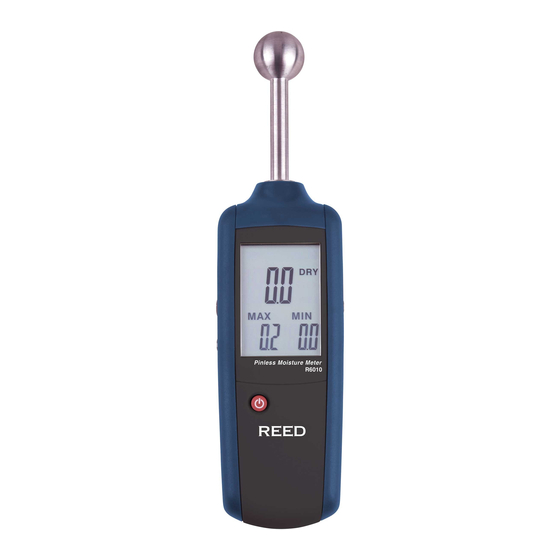

Instrument Description 1. Moisture Sensor 2. UP/Backlight Button 3. LCD Display 4. Alarm SET Button 5. DOWN Button 6. Measure/Data Hold Button 7. Power Button 8. Battery Cover Display Description 1. Low Battery Indicator 2. Data Hold Indicator 3. Current Moisture Value 4. DRY Indicator 5. RISK Indicator 6. WET Indicator 7. MAX Indicator 8. MAX Moisture Value 9. MIN Indicator 10. MIN Moisture Value reedinstruments INSTRUMENTS... -
Page 5: Operating Instructions
Operating Instructions Taking a Measurement Turn the meter ON by pressing the button. Hold the meter in a upright position so the ball sensor is in the air and at least 8 to 10cm away from any object. Press the MEAS button and “CAL" will display on the LCD screen while the unit self calibrates. The value must be below 0.5 to be able to take accurate measurements. If the reading is above 0.5 you must turn the meter off and move to a dry area to calibrate. After the meter is calibrated it will automatically start to take measurements. To hold the current measurement press the MEAS button and the data hold symbol will appear on the LCD screen. After 30 seconds of inactivity the meter will auto power off. Note: When you move from the location of your initial calibration you must re-calibrate the meter. Alarm Set Mode To change the RISK and WET alarm value, turn on and calibrate the meter. Press the MEAS button to put the meter in data hold and press the SET button. The RISK symbol will appear on the LCD screen and the value which the RISK alarm is set to. To change the alarm value, press the UP or DOWN buttons. Press the SET button to save your setting and to change the WET alarm value. The WET symbol will appear on the screen beside the WET alarm value. To change the WET alarm value, press the UP or DOWN buttons. Press the SET button to save the WET alarm value and to return to data hold mode. If the moisture measurement exceeds the RISK alarm setting, the meter will beep every second. If the moisture measurement exceeds the WET alarm setting, the meter will beep every half second. -
Page 6: Moisture Comparison Table
Moisture Status <30 Gypsum 30-60 RISK >60 <25 Cement 25-50 RISK >50 <50 Wood 50-80 RISK >80 Notes • The moisture sensor ball head must be kept perpendicular to the material being measured, pressed firmly on the surface and not slanted. • If the thickness of the material being measured is less than 20mm the reading may not be accurate due to conflicting values. • If "BAT" appears on the LCD screen, the batteries should be replaced immediately. For service or information on this or any other REED product, contact REED Instruments at info@reedinstruments.com. reedinstruments INSTRUMENTS GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
