Summary of Contents for REED R6010

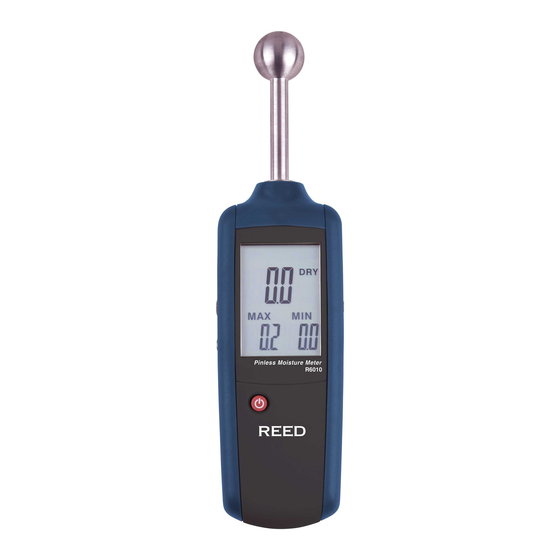

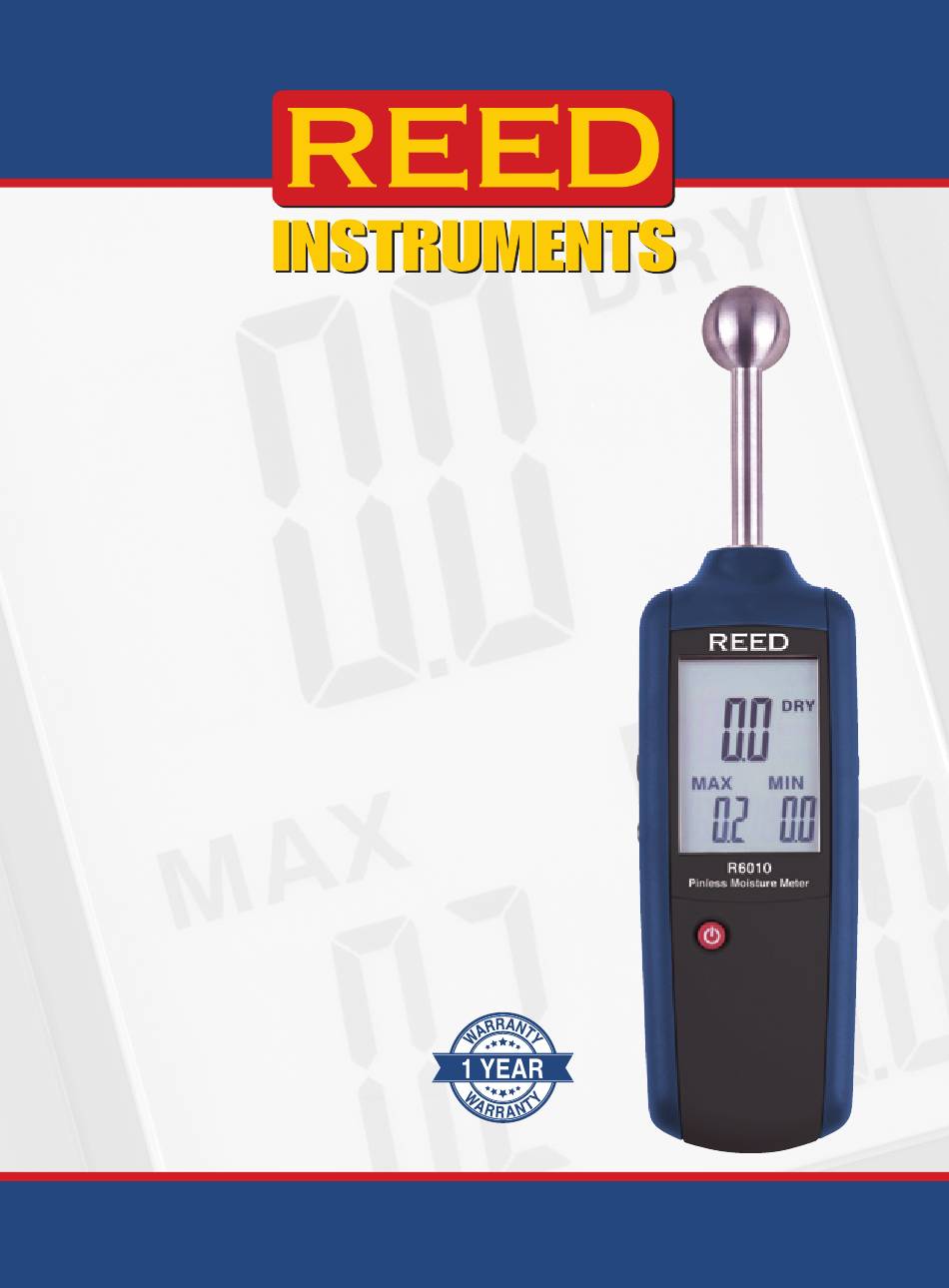

- Page 1 R6010 Pinless Moisture Meter Instruction Manual REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 2: Table Of Contents
Product Disposal and Recycling ..............9 Product Support ..................9 Introduction Thank you for purchasing your REED R6010 Pinless Moisture Meter. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 3: Product Quality
• Classifies moisture status as: dry, at risk or wet • Detects moisture content in various building materials • Measurement depth from 0.8" (20mm) to 1.6" (40mm) • Data Hold and Min/Max functions • User adjustable alarms with audible and visual indicators • Large backlit LCD display • Low battery indicator and auto shut-off Specifications Measuring Range: 0 to 100.0% Moisture Content Depth Detection: 0.8 to 1.6" (20 to 40mm) Resolution: 0.1% Sensor Type: Pinless Display LCD Display Backlit Display: Data Hold: Min: continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 4: Instrument Description
32 to 104°F (0 to 40°C) Storage Temperature: 14 to 140°F (-10 to 60°C) Operating Humidity Range: 0 to 85% Dimensions: 9.5 x 2.5 x 1.2" (242 x 63 x 30mm) Weight: 8 oz (226g) Instrument Description 1. Moisture Sensor 2. UP/Backlight Button 3. LCD Display 4. Alarm SET Button 5. DOWN Button 6. Measure/Data Hold Button 7. Power Button 8. Battery Cover REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 5: Display Description
1 to 4. NOTE: When you move from the location of your initial calibration you must recalibrate the meter. After the meter is calibrated it will automatically start to take readings. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 6: Alarm Settings
To change the alarm value, press the UP or DOWN buttons. Press the SET button to save your setting and to move onto the WET alarm value. The WET symbol will appear on the LCD screen as well as the value in which the WET alarm is set to. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 7: Backlighting
Press the UP/ button to turn backlighting on and off. Moisture Comparison Table Construction Material Display (Unit) Moisture Status <30 Gypsum 30-60 RISK >60 <25 Cement 25-50 RISK >50 <50 Wood 50-80 RISK >80 REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 8: Battery Replacement
Don't see your part listed here? For a complete list of all accessories and replacement parts visit your product page on www.reedinstruments.com. Product Care To keep your instrument in good working order we recommend the following: • Store your product in a clean, dry place. • Change the battery as needed. • If your instrument isn't being used for a period of one month or longer please remove the battery. • Clean your product and accessories with biodegradable cleaner. Do not spray the cleaner directly on the instrument. Use on external parts only. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 9: Product Warranty
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. - Page 10 TesT & MeasuRe wITh ConfIdenCe CheCk ouT ouR laTesT PRoduCTs! REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
