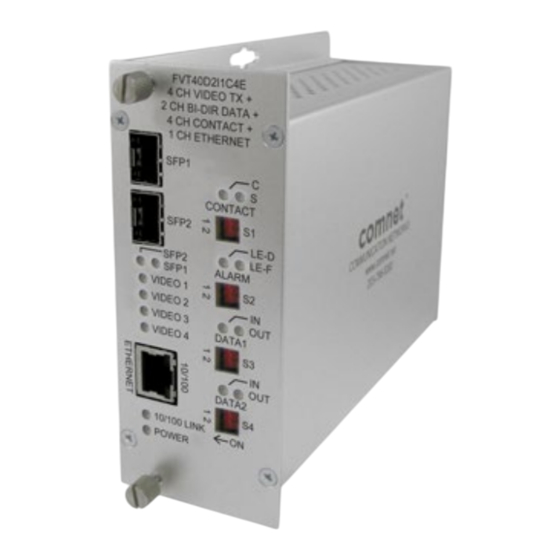

Comnet FVT40D2I1C4E Installation And Operation Manual

Comnet FVT40D2I1C4E Installation And Operation Manual

4-channel 10-bit digitally encoded video

Advertisement

Quick Links

INSTALLATION AND OPERATION MANUAL
FVT/FVR40D2I1C4E
4-CHANNEL 10-BIT DIGITALLY ENCODED VIDEO
+ 2 BI-DIRECTIONAL DATA + AIPHONE
INTERCOM
+ 4 CONTACT CLOSURE
+ 100MB ETHERNET
+ REDUNDANT POINT-TO-POINT DUAL SFP OPTICAL PORTS
The FVT/FVR40D2I1C4E series utilize 10-bit digital video encoding and decoding
for high-quality video transmission that meets the requirements of EIA RS-250C
for short-haul video transmission. These environmentally hardened units provide
transmission of four independent video channels and two bi-directional data
channels. They also provide transmission of one Aiphone
intercom channel and
four contact closure channels with tamper supervision in addition to one 10/100Mb
Ethernet channel.
The ComNet
FVT/FVR40D2I1C4E has dual optical (SFP) ports to provide a redundant
point-to-point fail safe topology in the event of loss of one fiber or one optical module.
Operational status can be monitored by using the web management interface
through the addition of the ComNet network managed chassis and network
management interface module.
Bi-color (red/green) LED indicators are provided for confirming operating status in
addition to alarm contacts for fault monitoring. See Figure 15 on Page 9 for LED
explanations.
Packaged in the exclusive ComNet ComFit housing, these units may be either wall
or rack-mounted (using ComNet C2 network-managed rack), or may be DIN-rail
mounted by the addition of ComNet model DINBKT1 adaptor plate. See Figure A on
Page 10 for mounting instructions.
INS_FVT/FVR40D2I1C4E_REVA 06/22/12 PAGE 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the FVT40D2I1C4E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Comnet FVT40D2I1C4E

  • Page 1 Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack-mounted (using ComNet C2 network-managed rack), or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate. See Figure A on Page 10 for mounting instructions.
  • Page 2 * One SFP required for point-to-point operation. Two SFPs required for redundant operation. NOTE: Remove PWR1 Electrical Consult factory for compatible SFP Modules. Connector for Rack Mount Units FIGURE 2 – FVT40D2I1C4E TRANSMITTER FIGURE 3 – FVR40D2I1C4E RECEIVER FRONT PANEL REAR PANEL...
  • Page 3 INSTALLATION AND OPERATION MANUAL FVT/FVR40D2I1C4E FIGURE 4 – RJ45 BREAK-OUT – FVT40D2I1C4E TRANSMITTER 4 pc. Factory Supplied RJ-45 PORTS D (DATA PORTS) Located on Rear Panel PIN # Wire Color Data Connections DATA 1 DATA 2 AIPHONE CONTACT Blue DATA OUT –...
  • Page 4 INSTALLATION AND OPERATION MANUAL FVT/FVR40D2I1C4E FIGURE 5 – RJ45 BREAK-OUT – FVR40D2I1C4E RECEIVER 4 pc. Factory Supplied RJ-45 PORTS D (DATA PORTS) Located on Rear Panel PIN # Wire Color Data Connections DATA 1 DATA 2 AIPHONE CONTACT Blue DATA OUT – Orange DATA OUT + Black...
  • Page 5 LE-D LE-D LE-F INSTALLATION AND OPERATION MANUAL FVT/FVR40D2I1C4E LE-F ALARM ALARM FIGURE 6 – DATA SWITCH POSITIONS The mode for each data channel is configured using a set of two switches labeled DATA1 (S3) and DATA2 (S4), located on the front panel of the unit. DATA1 DATA1 DATA1 (S3)
  • Page 6 INSTALLATION AND OPERATION MANUAL FVT/FVR40D2I1C4E FIGURE 8 – DATA CONNECTIONS See Page 5 for Switch Settings Customer Customer Equipment FVT40D2I1C4E Equipment FVR40D2I1C4E Data Transmit DIN(-) Data Receive DOUT(+) RS232 Data Receive DOUT(+) Data Transmit DIN(-) Signal Ground Signal Ground Data Out (+)
  • Page 7 FVT/FVR40D2I1C4E FIGURE 10 – SFP CONNECTIONS Number of fibers and type of fiber connectors will be determined by selected SFP modules and if point-to-point or redundant modes are required. FVT40D2I1C4E FVR40D2I1C4E 4 CH VIDEO TX + 4 CH VIDEO RX +...
  • Page 8 NOTE: These switch settings refer to the trans- inputs can be detected but open circuits cannot be detected. mitter (FVT40D2I1C4E). On the receiver Parallel Supervision – When a 1K resistor is connected in parallel (FVR40D2I1C4E), S1 SWITCH 1 inverts the across the contact closure input.
  • Page 9 INSTALLATION AND OPERATION MANUAL FVT/FVR40D2I1C4E CONTACT DATA1 FIGURE 14 – ALARM SWITCH POSITIONS The mode for alarm operation is configured using a set of two switches labeled ALARM (S2) located on the front panel of the unit. There are two alarm out- LE-D puts on each unit.
  • Page 10 8 TURNBERRY PARK ROAD | GILDERSOME | MORLEY | LEEDS, UK LS27 7LE T: +44 (0)113 307 6400 | F: +44 (0)113 253 7462 | INFO-EUROPE@COMNET.NET © 2018 Communications Networks Corporation. All Rights Reserved. “ComNet” and the “ComNet Logo” are registered trademarks of Communication Networks, LLC. INS_FVT/FVR40D2I1C4E_REVA 06/22/12 PAGE 10...
