操作说明

4

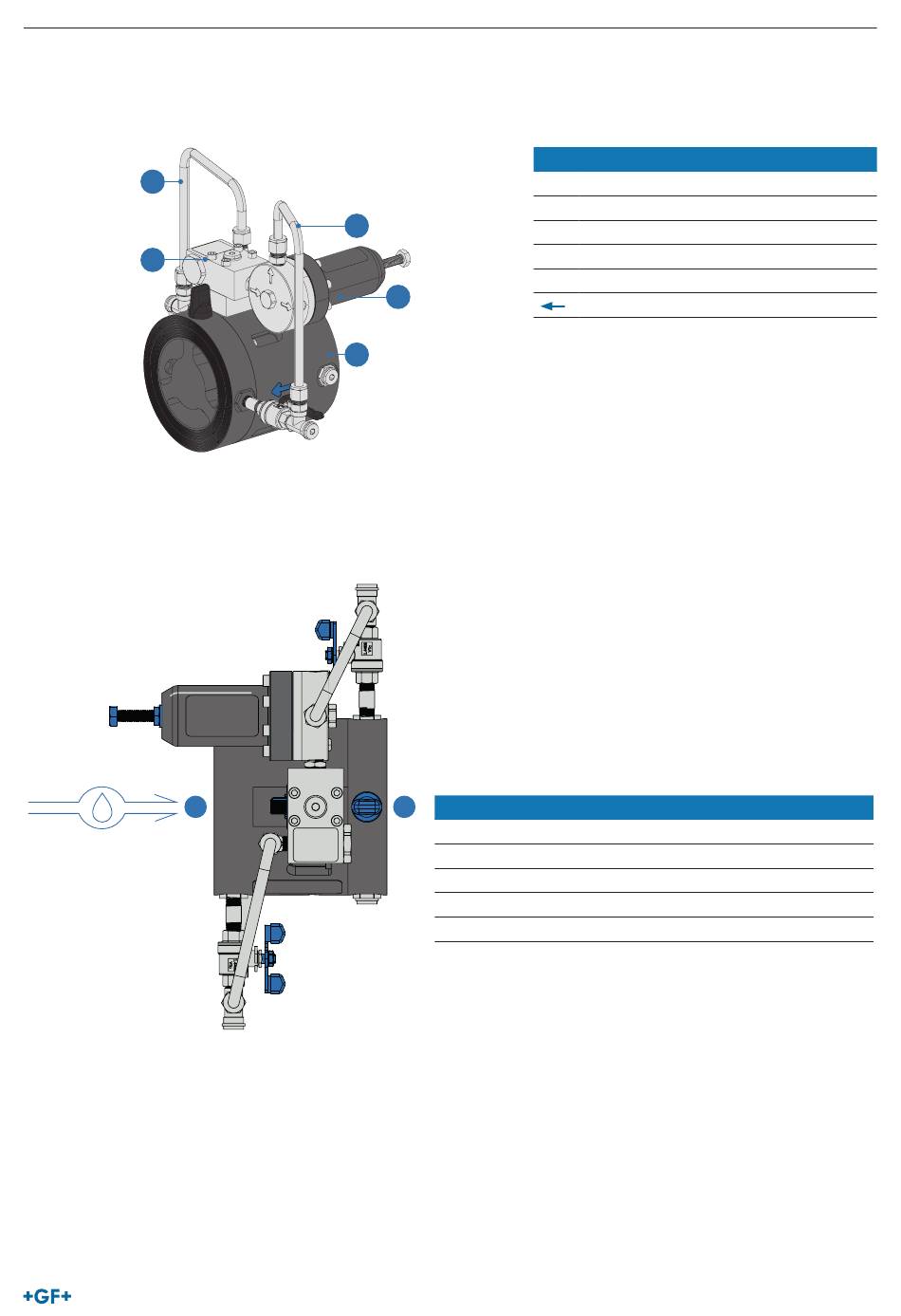

结构和功能

4.1

组件

4

2

4.2

阀门名称

AS

P1

PU

5

3

1

PD

KH2

SV

CV

P2

KH1

编号名称

1

主体

2

控制块

3

先导阀

4

入口侧控制管道

5

出口侧控制管道

介质流向

名称

KH1

入口侧球阀

KH2

出口侧球阀

SV

设置速度控制

CV

控制室截止阀

AS

先导阀上的调节螺栓

NeoFlow 减压阀

325
